Single monitor (HDMI or VGA) or dual-mirrored (HDMI/VGA) video adapter with audio and power delivery pass-through
This USB-C™ Multiport Video Adapter offers a portable solution for connecting USB Type-C devices to HDMI and/or VGA displays, with up to 100W of Power Delivery.
Versatile Video Connectivity

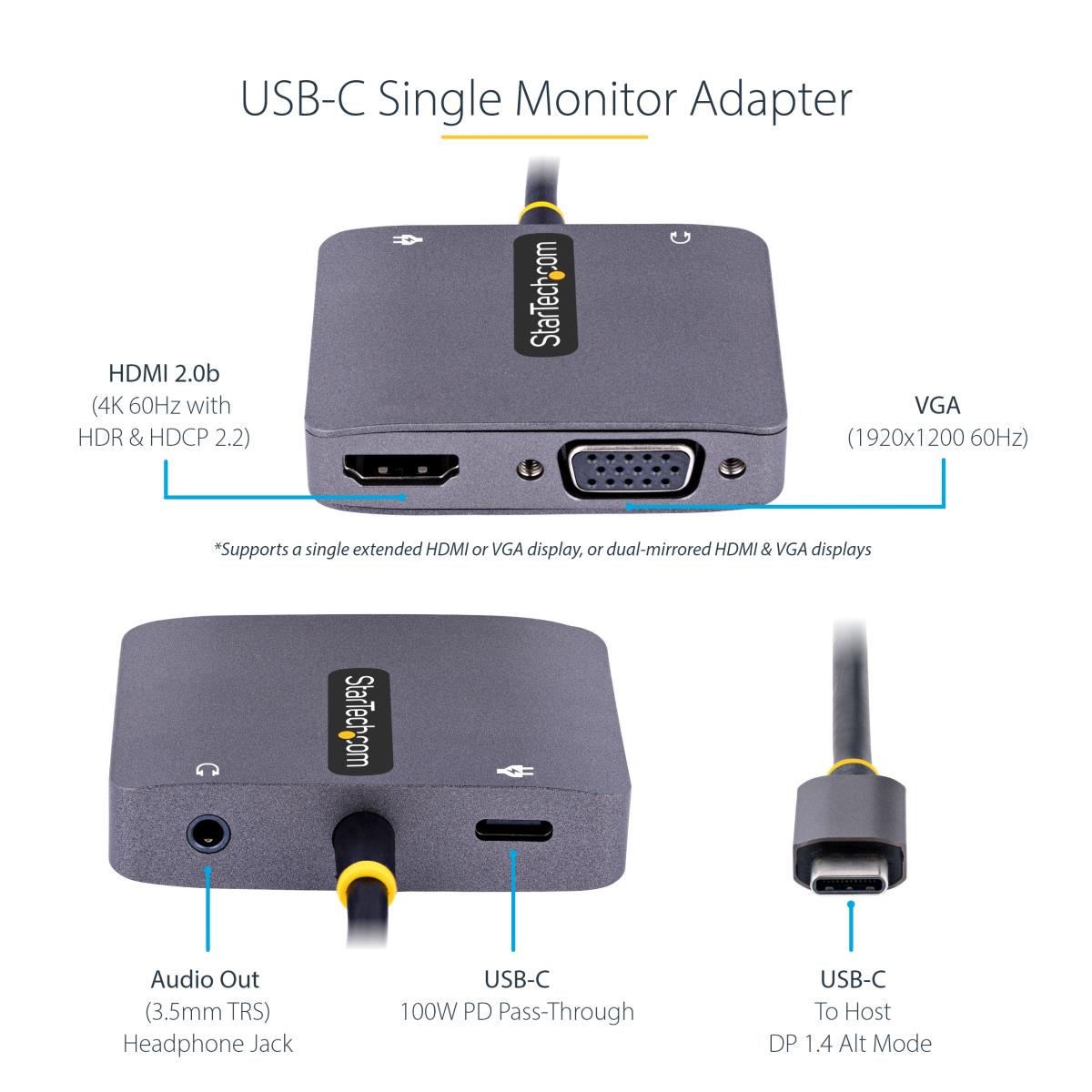

This Multiport Adapter supports a single HDMI display at resolutions up to 4K 60Hz, a single VGA display at resolutions of up to 1920x1200 60Hz or dual-mirrored HDMI and VGA displays at resolutions of up to 1080p. The 3.5mm audio port can be used for connecting speakers while presenting with a VGA projector/display, or headphones.
Extended Cable Length

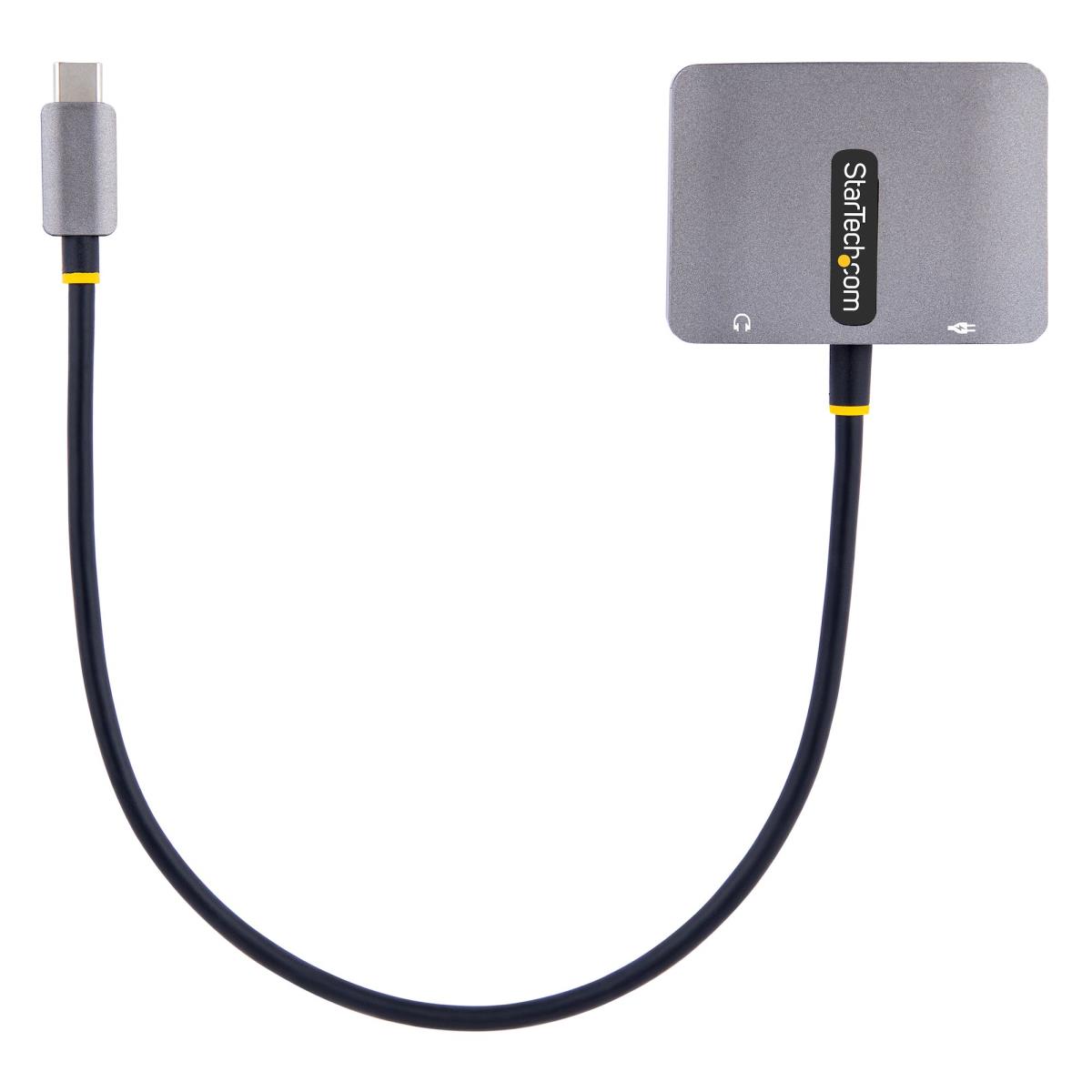

The adapter is equipped with an extra-long 12 inch (30cm) attached cable, providing an extended reach, to reduce port and connector strain on 2-in-1 devices, tablets, or laptops on risers/stands.
Power Delivery
The USB C to HDMI and VGA Adapter is bus powered for easy use while traveling. Optionally, connect a USB-C power adapter and charge your laptop using the Power Delivery 3.0 pass-through feature, supporting up to 100W charging.
Connectivity for Any Laptop
The USB Type-C Display Adapter is compatible with USB-C DisplayPort Alt-mode, Thunderbolt 3, and Thunderbolt 4 enabled laptops, Ultrabooks, Chromebooks, and MacBooks. Plug and play (driver/software free) compatibility with any operating system such as Windows, macOS, iPadOS, Chrome OS, and Linux.
Note:
The 3.5mm audio output will not be active unless a display is connected to the product. This adapter does not support MST or dual extended displays.
The StarTech.com Advantage
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Maximum transfer distance | 30 m |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) output | Yes |
| HDMI version | 2.0b |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Audio output channels | 7.1 channels |
| Design | |
| Product colour | Grey |
| Integrated USB cable | Yes |

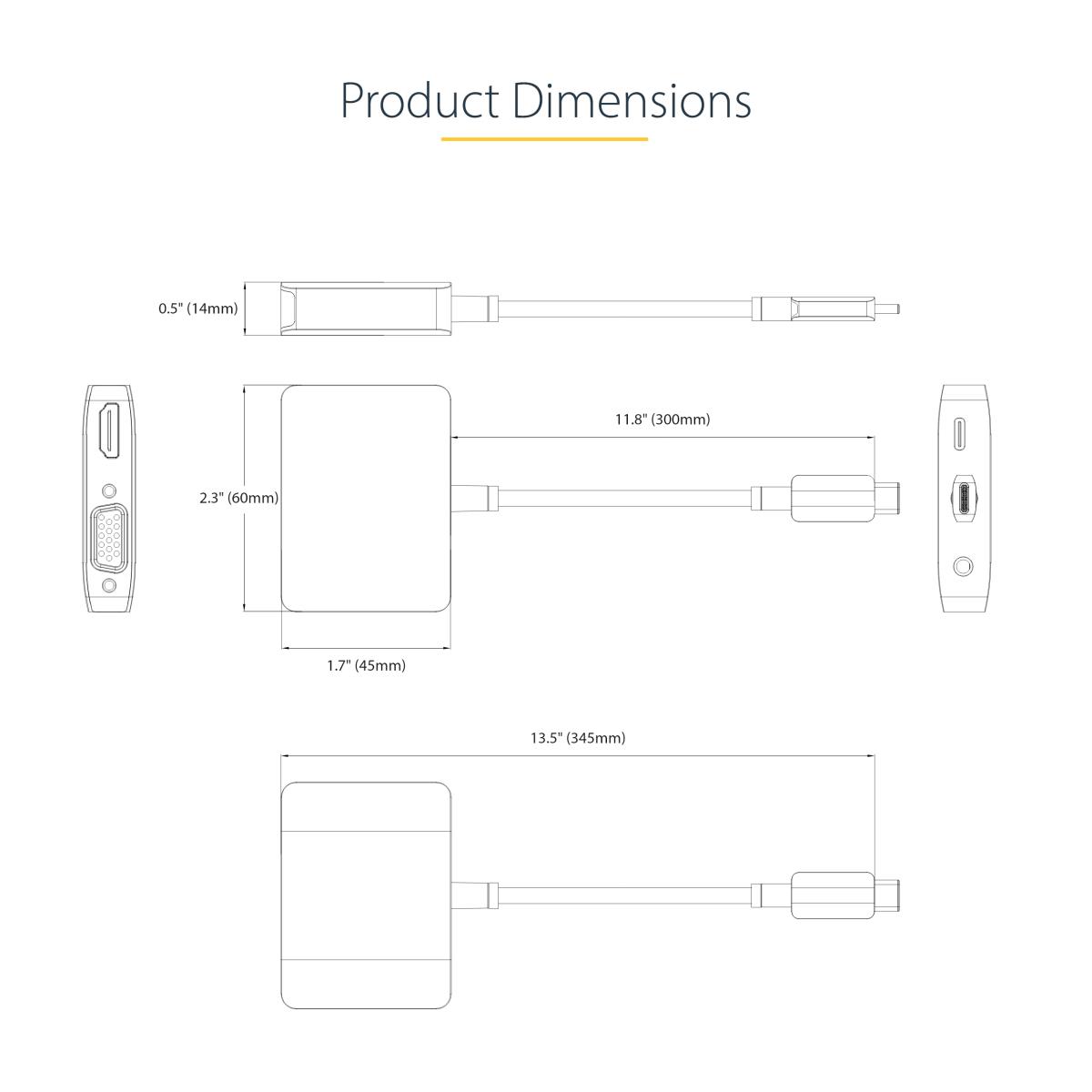

| Weight & dimensions | |
| Width | 60 mm |
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 41 g |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 145 mm |
| Package height | 30 mm |
| Package weight | 245 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733020 |
