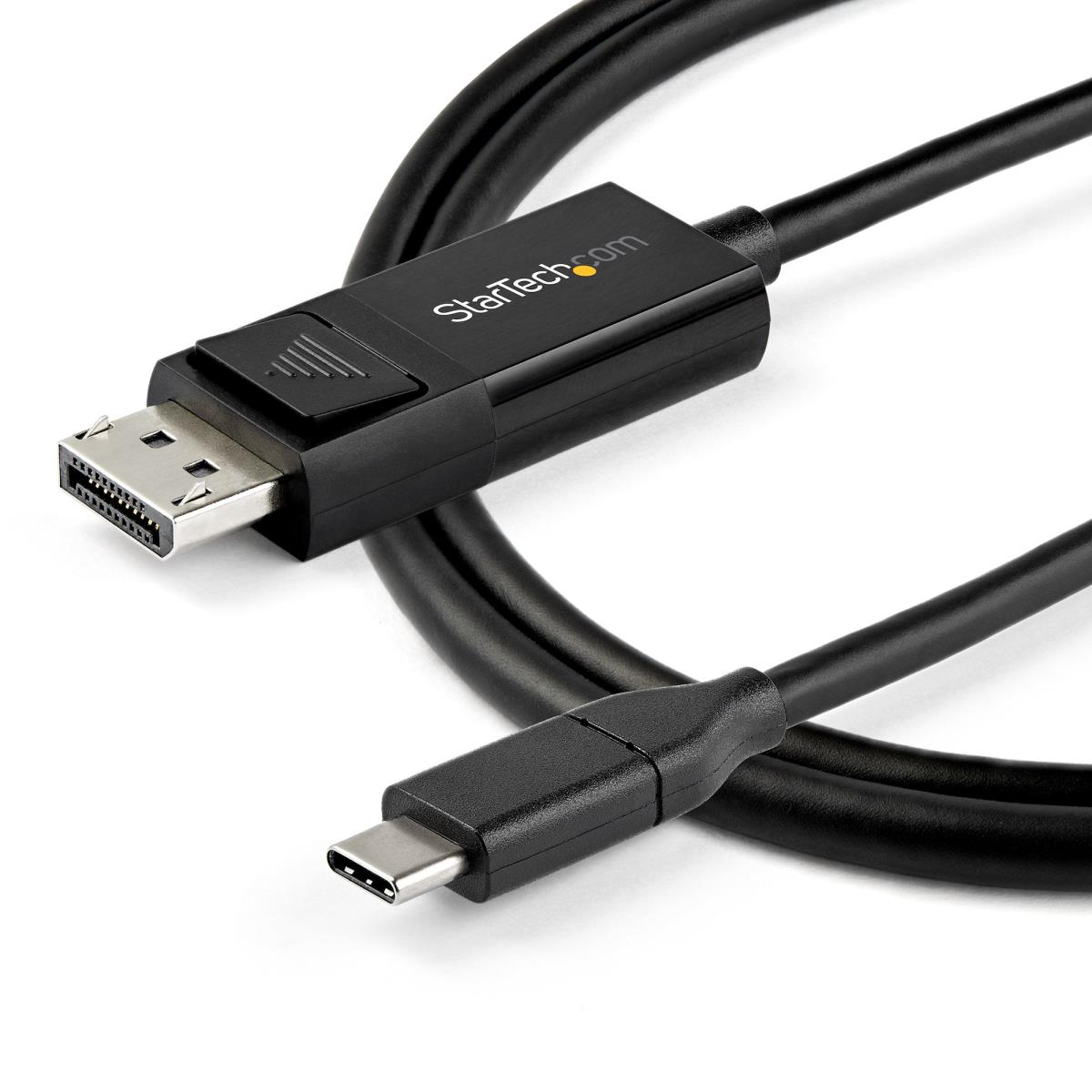

USB-c To DisplayPort Adapter Cable - 8k 30hz -2m Bi-directional
ITCurry #: 75648354 | Article #: CDP2DP142MBD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3
This USB-C™ to DisplayPort™ 1.4 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 60Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
• Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
• This cable is not compatible with the Surface Dock 2.
The StarTech.com Advantage
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 2 m |

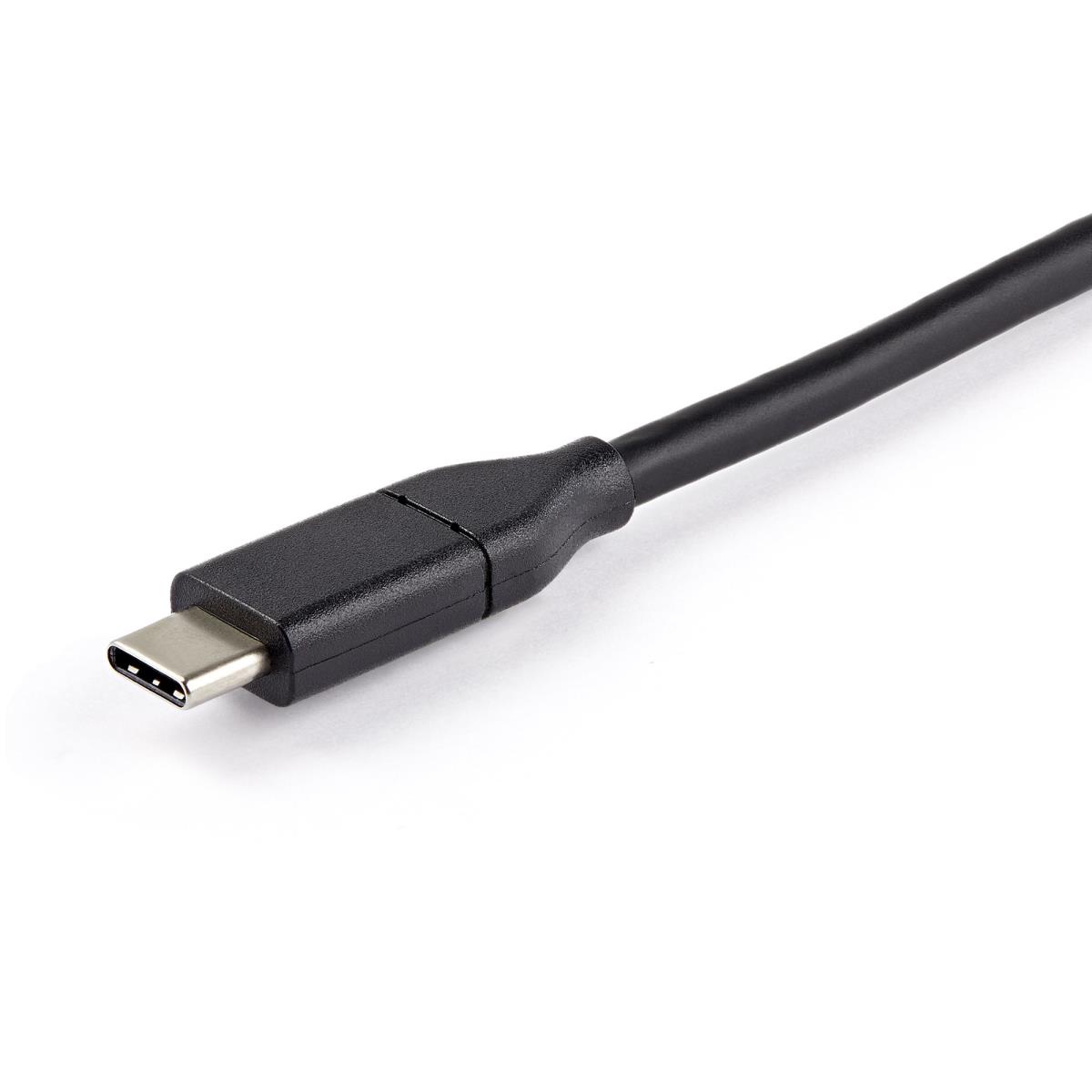

| Connector 1 | USB Type-C |

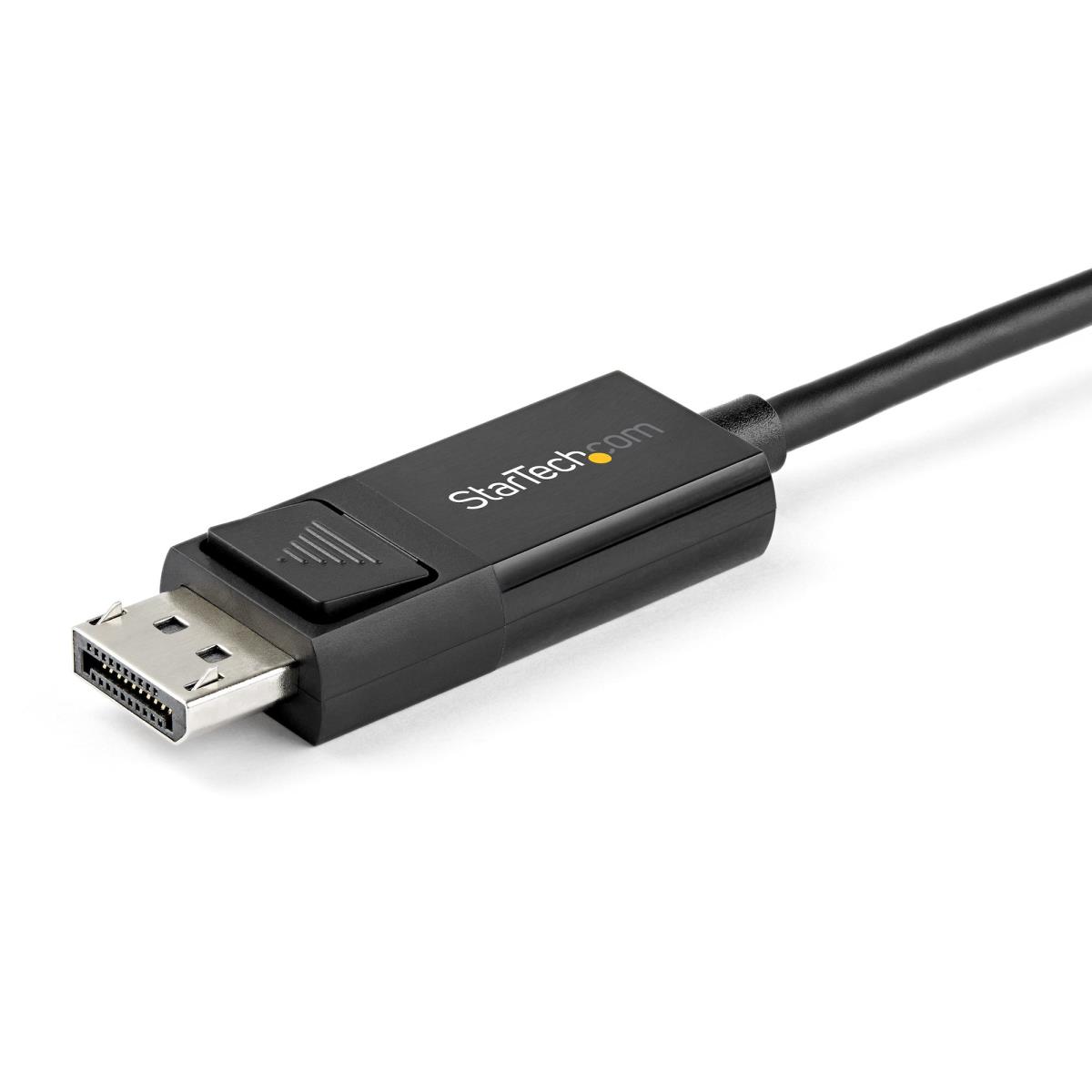

| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 79 g |

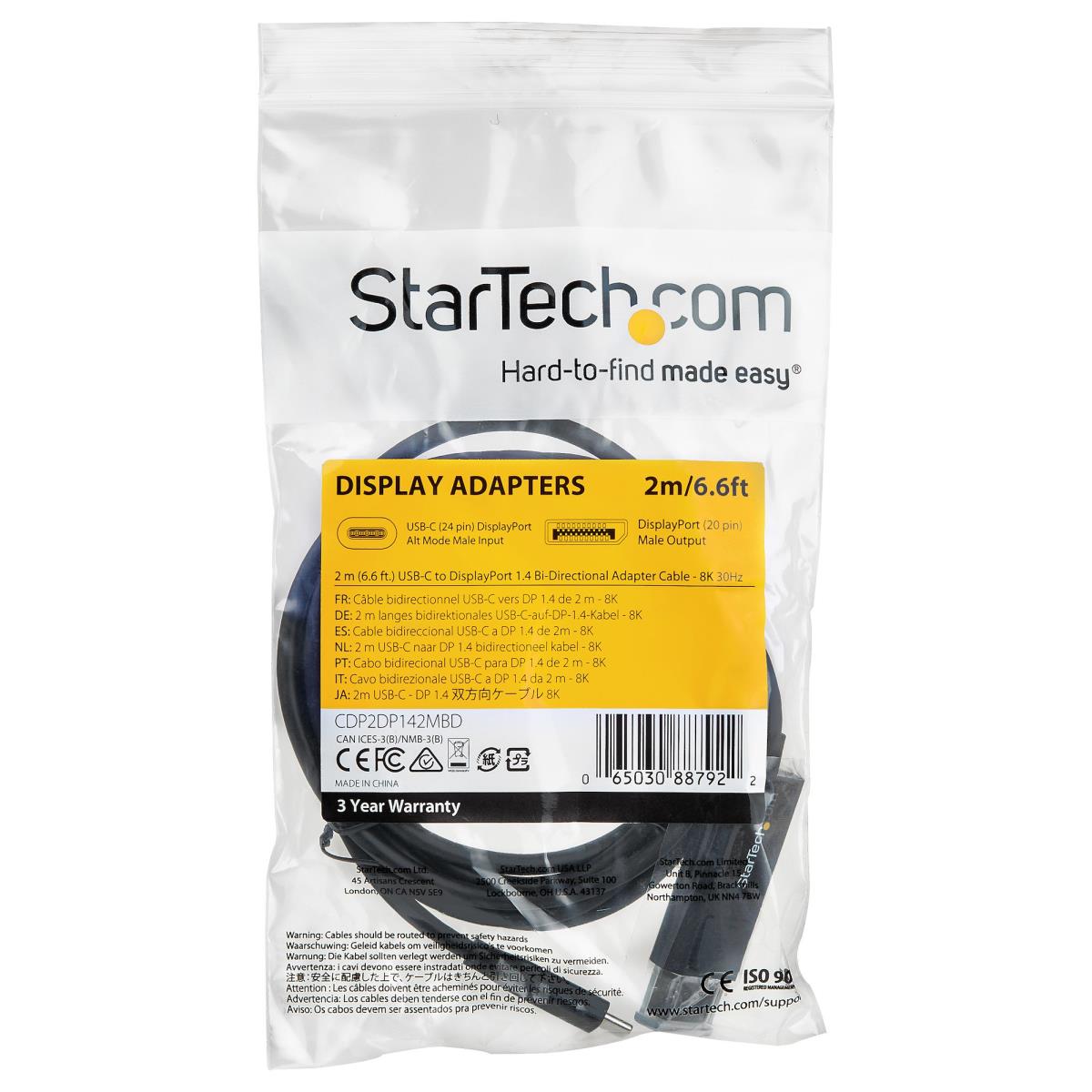

| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 25 mm |
| Package weight | 85 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 80 pc(s) |
