USB-c Multiport Adapter - Hdmi Vga - 95w Pd - Mac/windows/chrome
ITCurry #: 75647874 | Article #: DKT30CHVGPD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

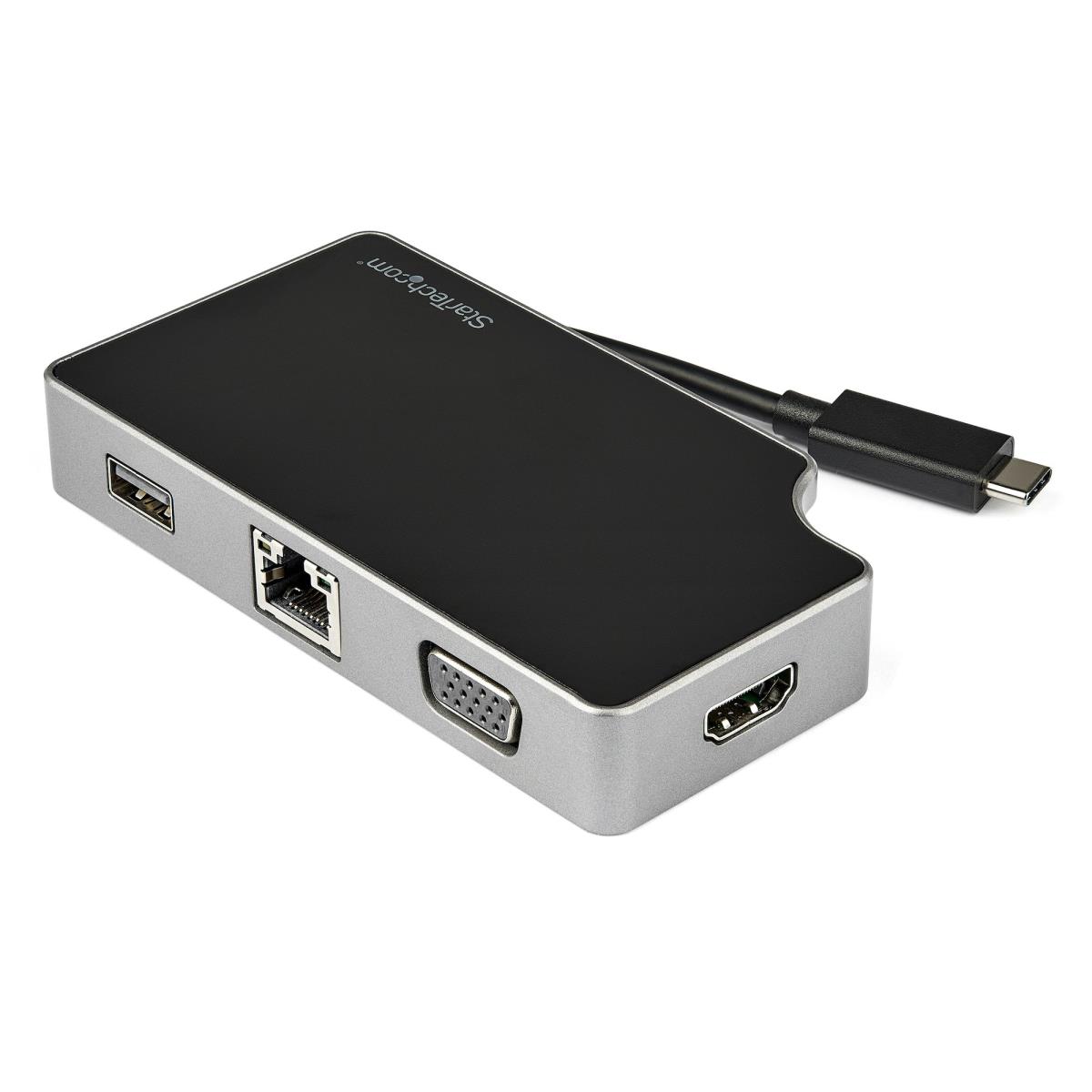

MacBook Pro USB-C Multiport Adapter | Aluminum | USB-A | GbE | Hideaway Cable
Maximize your productivity during business travel. This USB-C multiport adapter with HDMI and VGA is like four adapters in one, giving you flexible video output, a USB 3.0 port and Gigabit Ethernet port, a hideaway cable, plus robust power and charging.
With easy plug-and-play installation on most operating systems, the USB-C adapter doesn’t require additional drivers or software. It’s the perfect accessory for MacBook, Dell XPS, Chromebook or other USB-C laptops.

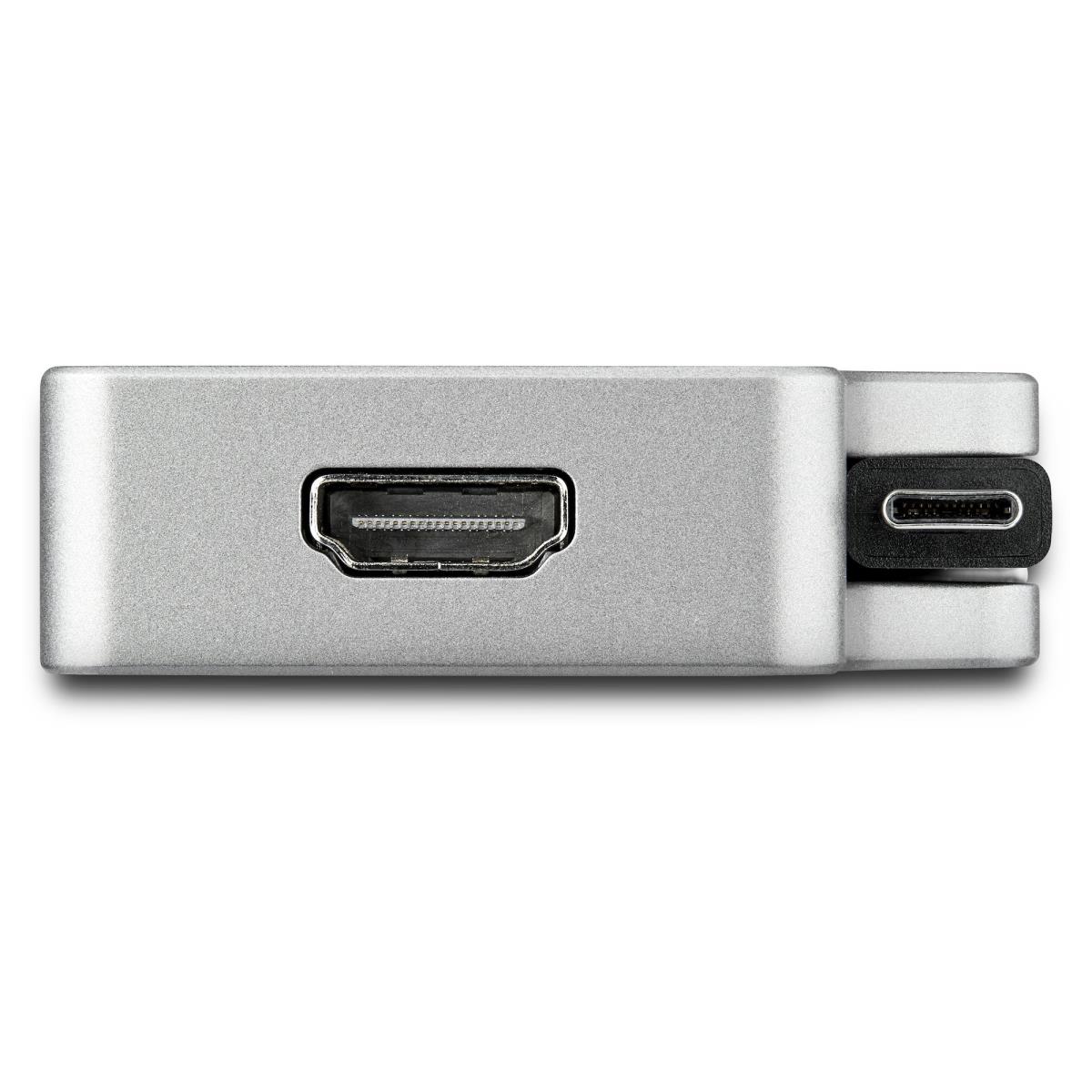

Connect a UHD 4K HDMI or VGA Monitor
The USB-C to HDMI and VGA adapter keeps you prepared for business travel. Extend your laptop’s display by connecting to a 4K HDMI (4096 x 2160 or 3840 x 2160 resolution) or VGA (1920 x 1200) monitor or projector, to make presentations or set up a workstation.
Powerful Laptop Charging
With support for 95W Power Delivery 3.0 (PD 3.0), the USB Type-C multiport adapter provides up to 85W laptop charging while also powering your peripheral when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).

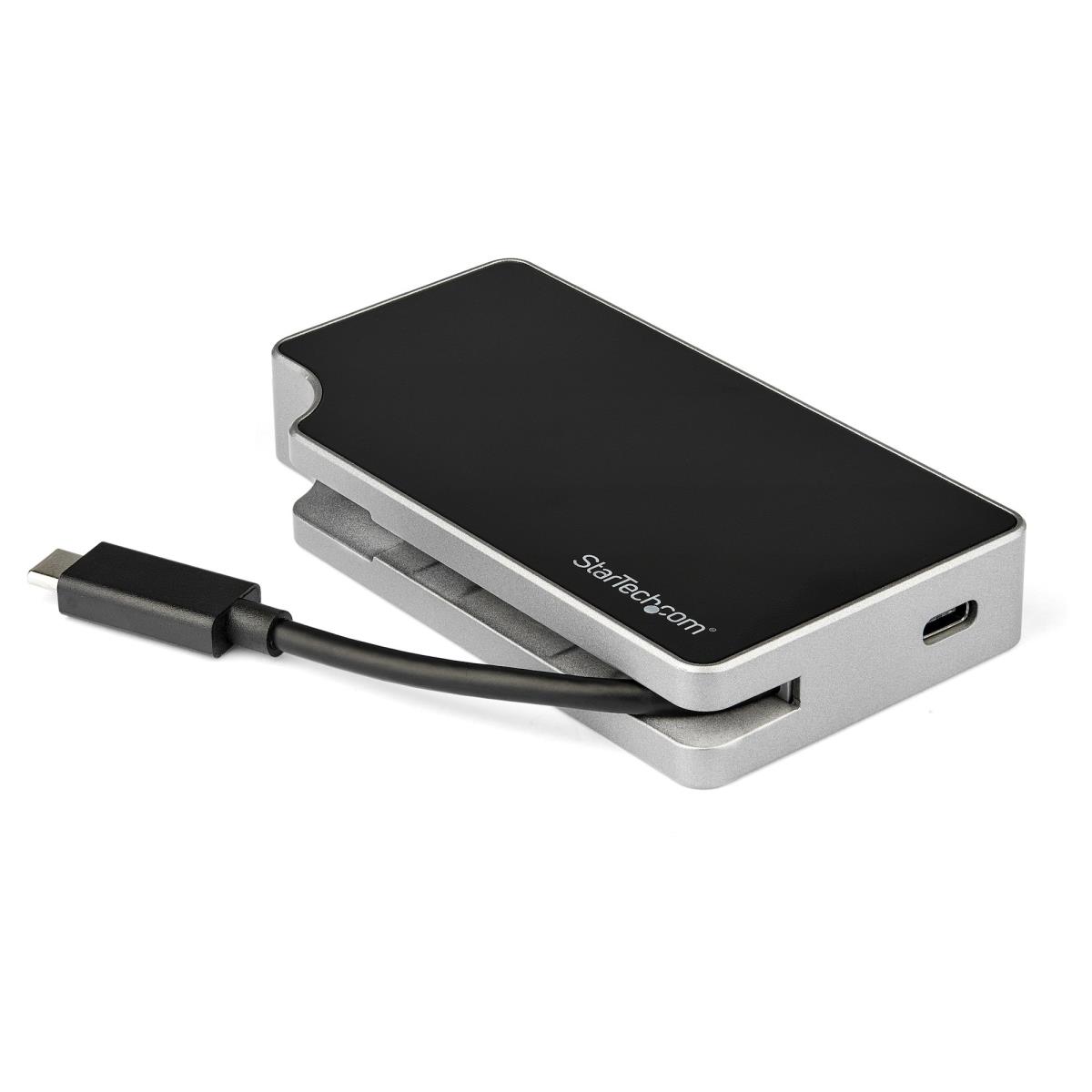

Convenient Cable Management
With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock. Plus, it’s bus powered for easy portability.
Enhance Productivity
The USB-C adapter lets you add a flash drive, mouse or other device using the Type-A port. Add wired network connectivity with the GbE port.

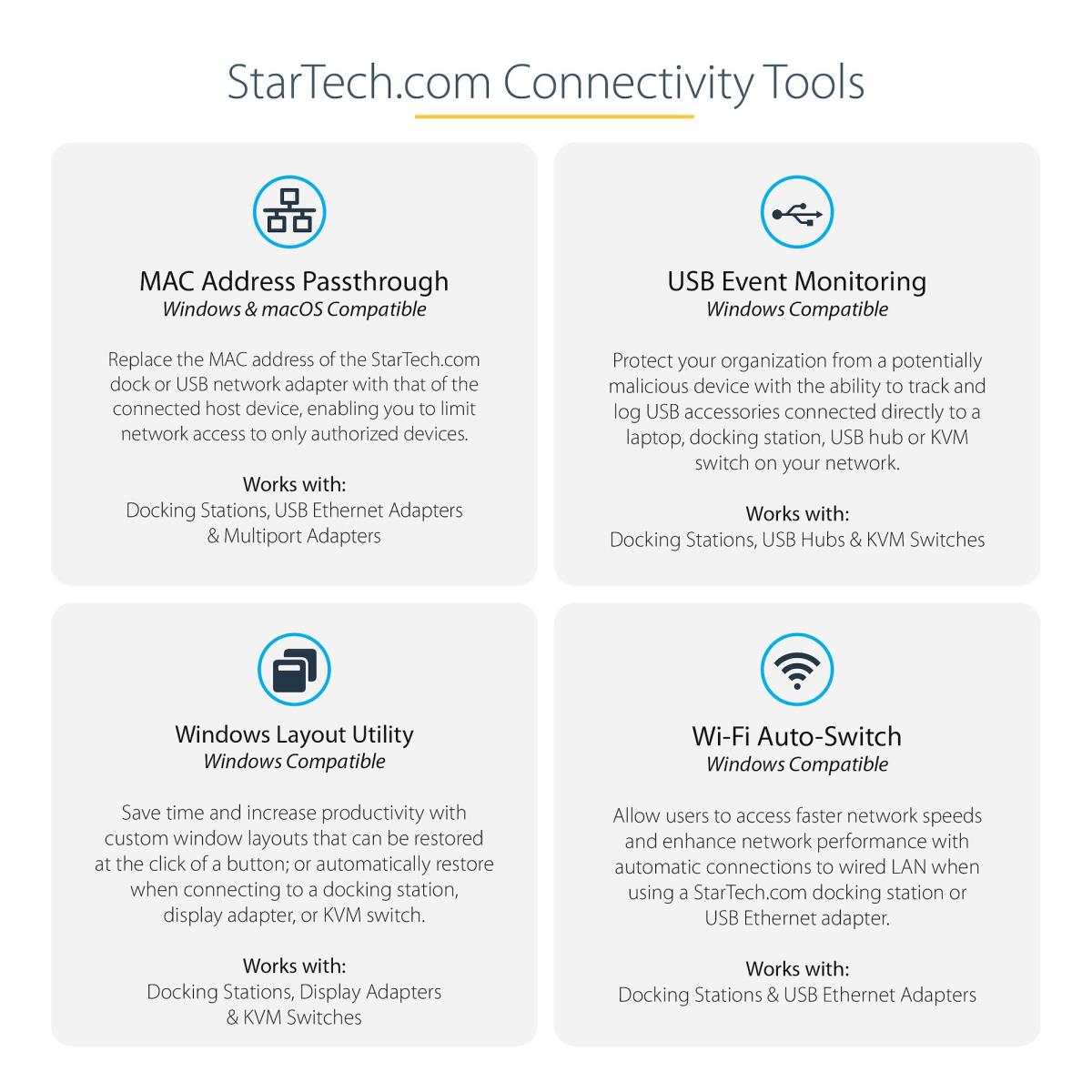

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
DKT30CHVGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| 10G support | No |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Product colour | Black, Grey |
| UASP support | Yes |
| Housing material | Aluminium |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
| Power | |
| Power source type | USB |
| Power supply | 95 W |
| Power consumption (typical) | 10 W |
| Warranty | |
| Base Warranty | Non Non |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 65 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 110 mm |
| Height | 18 mm |
| Weight | 254 g |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 166 g |
| Packaging content | |

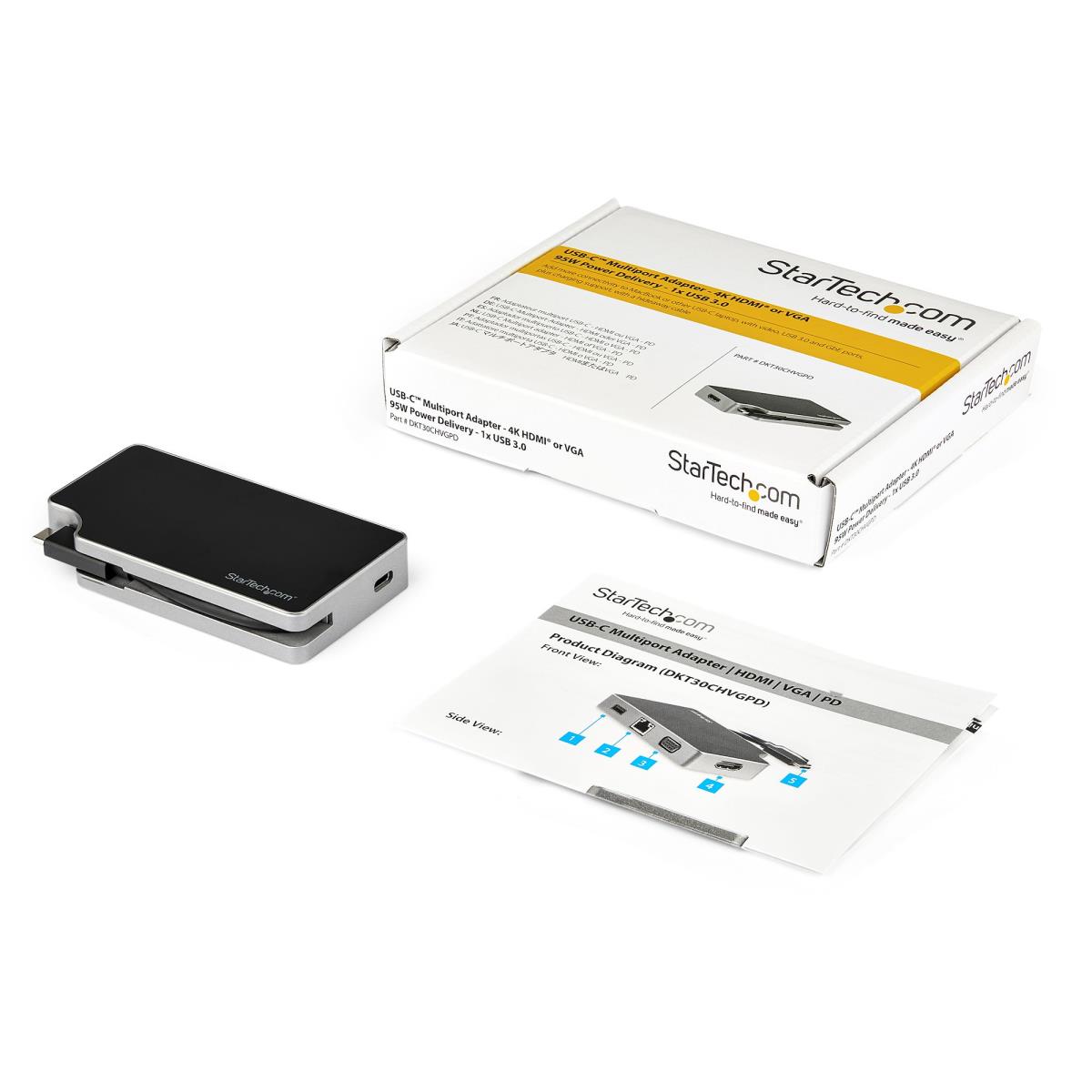

| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 334 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.085 m |
| Chipset | VIA/VLI - VL102, Realtek - RTS5411, Parade Technologies - PS8338B, Parade Technologies - PS176, ITE Tech - IT6516, Realtek - RTL8153 |
