USB C Multiport Adapter - 4k Hdmi/pd/USB
ITCurry #: 75648763 | Article #: DKT30CHSDPD
Related products
Product Information

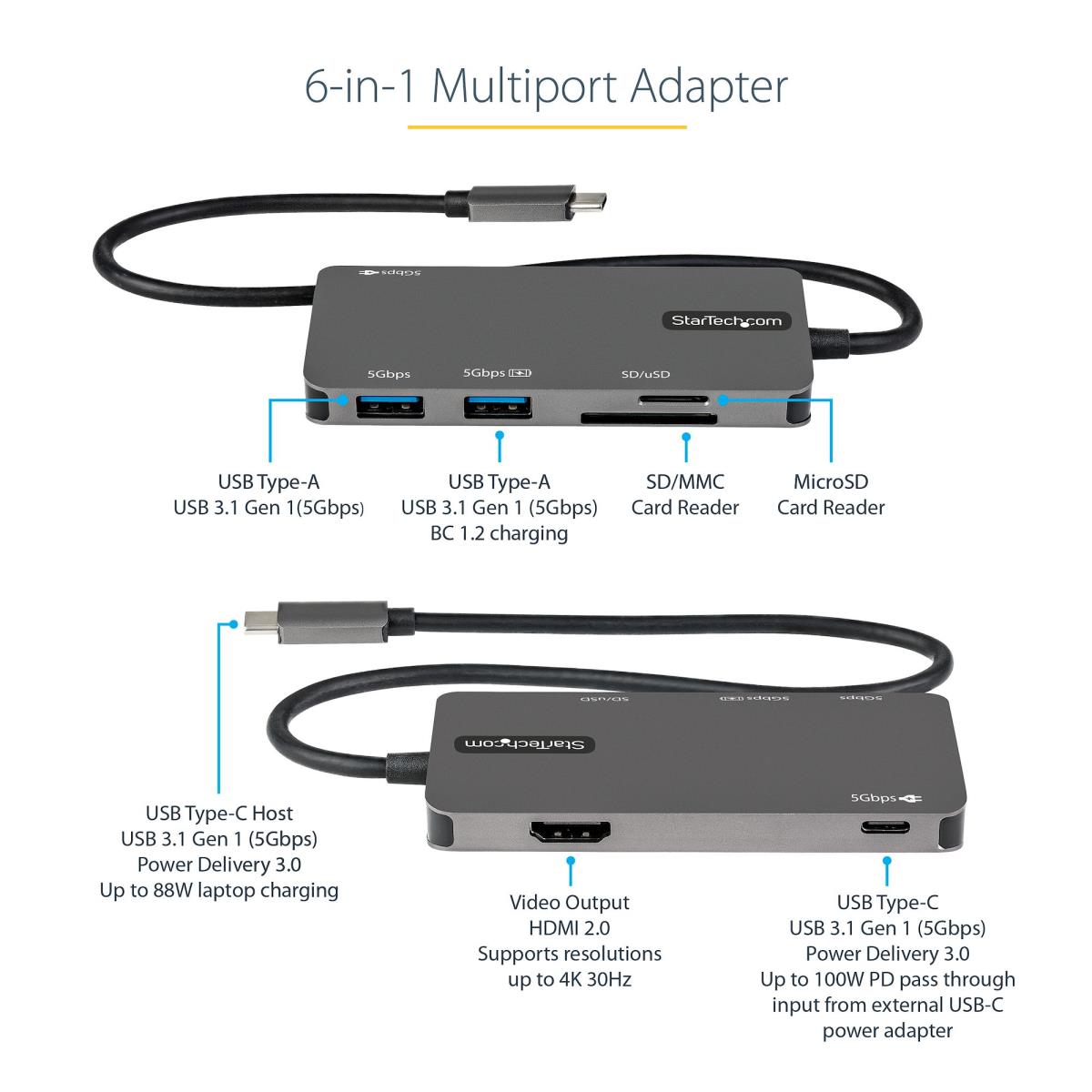

USB Type-C Multiport Adapter | 4K @ 30Hz HDMI | 2x USB-A | SD & MicroSD Card Reader | 100W Power Delivery Passthrough

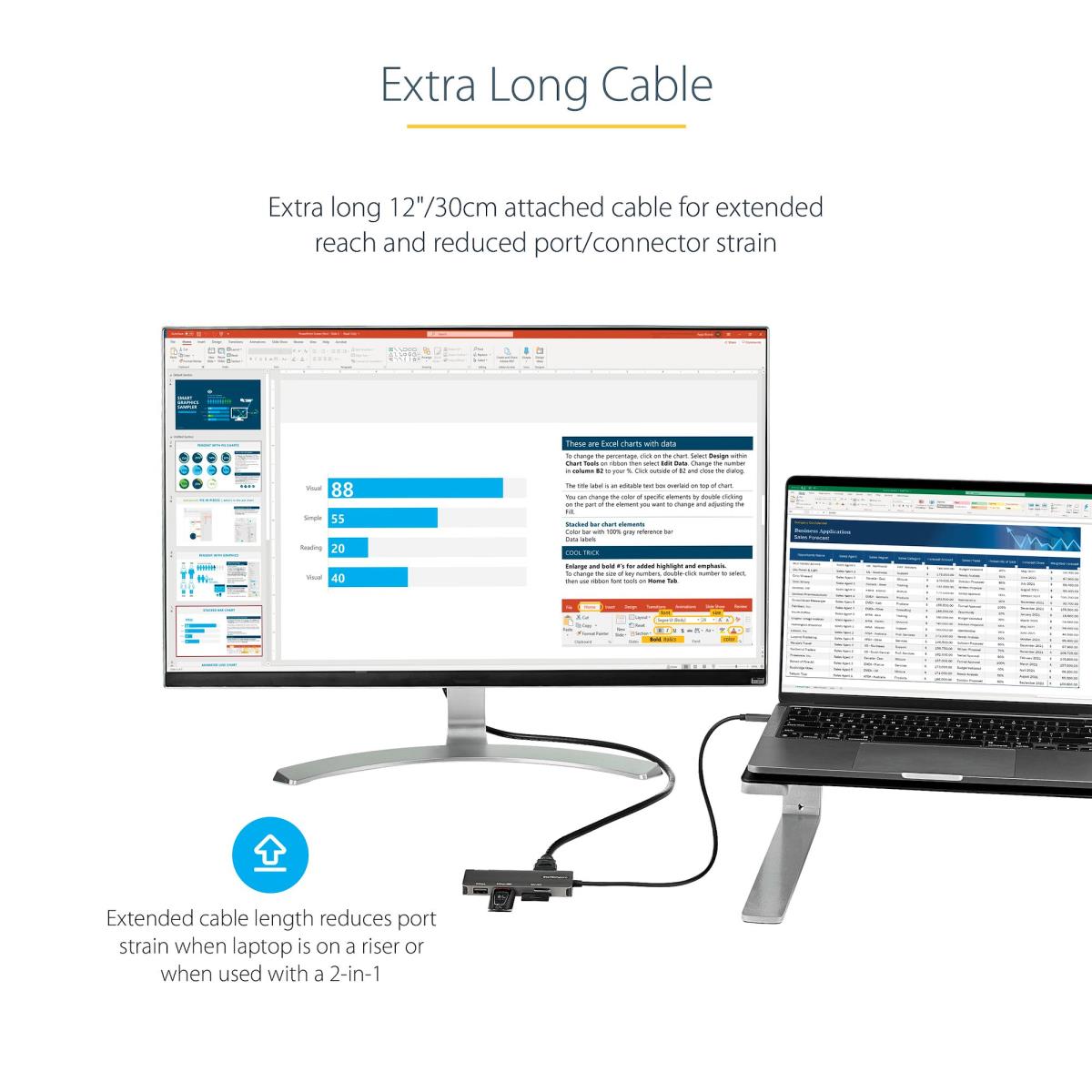

This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.2 Gen 2 Type-A (10Gbps) ports, and a USB Type-C™ port (power/data), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
Enhance Productivity

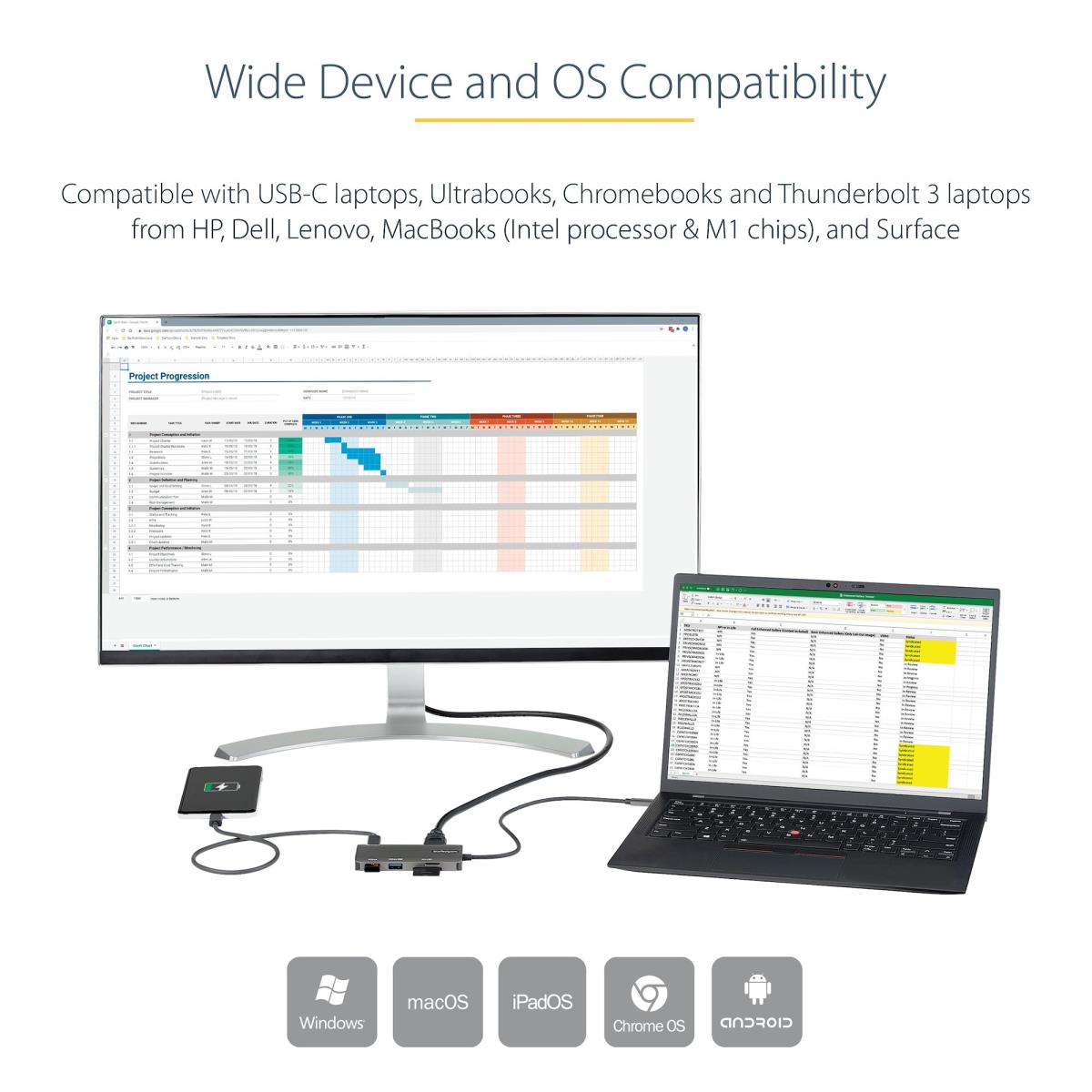

The portable docking station connects your laptop to a 4K 30Hz HDMI monitor (3840 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports one and a USB-C port (shared power/data) to connect your latest and legacy USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
The DKT30CHSDPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.
The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3440 x 1440 pixels |
| Maximum refresh rate | 60 Hz |
| Product colour | Grey |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 12 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Mobile operating systems supported | Android, iPadOS |
| Other operating systems supported | ChromeOS |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -10 - 55 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 310 mm |
| Depth | 52 mm |
| Height | 14 mm |
| Weight | 98 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 134 g |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.3 m |
| Chipset | Fresco Logic - FL7102, Parade - PS176, Fresco Logic - FL5001, ALCORMICR - AU84612 |
