USB C Audio + Charge Adapter 3.5mm Headset Jack + Pd Charging
ITCurry #: 75648674 | Article #: CDP235APDM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
USB Type-C™ to 3.5mm Headphone Adapter | Audio & Charge | 60W PD
This USB C audio adapter with 60W power delivery lets you convert the USB-C™ port of your device into a 3.5mm audio jack, while allowing you to charge your laptop, tablet or smartphone at the same time.
Listen & Charge Simultaneously

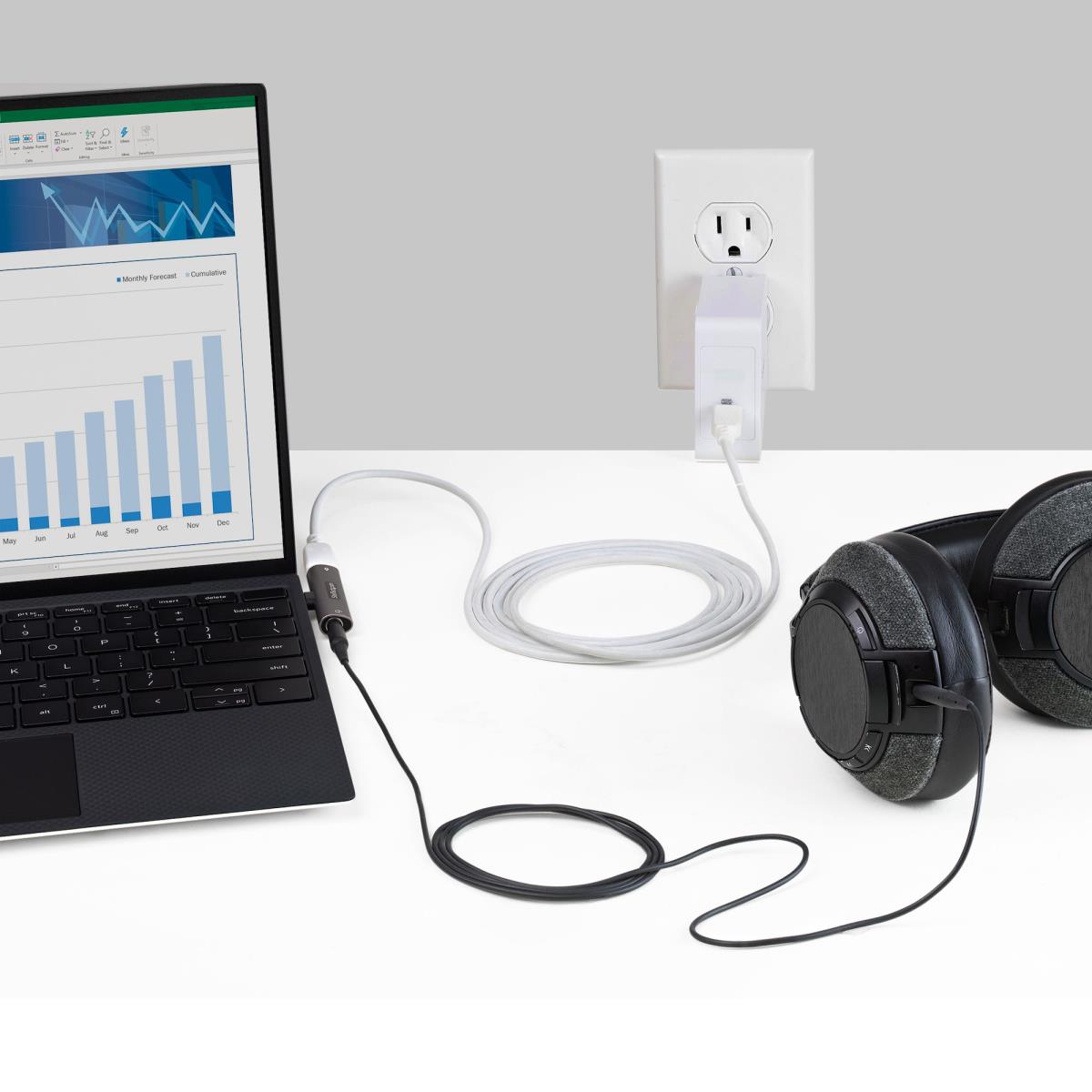

Make calls or listen to music with this USB audio and charging adapter. The 2 in 1 USB-C adapter with headphone jack and charging port allows you to continue to use your legacy headsets, speakers or microphones with your USB Type-C™ devices, while simultaneously charging your device through Power Delivery pass through with Type C power adapter connected. The adapter also supports Quick Charge (QC 2.0) and BC 1.2 charging.
Sleek and Portable Design

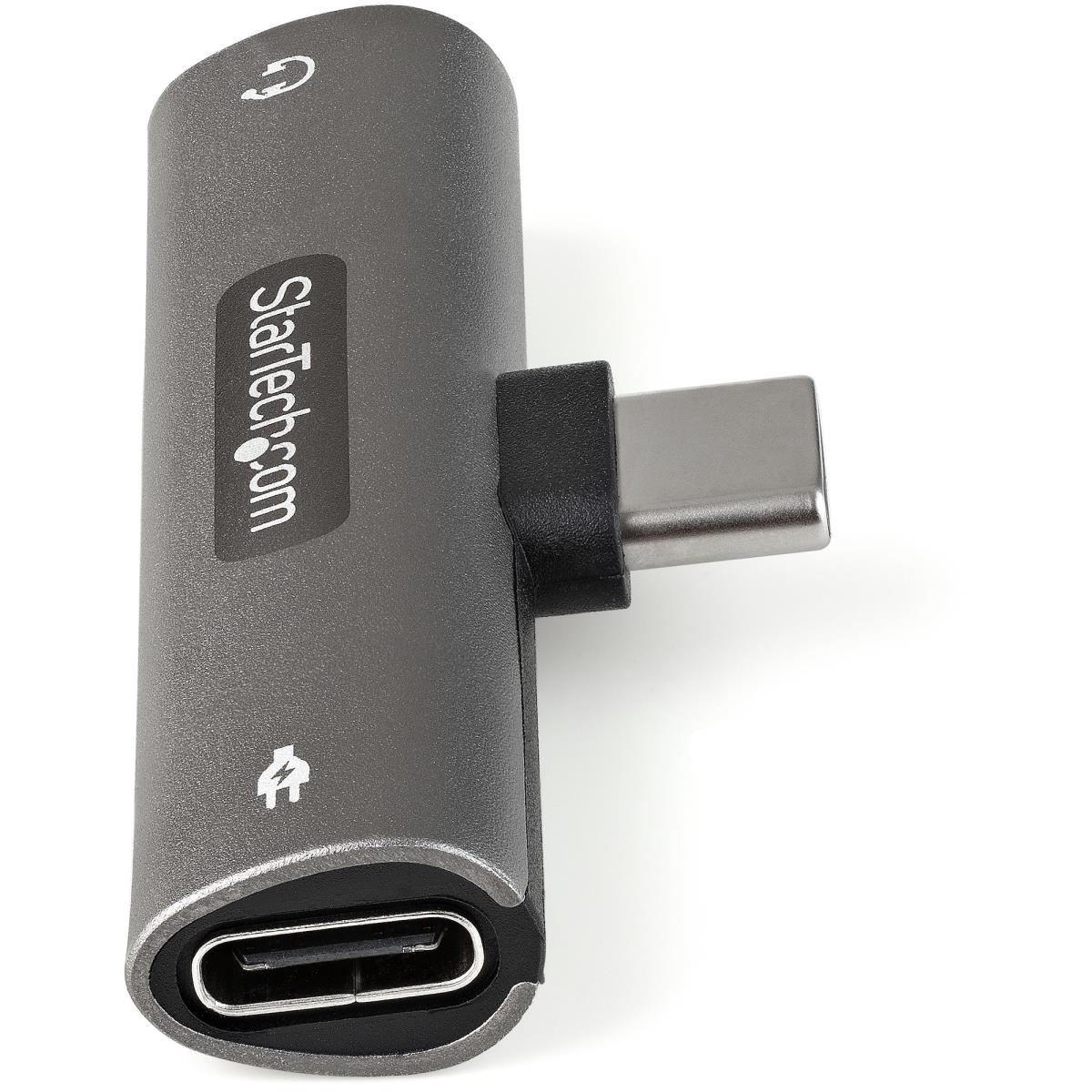

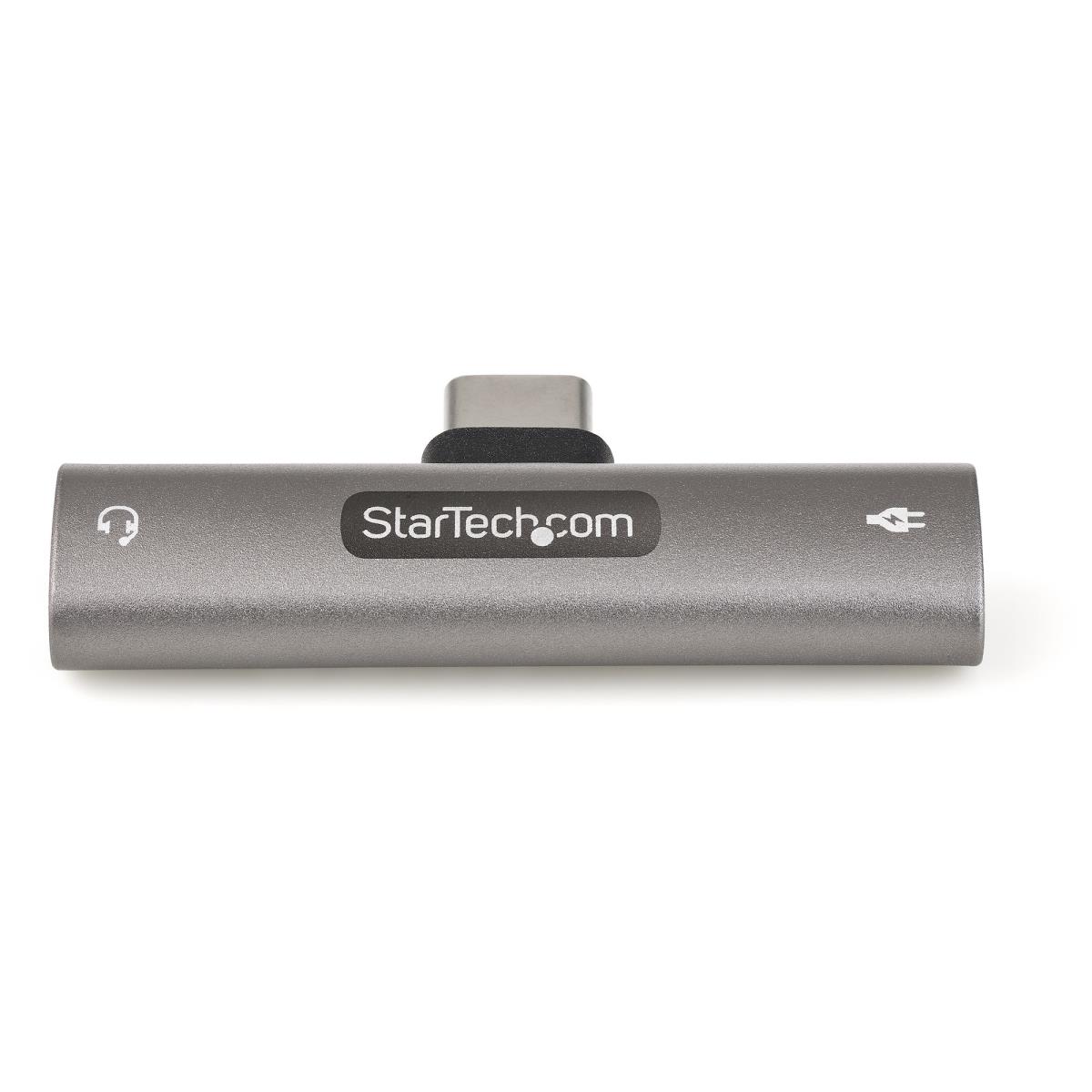

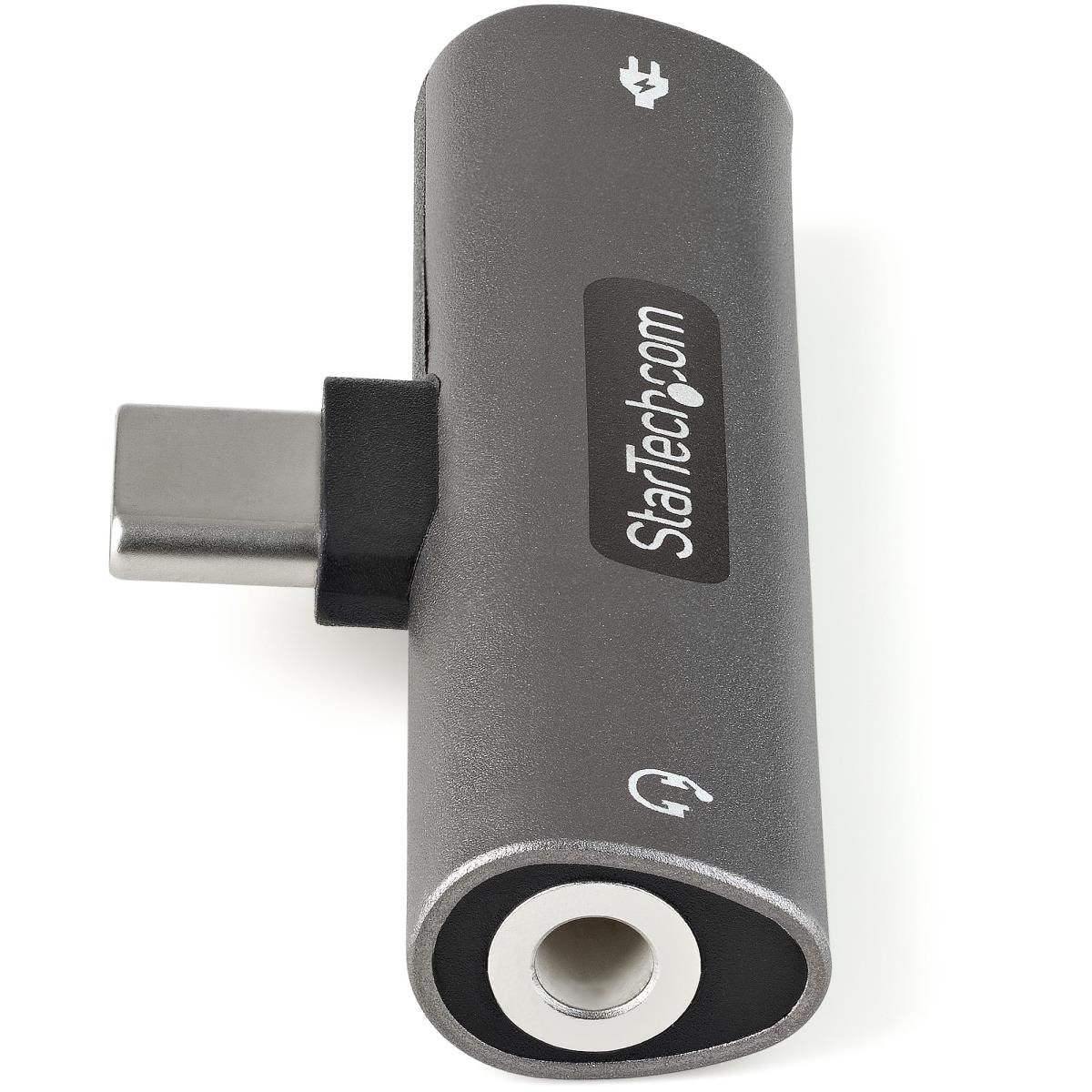

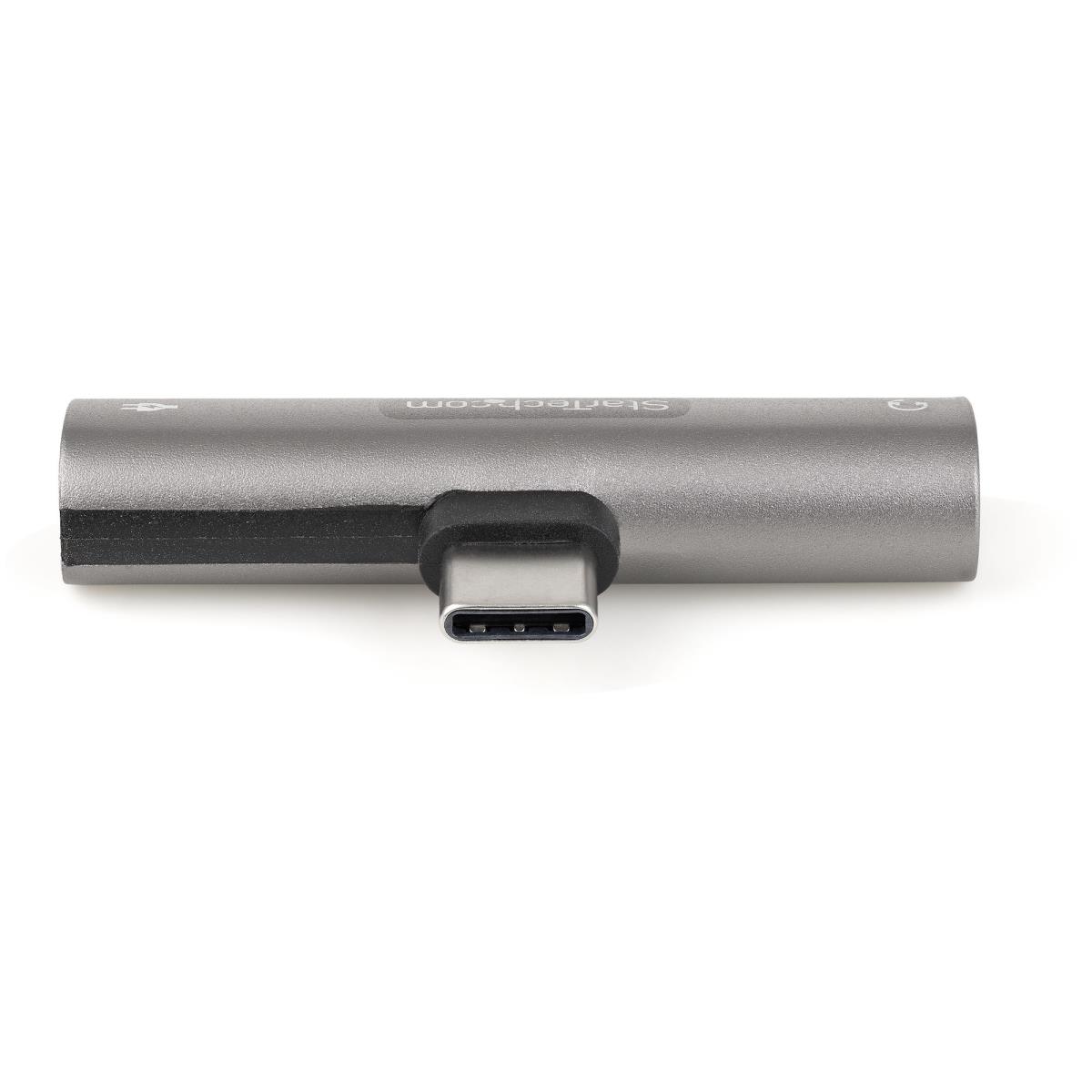

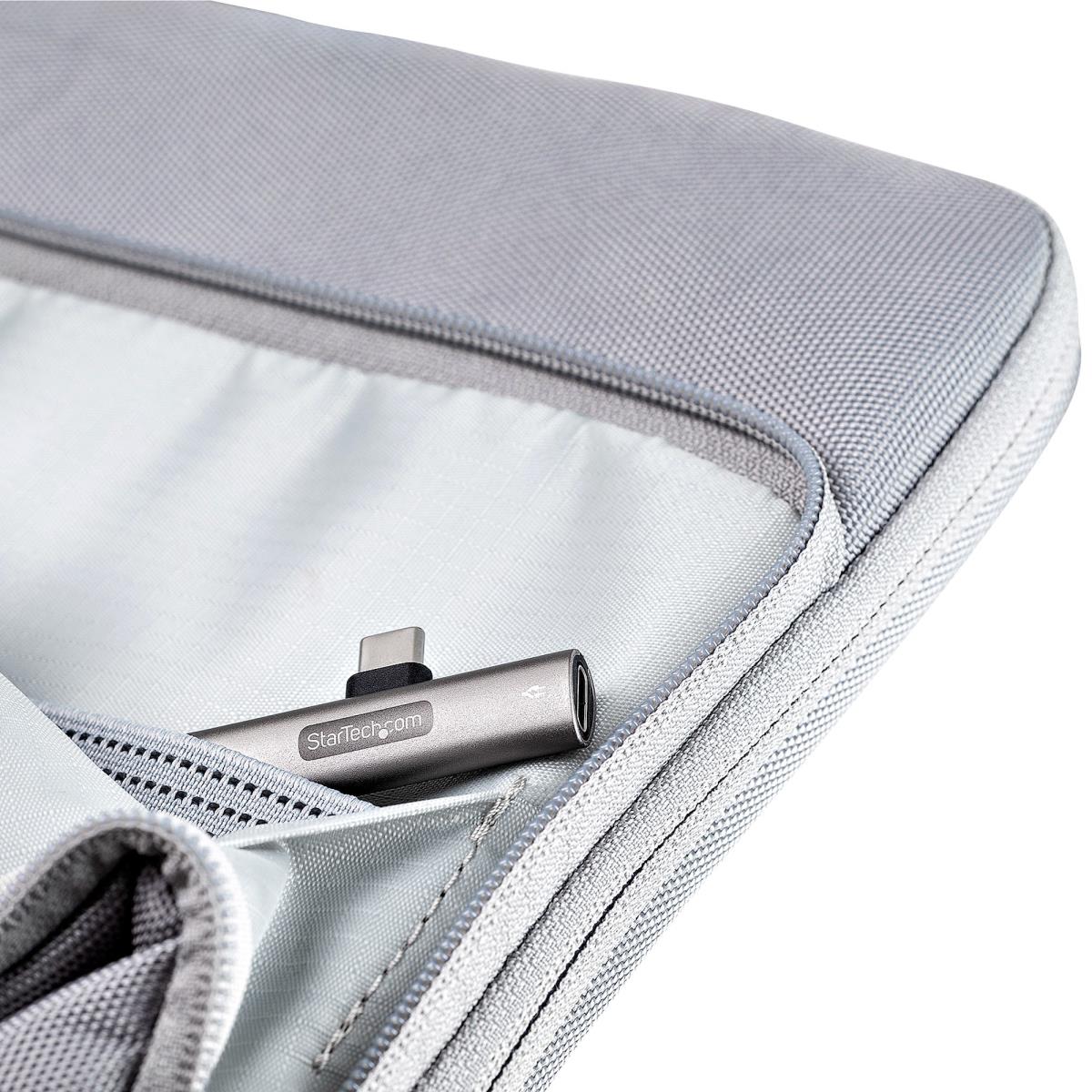

The USB Type C to aux adapter features a cable-less, dongle design with a convenient side-port layout to reduce cable clutter, making it perfect for professionals at their workstation or on-the-go. Constructed of high-quality materials, the portable adapter provides a reliable and affordable audio solution for your USB-C devices that do not have a 3.5mm input.
Wide Compatibility
This USB C to headphone jack is universally compatible enabling you to use your existing wired headset with your USB Type-C or Thunderbolt 3 device, including the MacBook Pro, iPad Pro, Samsung Galaxy and Note.
CDP235APDM is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| Combo headphone/mic port | Yes |
| Performance | |
| Product colour | Silver |
| Hub interfaces | 3.5mm, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Housing material | Metal |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported | Mac OS X 13.0 Ventura |
| Other operating systems supported | Android |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 22.5 mm |
| Depth | 49.9 mm |
| Height | 9 mm |
| Weight | 8 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 125 mm |
| Package height | 1 mm |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 250 pc(s) |
| Master (outer) case width | 216 mm |
| Master (outer) case length | 324 mm |
| Master (outer) case height | 190 mm |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | BCC2102, SB09-214082-CD011-A1.05 |
