Universal Server Rack Rails 1u Fixed 19 Inch Adjustable Depth
ITCurry #: 75645493 | Article #: UNIRAILS1U-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

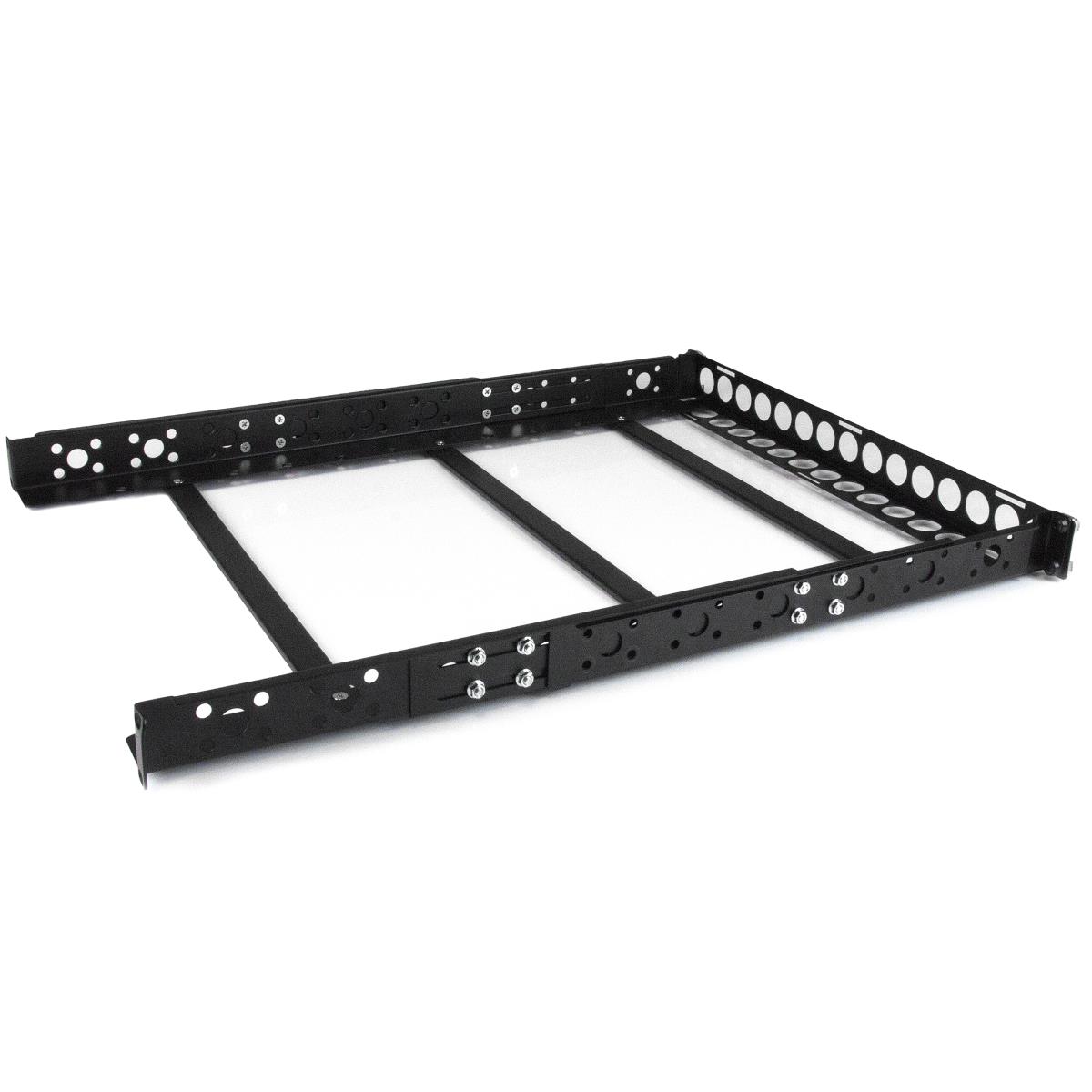

Mount 19" Servers or Networking Hardware in any Standard Rack
These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.
Turn non-rackmount equipment into 1U rackmount hardware

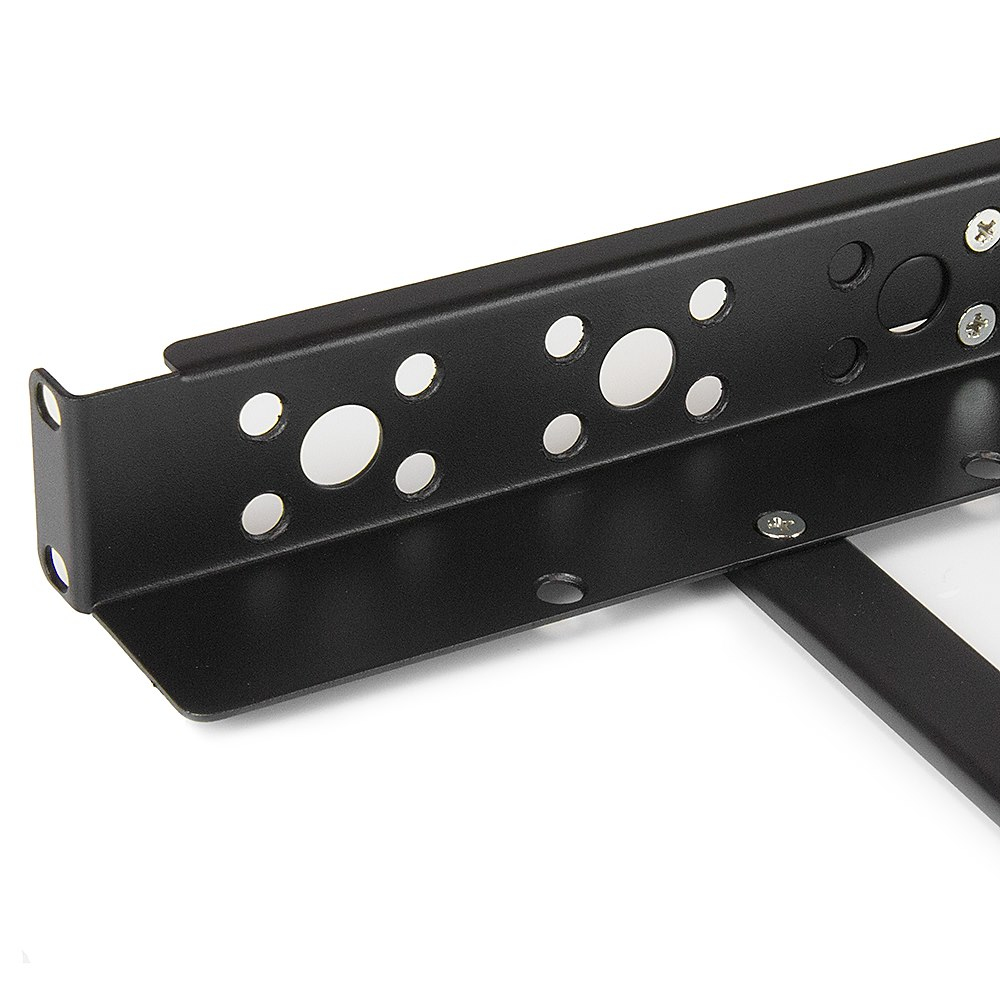

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.
Universal design mounts to almost any 19" server rack

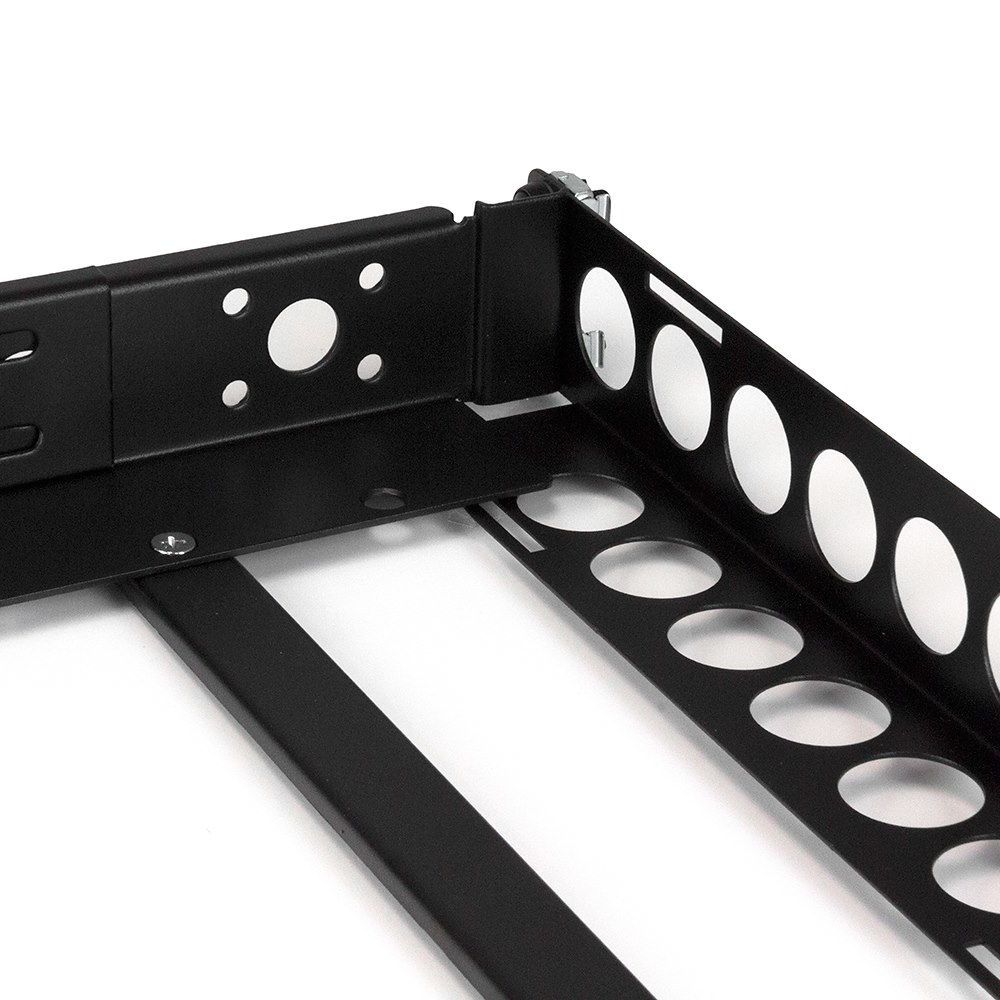

Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.
Maximum durability
To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).
The StarTech.com Advantage
| Features | |
| Type | Rack rail |
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 25 kg |
| Rack capacity | 1U |
| Weight & dimensions | |

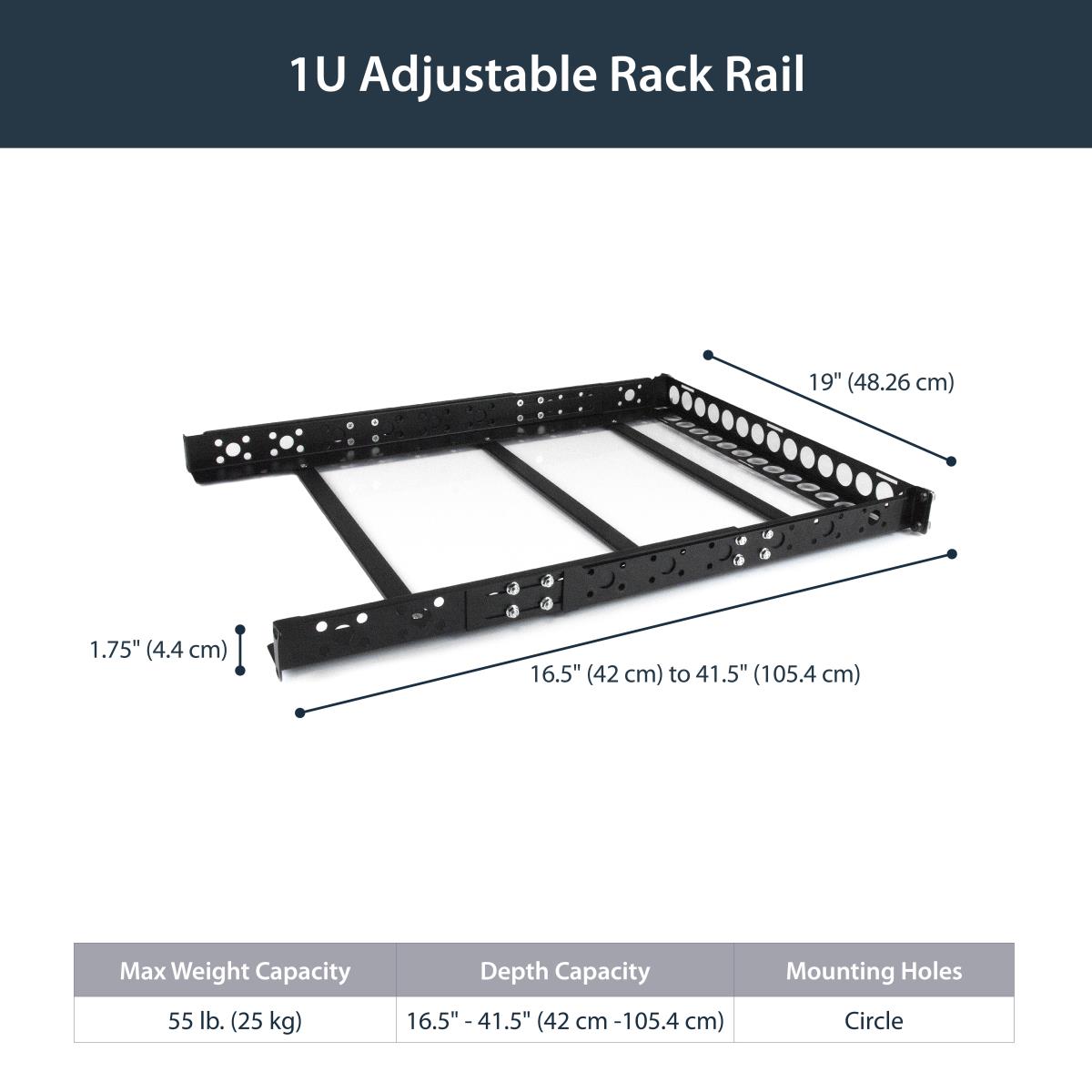

| Size (imperial) | 48.3 cm (19") |
| Width | 481 mm |
| Depth | 1100 mm |
| Height | 42 mm |
| Mounting depth (min) | 42 cm |
| Mounting depth (max) | 105.4 cm |
| Weight | 2.6 kg |
| Packaging data | |
| Package width | 107 mm |
| Package depth | 490 mm |
| Package height | 75 mm |
| Package weight | 2.9 kg |
| Packaging content | |
| Mounting kit | Yes |
| Screws included | Yes |
| Screw type | M5 |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 107 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 75 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85389099 |
| Warranty | |
| Base Warranty | Non Non |
