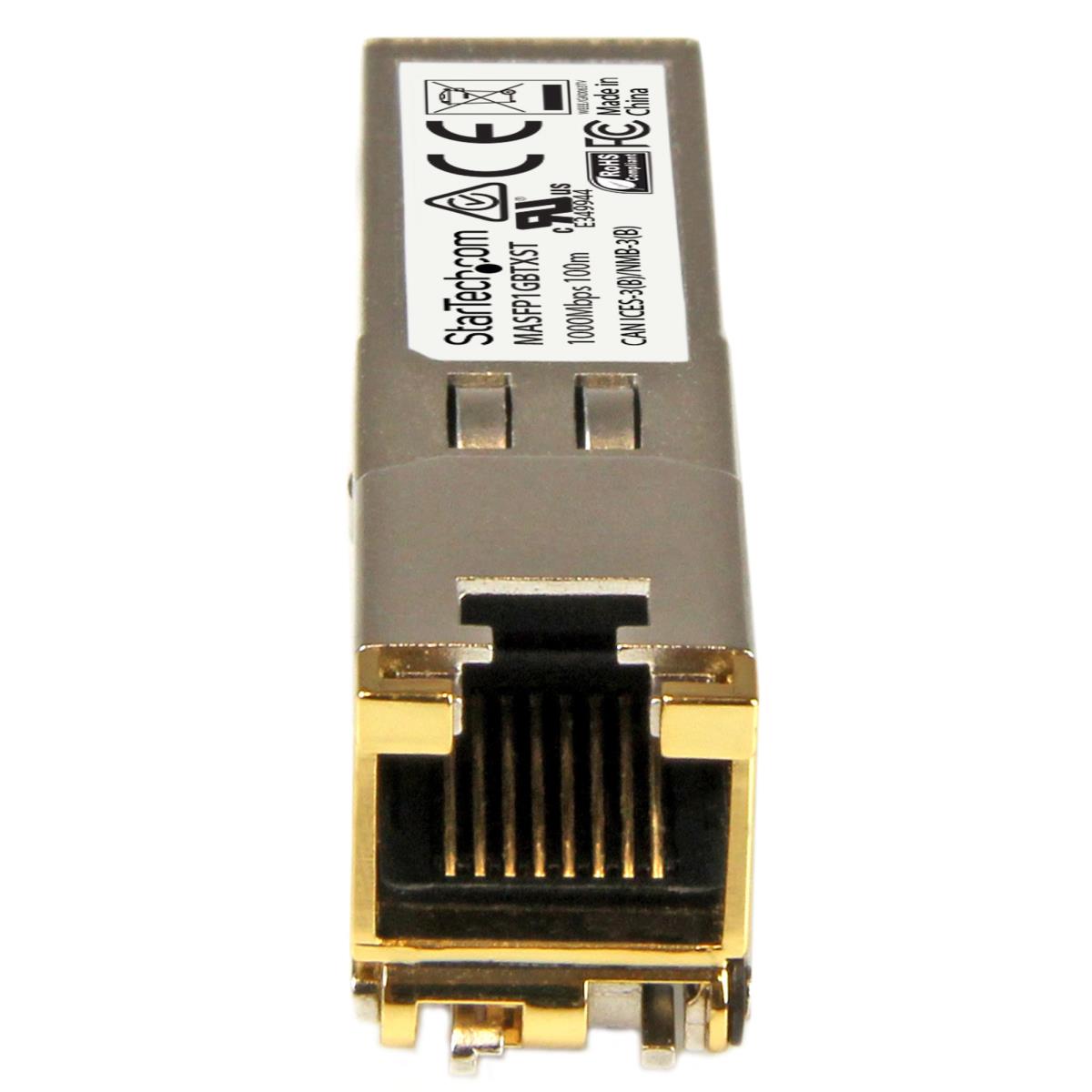

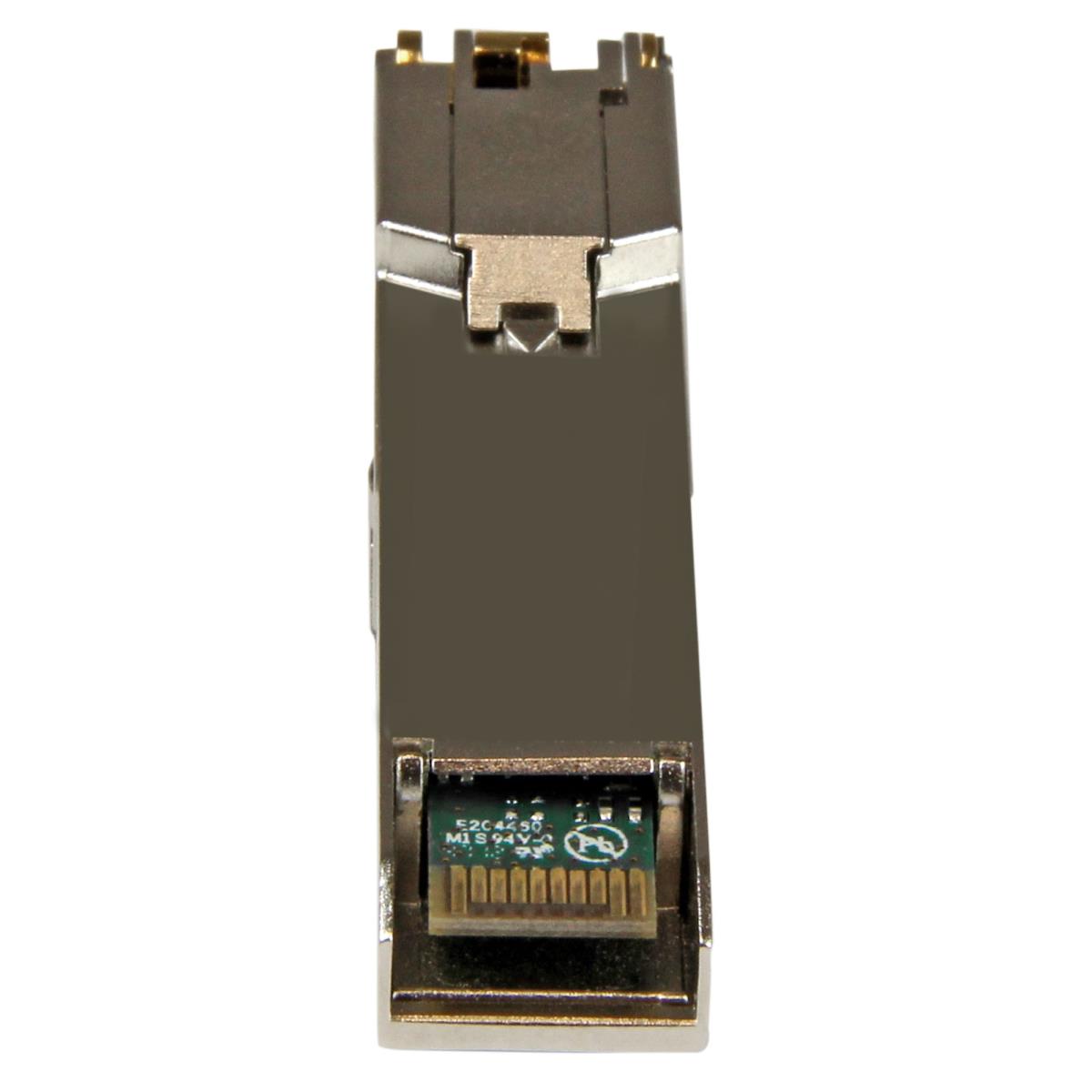

Transceiver Module Gigabit - Rj45 Copper Sfp Ma-sfp-1gb-tx Compatible - 100m
ITCurry #: 75647199 | Article #: MASFP1GBTXST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 118 mm |
| Package depth | 93 mm |
| Package height | 35 mm |
| Package weight | 51 g |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 305 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 205 mm |
| Products per master (outer) case | 36 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
