Sound Card - Pci-e 7.1 Channel 24-bit 192khz
ITCurry #: 75646806 | Article #: PEXSOUND7CH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

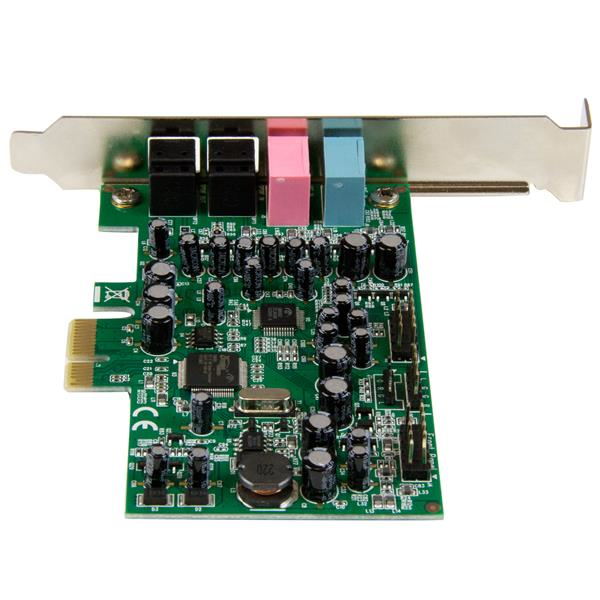

Add digital optical surround sound to your computer through PCIe
With this 7.1-channel PCIe sound card, you can create a high-quality home theatre sound system. It offers SPDIF input and output ports which deliver crystal-clear digital optical audio, for the ultimate listening experience.
Versatile performance
The versatile sound card can be used with a variety of audio devices. And with SPDIF digital optical or 3.5mm analog output, you don’t need to worry about the connection types on your devices. You can output digital audio to your optical receiver or DAC, or analog audio to your sound system.
With up to 24-bit and 192KHz playback and recording, this 7.1 surround sound adapter card delivers high-definition audio for superb sound quality.
Simple installation

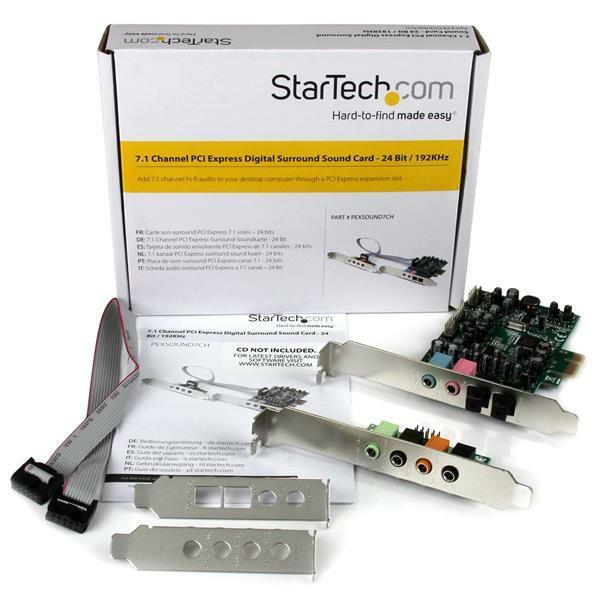

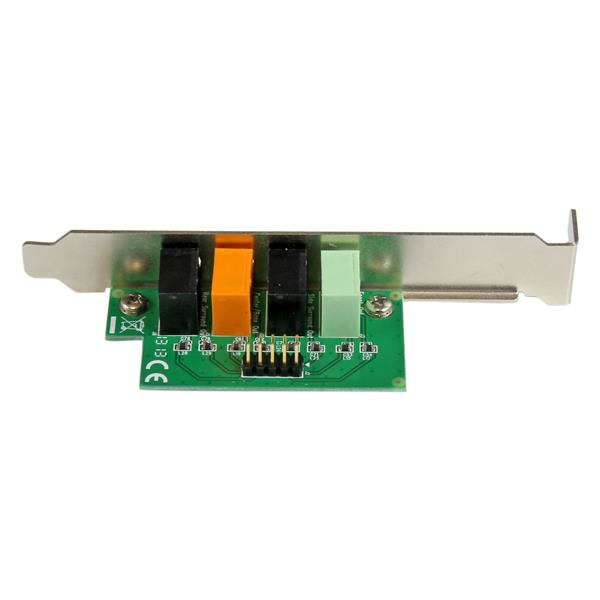

Unlike typical sound cards, this card is designed to fit in low-profile computers, making it ideal for home theatre personal computers (HTPC). It spans the multiple ports across a main card plus an innovative separate header bracket. The card is configured with standard profile brackets and includes low-profile (half-height) brackets.
The 7.1 channel surround sound card is easy to install. It’s perfect for anyone looking for a simple solution to upgrade their listening experience, such as music enthusiasts or mixing professionals.
Multiple input options
For added scalability, you can quickly connect a microphone or other recording devices to your computer through two 3.5mm stereo or SPDIF digital audio input jacks.
The PEXSOUND7CH is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Superb audio quality, with high-resolution 7.1 surround sound
- Supports digital optical or analog audio devices through SPDIF or 3.5mm jacks

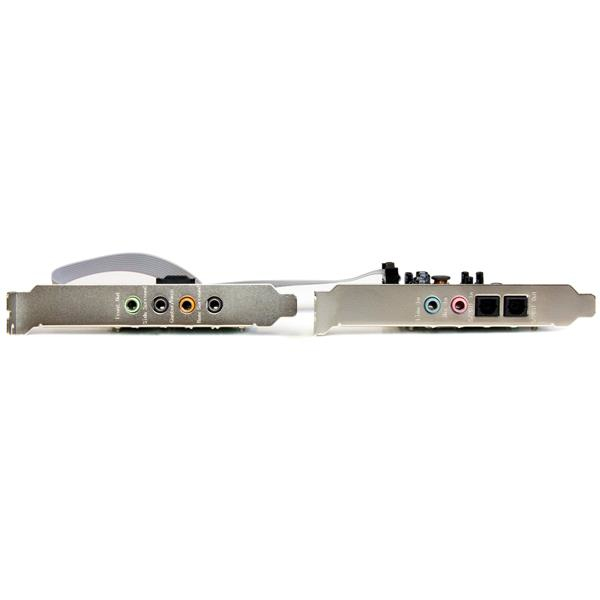

- All ports fit in standard or small form-factor computers (low-profile brackets included), using the main card plus header bracket
| Audio | |
| Internal | Yes |
| Audio quality | 24 bit |
| Audio output channels | 7.1 channels |
| Line-out Signal-to-Noise Ratio (SNR) | 92 dB |
| Ports & interfaces | |
| Host interface | PCI-E x1 |
| Line-in | Yes |
| S/PDIF in port | Yes |
| S/PDIF out port | Yes |
| CD/AUX audio in | Yes |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Features | |

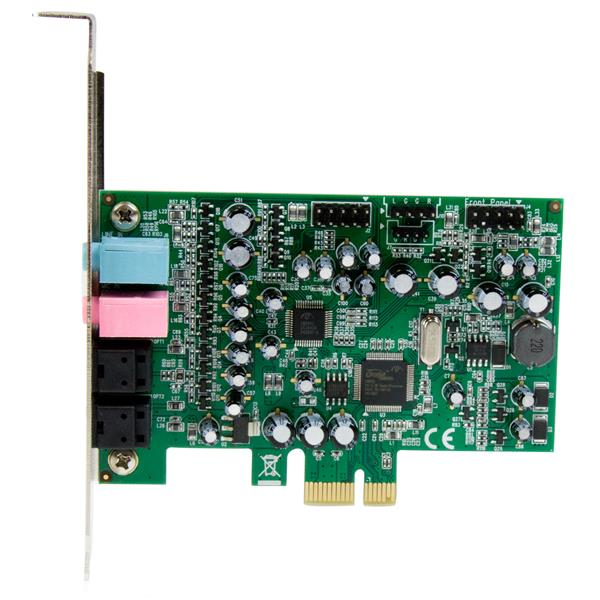

| Chipset | C-Media CM8828 |
| Certification | CE, FCC, RoHS |
| Software | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 99 g |
| Width | 18 mm |
| Depth | 109 mm |
| Height | 120 mm |
| Package width | 175 mm |
| Package depth | 143 mm |
| Package height | 32 mm |
| Package weight | 190 g |
| Other features | |
| Quick start guide | Yes |
| Analog audio output | 4 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
