Six monitor desk mount with support up to 32" displays with articulation and height adjustment. VESA compatible 75x75/100x100
This monitor desk mount is designed to support up to six 32-inch displays, creating an ergonomic multi-monitor setup that provides a vast viewing area for productivity.

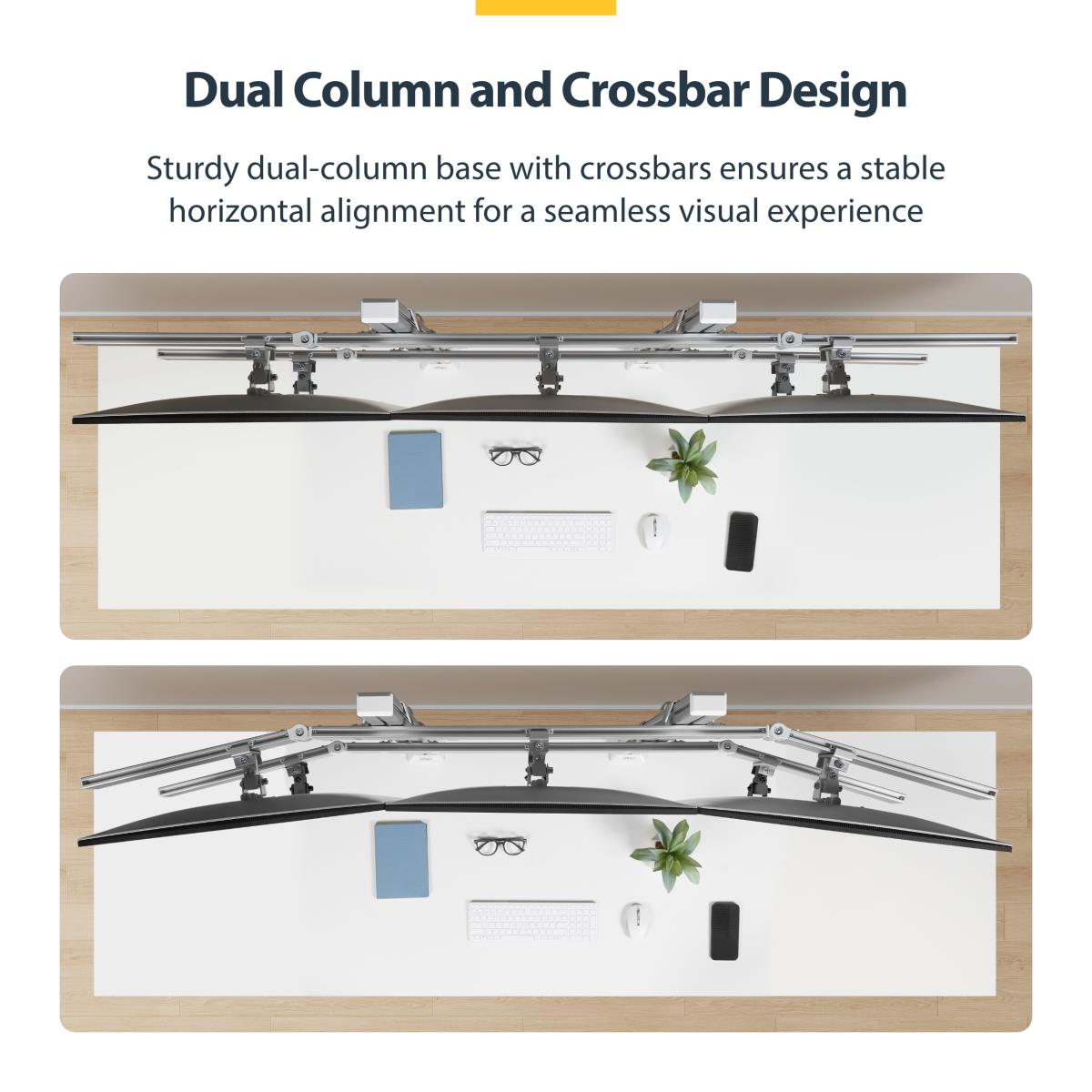

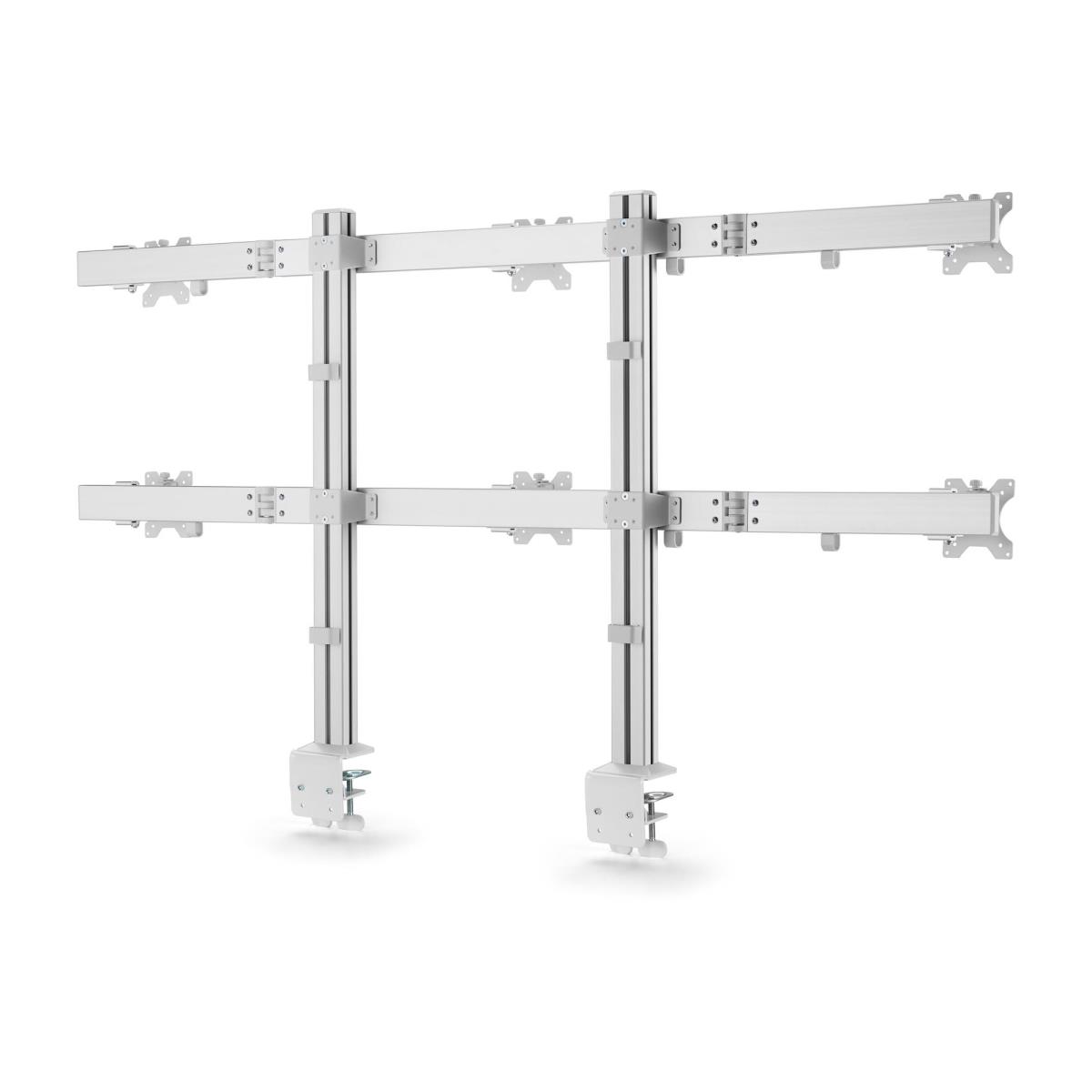

Dual-Column Stability
The dual-column design, sturdy aluminum construction, and enhanced c-clamp base ensure long-lasting stability. This design prevents tilting over time and evenly distributes weight across the desk for reliable support.

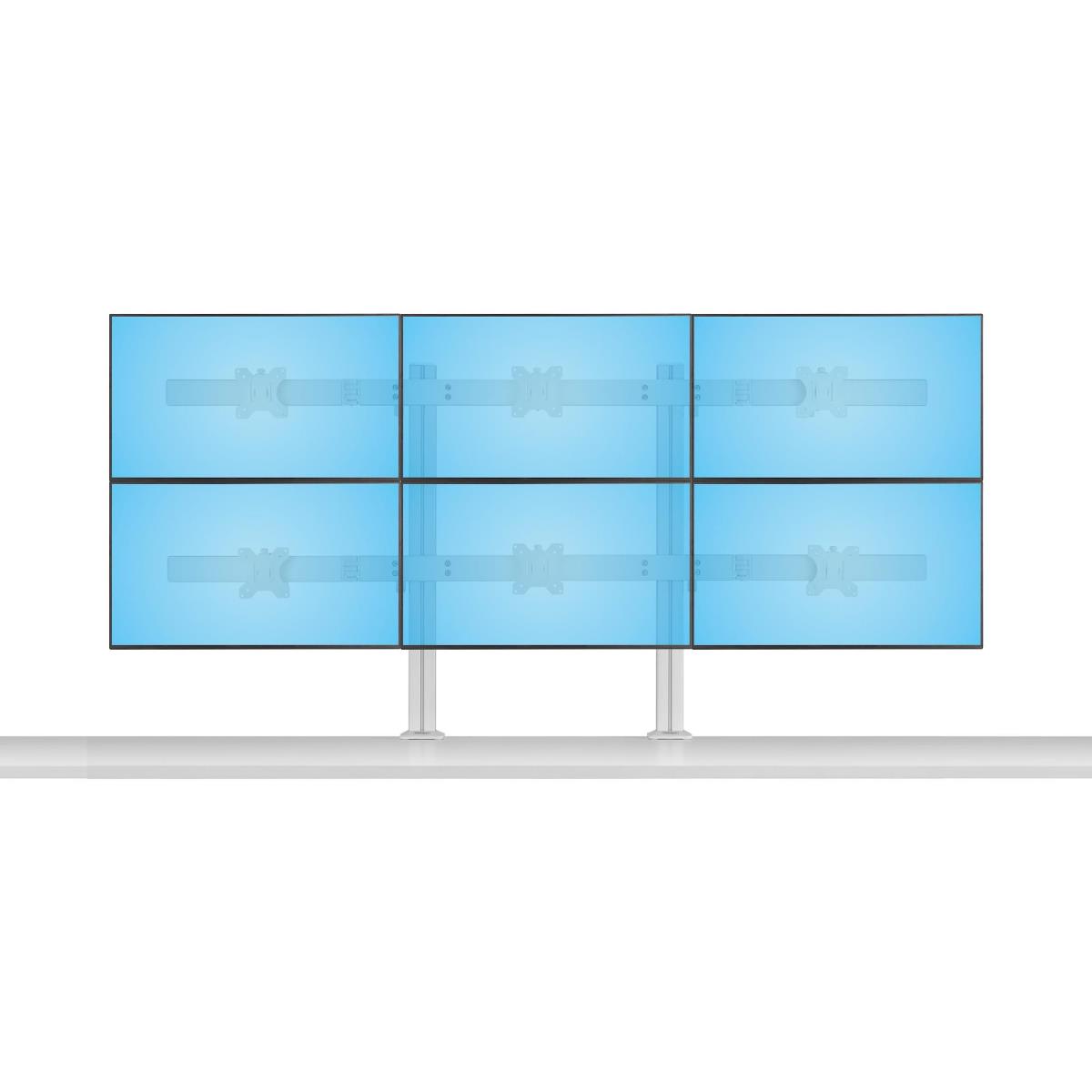

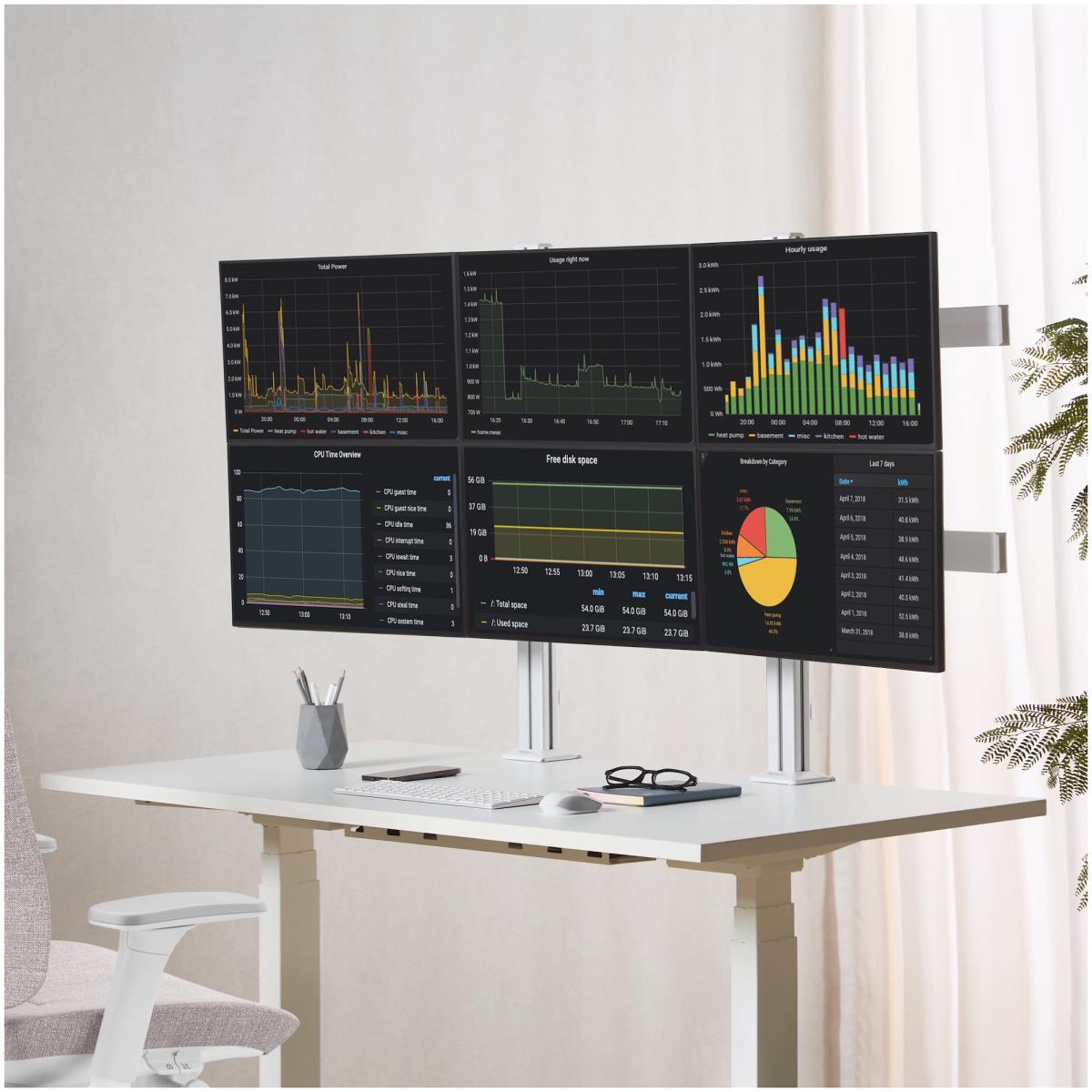

Perfect 3x2 Setup

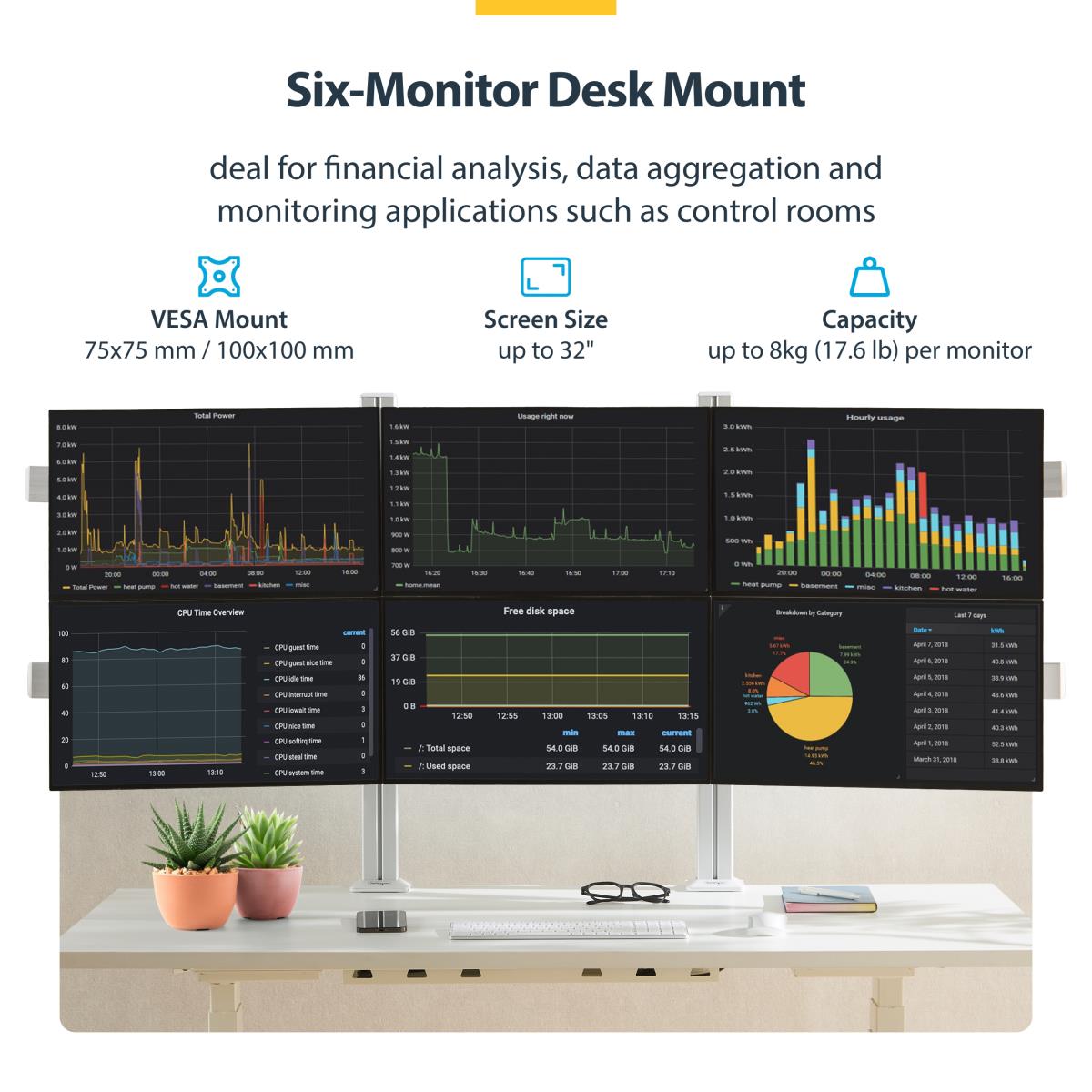

This monitor setup is ideal for data aggregation and monitoring applications such as financial analysis, security monitoring, control rooms, and other activities that require an extensive viewing area.
Individual micro-height adjustment enables precise alignment of each monitor.

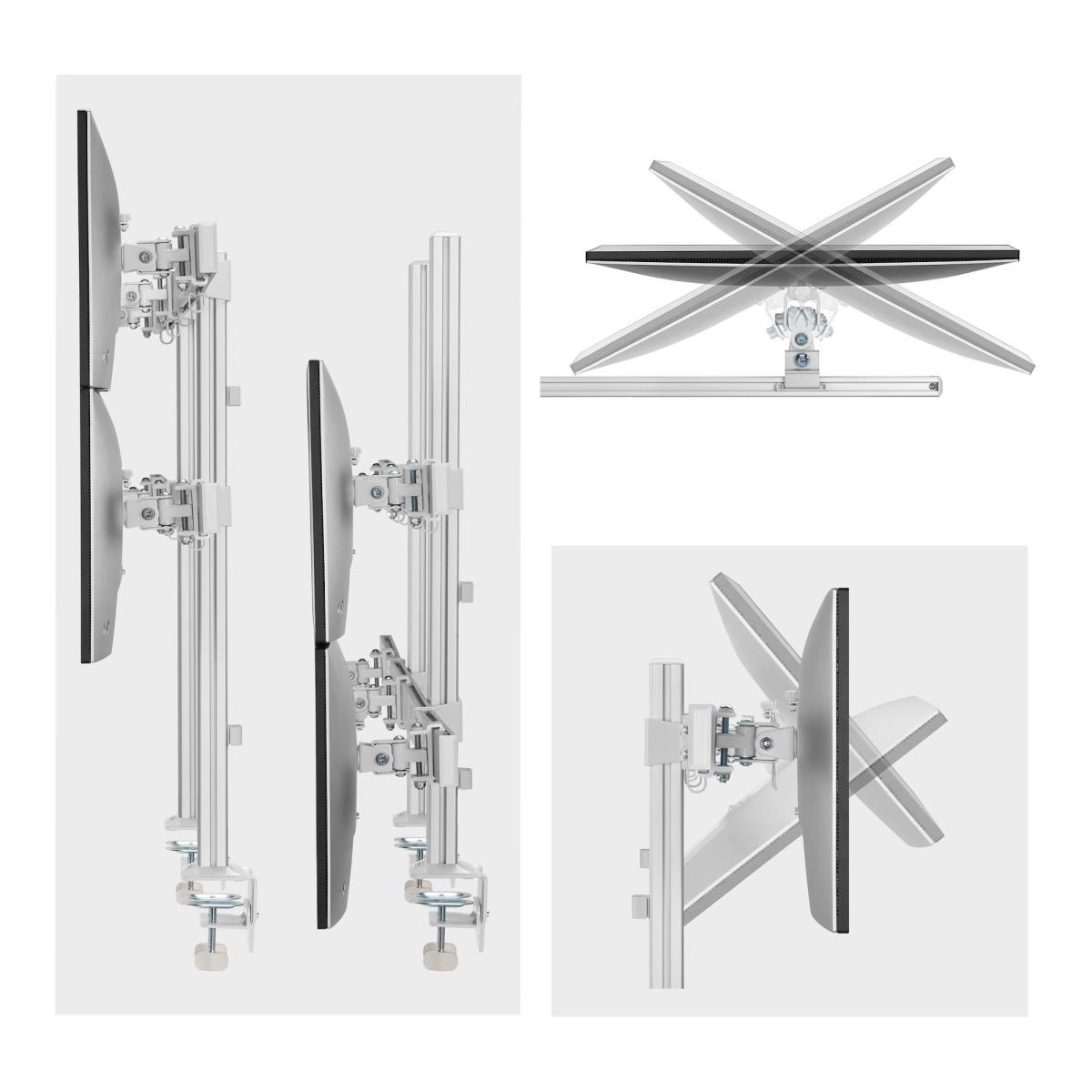

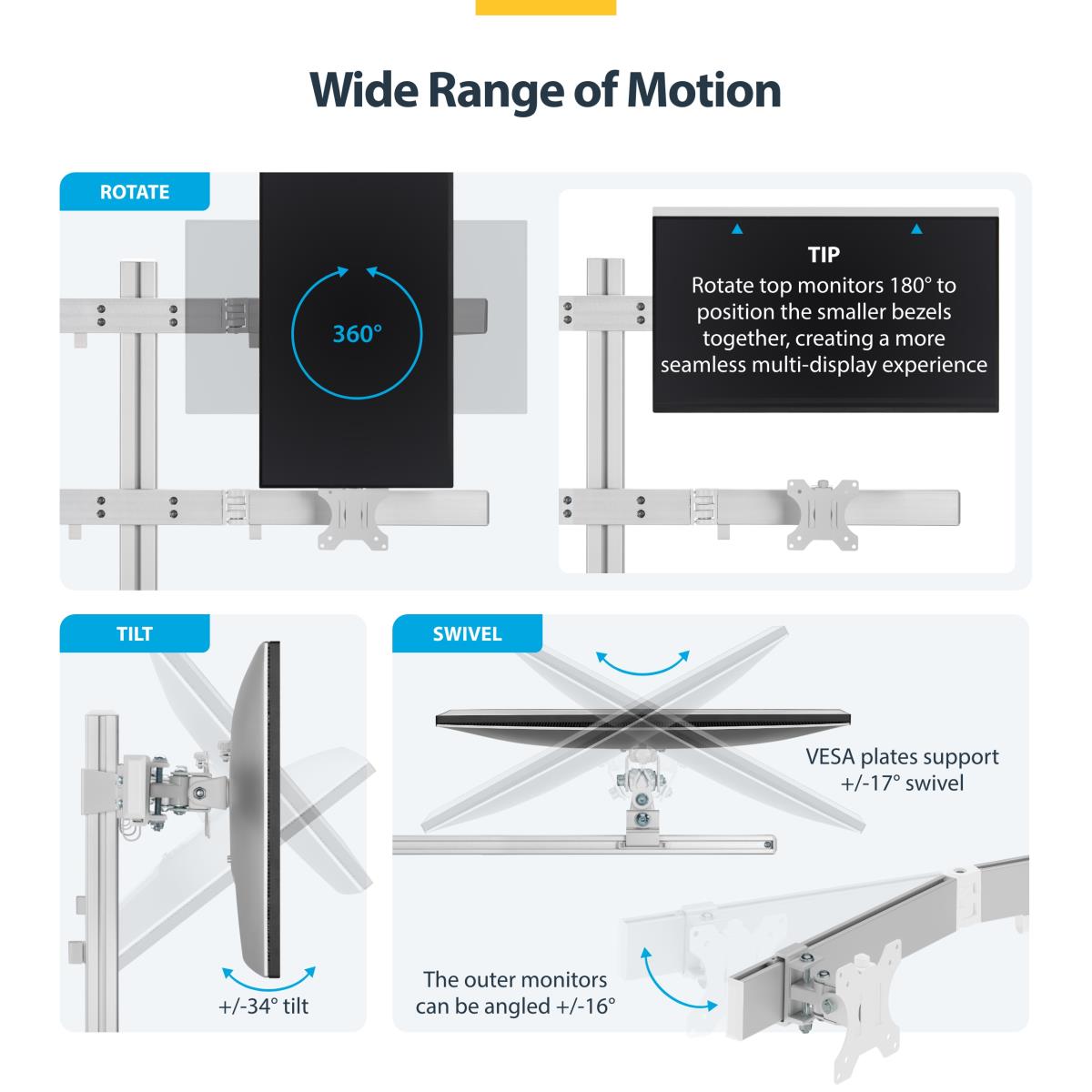

Display Adjustment

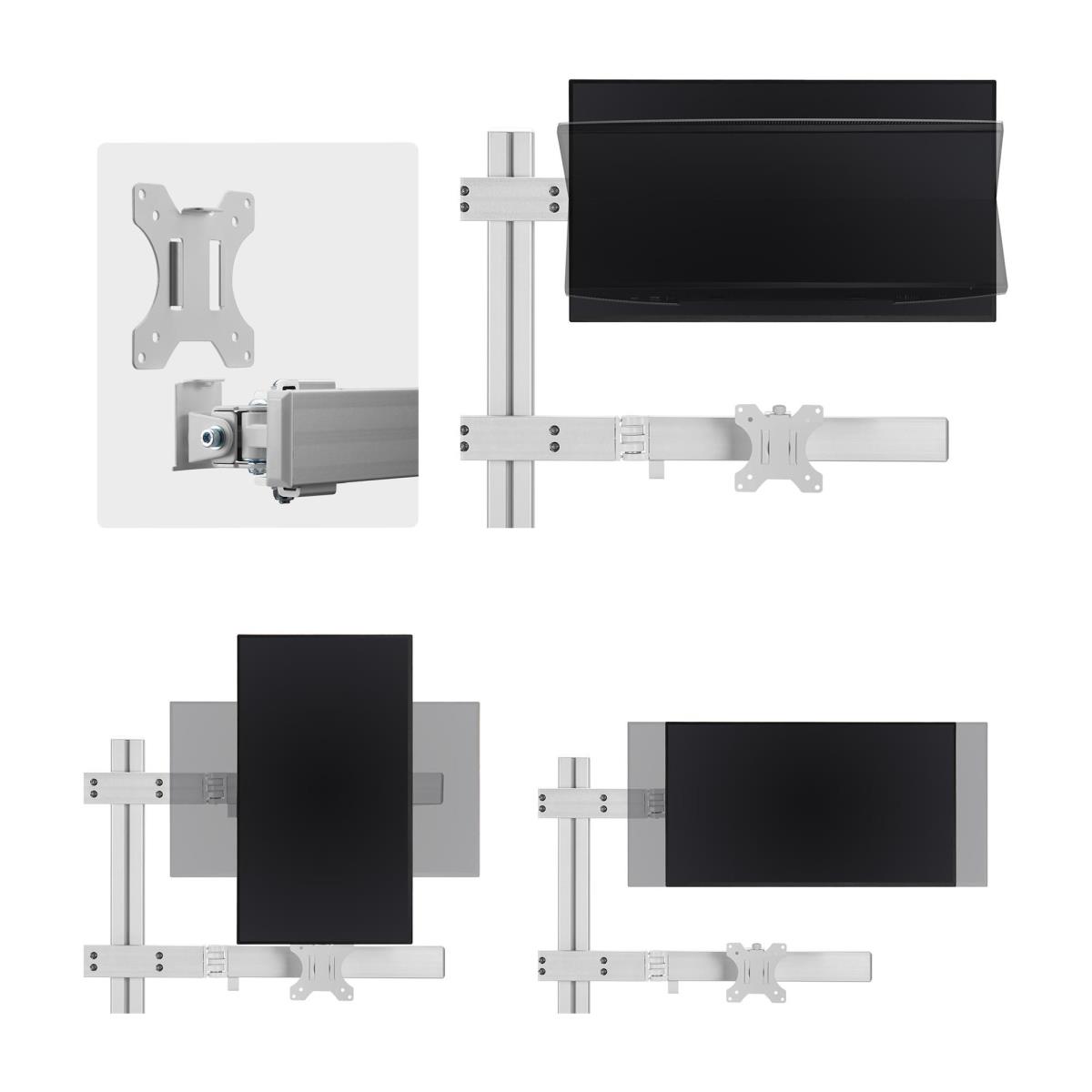

The ergonomic VESA plate support +/-17° swivel, +/-34° tilt, and 360° screen rotation for portrait or landscape orientation, and 75x75/100 patterns. Each display mount can support up to 17.6lb (8kg).

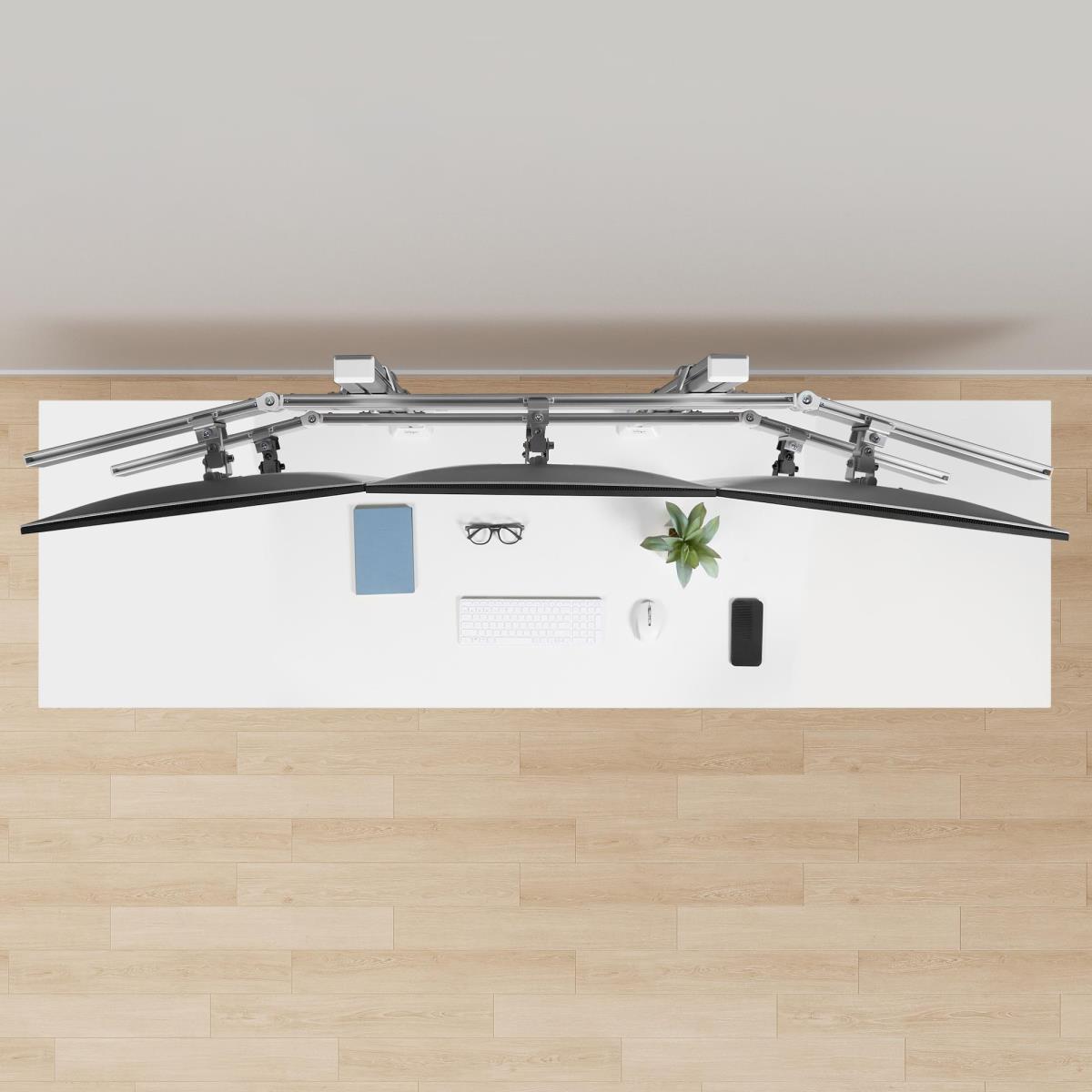

Every monitor can be positioned along the 71.1-inch (1.8m) wide crossbars. The outer monitors can be angled (+/-16°) toward the user.
Convenient Installation

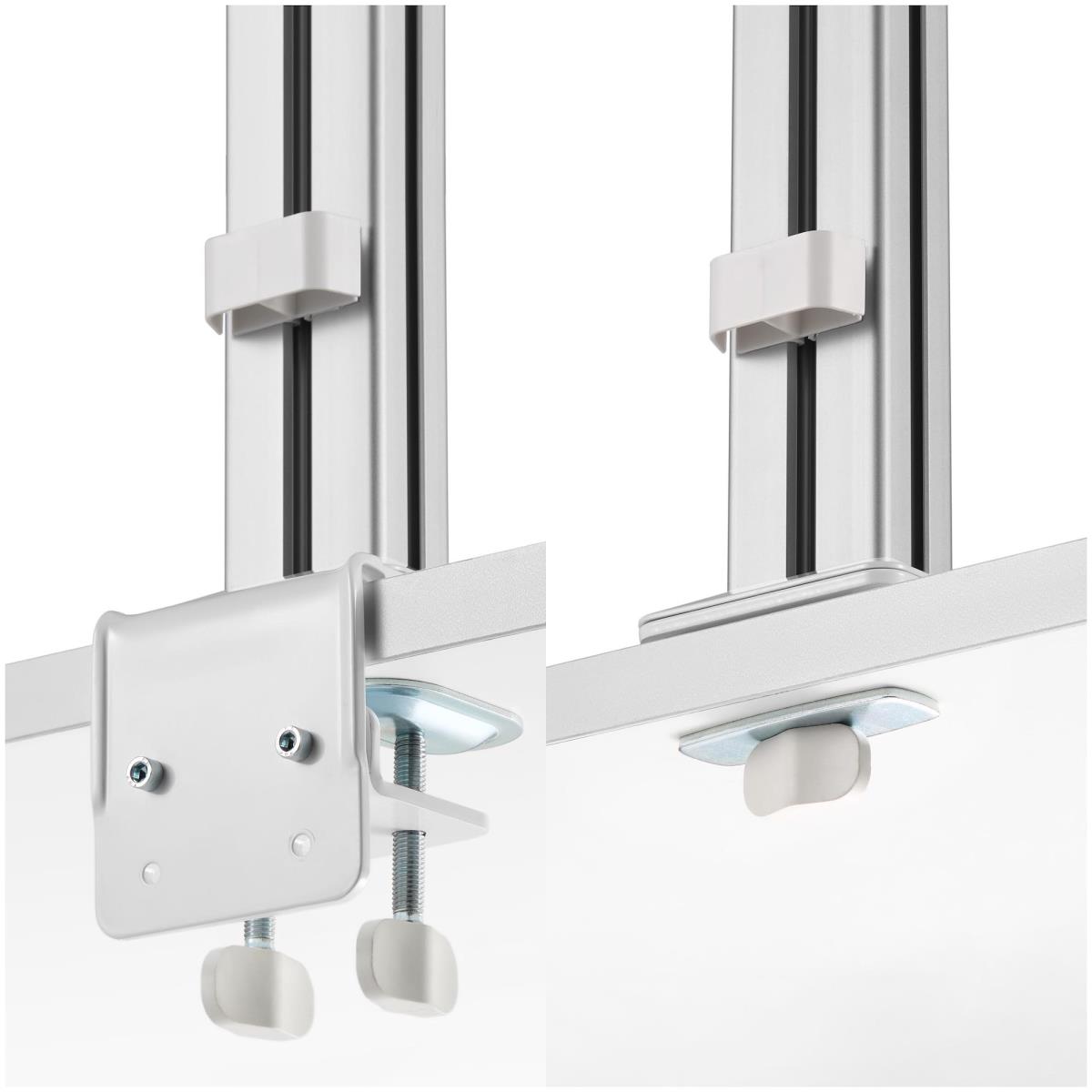

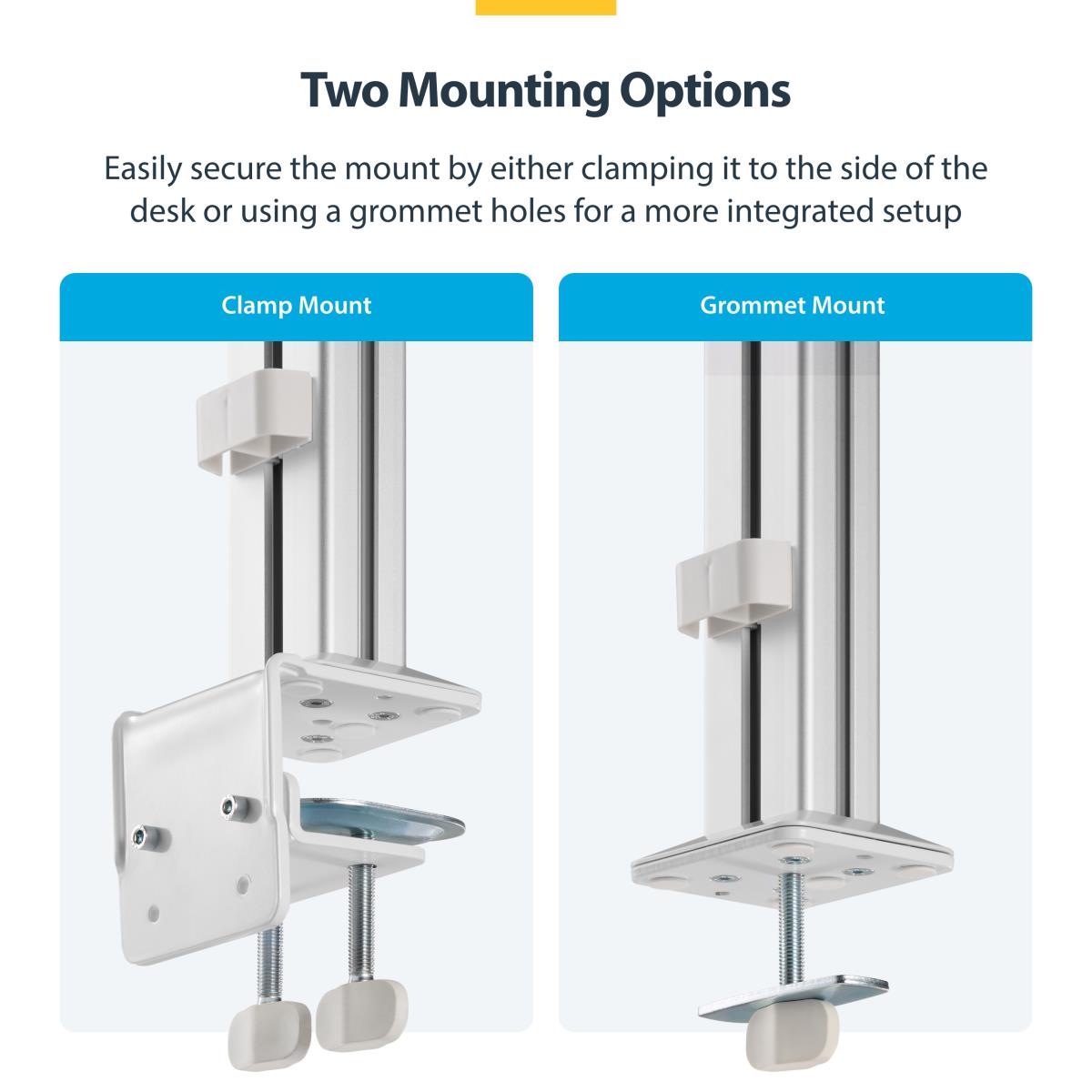

The mount offers dual mounting options: robust C-clamps for desks from 0.4 to 2.9in (1 to 7.5cm) thick or grommet hole mounts for desks from 0.4 to 1.7in (1 to 4.5cm) thick.
Each crossbar can be positioned along the two 33.5-inch (85.3cm) columns, providing flexible height options.

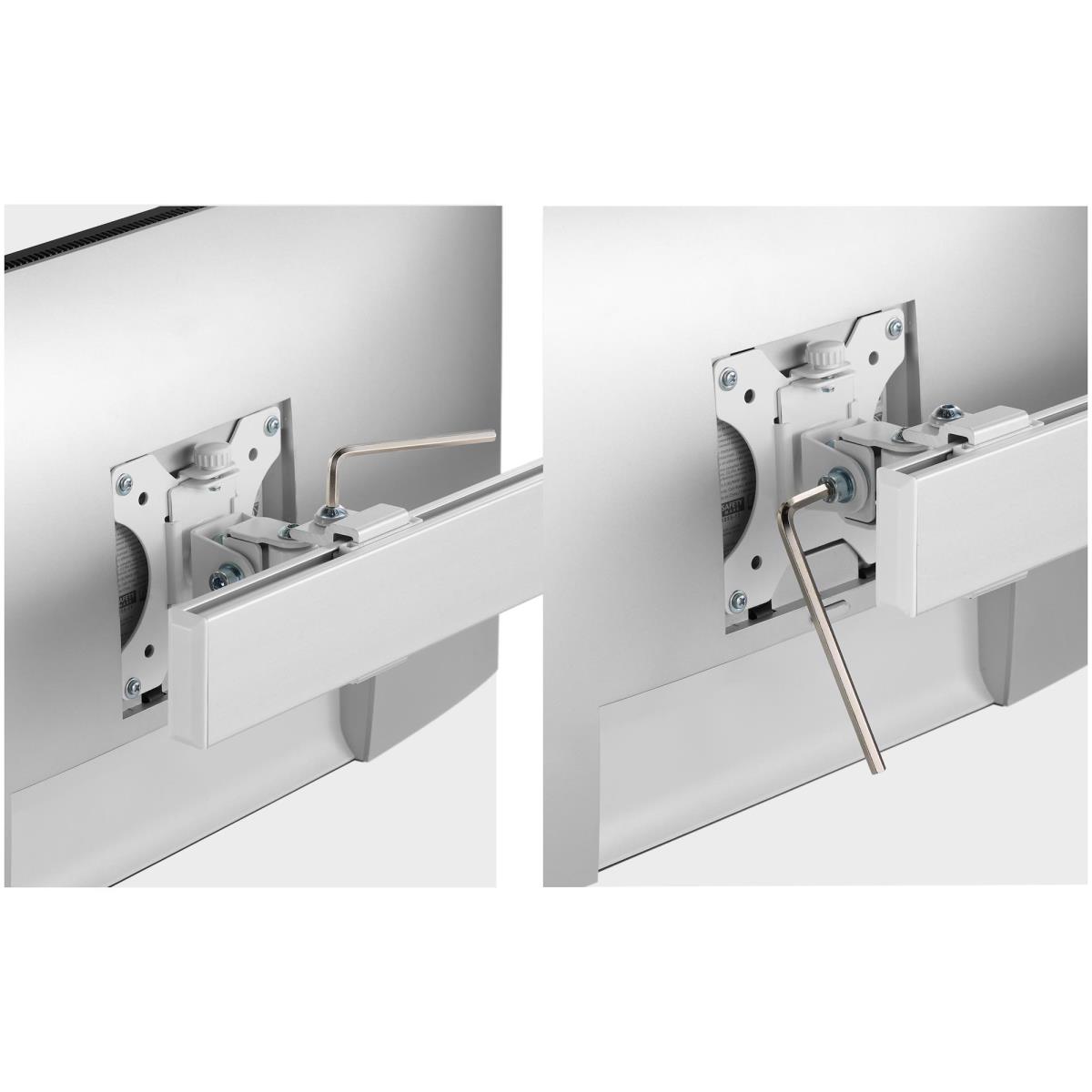

All VESA plates are removable for easy installation or removal of the monitors.

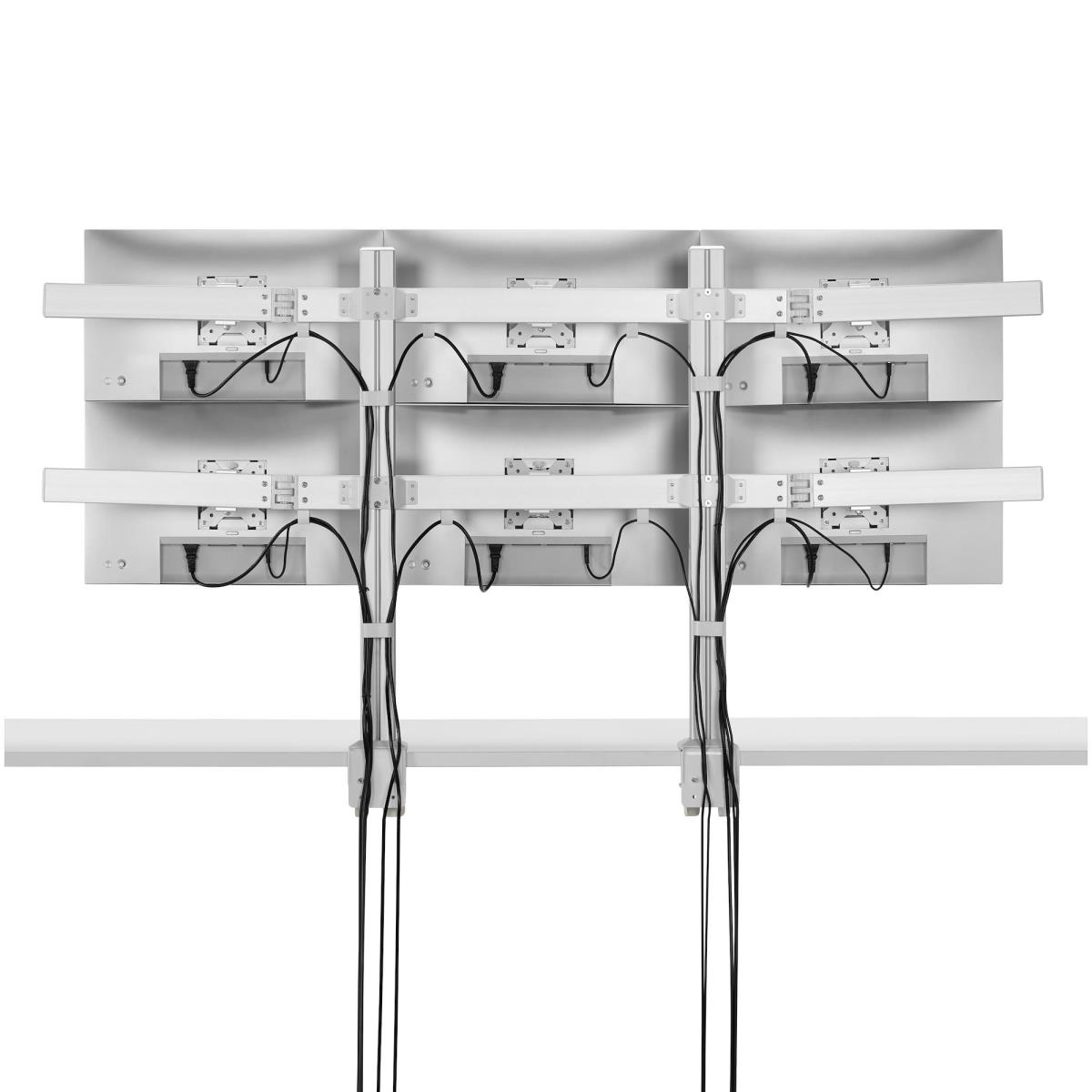

Organized Workspace

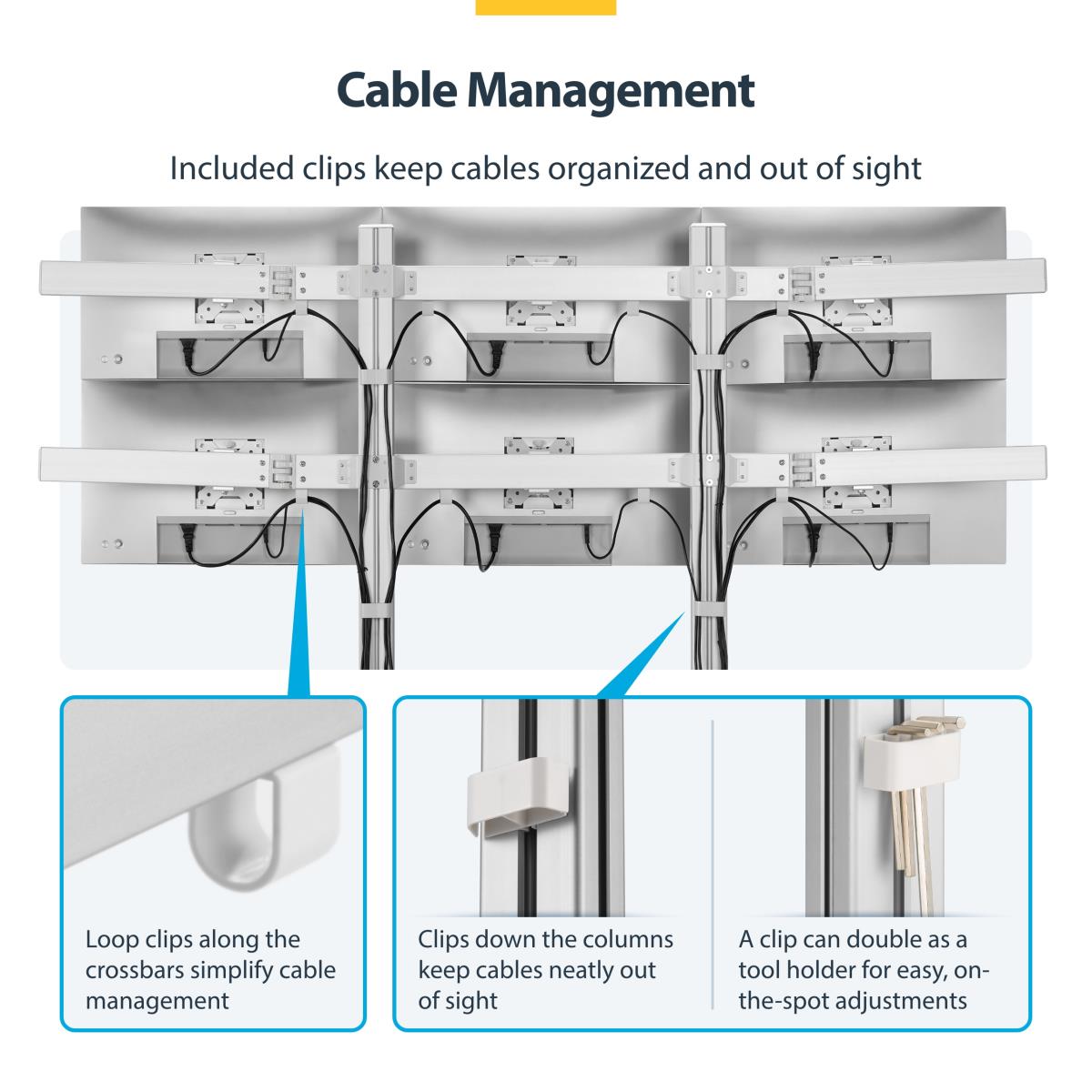

To maintain an organized workspace, the mount includes cable clips for the crossbars and columns to keep cables neatly tucked away and out of sight. Combine accessories such as cable ties and hooks (parts HKLP25GN and CBMZT8B) for a tidier setup.
The StarTech.com Advantage
| Mounting | |
| Maximum weight capacity | 48 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 6 |
| Maximum weight capacity (per display) | 32 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Extension arm (max) | 180.6 cm |
| Desk thickness (min) | 2 cm |
| Desk thickness (max) | 7.5 cm |
| Clamp mount desk thickness (max) | 7.5 cm |
| Grommet mount desk thickness (max) | 4.5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -34 - 34ø |
| Swivelling | Yes |
| Swivel angle range | -17 - 17ø |
| Rotating | Yes |
| Angle of rotation | 360ø |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | White |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 1800 mm |
| Depth | 118 mm |
| Height | 863 mm |
| Weight | 14 kg |
| Packaging data | |
| Package width | 1030 mm |
| Package depth | 405 mm |
| Package height | 120 mm |
| Package weight | 15.8 kg |

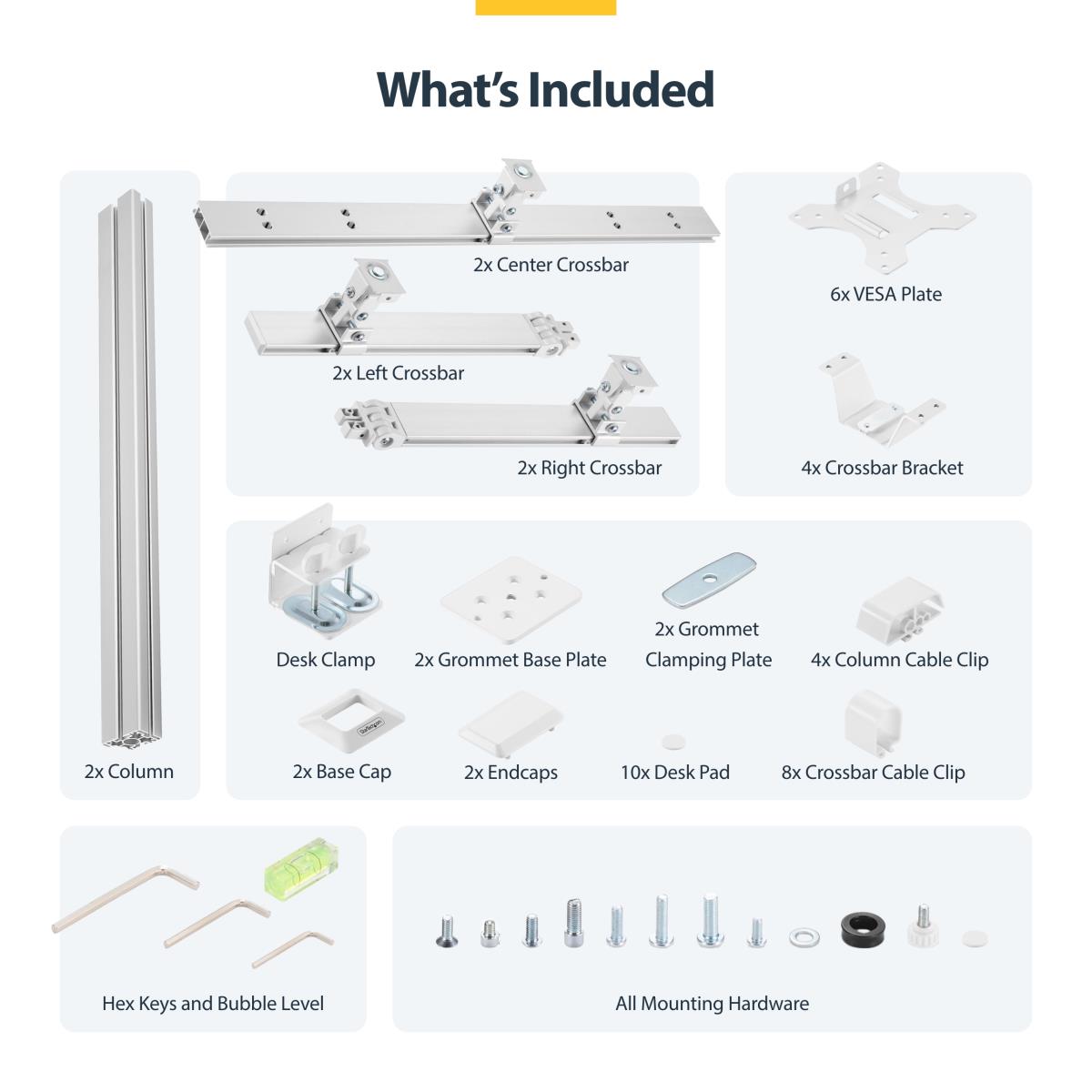

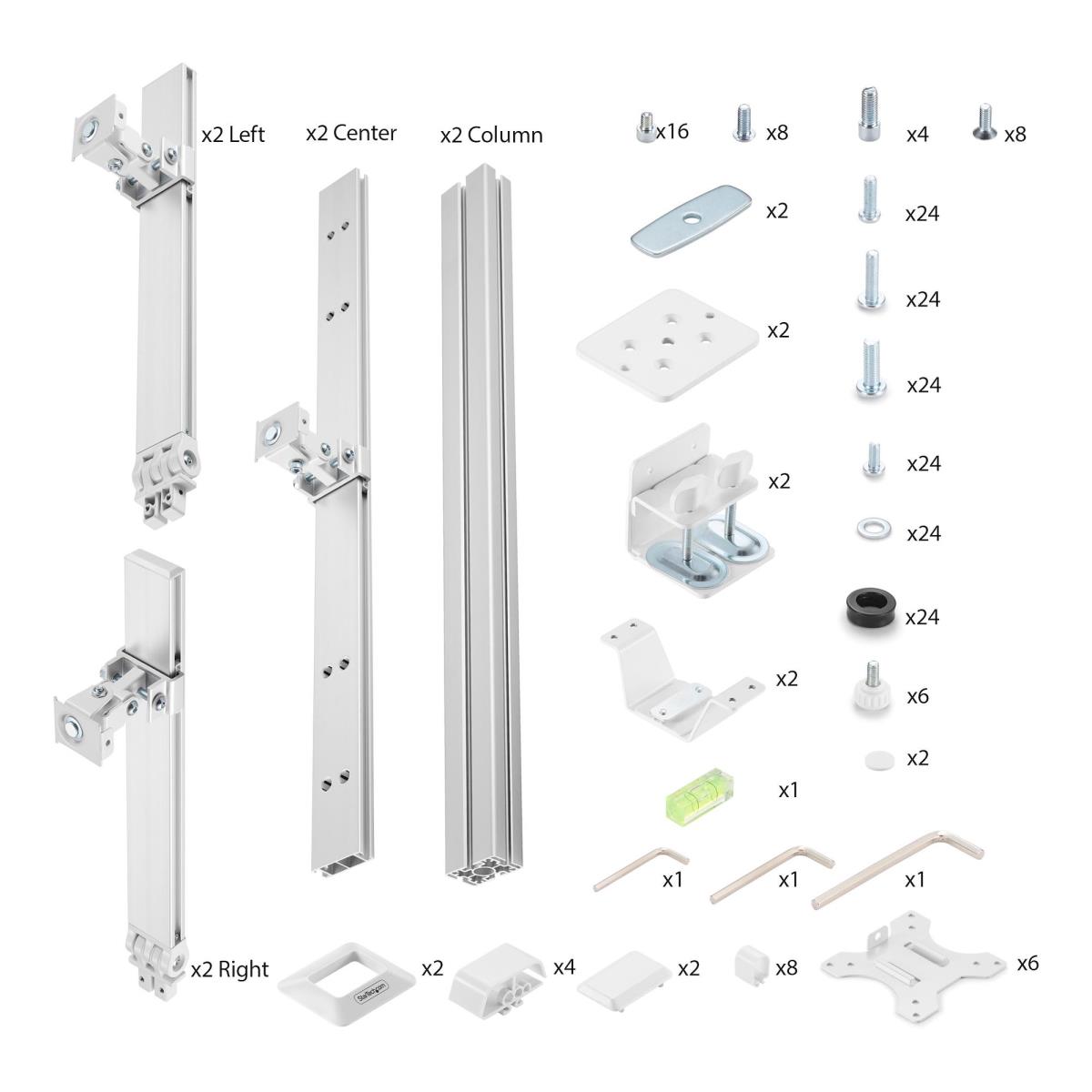

| Packaging content | |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| Number of cable clips | 12 |
| Number of rubber pads included | 10 pc(s) |
| Number of end caps included | 2 pc(s) |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Number of screws | 138 |
| Number of washers included | 24 |
| Number of spacers included | 24 |
| Grommet base plate included | Yes |
| Grommet plate included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 1030 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 120 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
