Qsfp+ Direct Attach Cable - Msa Compliant - 40g Qsfp+ 5m
ITCurry #: 75647580 | Article #: QSFP40GPC5M-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

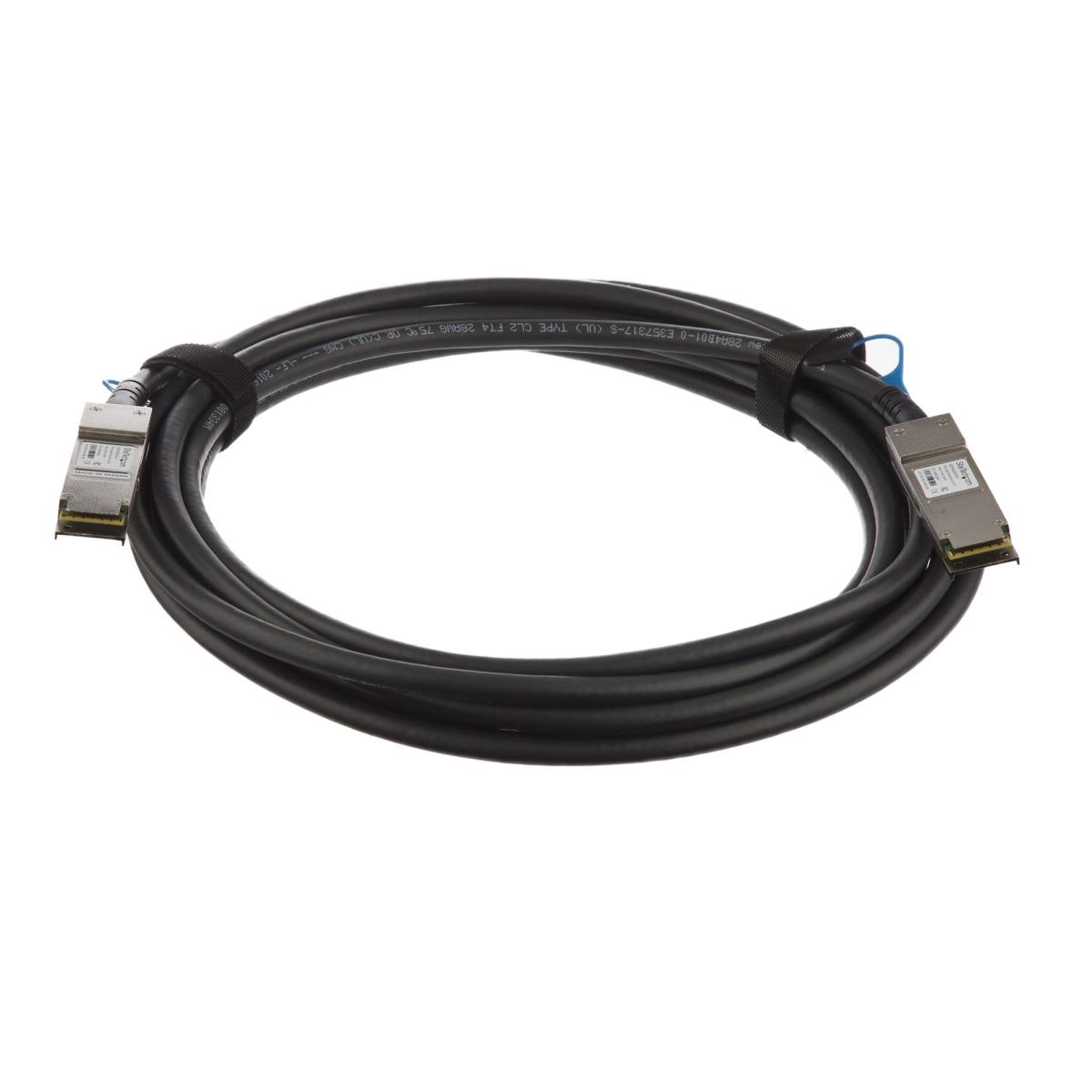

The QSFP40GPC5M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed and tested to work in 40G network deployments. It delivers dependable 40 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
This passive Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
At 5 meters long and designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Features | |
| Cable length | 5 m |
| InfiniBand protocol | Yes |
| Connector 1 | QSFP+ |
| Connector 2 | QSFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 80 øC |
| Weight & dimensions | |
| Weight | 446 g |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 320 mm |
| Package height | 25 mm |
| Package weight | 464 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 334 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 638 mm |
| Master (outer) case height | 282 mm |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
