Poe Injector 1-port 60w + Poe Splitter Kit
ITCurry #: 75647880 | Article #: UPOESPLT1G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps
This 60W PoE Injector + PoE Splitter Kit comes with a 60W Power over Ethernet injector, adding PoE via PoE.
60 Watt Ultra Power Over Ethernet
Compliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices such as thin clients, POS systems, laptops or digital signage, from up to 100 meters away.
Easy to Deploy

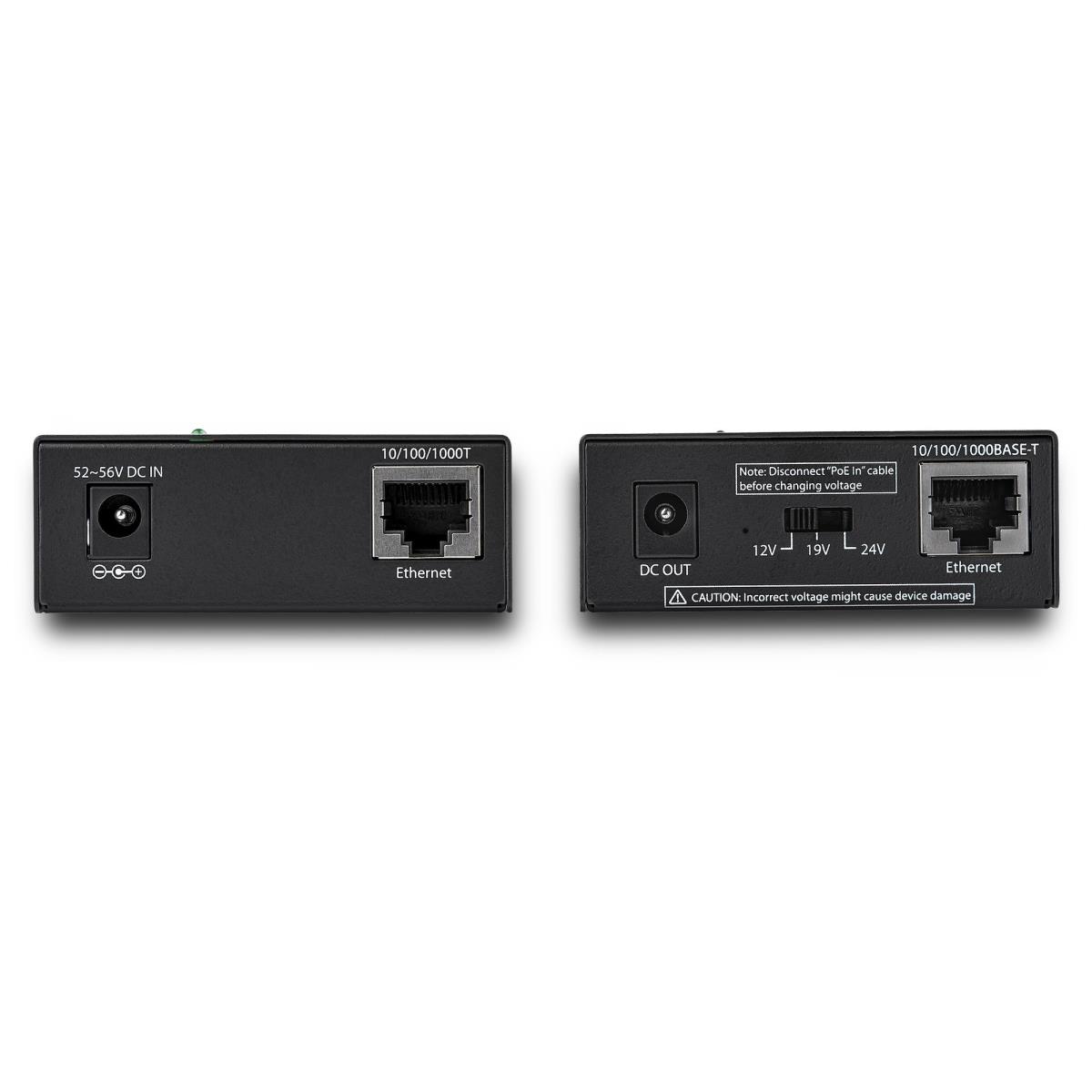

The PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design, and a durable, wall-mountable metal housing. The PoE splitter’s 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.
StarTech.com Networking IO
StarTech.com offers networking products that extend your networks to remote locations at extreme distances, for maximum network scalability. This Port 60W PoE Injector + PoE Splitter Kit is backed by a 2-year warranty and free lifetime North American based multilingual technical support.
The StarTech.com Advantage
| Performance | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Auto MDIX IEEE | No |
| Jumbo frames support | No |
| Flow control support | No |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black, Brown |
| Housing material | Metal |
| LED indicators | PoE, System |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Power consumption (typical) | 71.82 W |
| Output current | 1.33 A |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) voltage range | 12 - 24 V |
| Included power plug types | AU, EU, JP, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 233 mm |
| Depth | 390 mm |
| Height | 85 mm |
| Weight | 300 g |
| Warranty | |
| Base Warranty | Non Non |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Packaging data | |
| Package width | 334 mm |
| Package depth | 284 mm |
| Package height | 70 mm |
| Package weight | 1.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
