Pc Case Cooling Fan 8cm With Rpm Sensor + 3-lead Connector
ITCurry #: 75642139 | Article #: FANBOX2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Add additional chassis cooling with a 80mm ball bearing fan
This versatile PC case fan measures 8cm x 8cm x 2.5cm (3 1/8" x 3 1/8" x 1"), designed to fit a broad range of computer case designs, helping to improve internal airflow within the computer case by circulating cool air into the case or exhausting warm air away from the computer. A quiet cooling solution, the 8cm dual ball-bearing fan features a high-efficiency blade design that's capable of moving 32 CFM throughout the computer case. This broadly compatible PC cooling solution can be powered through a simple TX3 (3-pin) connection to the computer power supply and is backed by StarTech.com's 2-year warranty.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Performance | |
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Rotational speed (max) | 3000 RPM |
| Noise level (high speed) | 34 dB |
| Maximum airflow | 37.3 cfm |
| Bearing type | Ball bearing |
| Mean time between failures (MTBF) | 56609 h |
| Operating temperature (T-T) | -10 - 80 øC |
| Design | |
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
| Power | |
| Power consumption (typical) | 1.92 W |
| Voltage | 12 V |
| Rated current | 0.16 A |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 70 g |
| Package width | 97 mm |
| Package depth | 142 mm |
| Package height | 32 mm |
| Package weight | 97 g |
| Technical details | |
| Compliance certificates | RoHS |
| Packaging content | |

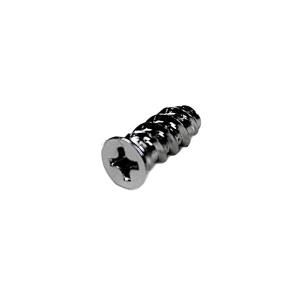

| Screws included | Yes |
| Number of screws | 4 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
