Patch Cable - Cat8 - S/ftp - Snagless - 50cm - Blue
ITCurry #: 7564C124 | Article #: NLBL-50C-CAT8-PATCH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

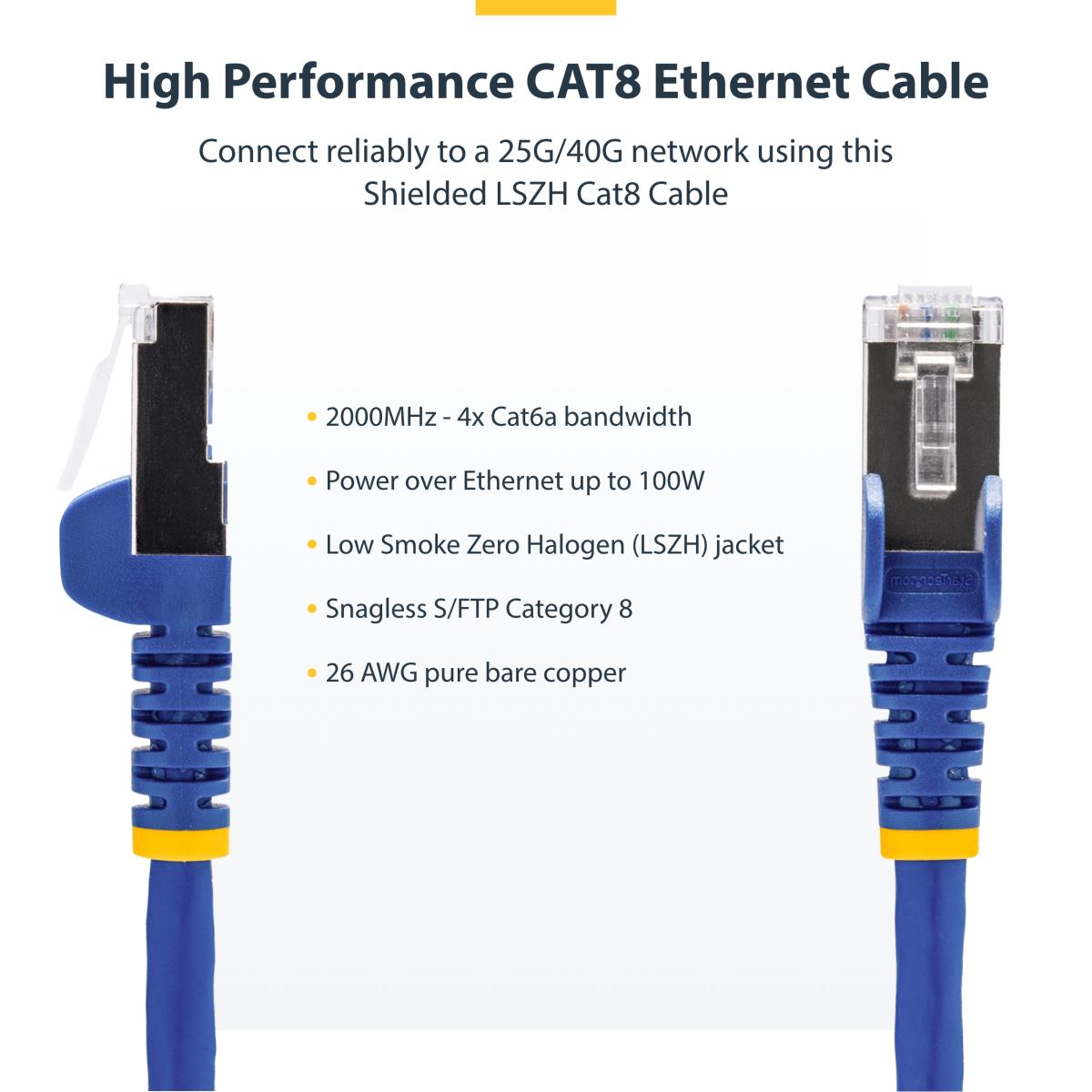

Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 Cable
Connect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.
Pure Bare Copper Wire

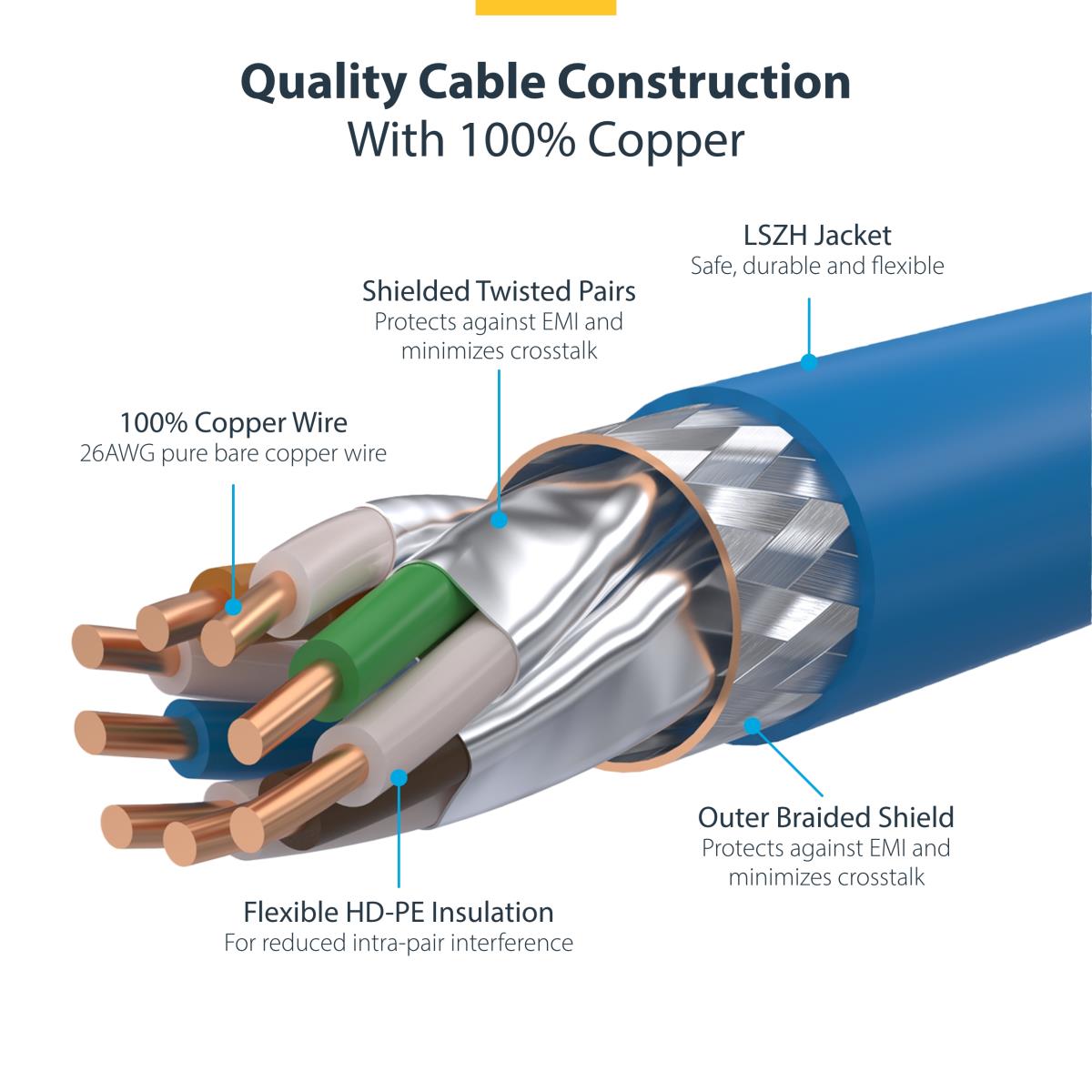

Our Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.
Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.
Durable Construction

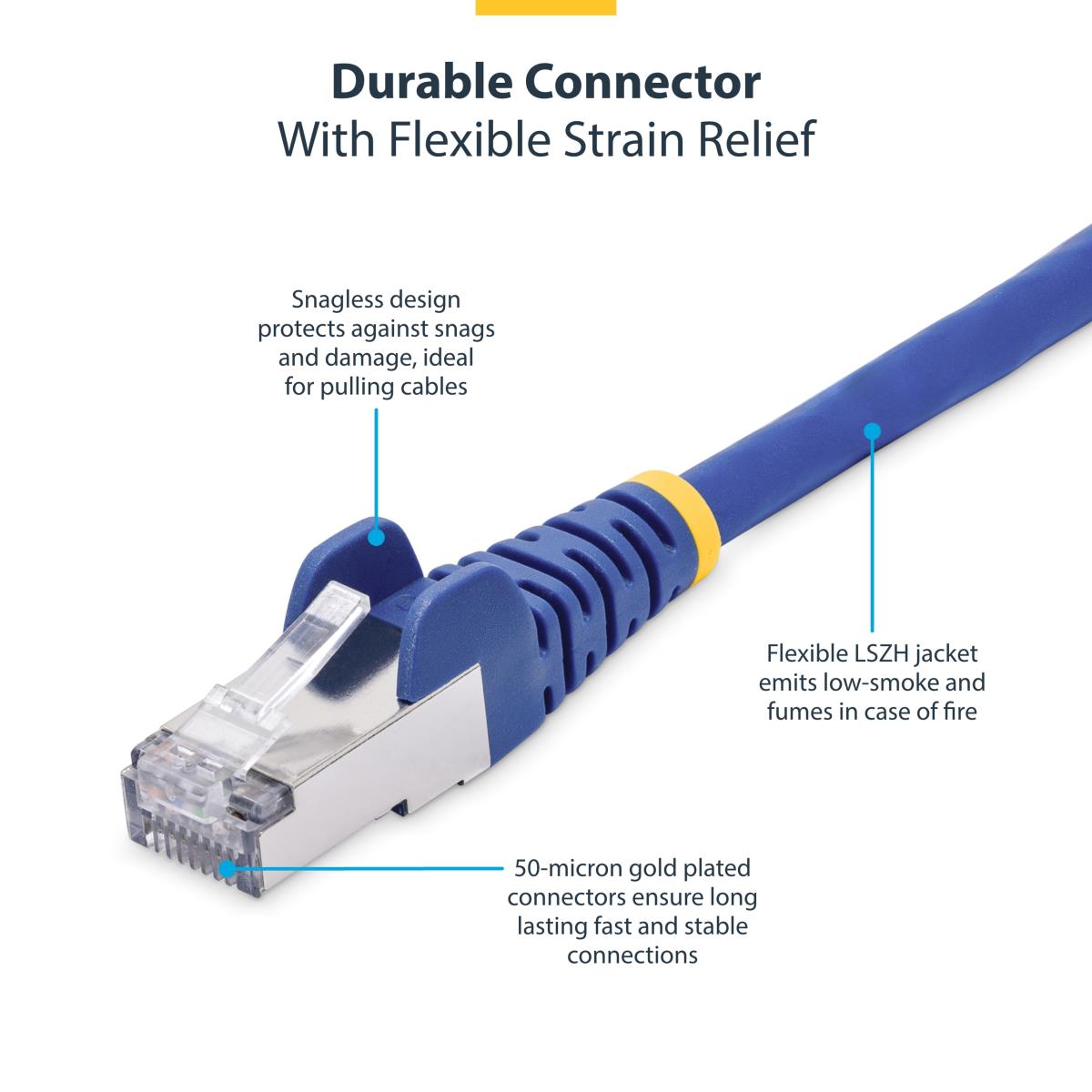

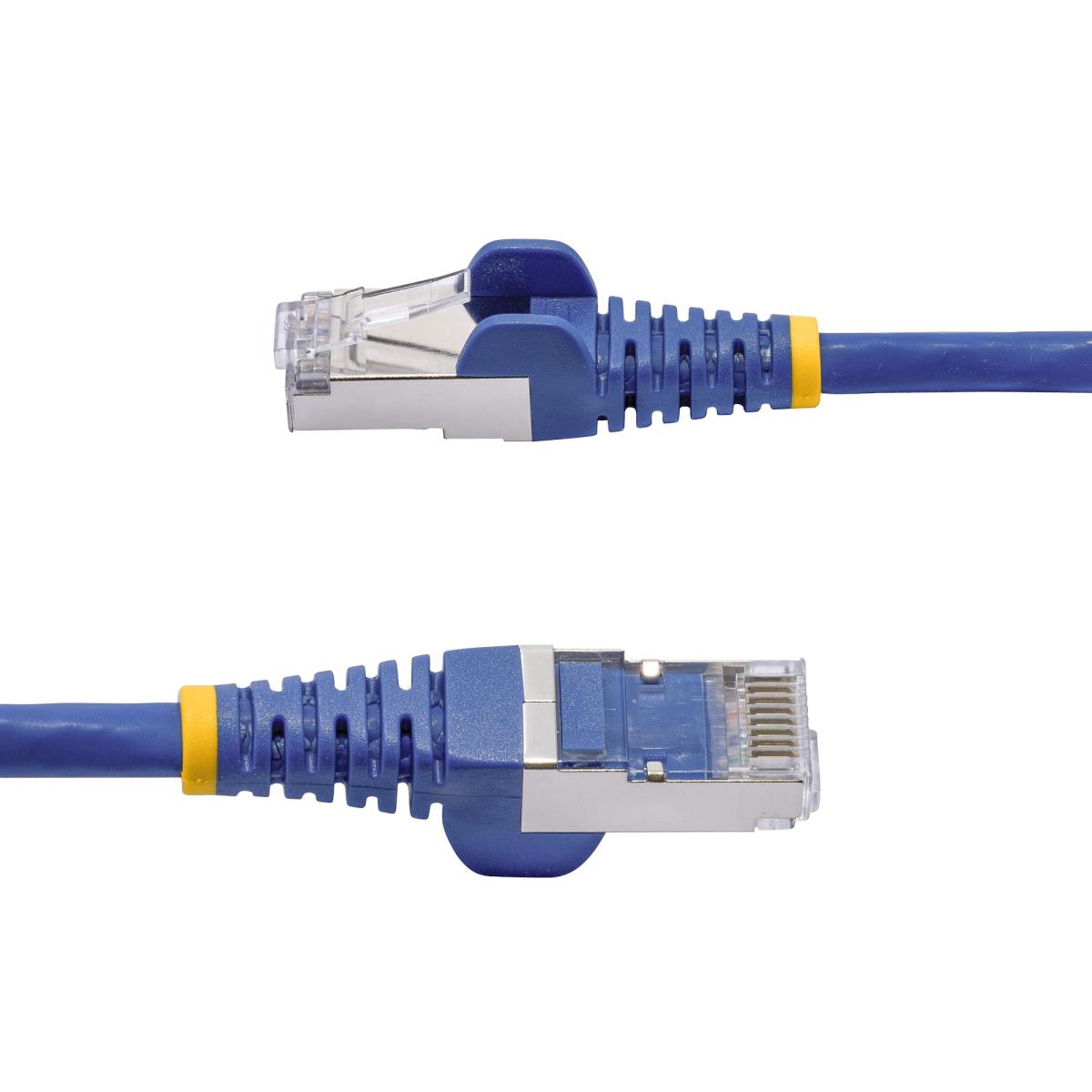

The Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.
Versatile Dependability

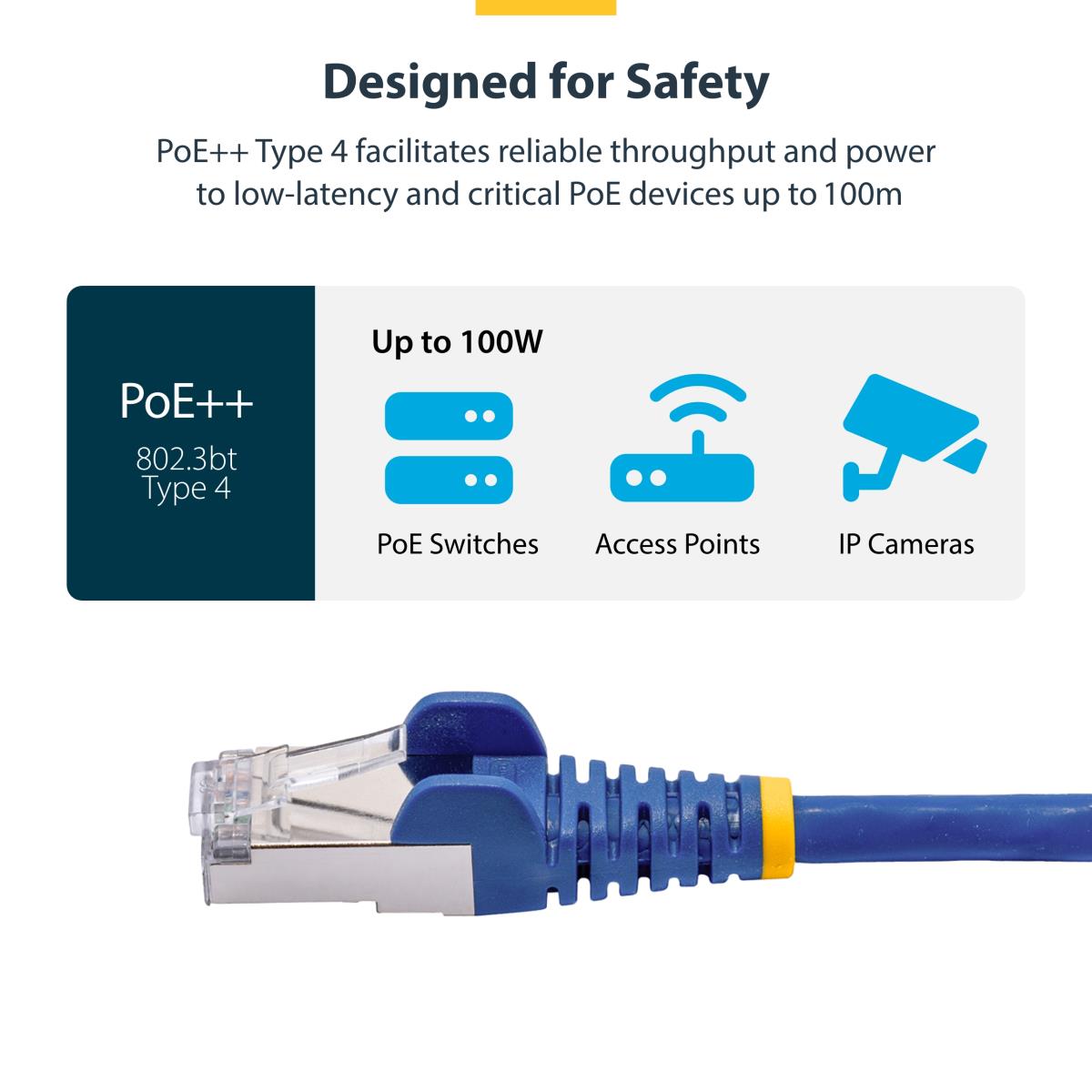

The Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.
Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat8 cables are Fluke channel tested for guaranteed Cat8 performance.
The StarTech.com Advantage
| Features | |
| Product colour | Blue |
| Cable length | 0.5 m |
| Cable standard | Cat8 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Cabling technology | 40GBase-T |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bt |
| AWG wire size | 26 |
| Data transfer rate | 40000 Mbit/s |
| Frequency | 2000 MHz |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Total Power over Ethernet (PoE) budget | 100 W |
| Snagless cable boot | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Outer diameter | 5.6 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 8 mm |
| Package weight | 37 g |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 200 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
