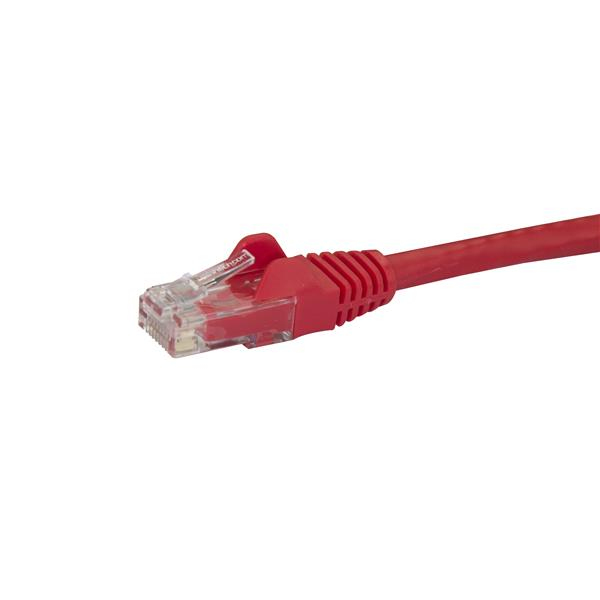

Patch Cable - CAT6 - Utp - Snagless - 10m - Red
ITCurry #: 75647120 | Article #: N6PATC10MRD
Related products
Product Information
Make Power-over-Ethernet-capable Gigabit network connections
This 10-meter Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable red PVC jacket that enables you to color code your network cable runs as needed.
Snagless RJ45 clips help protect your network connections
For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features moulded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATC10MRD is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
- High quality 24 AWG copper wire
- ETL verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6 & ETL Verified
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Red |
| Cable length | 10 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable rating | CMG (CM) |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| AWG wire size | 24 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 650 MHz |
| Power over Ethernet (PoE) | Yes |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
| Certification | ETL, CE, REACH |
| Weight & dimensions | |
| Weight | 385 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 26 mm |
| Package weight | 404 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 30 pc(s) |
