Patch Cable - Cat 5e - Utp - Snagless - 50cm - Red
ITCurry #: 75647240 | Article #: 45PAT50CMRD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Make Fast Ethernet connections with support for PoE
This Cat5e patch cable delivers reliable network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need
This 0.5-meter red network cable is perfect for use in server closets, patch panels and with Ethernet hubs. The cable is intended for short-distance applications such as point-to-point in-rack and across-rack network switch and server connections.
For easier network installations, our Cat 5e cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

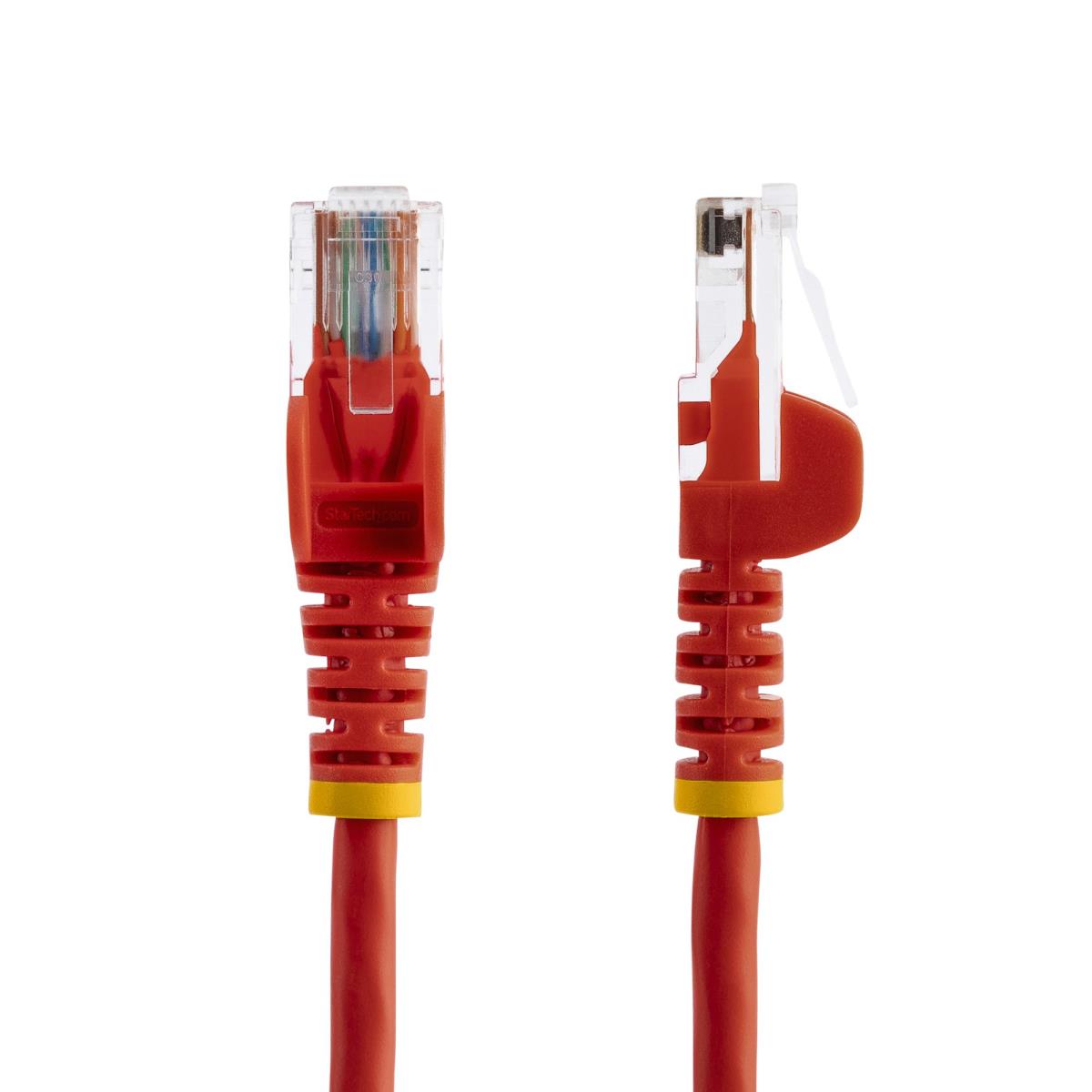

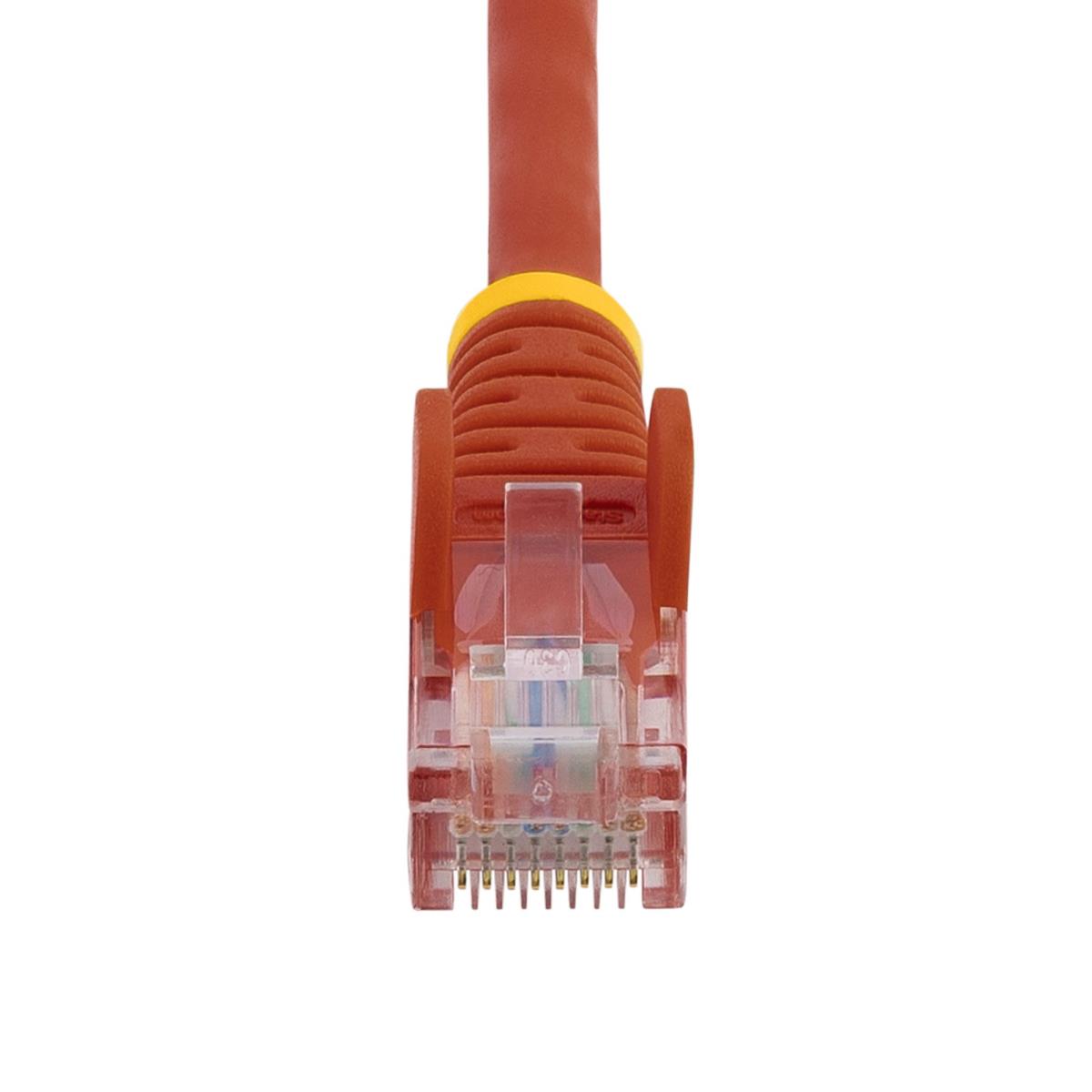

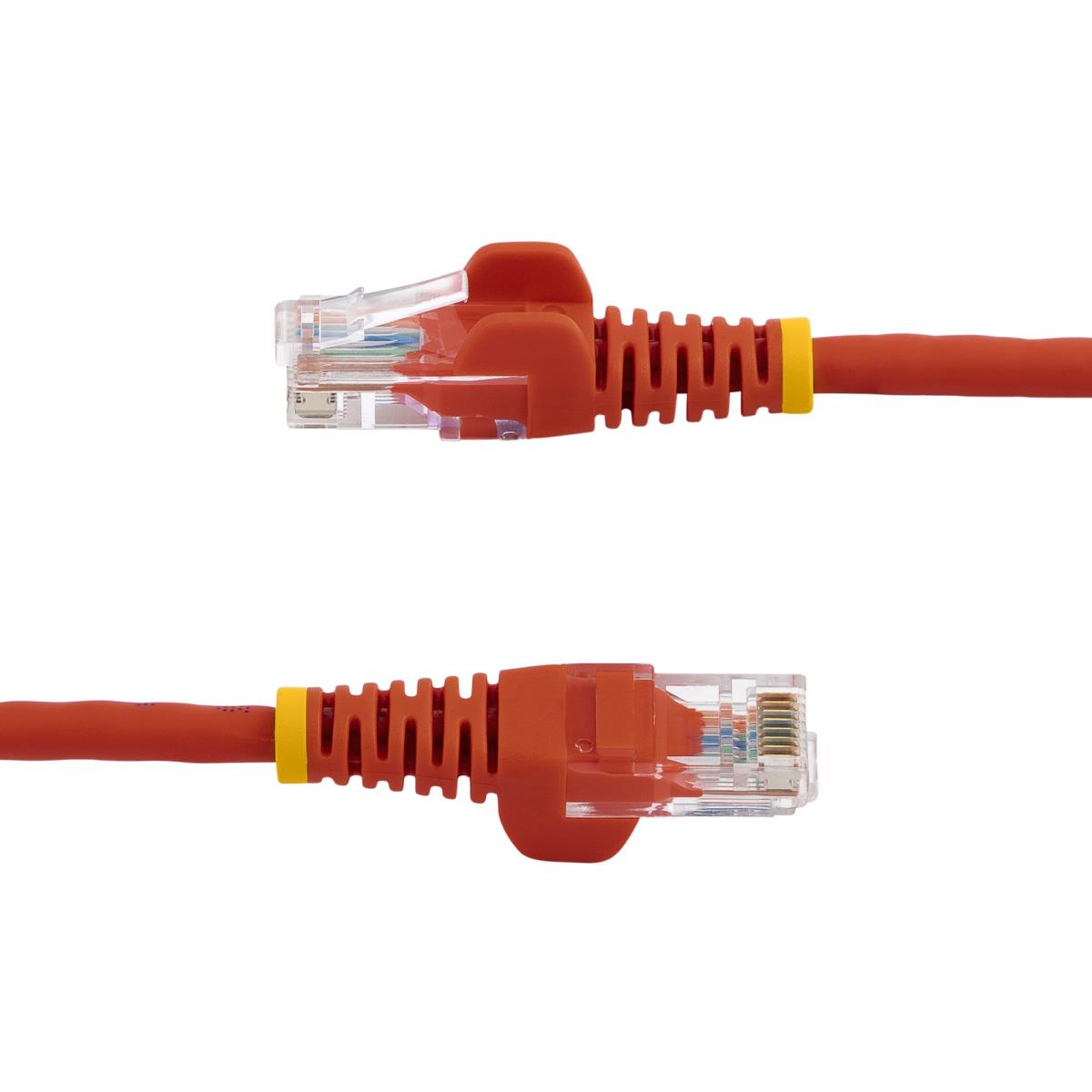

Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moulded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat5e Ethernet cables, each one manufactured using high-quality copper conductors. They are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity, while eliminating signal loss due to oxidation or corrosion.
The 45PAT50CMRD is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Red |
| Cable length | 0.5 m |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable rating | CMG (CM) |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| AWG wire size | 24 |
| Data transfer rate | 100 Mbit/s |
| Frequency | 350 MHz |
| Power over Ethernet (PoE) | Yes |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
| Weight & dimensions | |
| Weight | 24 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 16 mm |
| Package weight | 32 g |
| Technical details | |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 320 pc(s) |
