Patch Cable - Cat 5e - Utp - Snagless - 1m - Orange
ITCurry #: 75646521 | Article #: 45PAT1MOR
Related products
Product Information
Make Fast Ethernet network connections using this high-quality Cat5e cable, with Power-over-Ethernet capability

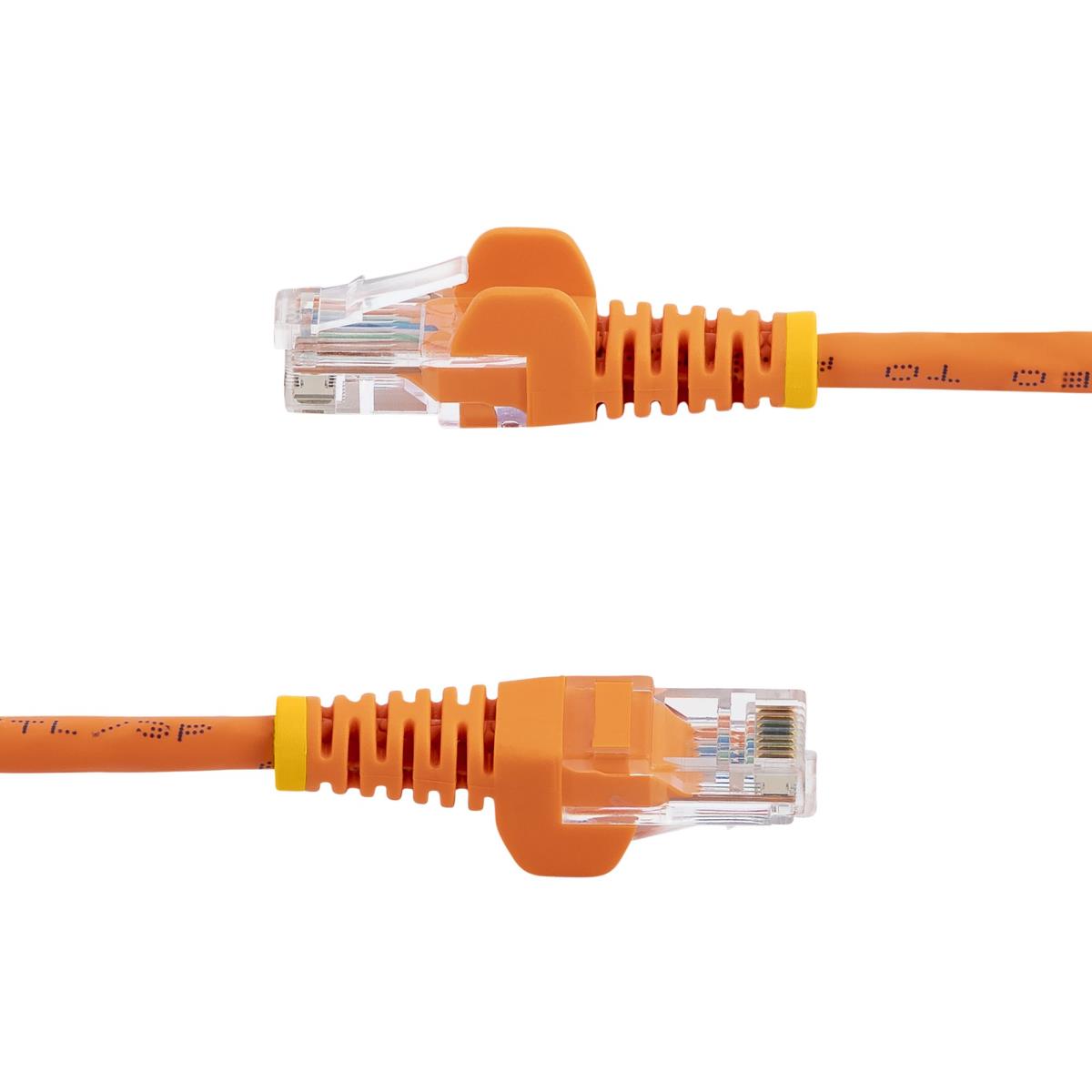

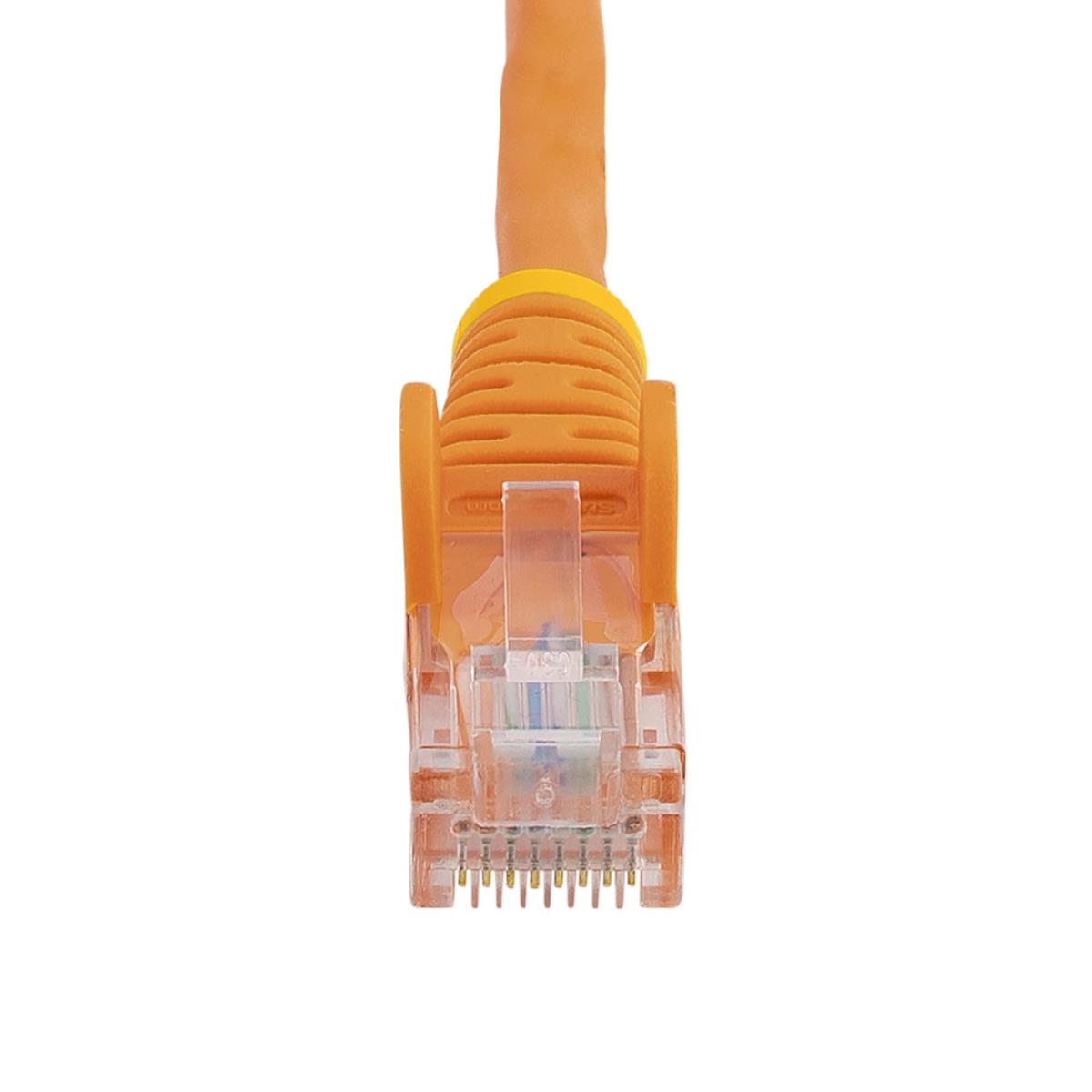

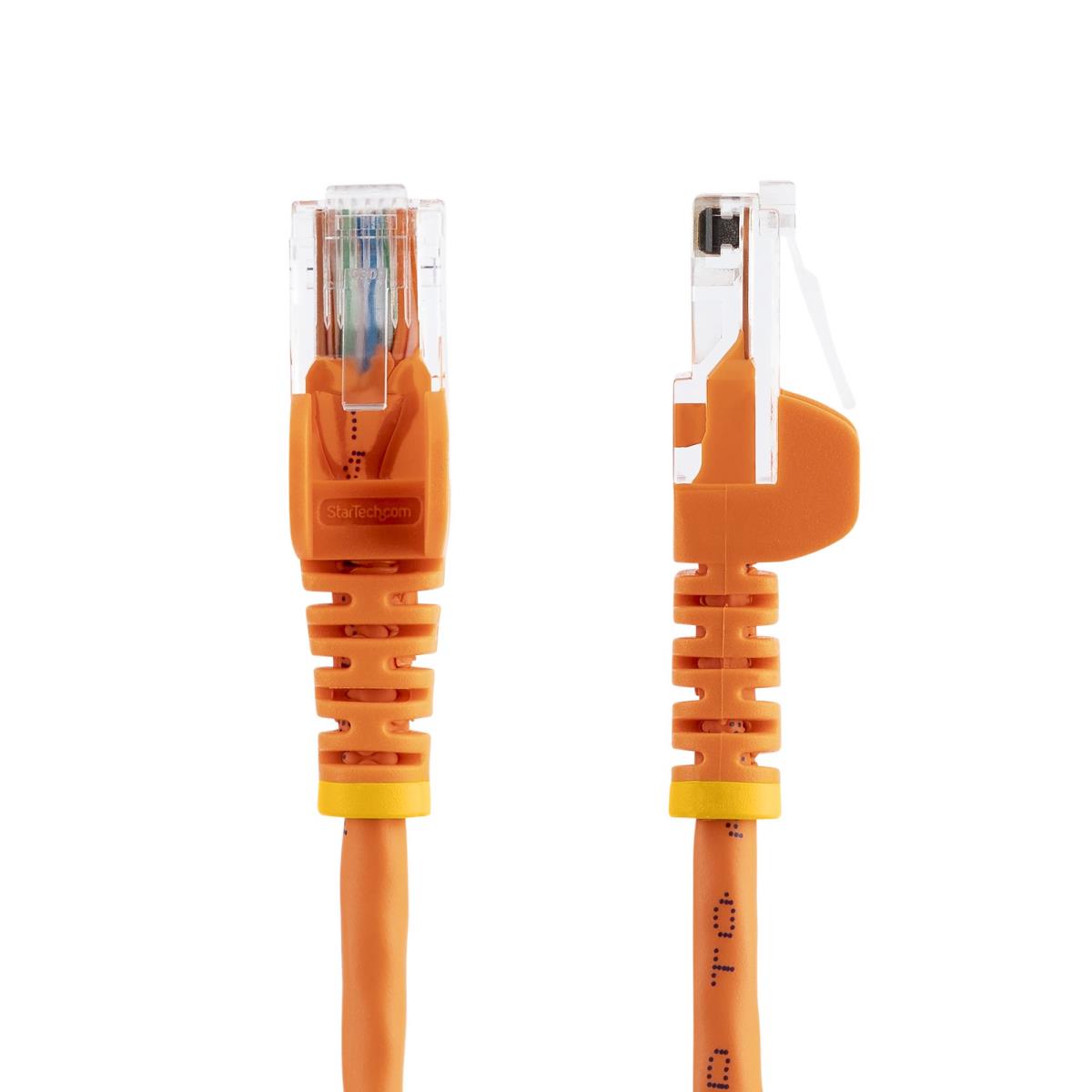

The 45PAT1MOR Cat5e patch cable (1m) meets or exceeds all Cat 5e cable specifications to ensure reliable Ethernet network connections, and features a durable orange PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high-quality Cat5e patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat5e patch cord delivers reliable performance and is backed by our lifetime warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 5e cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The StarTech.com Advantage
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Product colour | Orange |
| Cable length | 1 m |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable rating | CMG (CM) |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| AWG wire size | 24 |
| Data transfer rate | 100 Mbit/s |
| Frequency | 350 MHz |
| Power over Ethernet (PoE) | Yes |
| Snagless cable boot | Yes |
| Plug and Play | Yes |
| Certification | CE, REACH |
| Weight & dimensions | |
| Weight | 40 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 48 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 250 pc(s) |
