Product Information
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

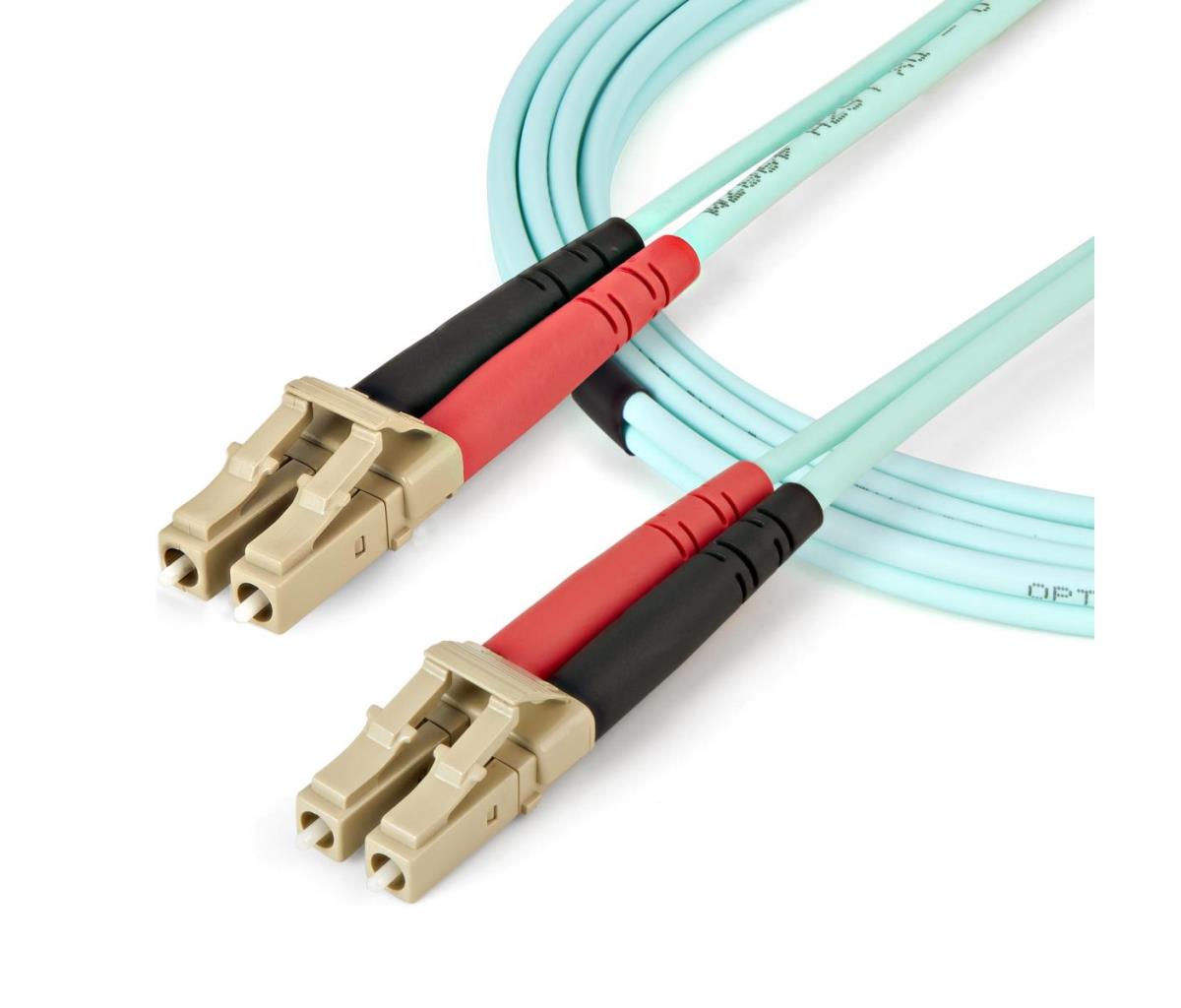

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.
Engineered for Optimal Performance
With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.
Wide Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.
Flame Resistant
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.
Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
| Features | |
| Cable length | 2 m |
| Fibre optic type | OM4 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Aqua colour |
| Full duplex | Yes |
| Core diameter | 50 æm |
| Cladding diameter | 125 æm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Technical details | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 34 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 5.8 mm |
| Package weight | 42 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
