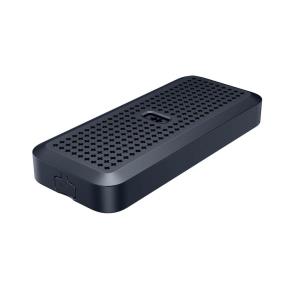

Nvme Enclosure SSD Enclosure USB4 M.2
ITCurry #: 7564C398 | Article #: 1USB4-NVME-ENCLOSURE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility
Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.
Versatile USB-C & Thunderbolt Support
Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.
Robust Heat Dissipation
The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.
Compact and Durable
The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.
| Storage | |
| Number of storage drives supported | 1 |
| Storage drive size | M.2 |
| Supported storage drive interfaces | PCI Express |
| Supported storage drive heights | 22 mm |
| Supported storage drive lengths | 30,42,60,80 mm |
| NVMe | Yes |
| Ports & interfaces | |
| USB connectivity | Yes |
| USB version | USB4 Gen 4 |
| USB connector type | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable | No |
| Design | |
| Product type | SSD enclosure |
| Product colour | Black |
| Material | Aluminium |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Data transfer rate | 40 Gbit/s |
| Chipset | ASMedia - ASM2464PD |
| Plug and Play | Yes |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 124.8 mm |
| Height | 28.8 mm |
| Weight | 340 g |
| Cable length | 0.3 m |
| Package width | 190 mm |
| Package depth | 114 mm |
| Package height | 35 mm |
| Package weight | 430 g |
| Packaging content | |
| Cables included | USB Type-C to USB Type-C |
| Screwdriver included | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 20 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
