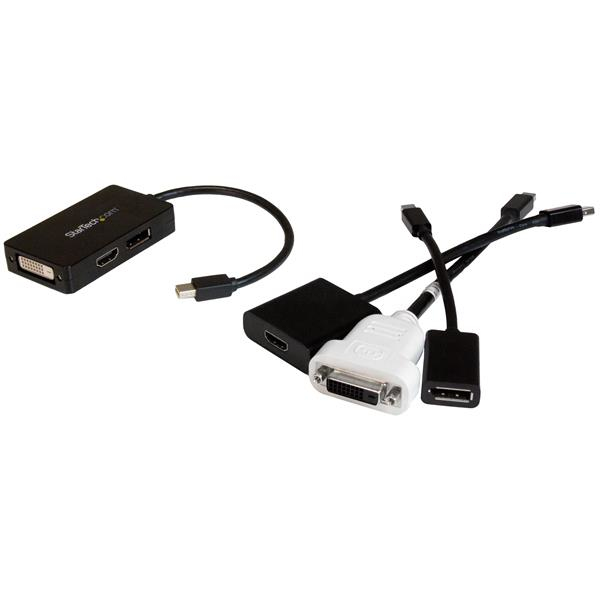

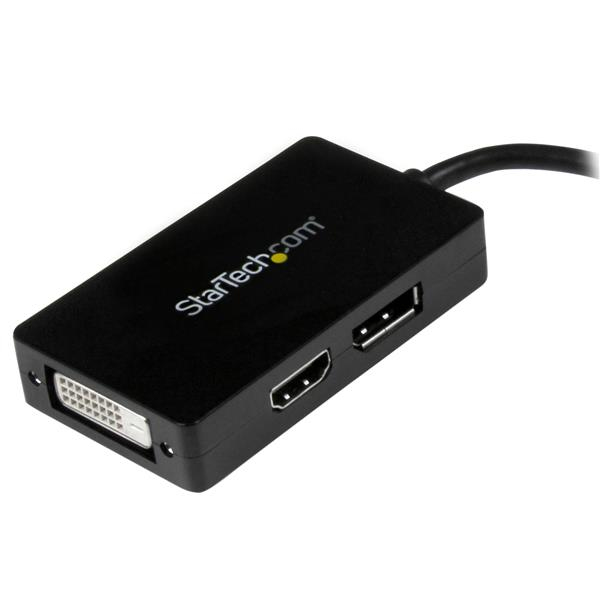

Mini DisplayPort To DisplayPort / DVI / Hdmi Multifunction Adapter
ITCurry #: 75645364 | Article #: MDP2DPDVHD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect your mini DisplayPort Device to a DisplayPort, HDMIor DVI Display, with this Compact, All-in-One Adapter
The MDP2DPDVHD mini DisplayPort to DisplayPort, DVI or HDMI Multifunction Adapter converts a mini DisplayPort (mDP) input to DisplayPort, DVI or HDMI output signals - all in a single compact adapter.

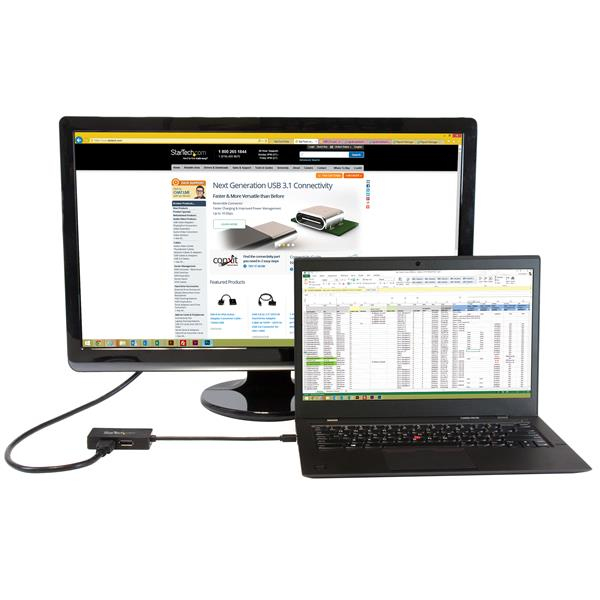

This multifunction adapter offers the unique ability to connect almost any display to your mini DisplayPort equipped PC or Mac, providing the perfect solution for business environments that have mixed display hardware - saving the expense of purchasing new displays for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook or Microsoft Surface Pro devices with mDP.
A plug-and-play solution that requires no software or drivers, this versatile mDP adapter offers a quick and simple installation for the utmost convenience.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adapting mini DisplayPort to 3 different output signals in a single adapter provides maximum flexibility for connecting almost any display
- Compact design provides portability and minimizes workspace disruption
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.15 m |

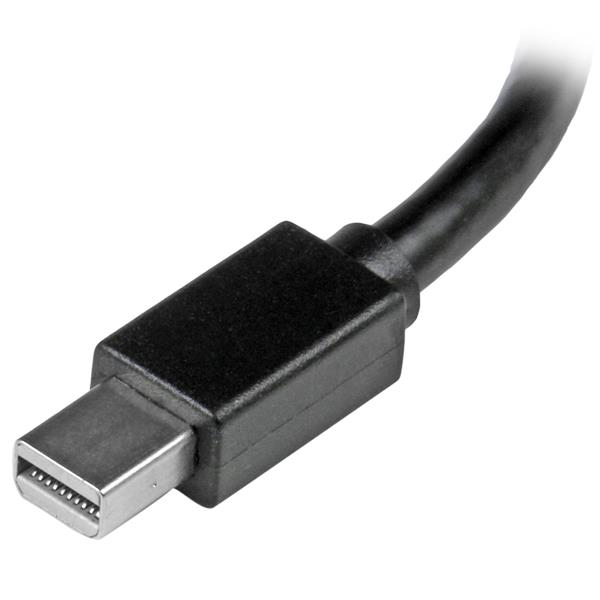

| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort + DVI-D + HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Maximum resolution | 2560 x 1600 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA) |
| Product colour | Black |
| Supported audio channels | 5.1 |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 47 g |
| Width | 45 mm |
| Depth | 240 mm |
| Height | 15 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 56 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Material | Plastic |
| Warranty | |
| Base Warranty | Non Non |
