Laptop Docking Station - USB C Multiport Adapter - Dual Hdmi Video, 4k
ITCurry #: 7564A606 | Article #: 120B-USBC-MULTIPORT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

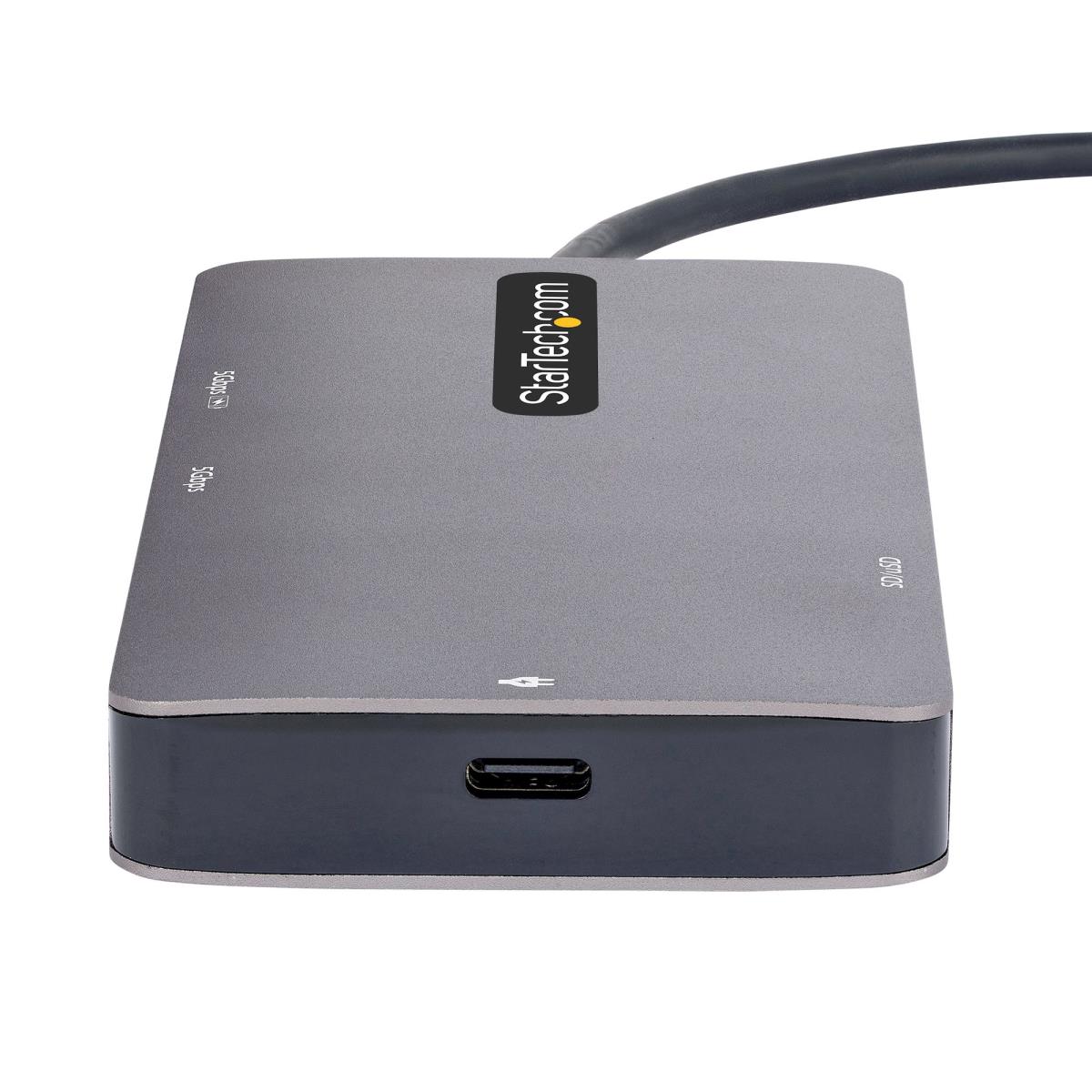

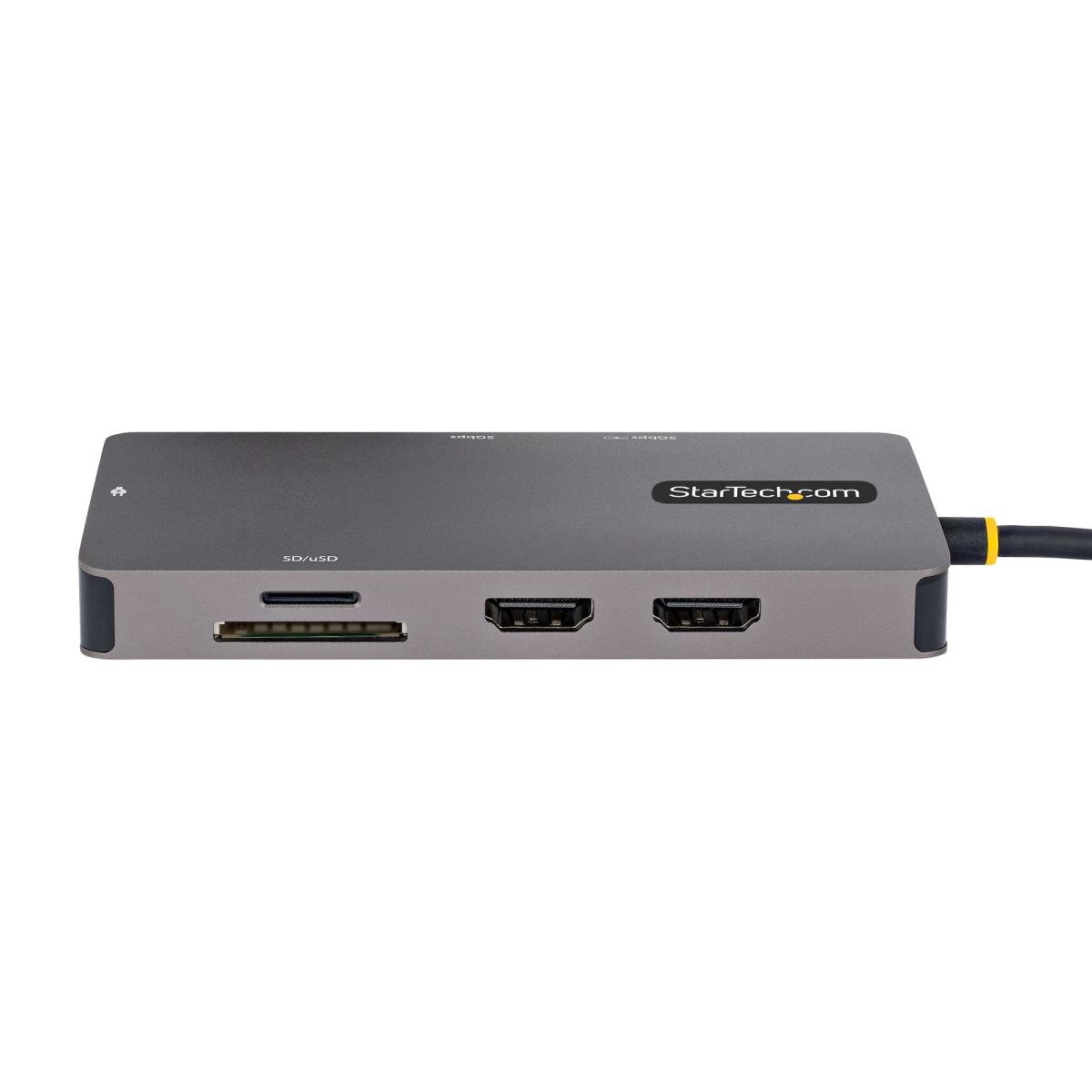

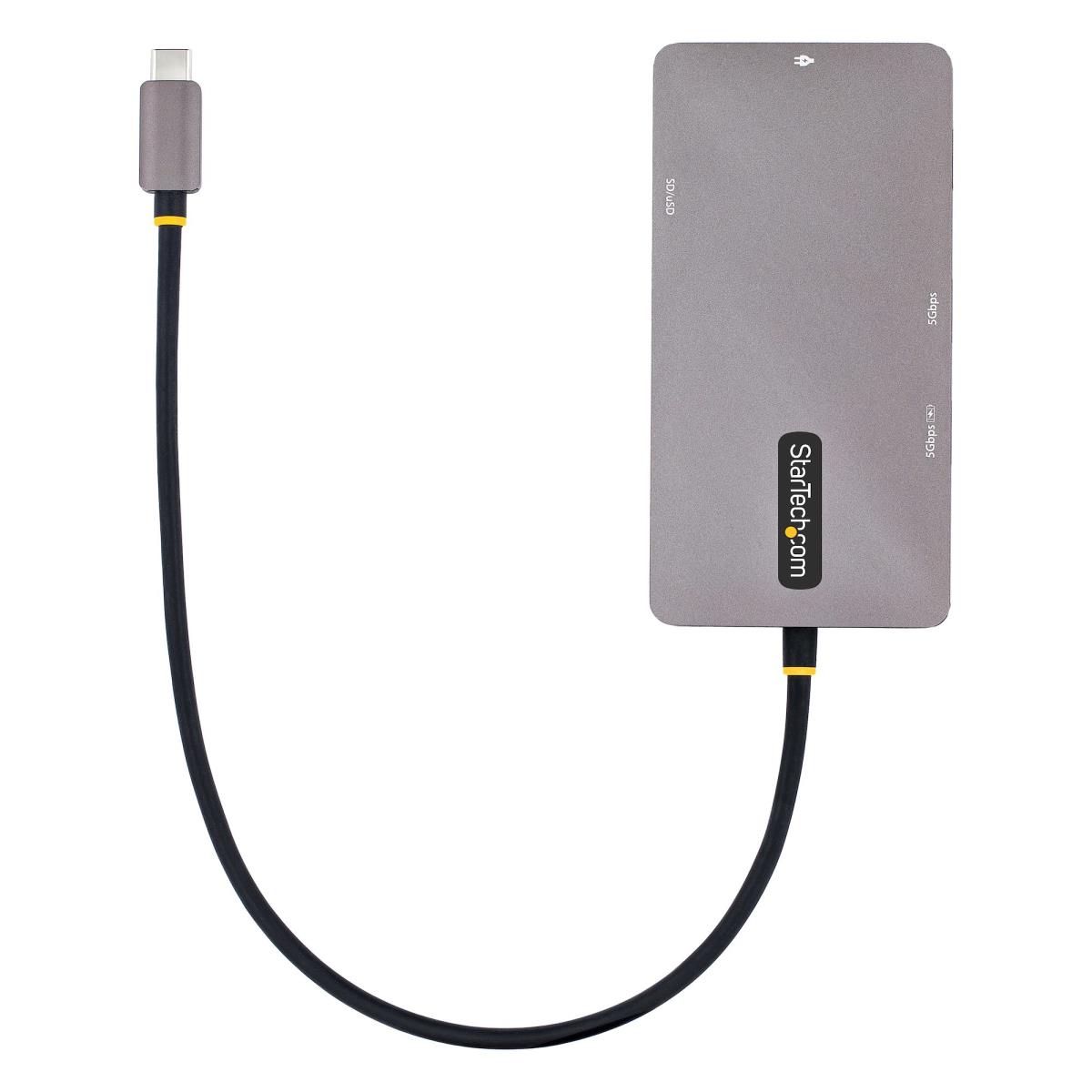

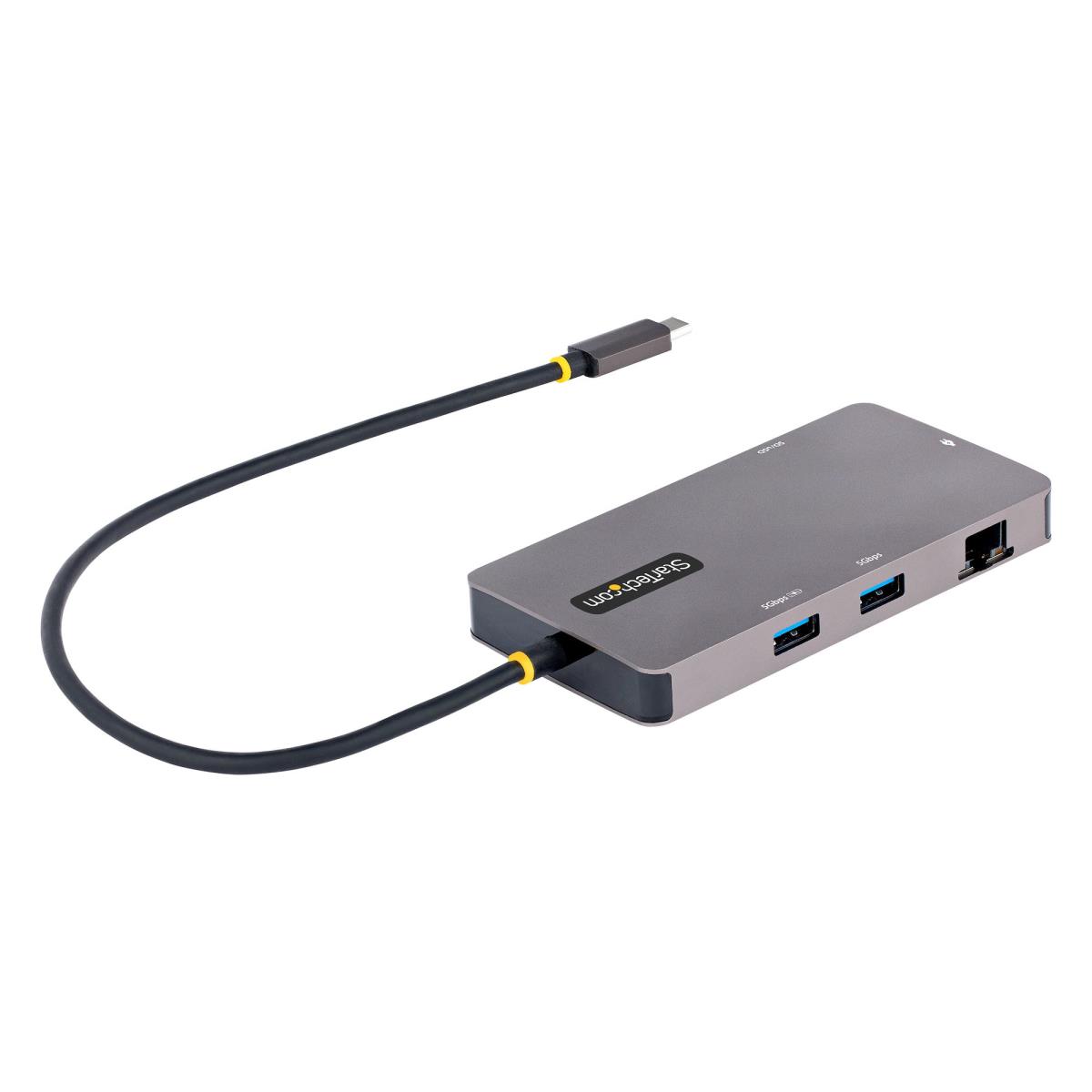

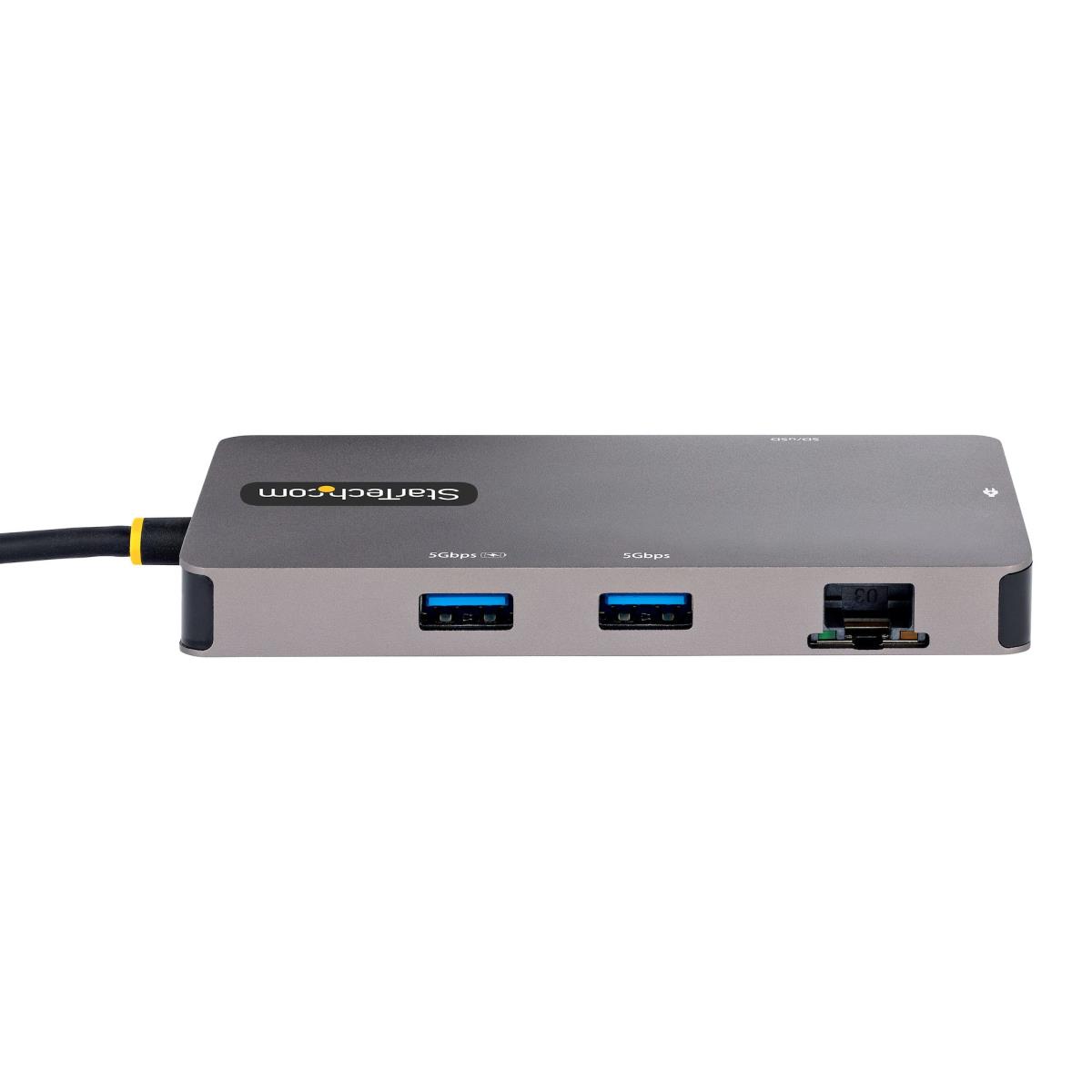

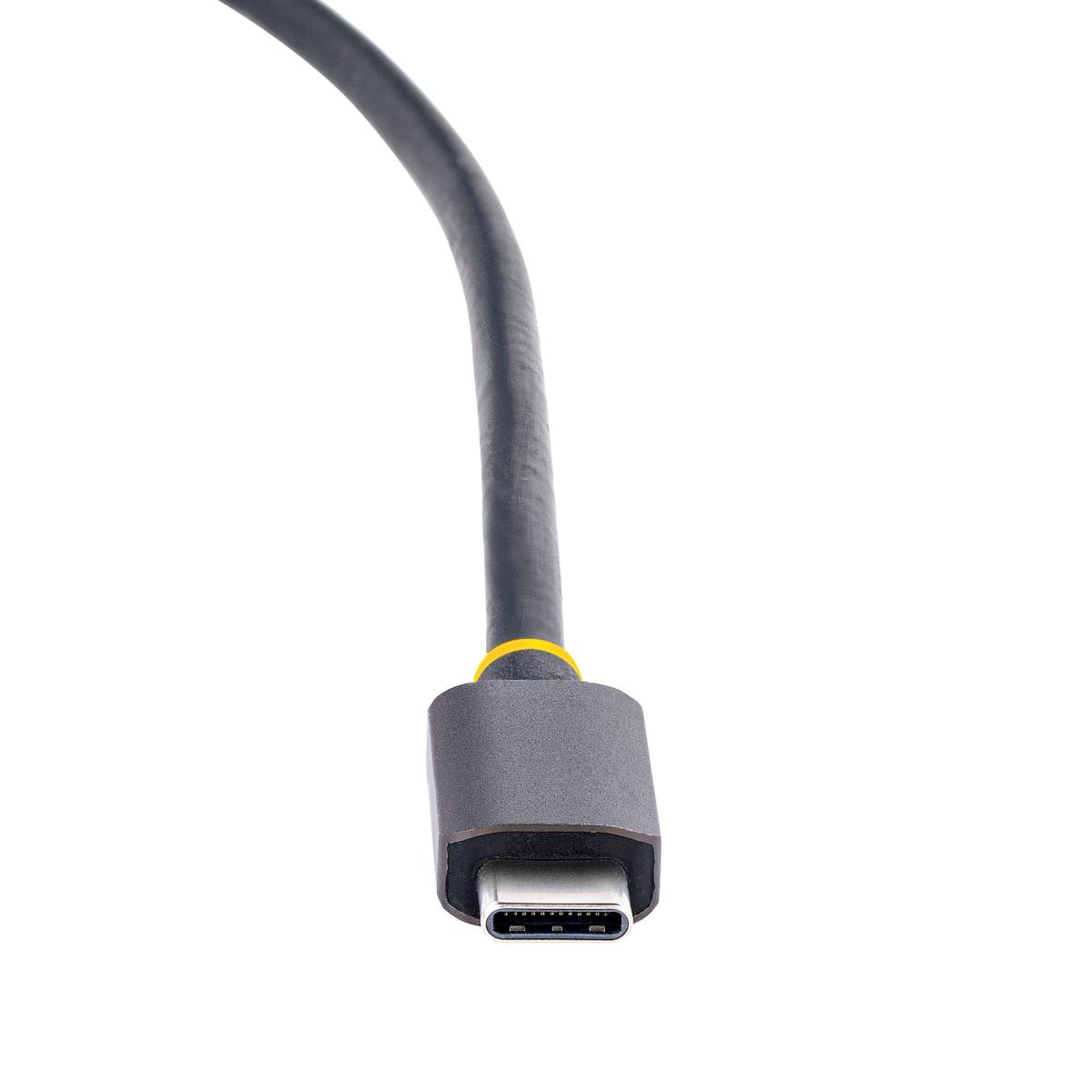

Portable Docking Station | Up to Dual-4K 60Hz | GbE | SD & MicroSD Card Readers | Thunderbolt™ 3 & 4 CompatibleThis USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC and MST, supports dual-HDMI® (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more set up flexibility.High-Performance Dual-HDMI Video via MSTThe compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below:Dual DisplayHost ComputerModelMonitor #1Maximum ResolutionMonitor #2Maximum ResolutionLenovo X1 Carbon G93840x2160@60Hz3840x2160@60HzHP EliteBook 850 G83840x2160@60Hz3840x2160@30HzDell XPS 93102560x1600@60Hz2560x1600@60HzSingle DisplayHost ComputerModelMonitorMaximum ResolutionDell XPS 93103840x2160@60HzLenovo X1C G93840x2160@60HzHP EliteBook 8503840x2160@60HzHP ProBook 450 G83840x2160@60HzSurface Laptop 33840x2160@60HzDell G5 SE (AMD)3840x2160@60HzConnect Your DevicesThe USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.Multiple Use CasesA versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, , or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.Built-In SD Card ReaderAccess your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.Charge Your Laptop and PeripheralsWith support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter enables you to power and charge your laptop and a USB peripheral, when a USB-C power adapter is connected to the pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).Reliable Network ConnectivityThe Gigabit Ethernet port ensures reliable wired network access. Support for WoL allows you to boot the host computer from a remote location.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•MAC Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices.•Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe 120B-USBC-MULTIPORT is backed by a StarTech.com 3-year warranty and free lifetime multilingual technical support.The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD, SDHC, SDXC |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour | Grey |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range 10 (HDR10) | Yes |
| LED indicators | Activity, Status |
| UASP support | Yes |
| Housing material | Aluminium |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 15 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 59 mm |
| Height | 140 mm |
| Weight | 165 g |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 165 g |
| Packaging content | |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 310 mm |
| Products per shipping (inner) case | 60 pc(s) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.3 m |
| Chipset | VIA - VL102, VIA - VL817, NOREL Systems - NS1081, ASIX - AX88179A, Synaptics - VMM6210 |
| Warranty | |
| Base Warranty | Non Non |
