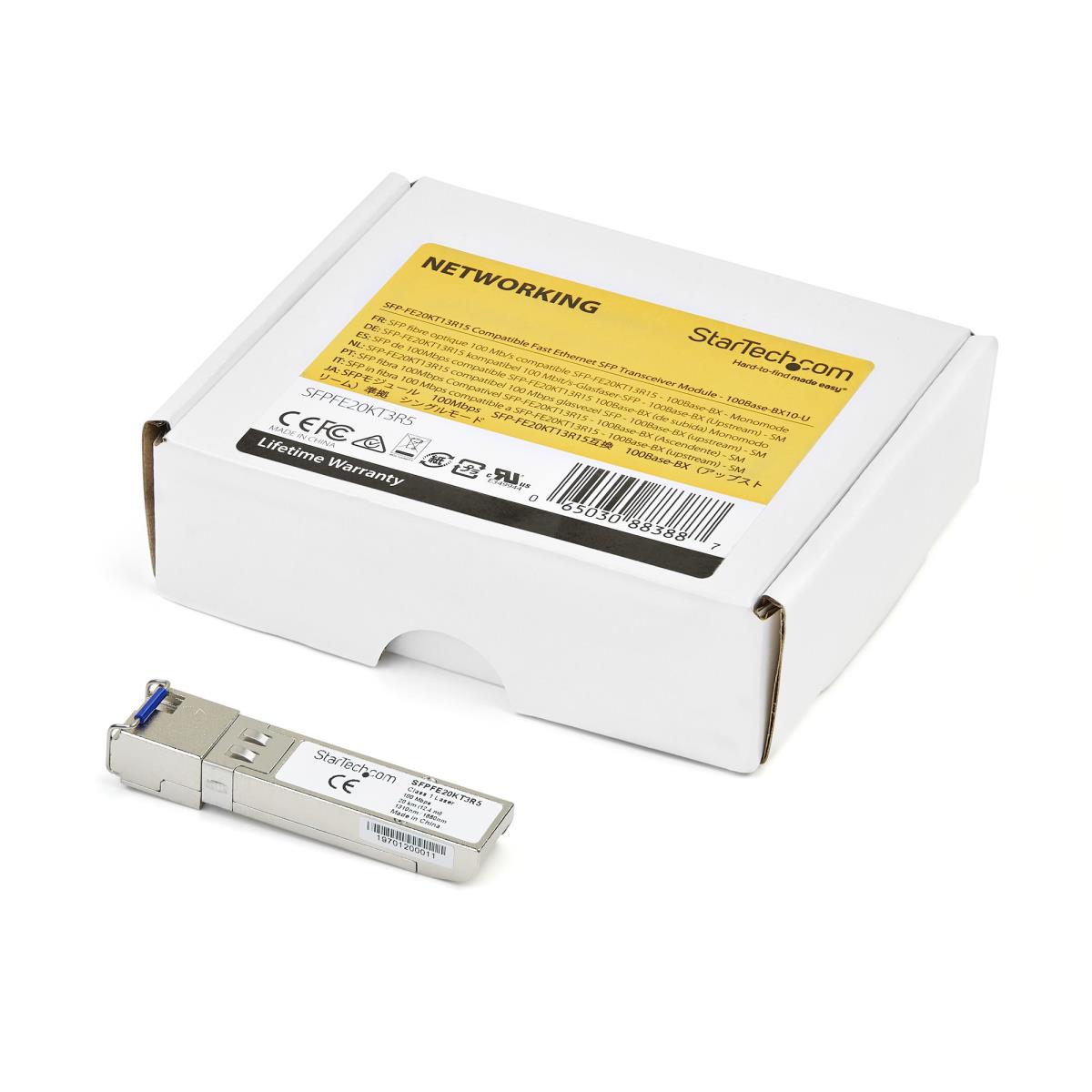

Juniper Sfp-fe20kt13r15 Compatible Sfp Module - 100base-bx10-u Fiber Optical Transceiver
ITCurry #: 75648184 | Article #: SFPFE20KT3R5-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
100 Mbps | Single Mode Fiber | LC | 20 km (12.4 mi) | 3-Year Warranty
The SFPFE20KT3R5 is a Juniper SFP-GE10KT14R13 compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 100 MbE connectivity over fiber cable, for 100BASE-BX10-U compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 100 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 3,713,222 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3713222 h |
| Brand compatibility | Juniper |
| Compatible products | SFP-FE20KT13R15 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 207 mm |
| Package depth | 230 mm |
| Package height | 15 mm |
| Package weight | 80 g |
| Logistics data | |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 295 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
