Heavy-duty Steel Ceiling Mount For 3in - 7in Lcd/led/plasma Tv
ITCurry #: 75647266 | Article #: FLATPNLCEIL-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

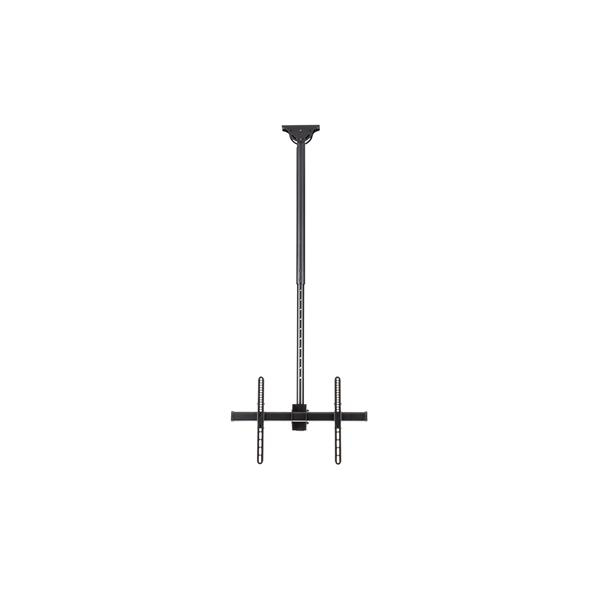

Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

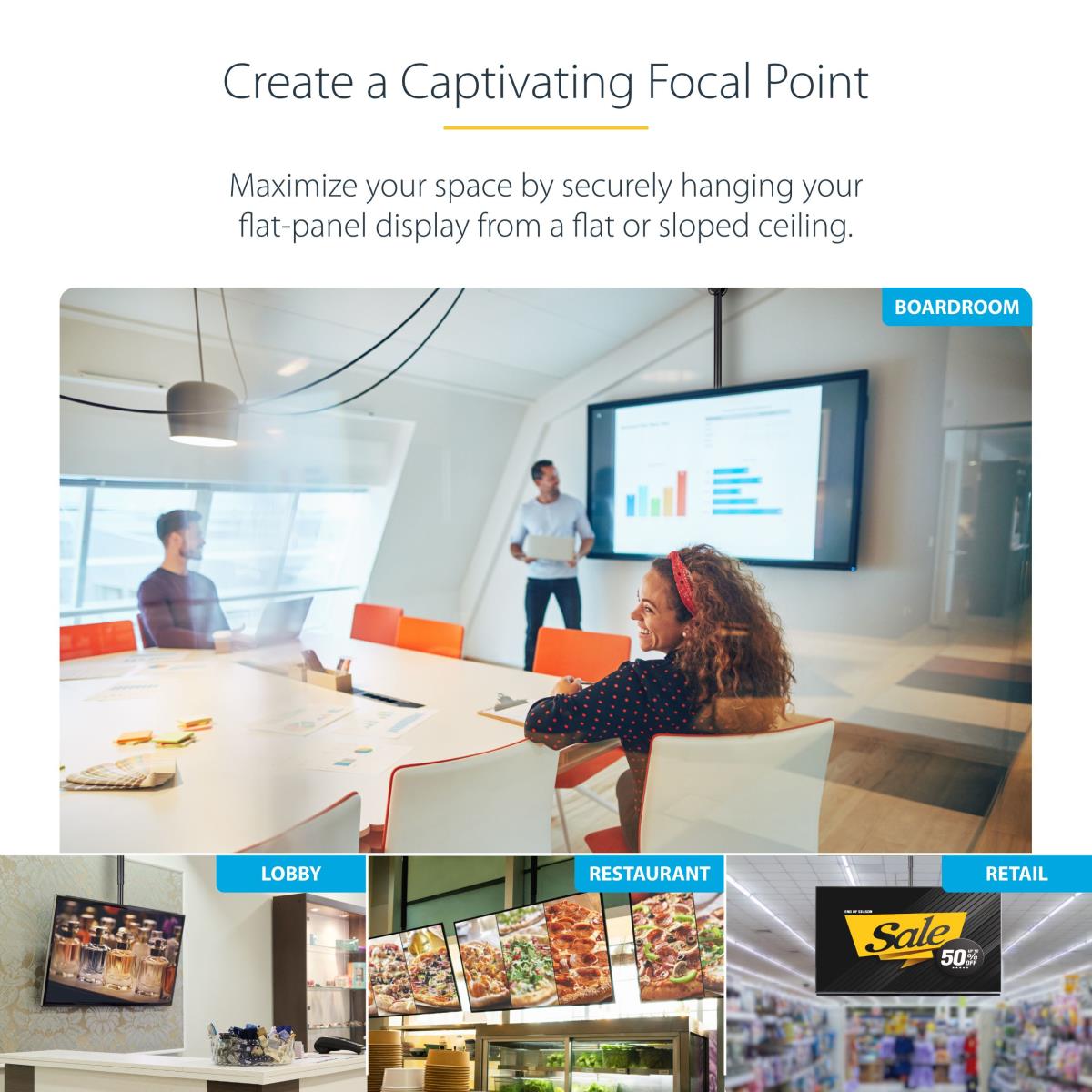

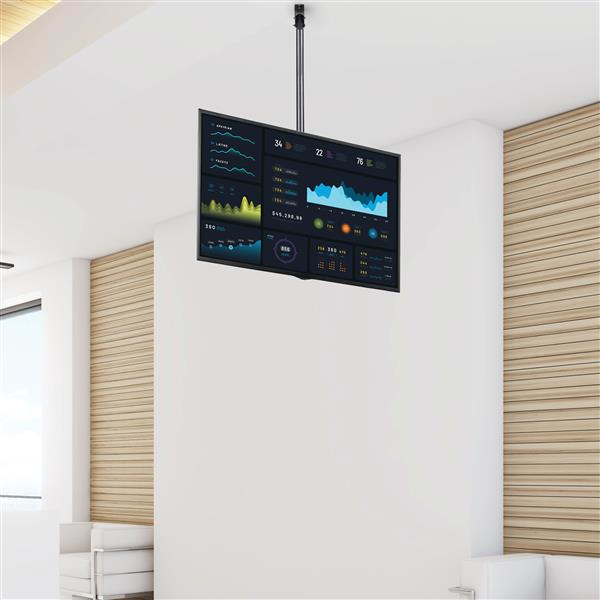

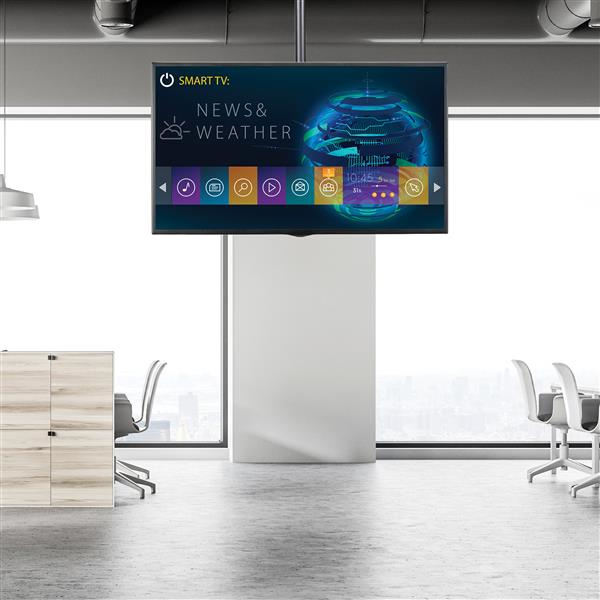

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm).

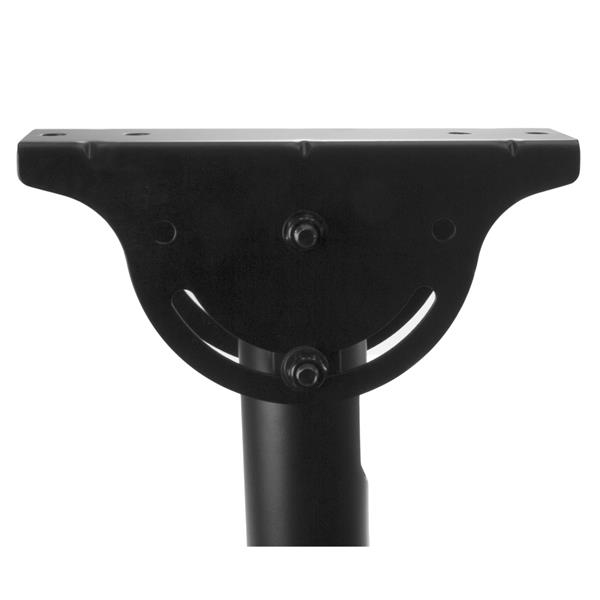

Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

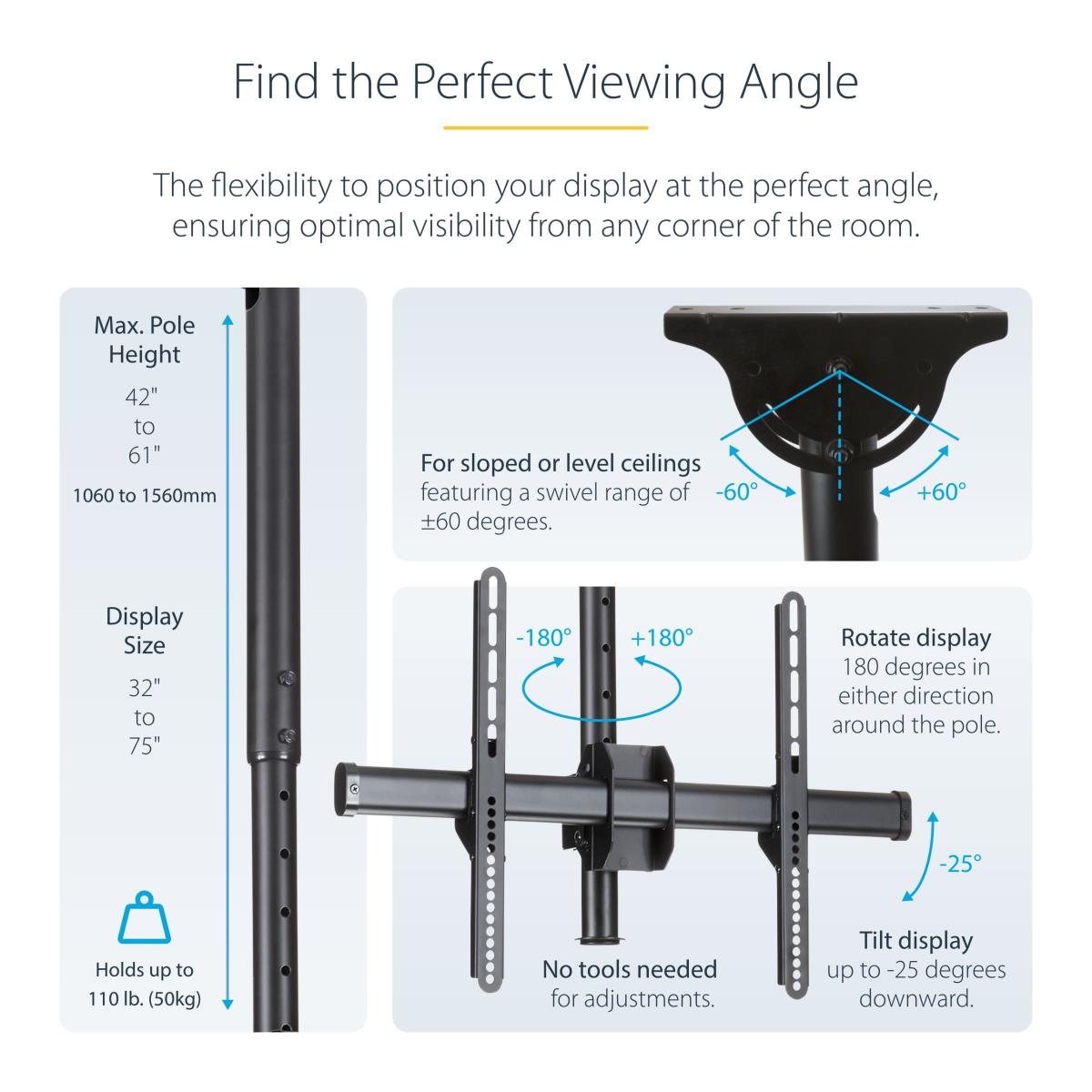

Viewable from Any Direction

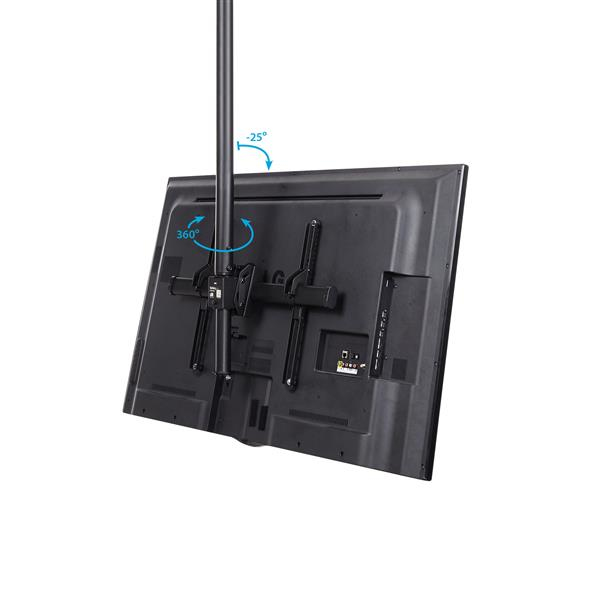

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

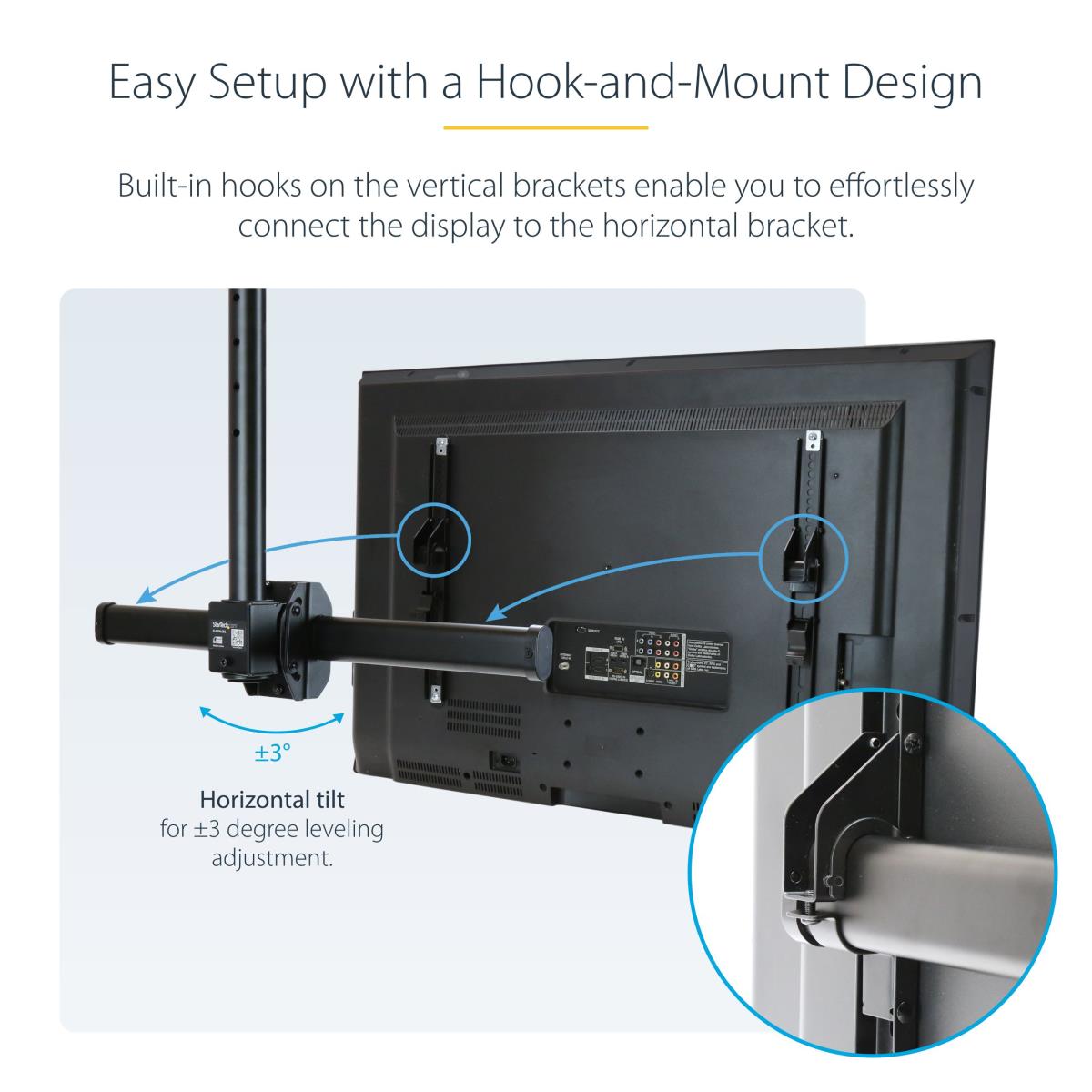

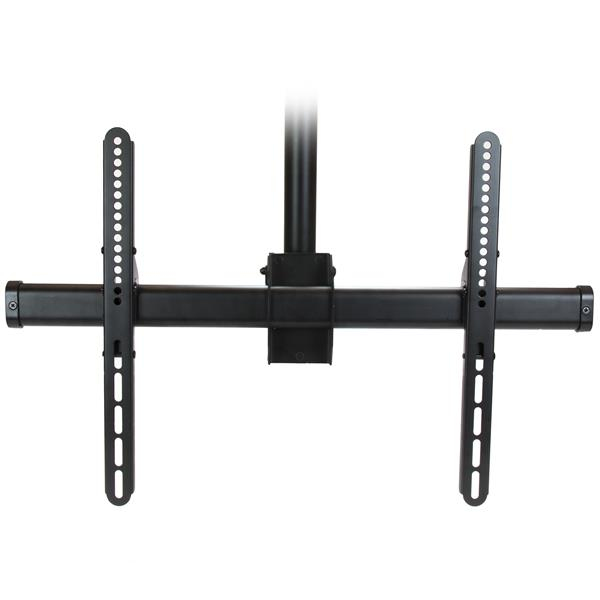

Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FLATPNLCEIL is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Save space by suspending your 32 to 75" flat-screen TV from the ceiling; Supports TVs up to 110 lb. (50 kg)
- Min-max pole length extension of 42" to 61" (1060 to 1560 mm)
- Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings
| Mounting | |
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 50 kg |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |

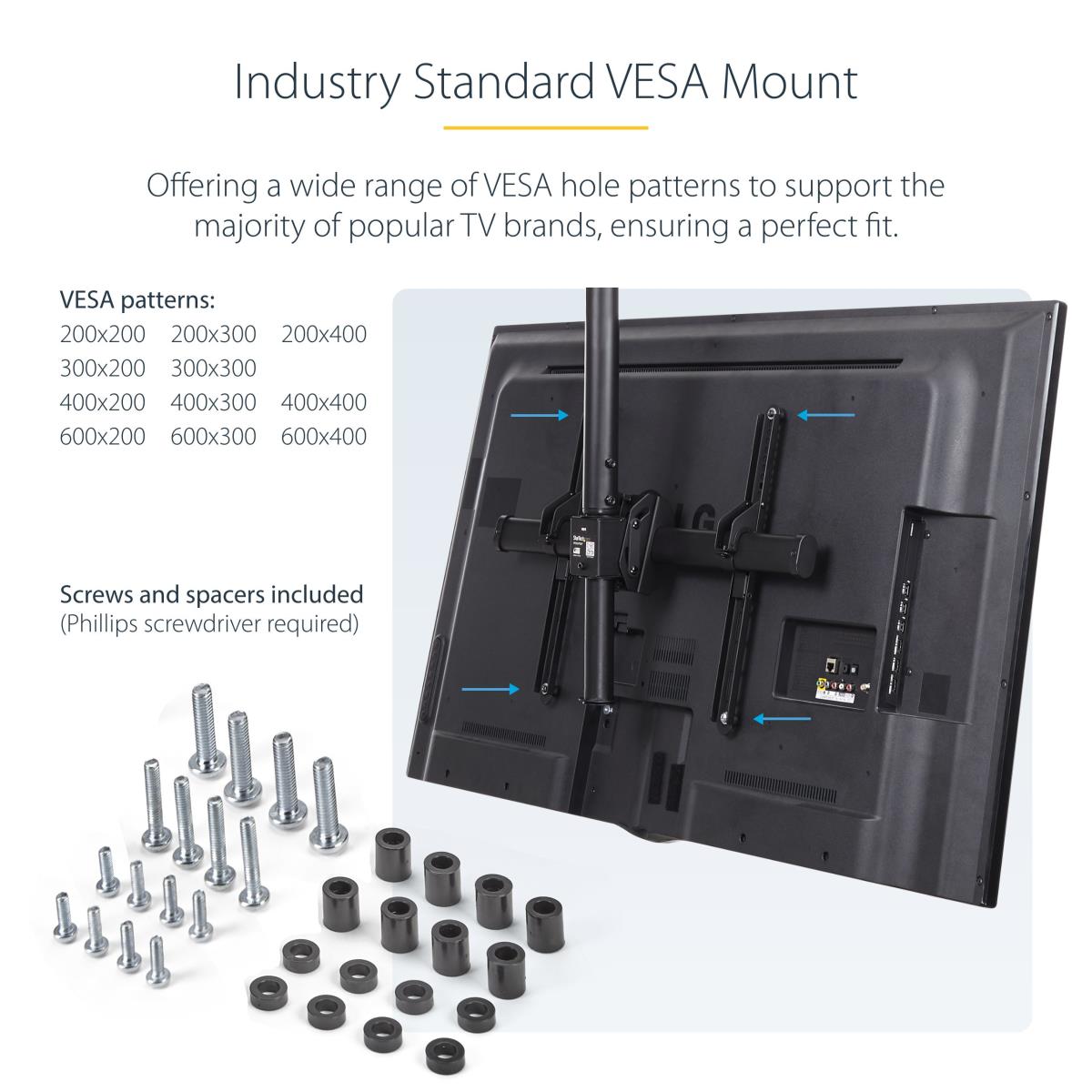

| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 1100 - 1600 mm |
| Tilt angle range | -25 - 0ø |
| Swivel angle range | -180 - 180ø |
| Angle of rotation | 360ø |
| Pivot angle | -180 - 180ø |
| Adjustable | Yes |

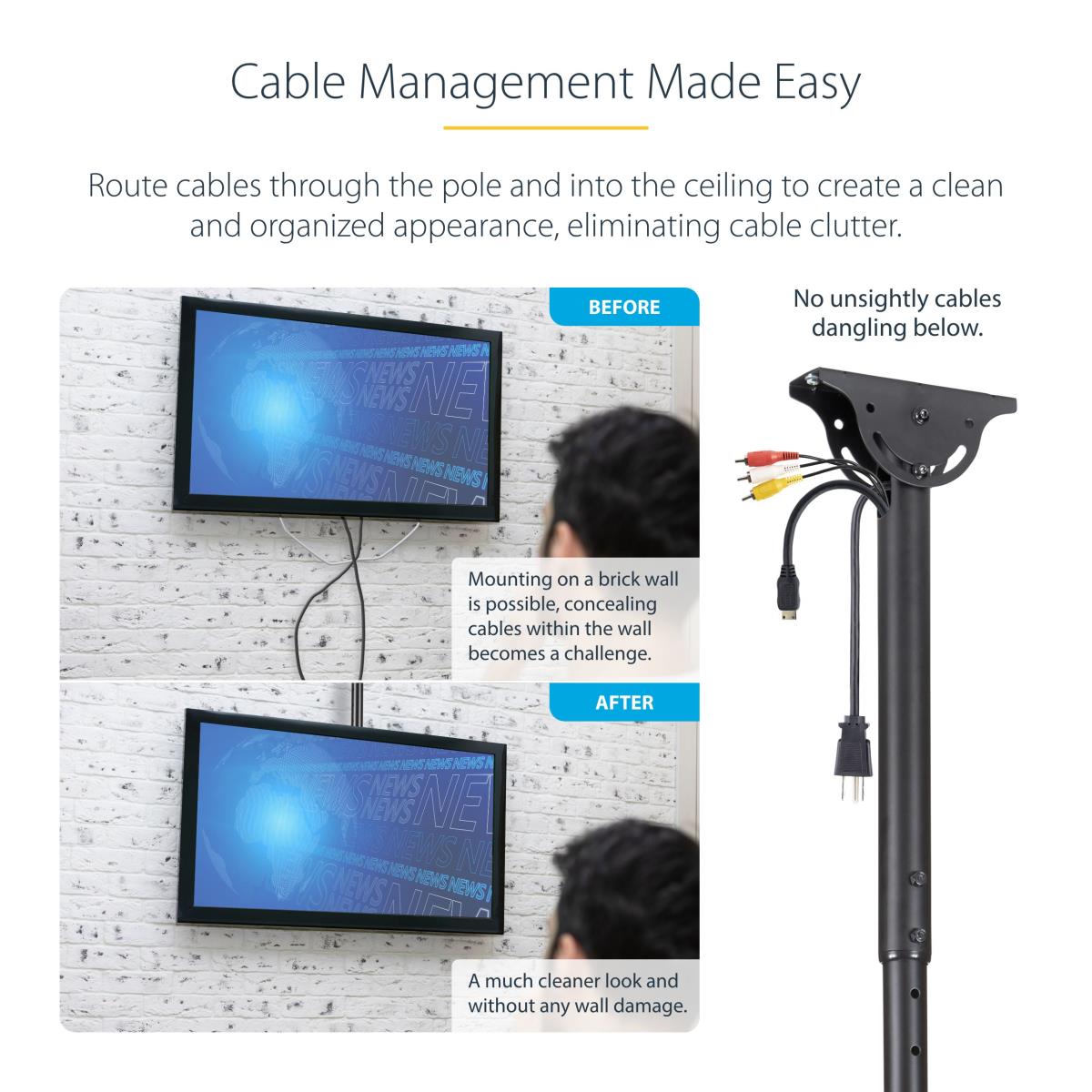

| Cable management | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
| Certification | CE, REACH |

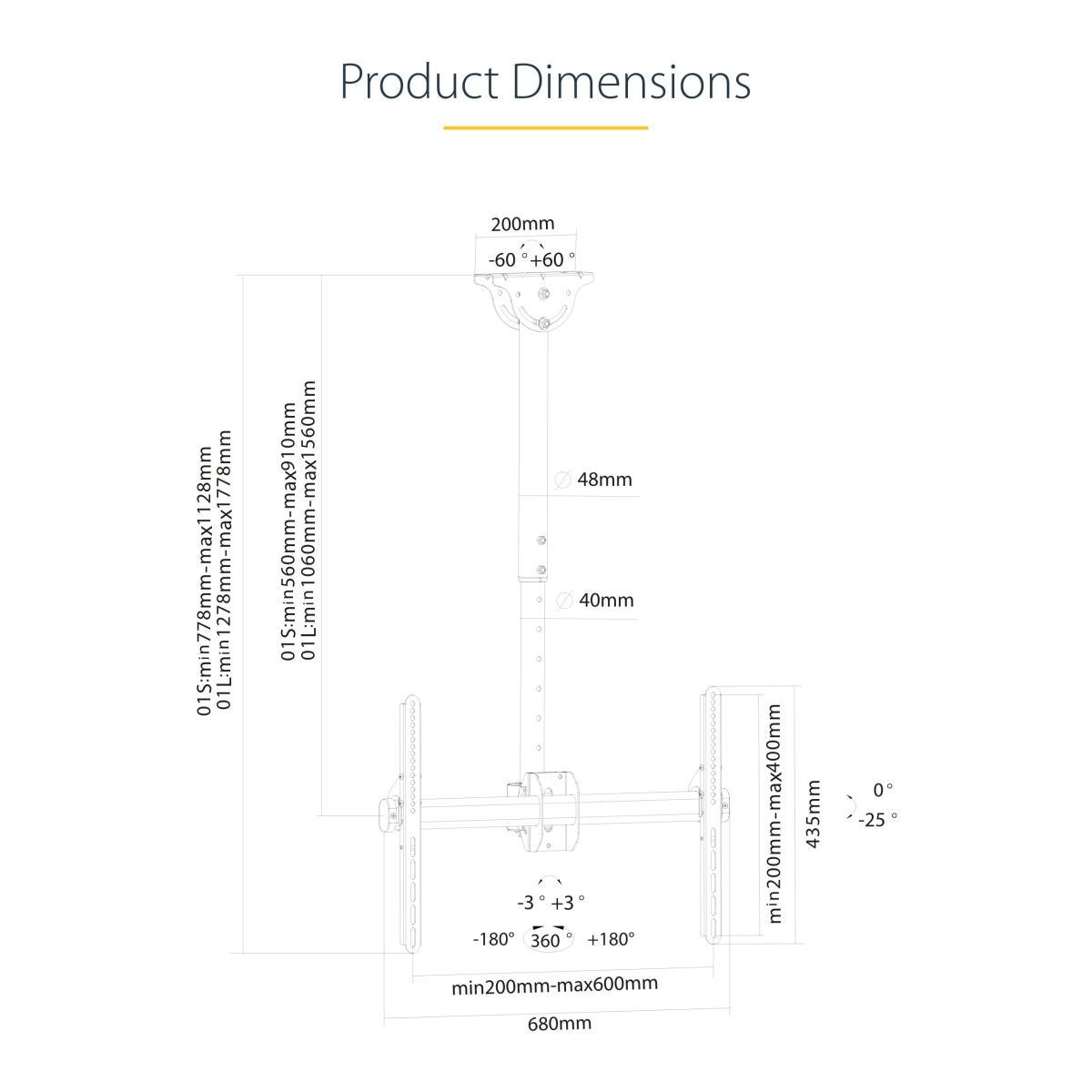

| Weight & dimensions | |
| Width | 140 mm |
| Depth | 680 mm |
| Depth (max) | 68 cm |
| Height | 1800 mm |
| Weight | 6 kg |
| Packaging data | |
| Package width | 312 mm |
| Package depth | 942 mm |
| Package height | 146 mm |
| Package weight | 7.8 kg |

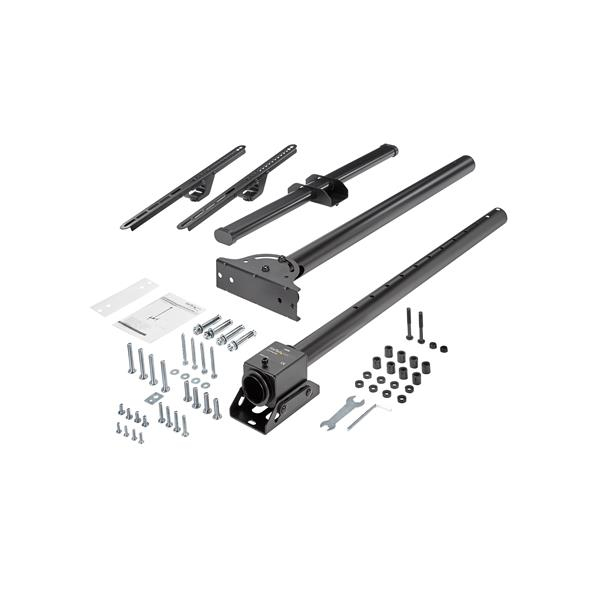

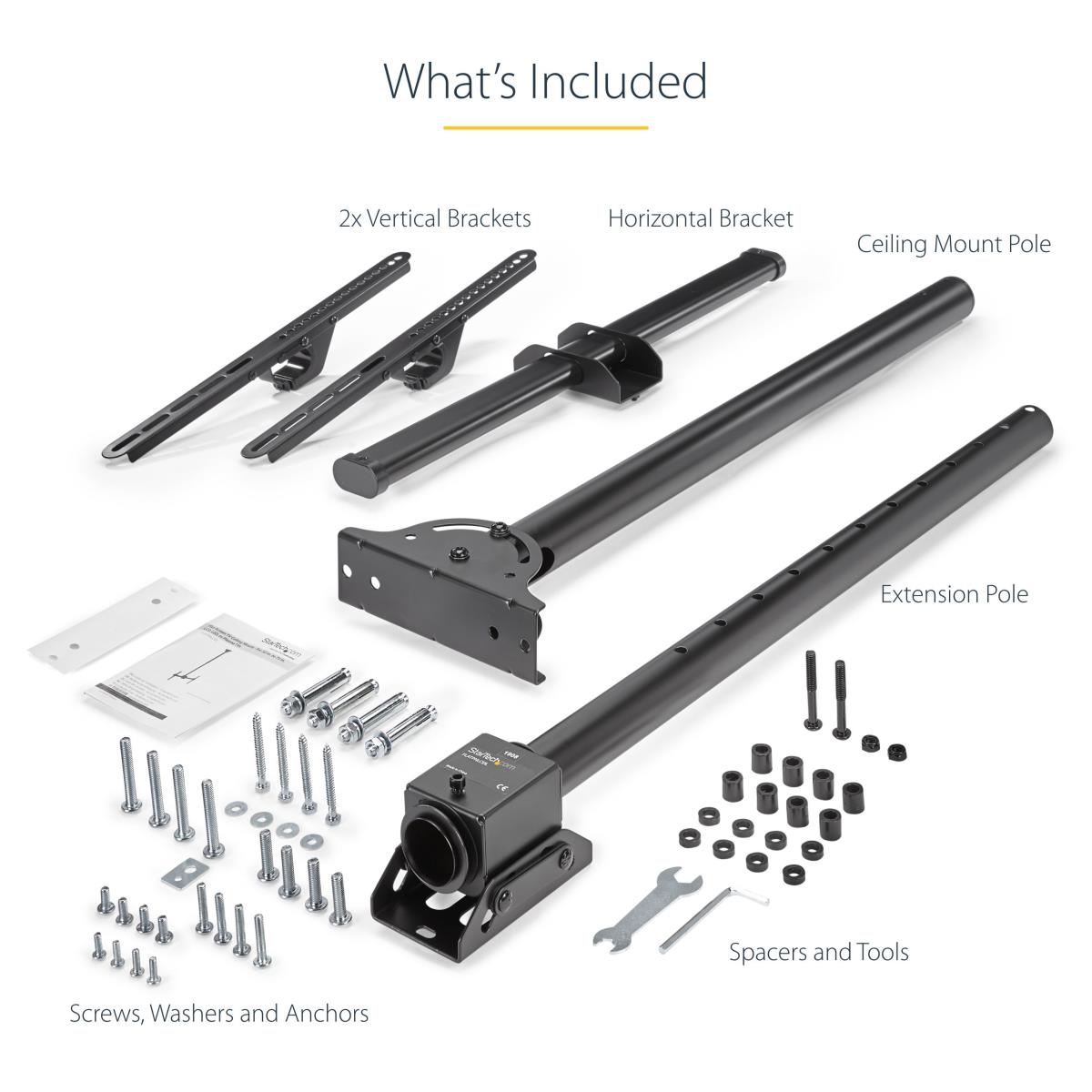

| Packaging content | |
| Manual | Yes |
| Screws included | Yes |
| Number of screws | 24 |
| Wrench included | Yes |
| Washers included | Yes |
| Number of washers included | 4 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case width | 337 mm |
| Master (outer) case length | 953 mm |
| Master (outer) case height | 315 mm |
| Products per master (outer) case | 2 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
