Hdmi Receiver Over Ip Network For The Ih2006 Product Series 4k 60hz Driverless Avoip Includes
ITCurry #: 7564C292 | Article #: IH2006-HDMI-RX-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

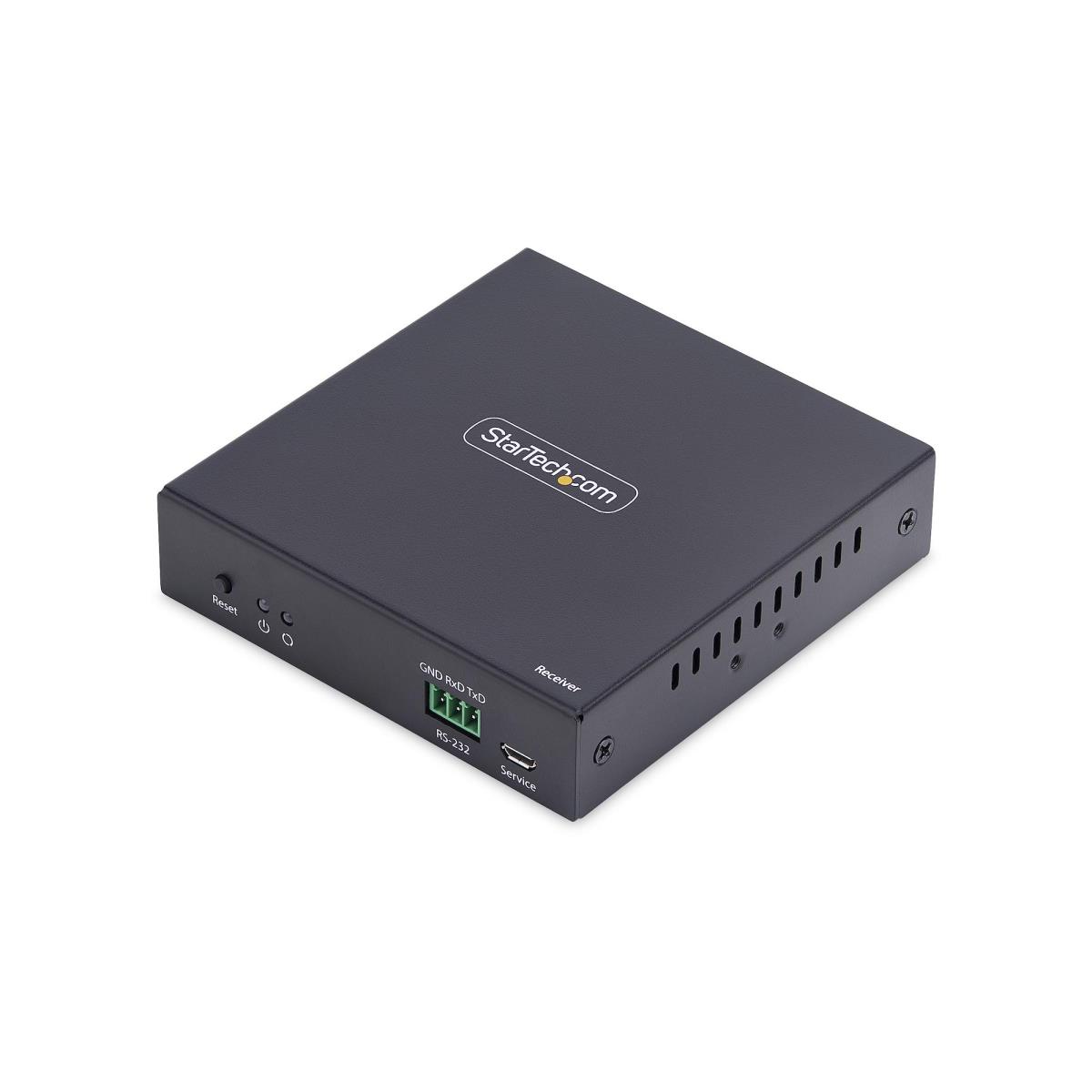

Use this receiver unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through
The AVoIP HDMI Receiver extends a 4K 60Hz HDMI signal over an existing TCP/IP network when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.
Professional-Grade Design
Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The StarTech.com Advantage
| Features | |
| Type | Receiver |
| Connectivity technology | Wired |
| Rack mounting | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| On Screen Display (OSD) | No |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver Micro-USB ports quantity | 1 |
| Ports & interfaces | |
| HDMI version | 2.0 |
| RS-232 ports | 1 |
| PC Audio out | Yes |
| Power | |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (receiver) (max) | 10 W |
| DC-in jack | Yes |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 149 mm |
| Package height | 80 mm |
| Package weight | 500 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | No |
| Mounting bracket(s) included | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -30 - 70 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Other features | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Master (outer) case width | 425 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 420 mm |
| Products per master (outer) case | 20 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
