Fiber Optic Cable - Lc/sc Single Mode Os2/upc/duplex/lszh - 1m
ITCurry #: 7564A930 | Article #: SMLCSC-OS2-1M-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

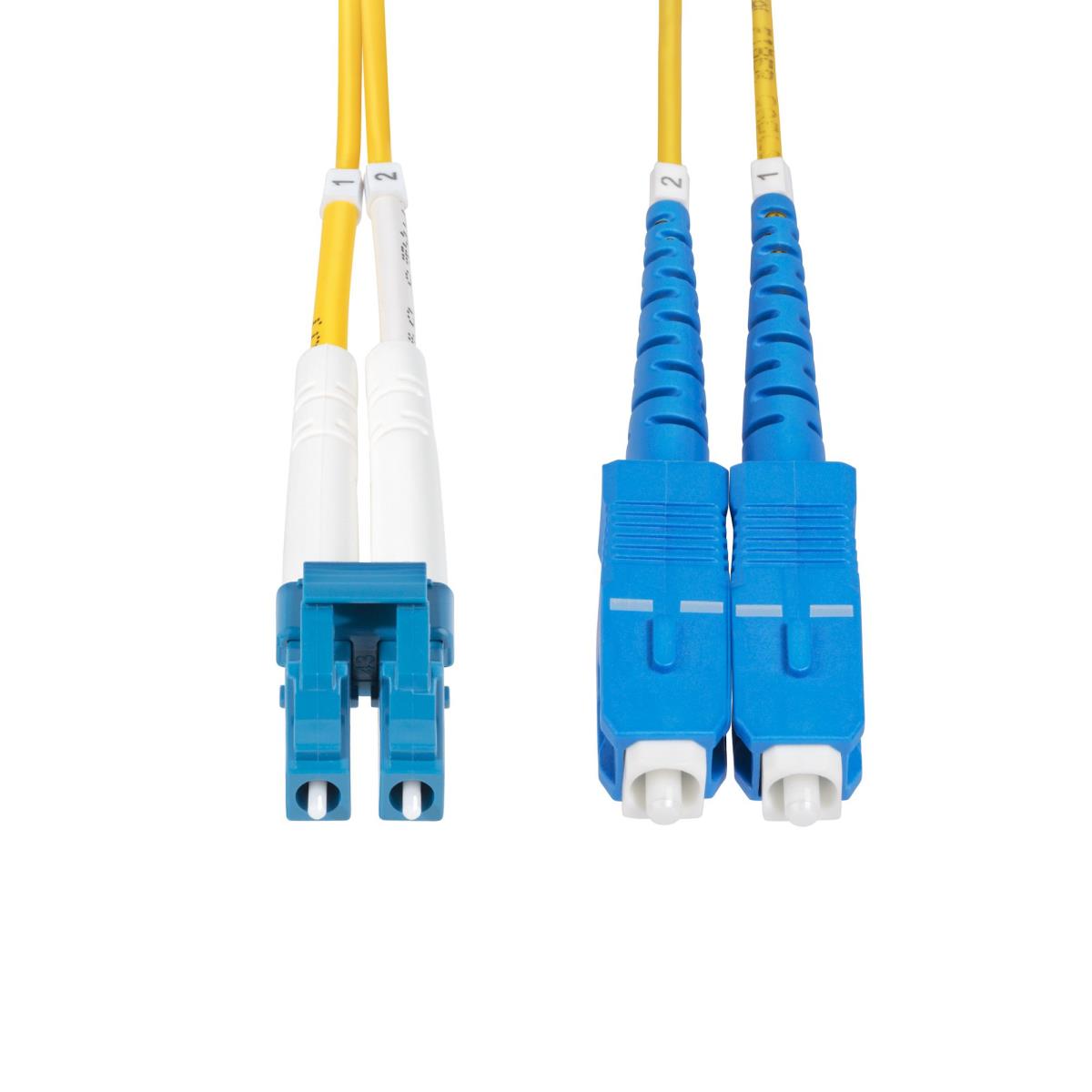

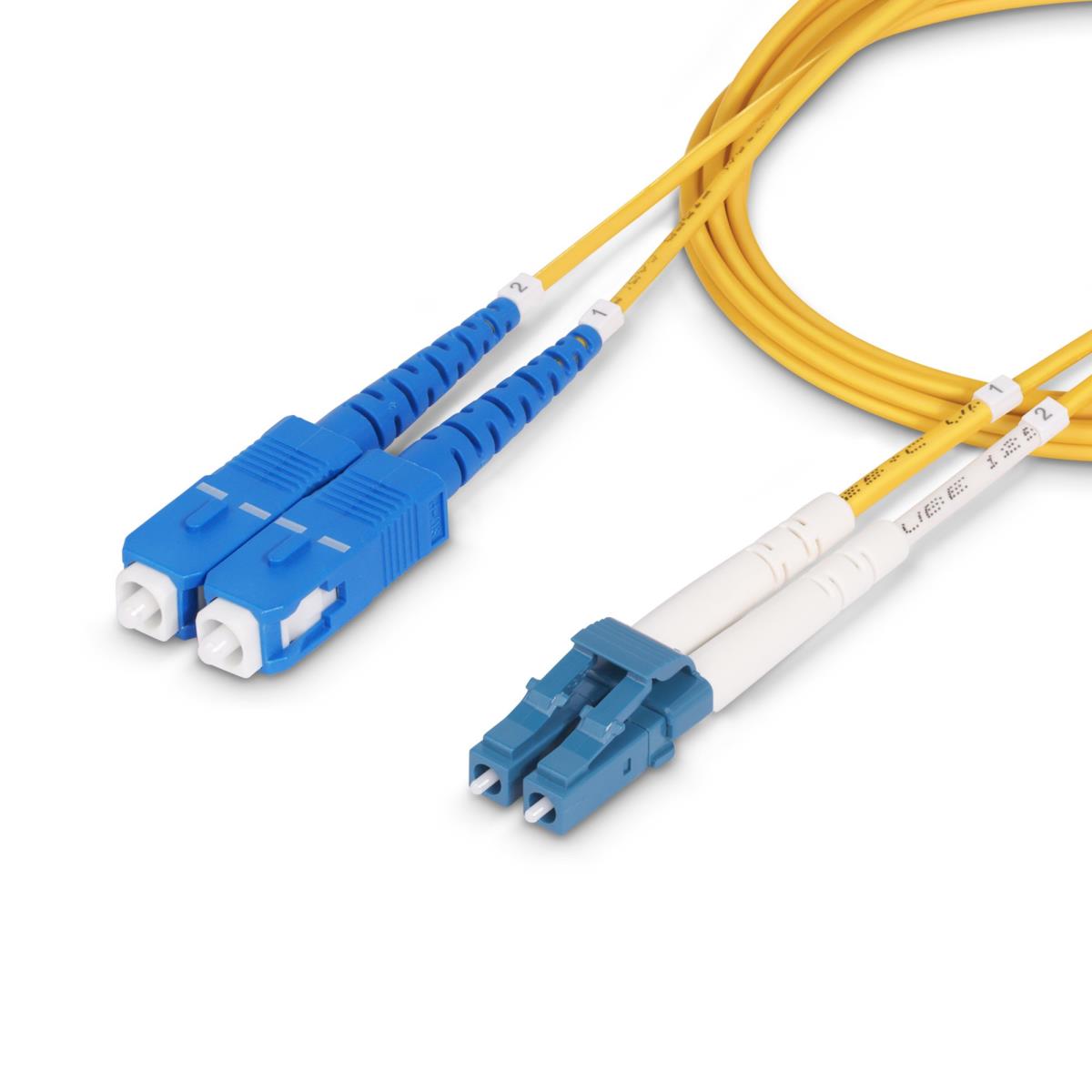

Enhance the performance capabilities of CWDM applications over an OS2 fiber networkOS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.CompatibilityThis 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.Engineered for Optimal PerformancePrecision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.LSZH Cable JacketHoused in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.The StarTech.com Advantage
| Features | |
| Cable length | 1 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |

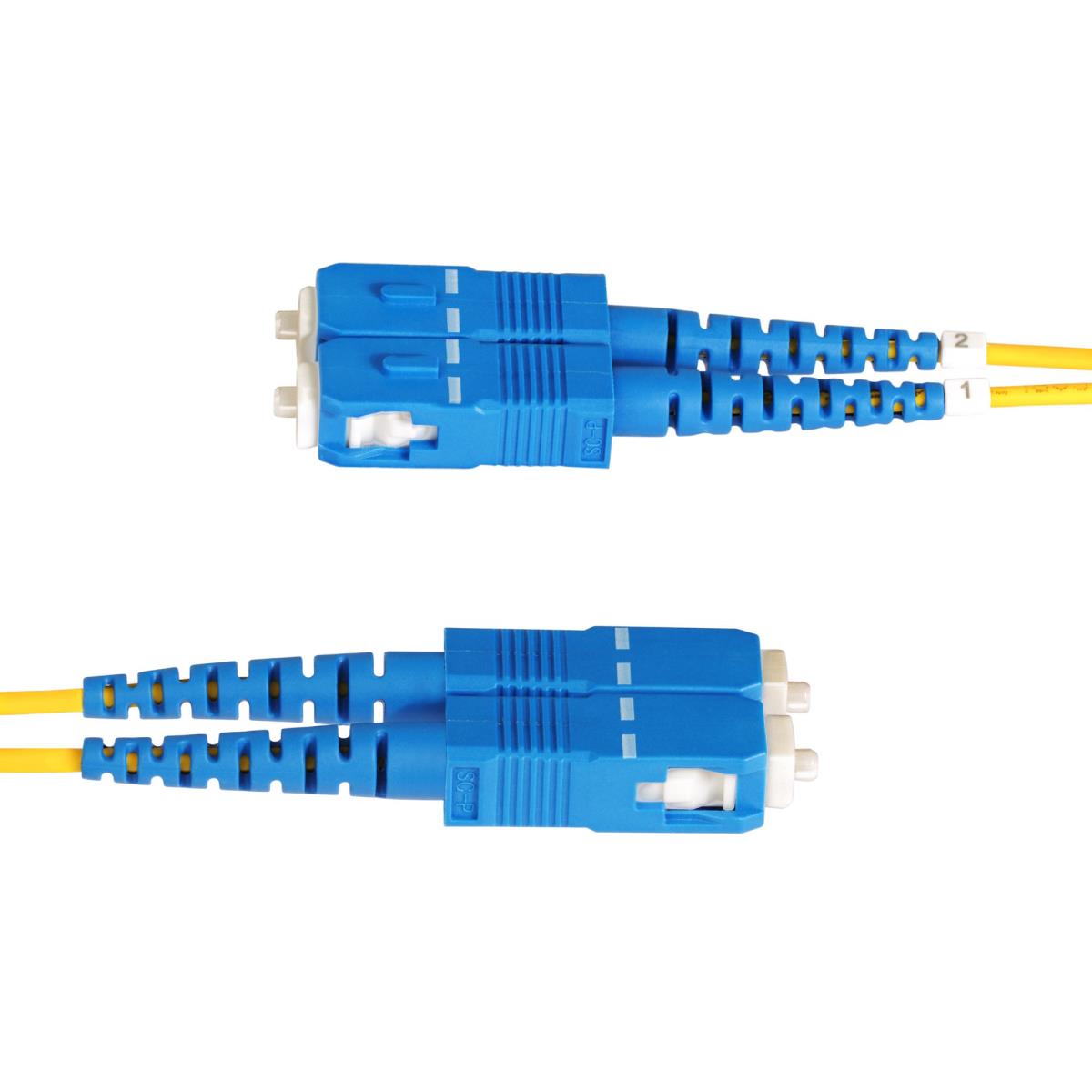

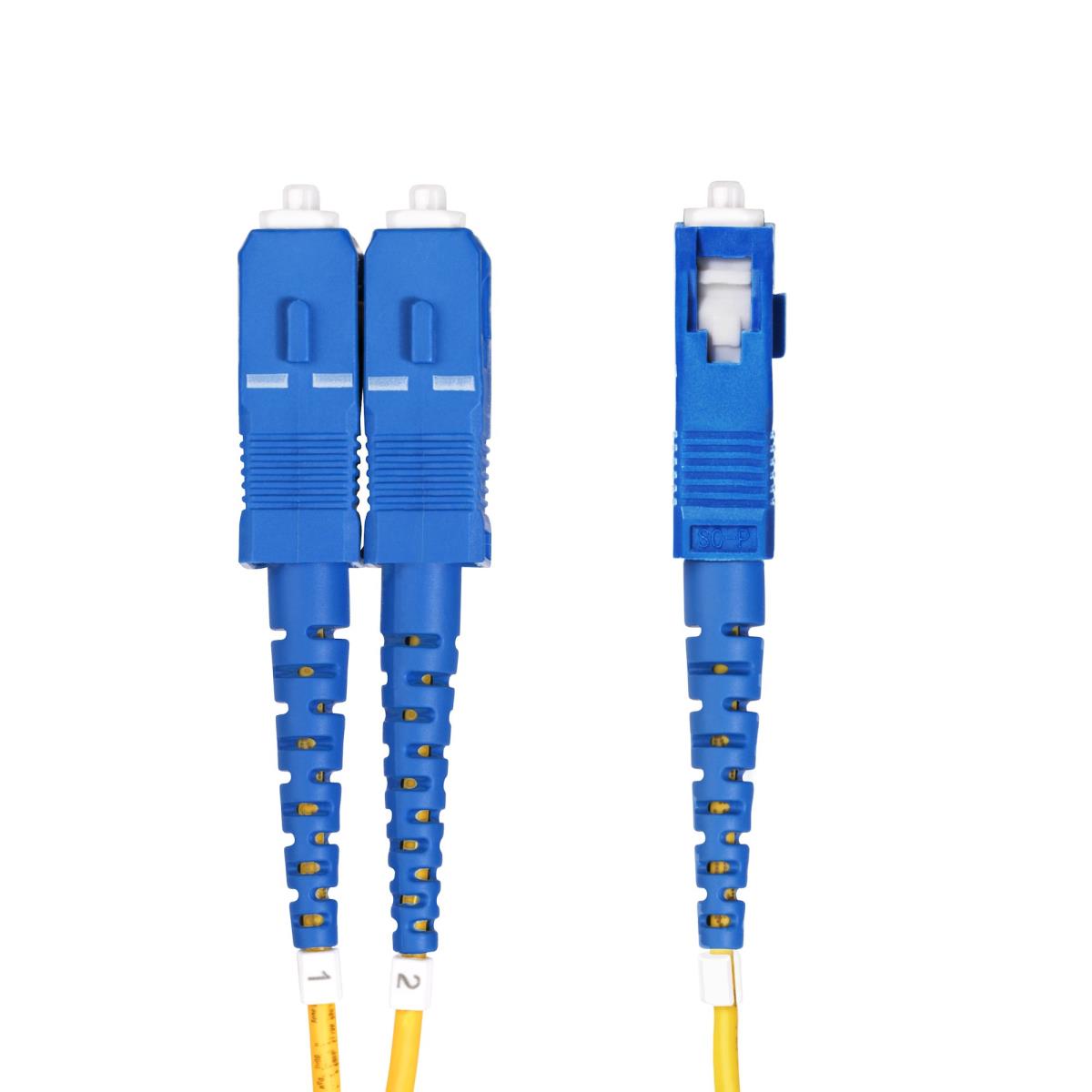

| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | PC |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 æm |
| Cladding diameter | 125 æm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm |
| Data transfer rate | 10 Gbit/s |
| Insertion loss | 0.3 dB |
| Return loss | 55 dB |
| Jacket material | Low smoke zero halogen (LSZH), Polypropylene |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Bending radius | 1 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 3 mm |
| Package weight | 18.2 g |
| Logistics data | |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 400 pc(s) |
| Other features | |
| Attenuation (max) | 0.35 dB/km |
| Warranty | |
| Base Warranty | Non Non |
