Fiber Optic Cable 62.5/125 Multimode Duplex Lc-male/ Sc-male 1m
ITCurry #: 75642628 | Article #: FIBLCSC1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

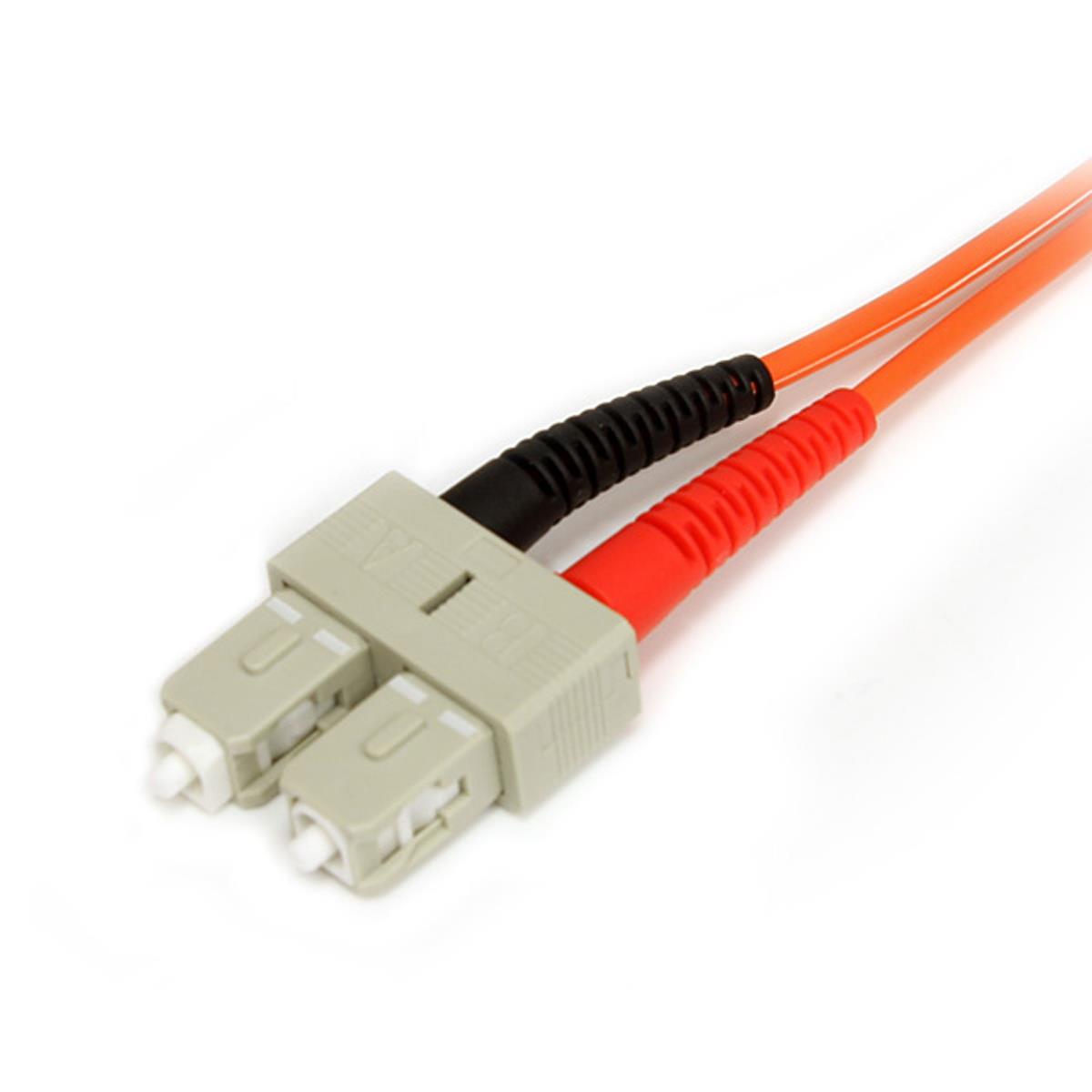

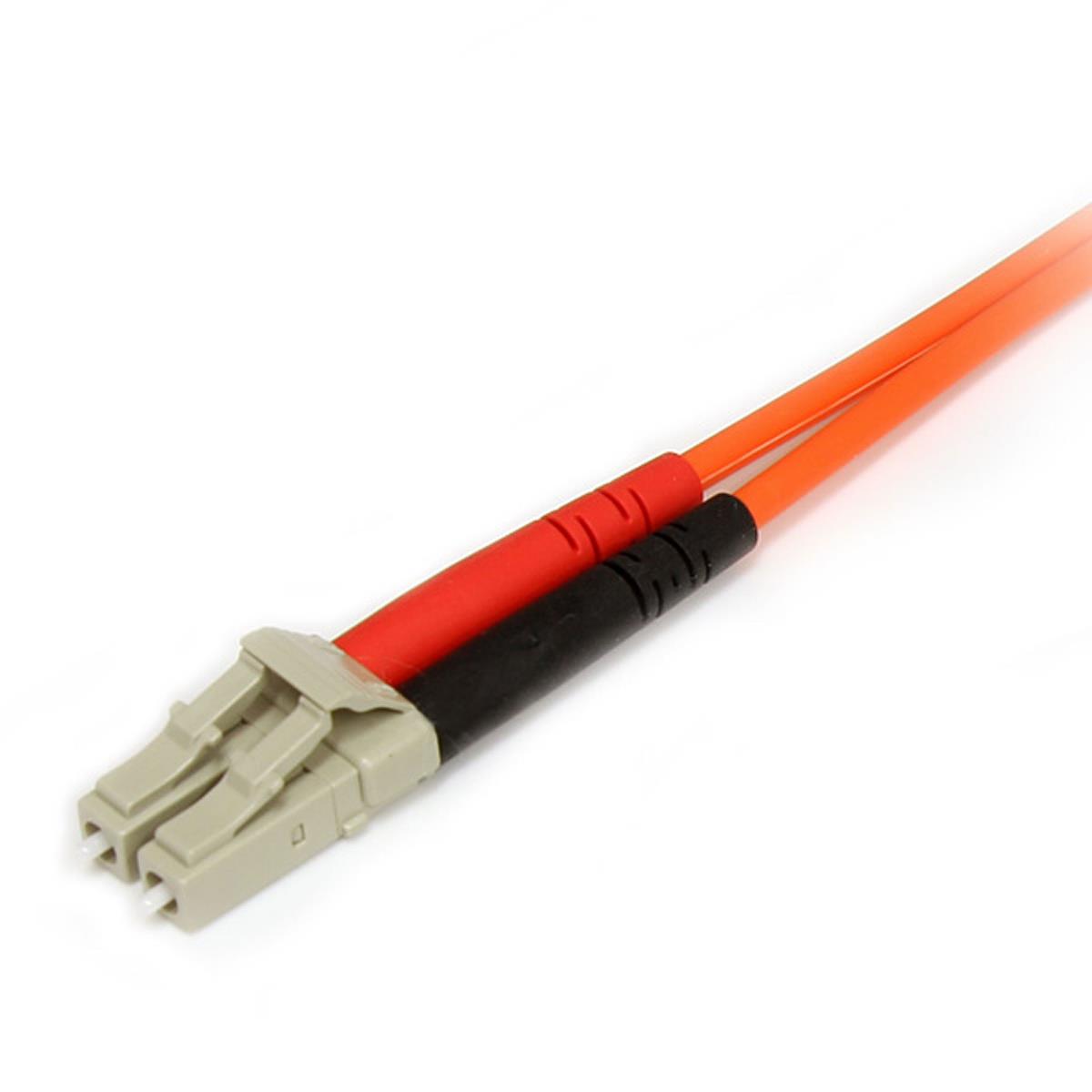

Connect fiber network devices for high-speed transfers with LSZH rated cableThe FIBLCSC1 1-meter (3.2ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.The StarTech.com Advantage
| Features | |
| Cable length | 1 m |
| Fibre optic type | OM1 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Orange |
| Full duplex | Yes |
| Core diameter | 62.5 æm |
| Cladding diameter | 125 æm |
| Fiber mode structure | Multi-mode |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 26 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 26 mm |
| Package weight | 35 g |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 245 mm |
| Master (outer) case height | 317 mm |
| Products per master (outer) case | 320 pc(s) |
