Expansion Card - 5-port USB Pci-e Card 10gbps - 4x USB-c/1x USB-a
ITCurry #: 7564C050 | Article #: PS4C3IA3-USB-C-CARD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

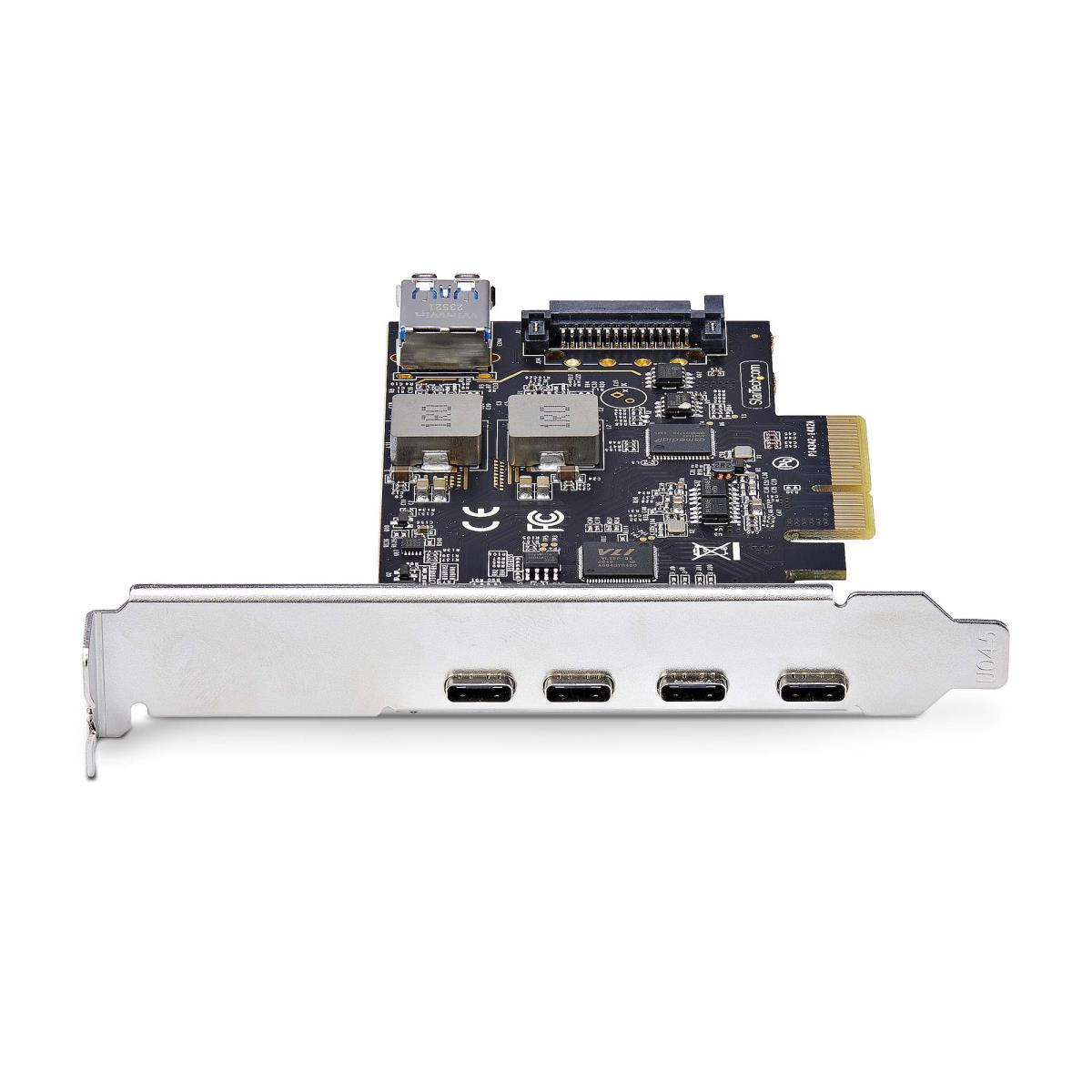

Add four USB Type-C (USB 3.2 Gen 2 10Gbps) ports to a PCIe host computer, plus an internal USB Type-A (10Gbps) port

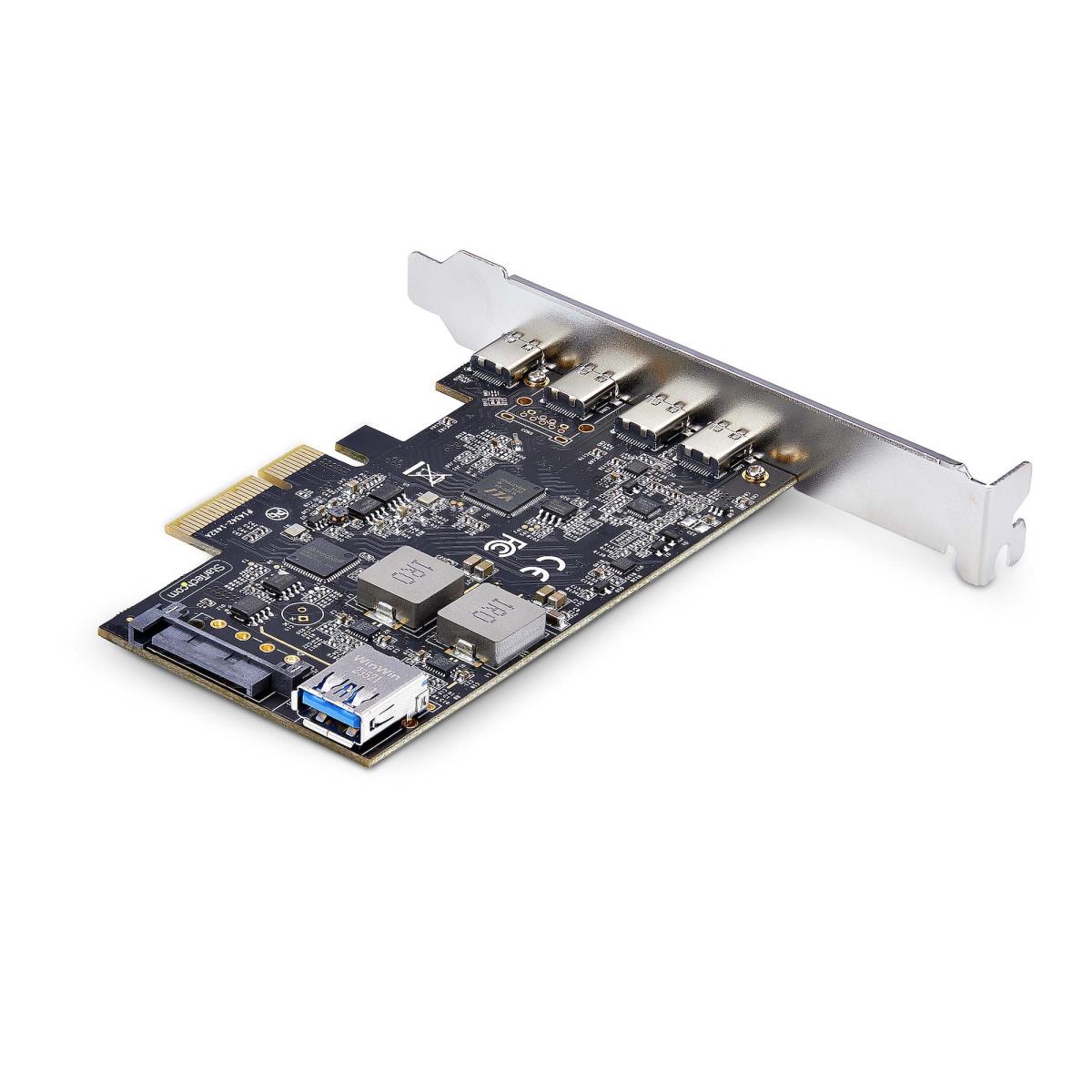

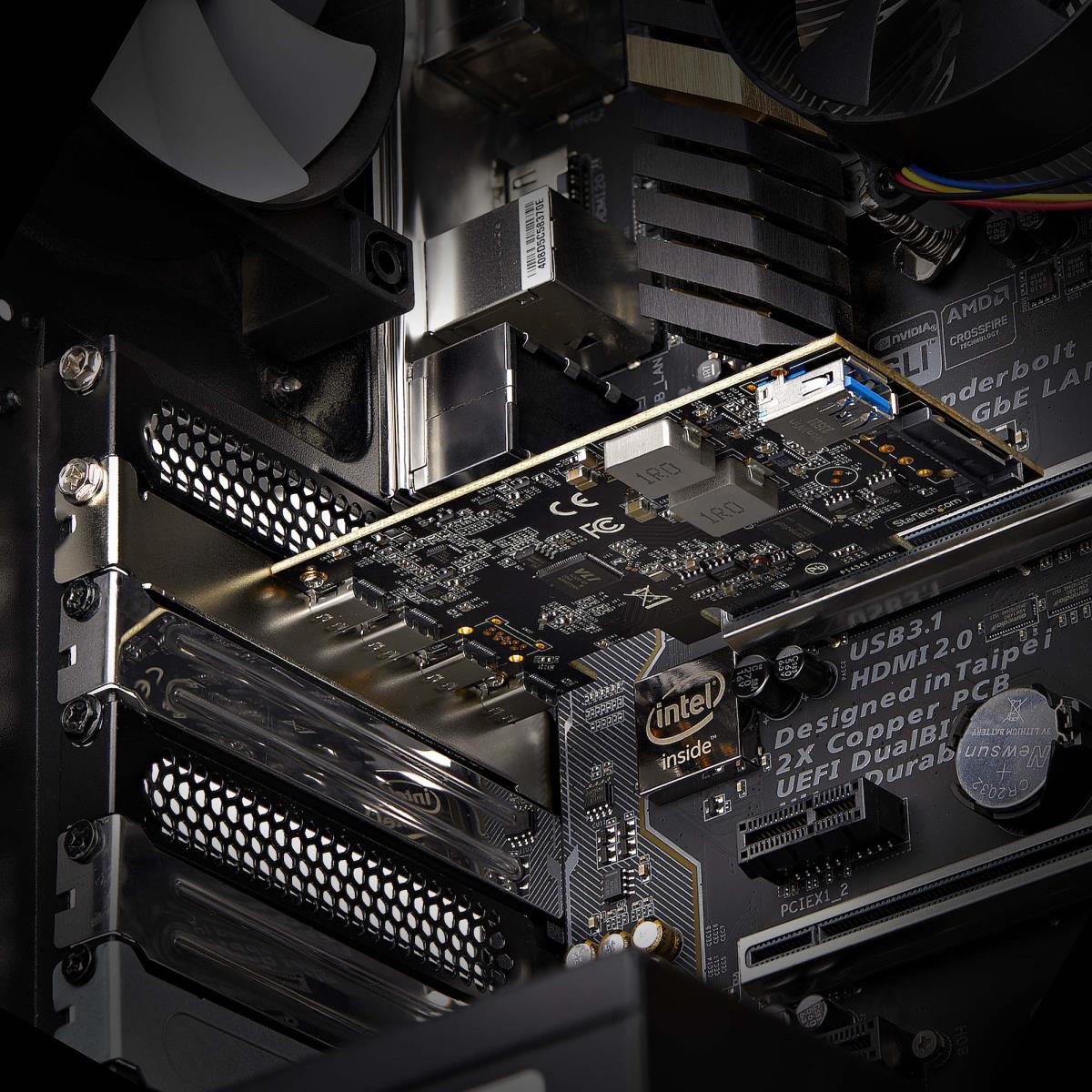

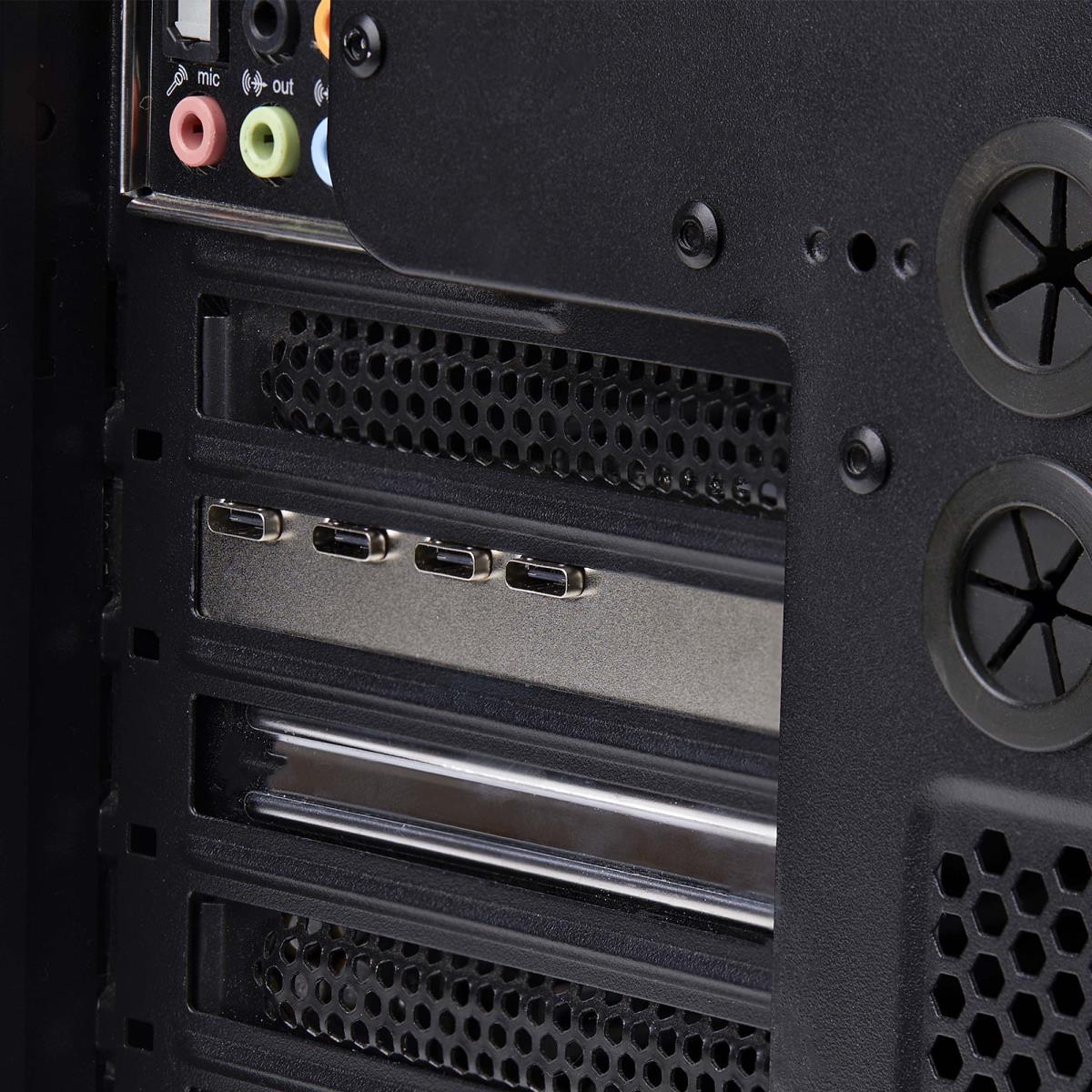

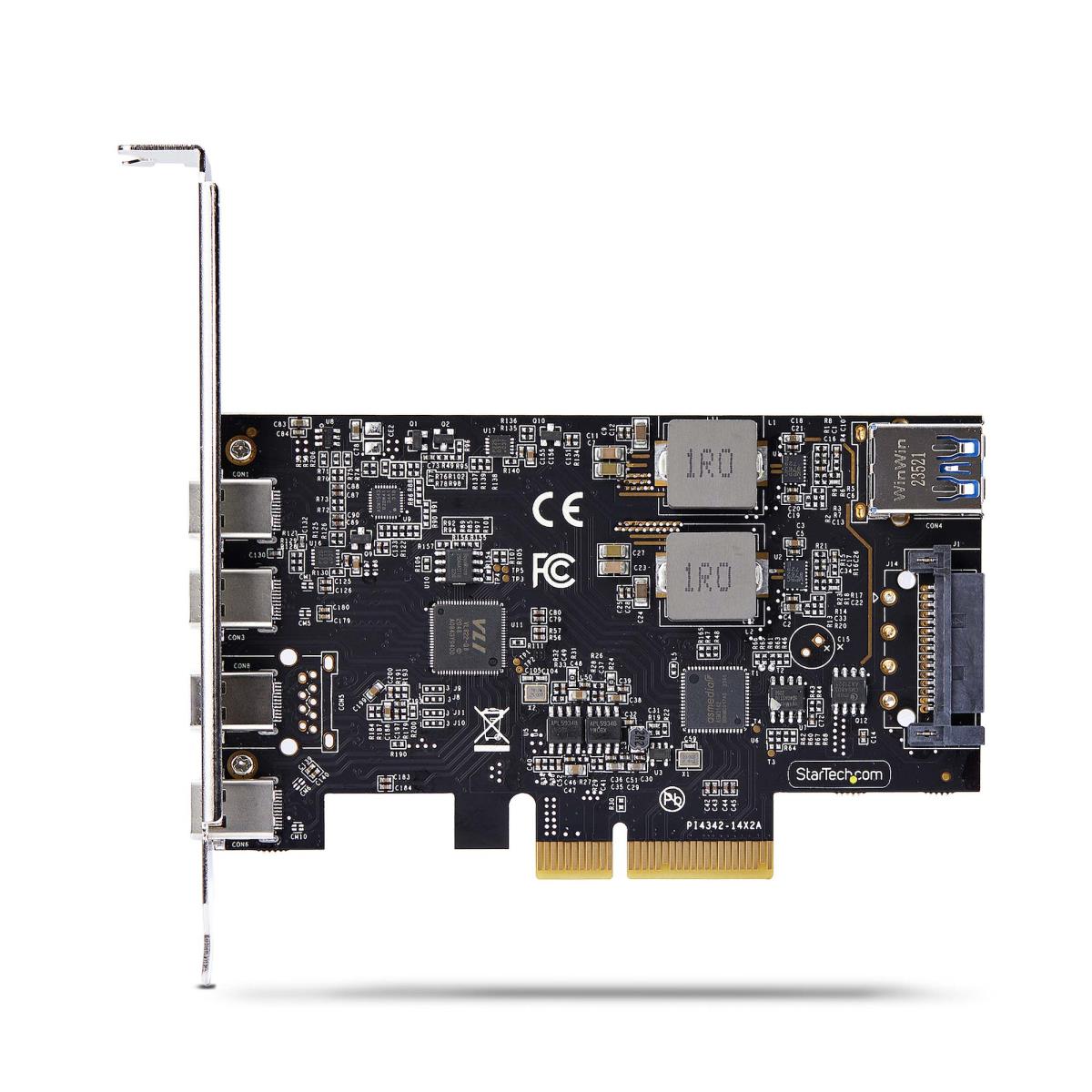

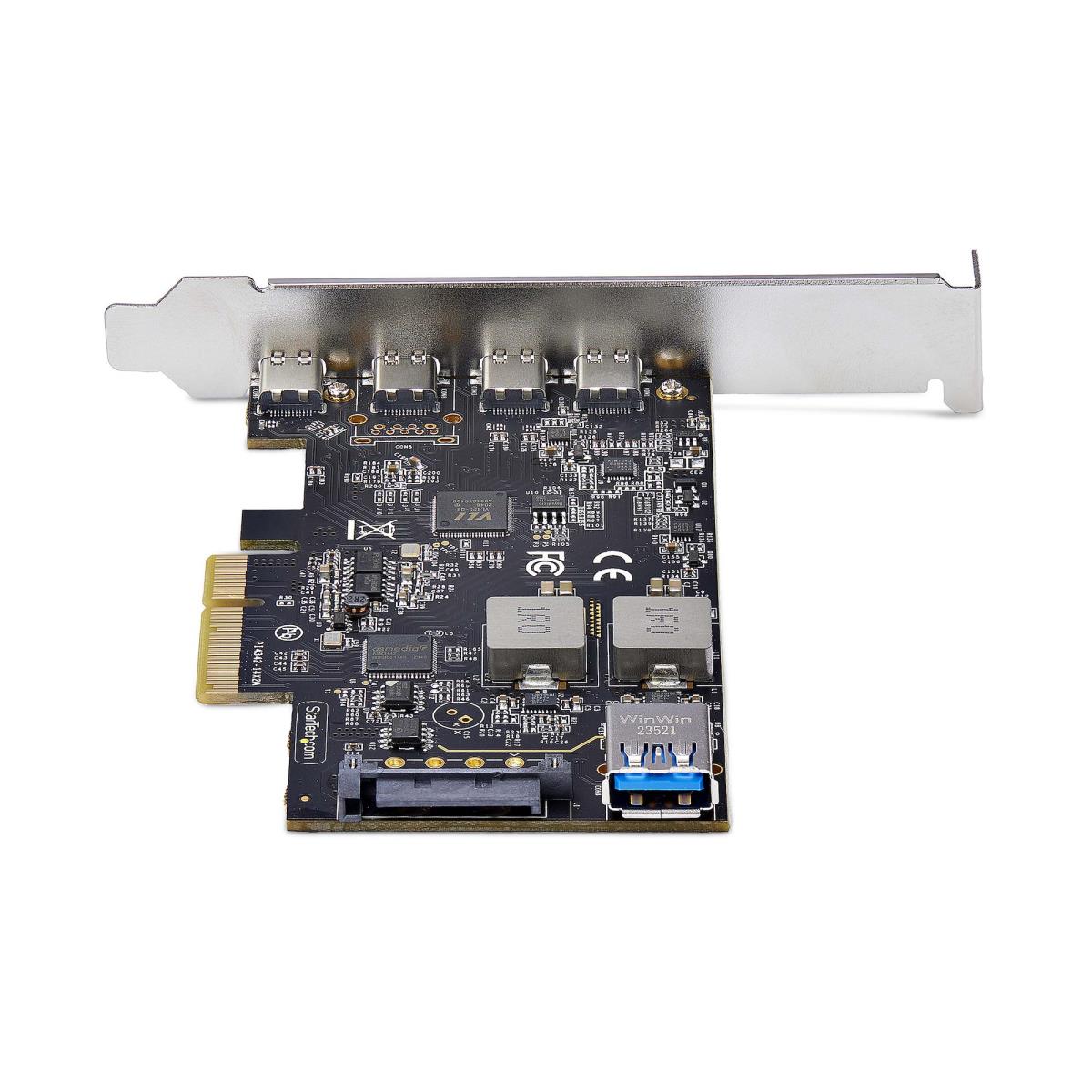

Upgrade or expand a desktop or server's USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection.
USB 3.2 Gen 2 (10Gbps) Performance
The ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps, making it ideal for transferring large files or editing high-resolution photos and videos on external storage devices.

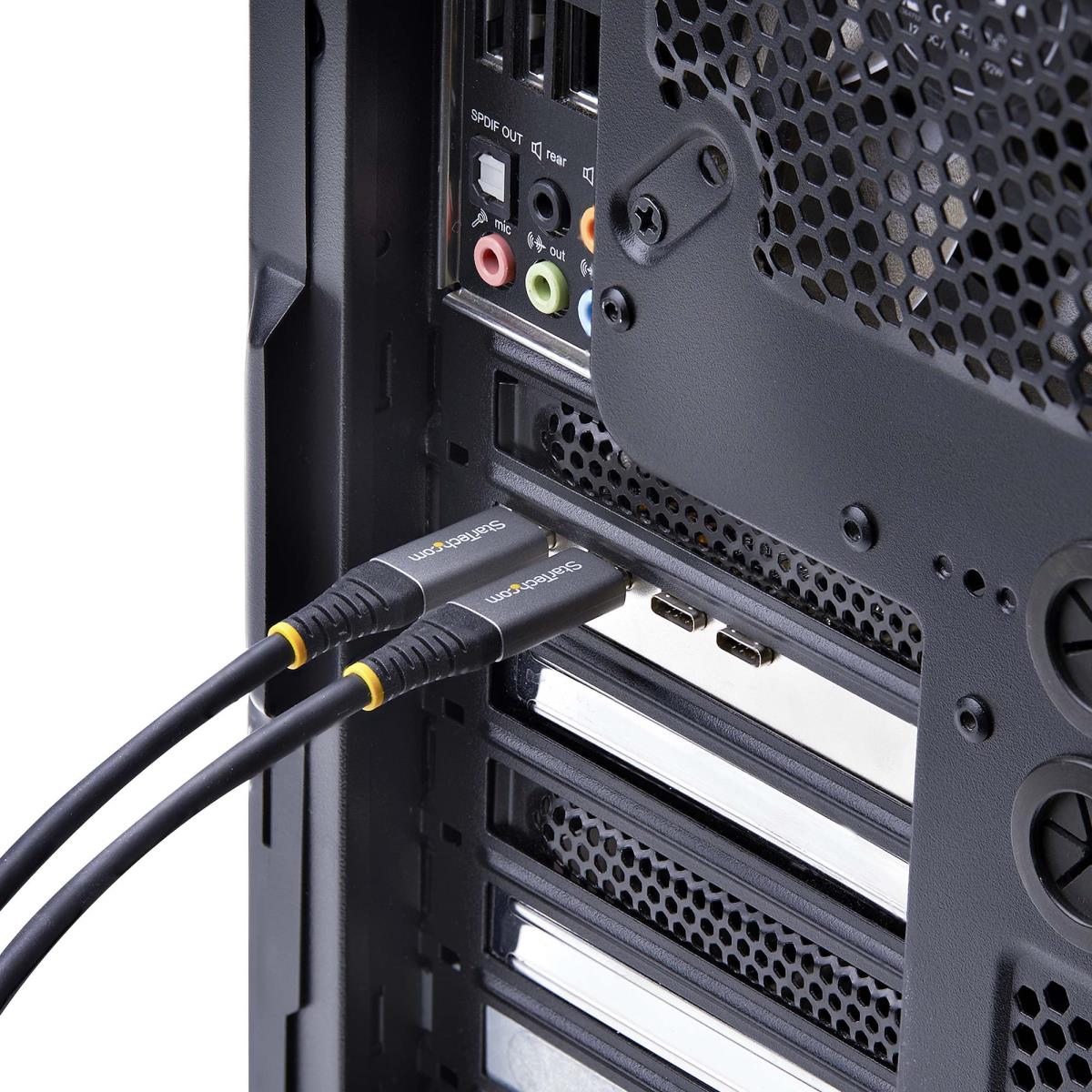

Charge and Sync USB Devices
This USB PCIe expansion card can receive supplemental power through SATA power, providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port when motherboard power is insufficient.
Compatibility

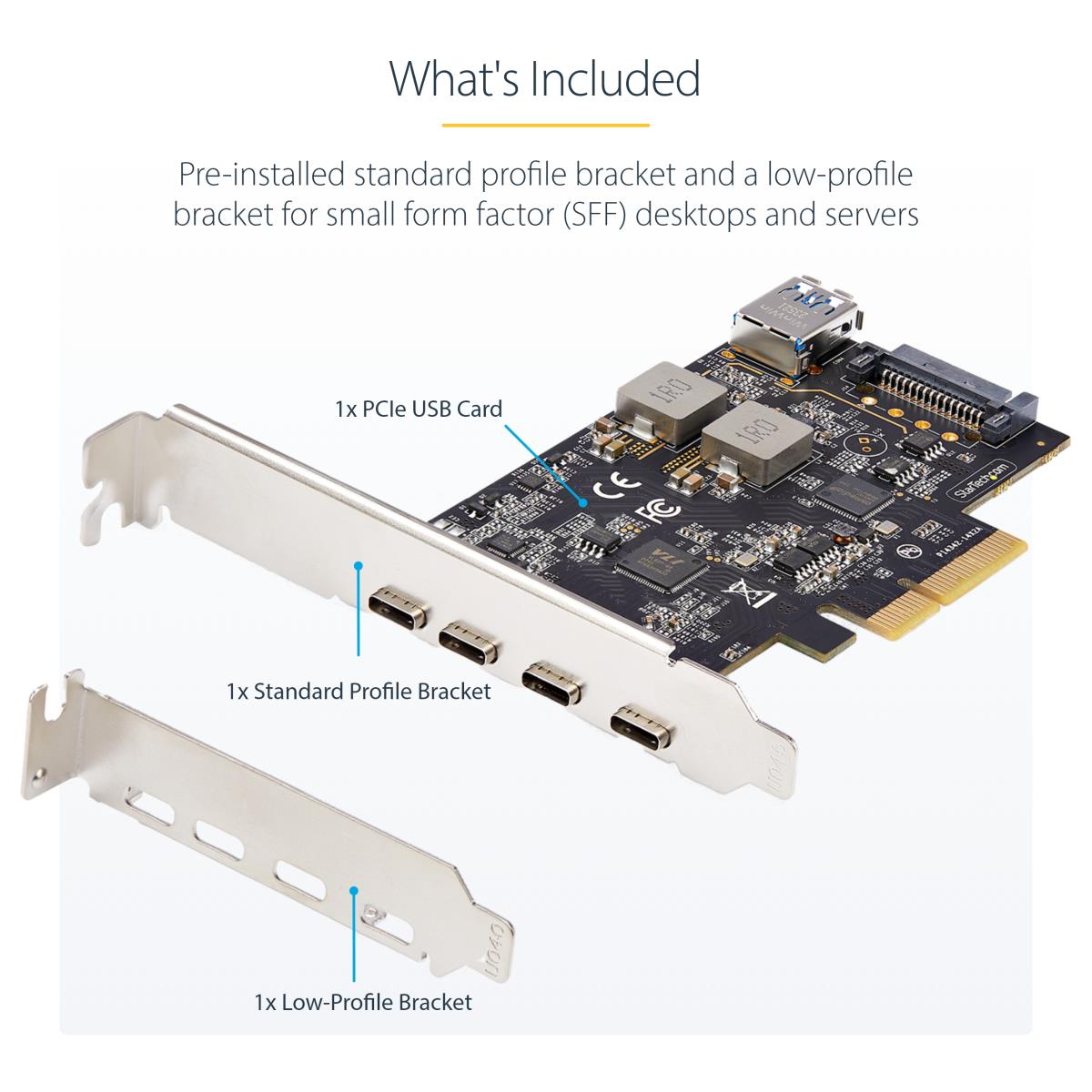

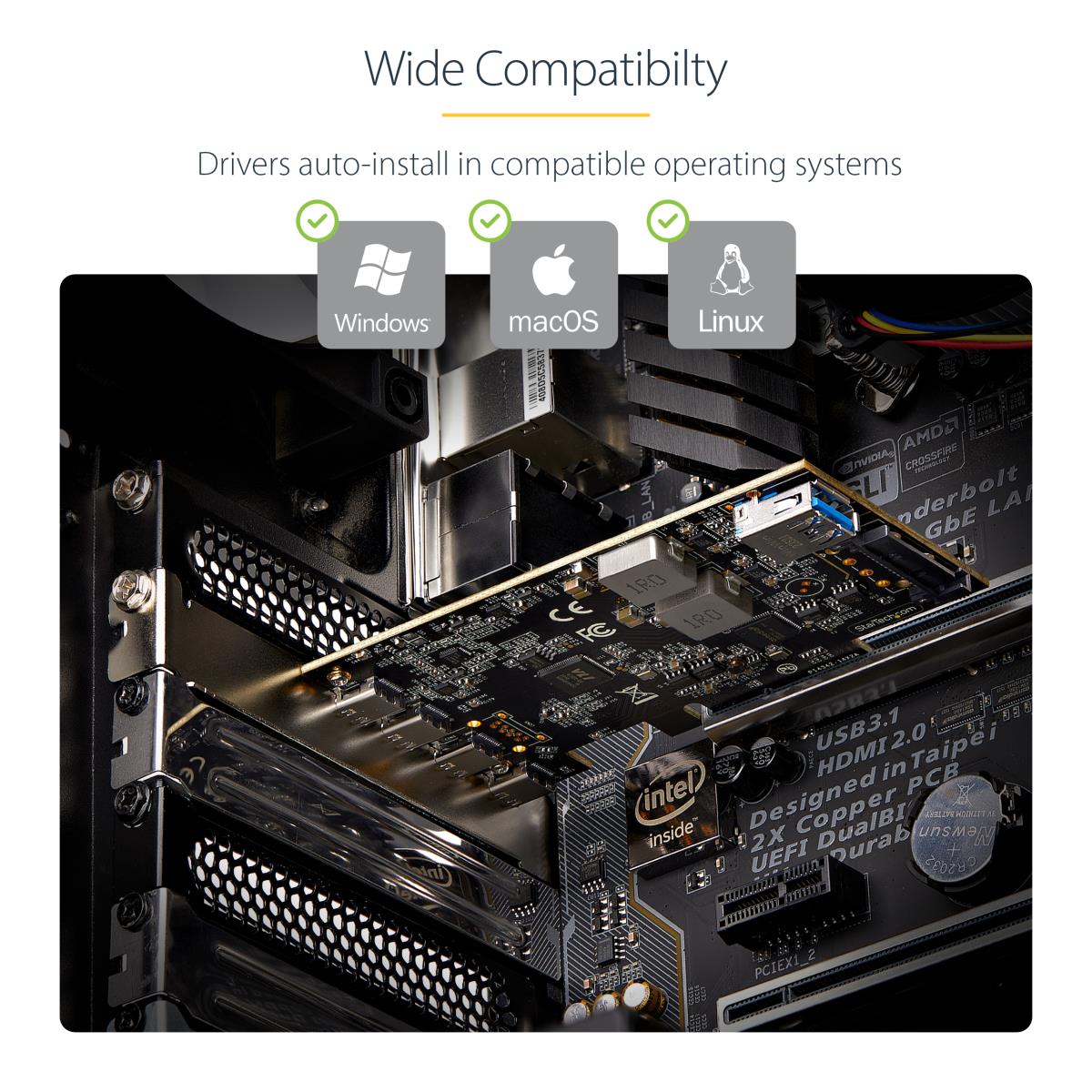

The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and up, macOS, and Linux. It works with hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Additionally, the USB expansion card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers.
The StarTech.com Advantage
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | USB Type-C |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| SATA power connector type | SATA 15-pin |
| Internal USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Design | |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Chipset | ASMEDIA - ASM3142, VIA LABS - VL822 |
| UASP support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 121 mm |
| Depth | 122 mm |
| Height | 22 mm |
| Weight | 60 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 210 mm |
| Package height | 35 mm |
| Package weight | 156 g |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 315 mm |
