External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) to SATA I/II/III
Get unprecedented performance and storage capacity with this USB 3.1 Gen 2 (10 Gbps) dual-drive docking station. It supports both 2.5" and 3.5" form factor solid-state and hard drives, with a high capacity storage capability of 12TB (6TB per drive).
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.
Top-loading design for easy drive access
It's never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. It also supports UASP for enhanced performance.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5" or 3.5" IDE hard drive into a SATA hard drive dock.
The SDOCK2U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Hard drive | |
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 6 TB |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type micro-B |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Material | Plastic |
| LED indicators | Activity, Power |
| UASP support | Yes |
| Certification | CE, FCC, REACH |
| Cooling | |
| Built-in fan | No |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 1.3 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 148 mm |
| Depth | 132 mm |
| Height | 70 mm |
| Weight | 502 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 980 g |

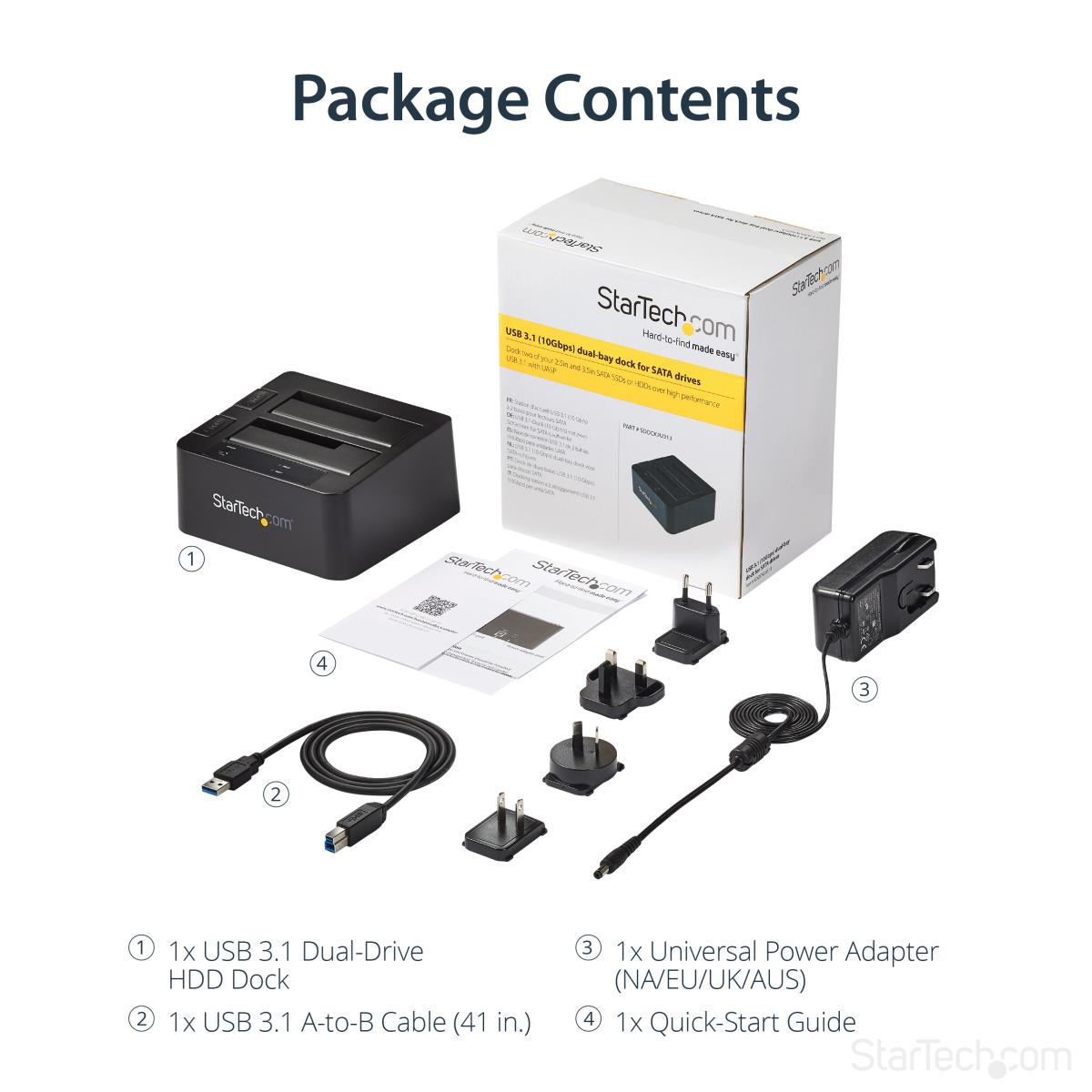

| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Included power plug types | AU, EU, NA, UK |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Other features | |
| Chipset | ASMedia - ASM1352R |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 620 mm |
| Master (outer) case height | 465 mm |
| Products per master (outer) case | 10 pc(s) |
