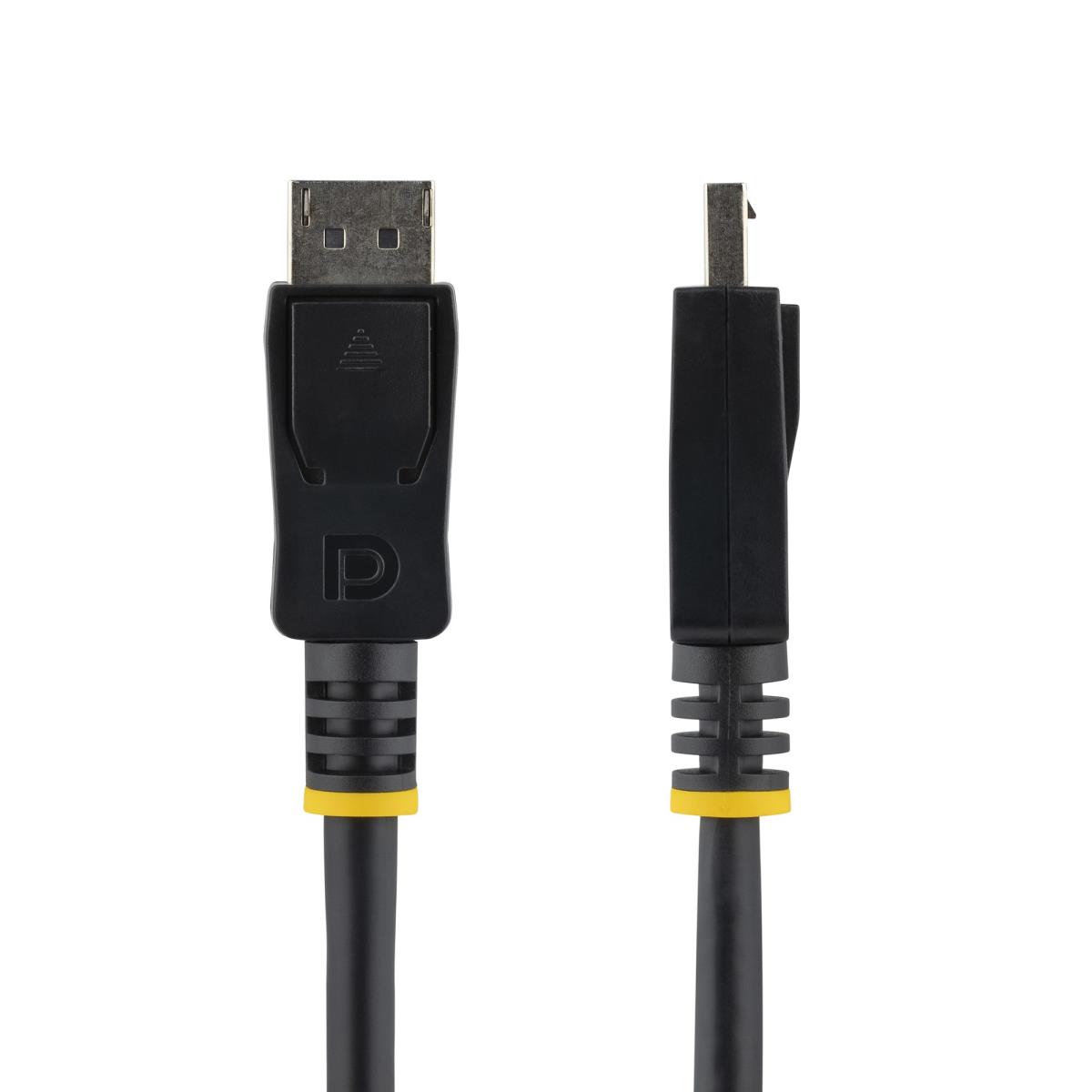

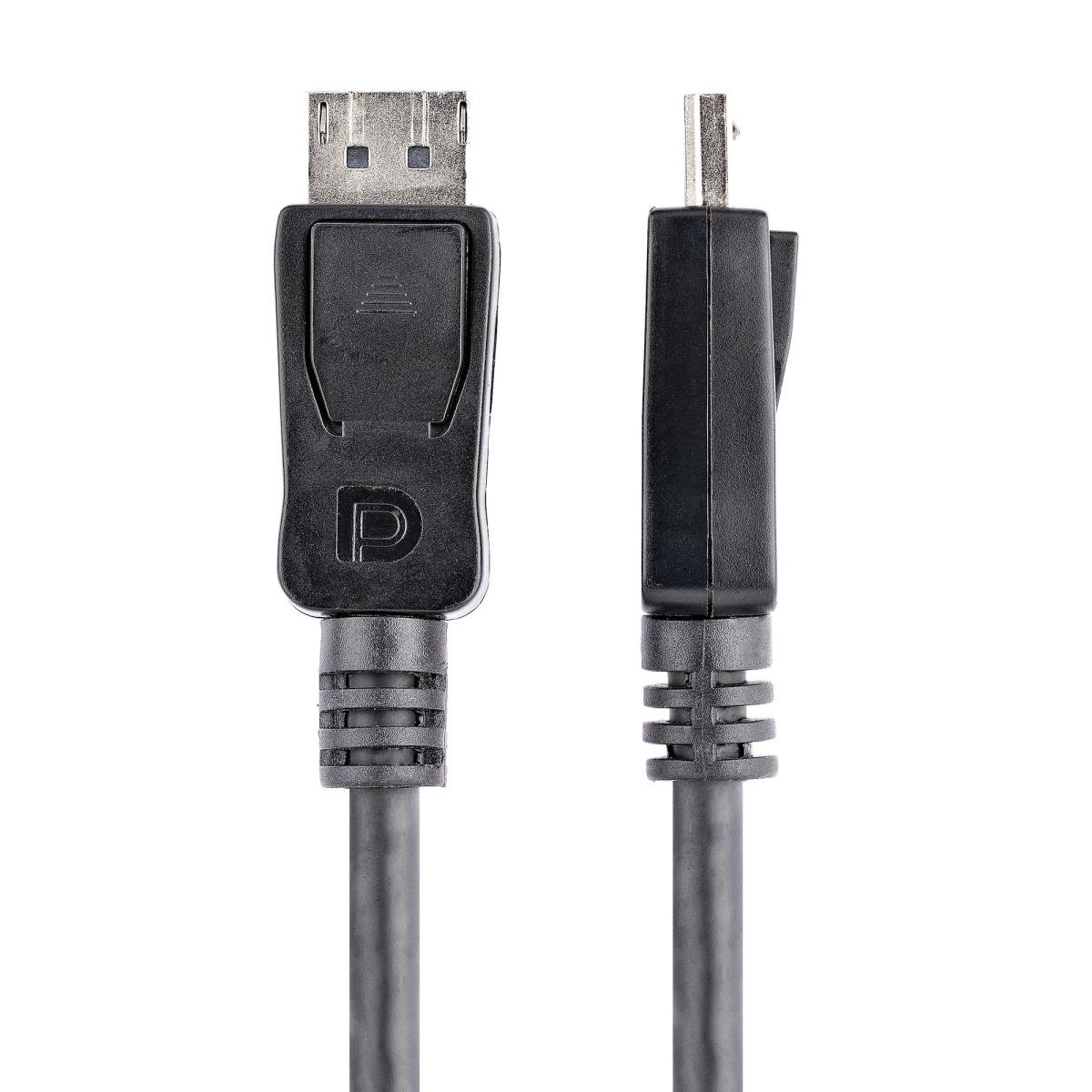

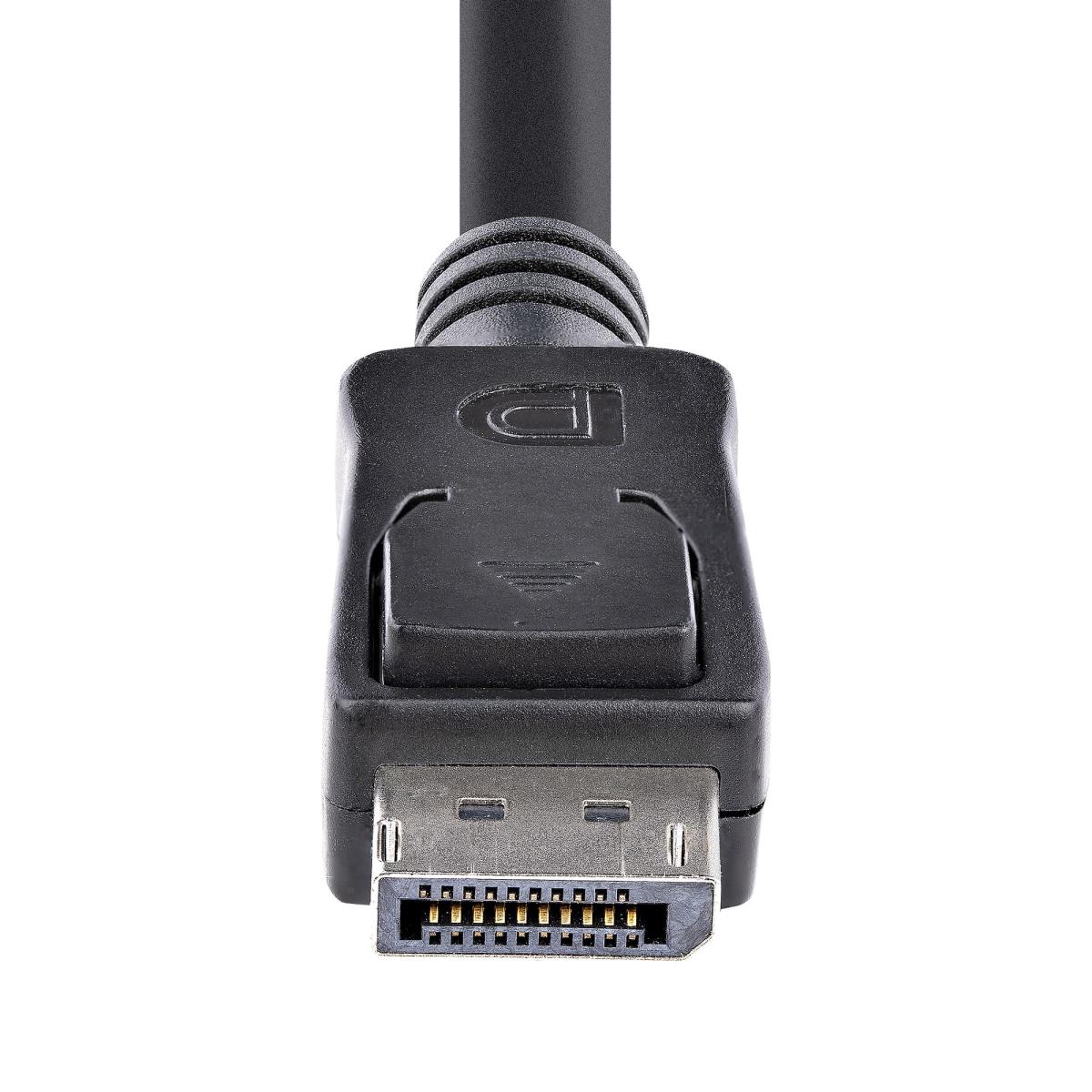

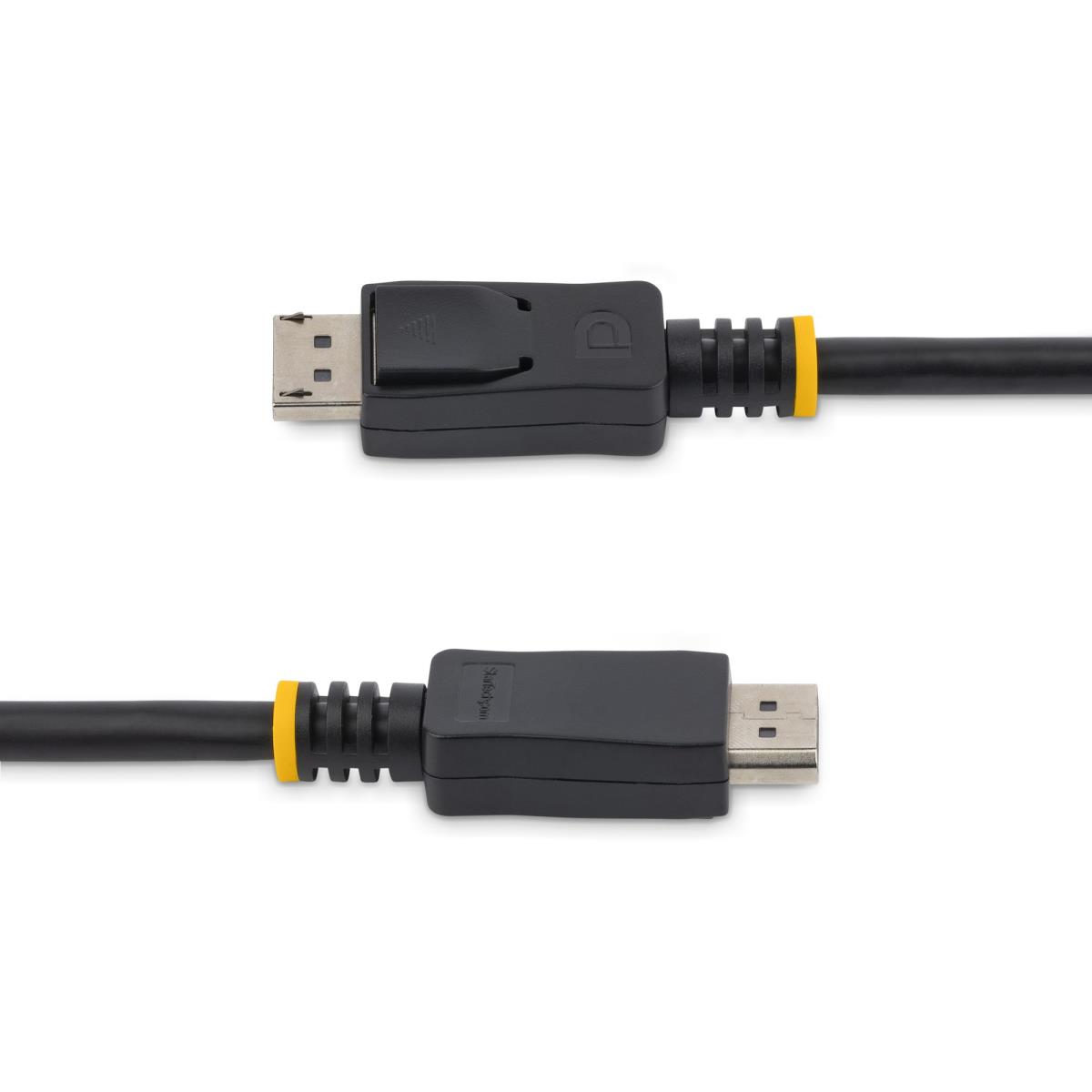

DisplayPort Cable With Latches - M/m 0.5m
ITCurry #: 75645369 | Article #: DISPL50CM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices, with reduced clutter

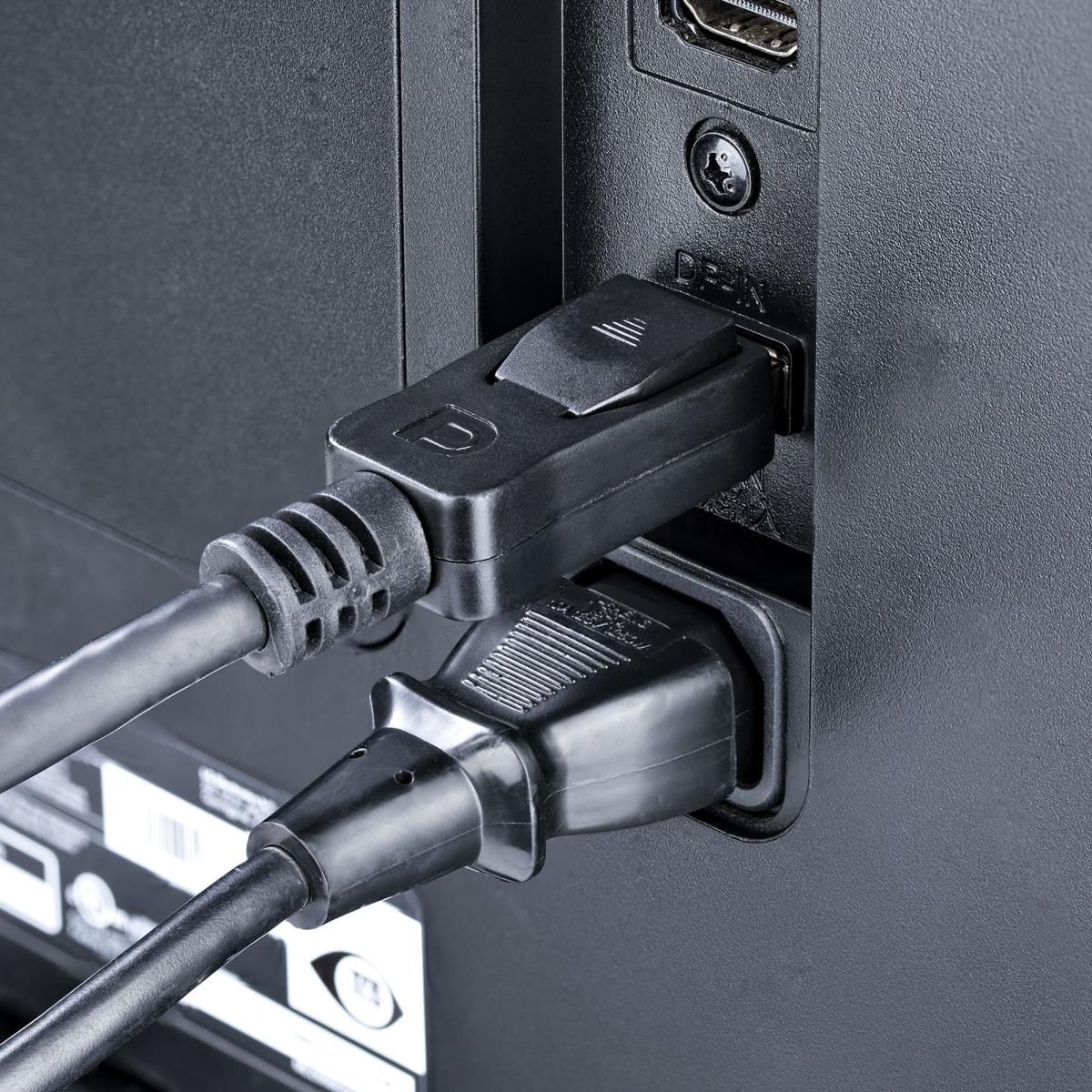

The DISPL50CM 0.5m/50cm DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

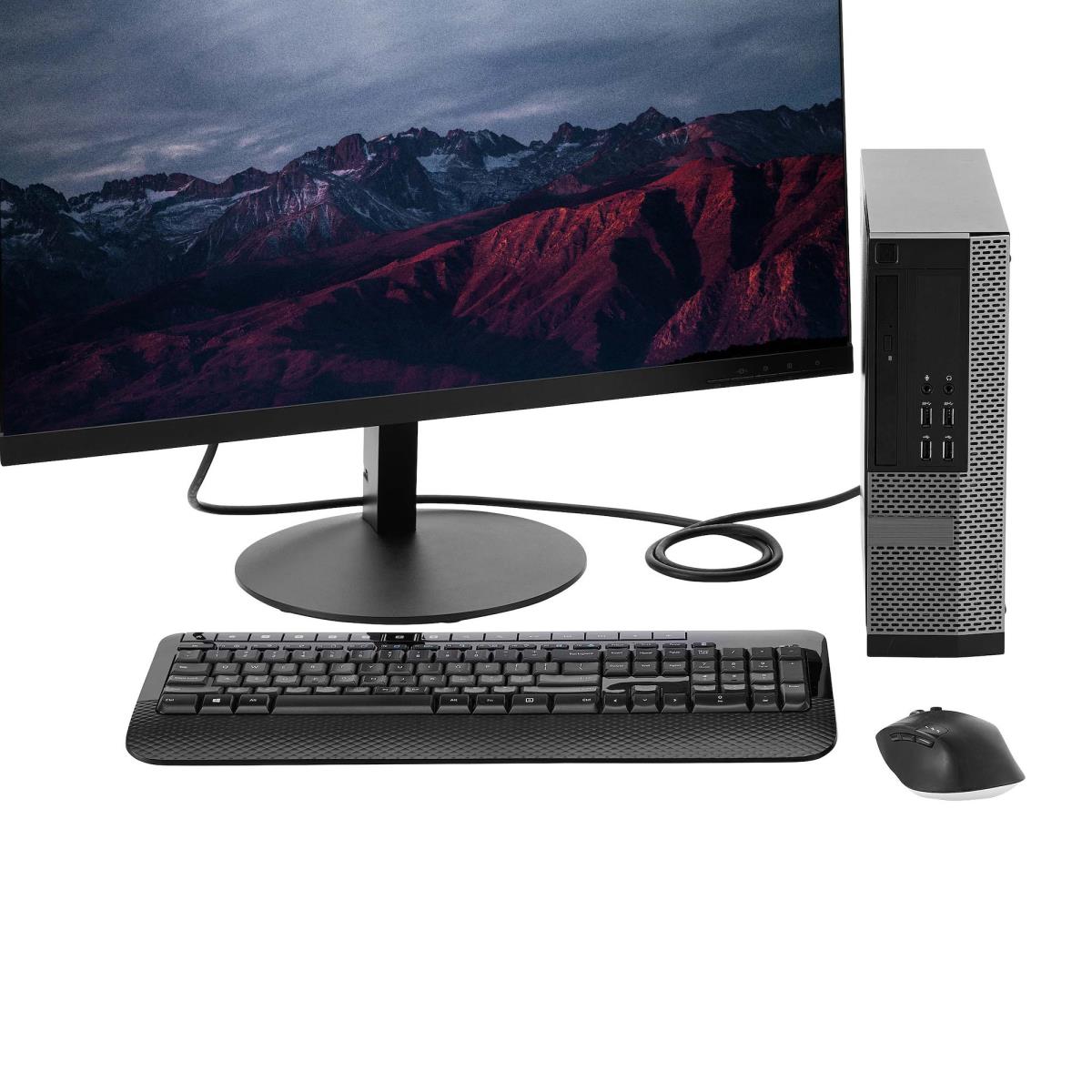

The short 50cm DisplayPort cable is perfect for mobile applications, such as connecting your laptop to a monitor and it provides a portable solution that makes it perfect for carrying as a laptop accessory.
The DISPL50CM is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage

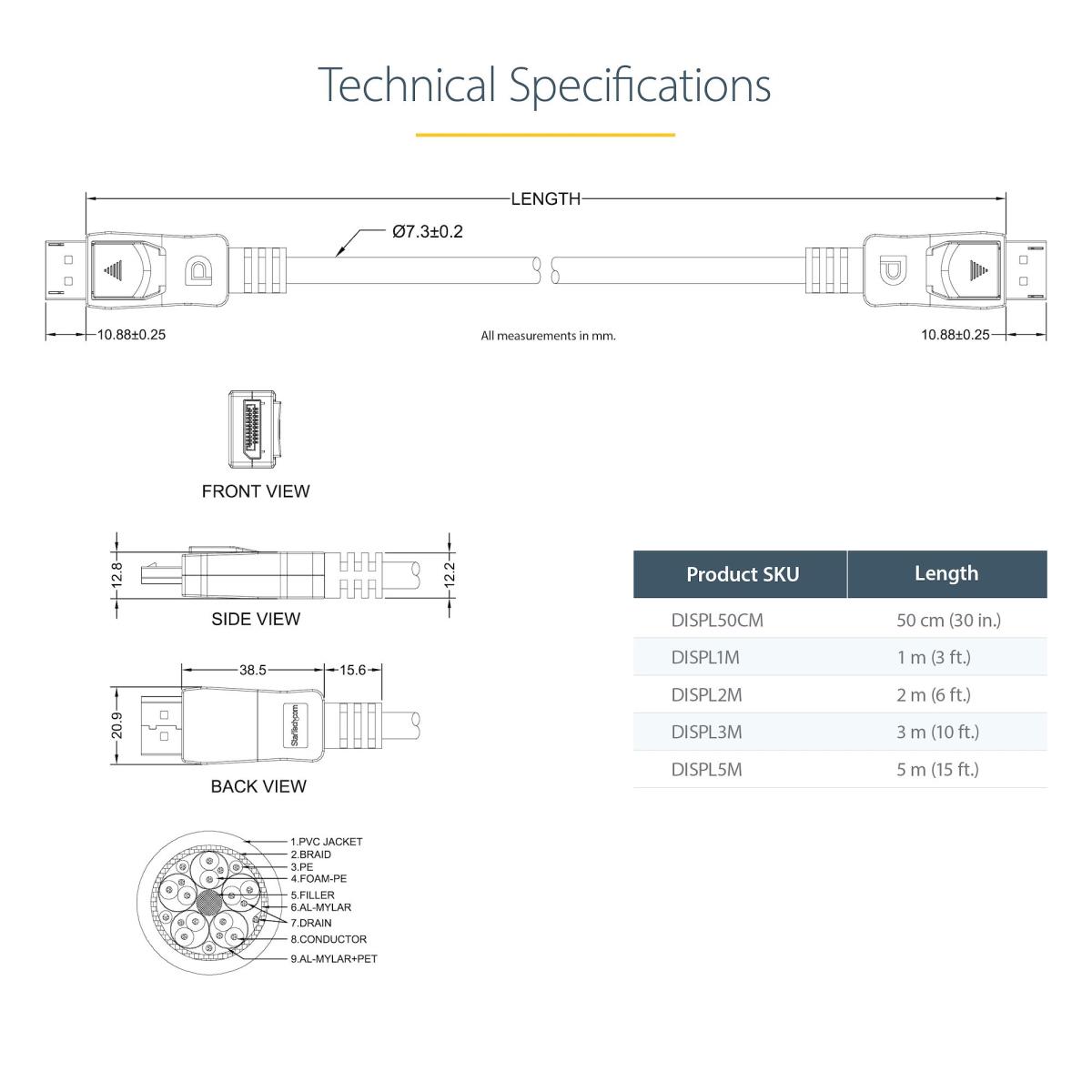

| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 0.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |

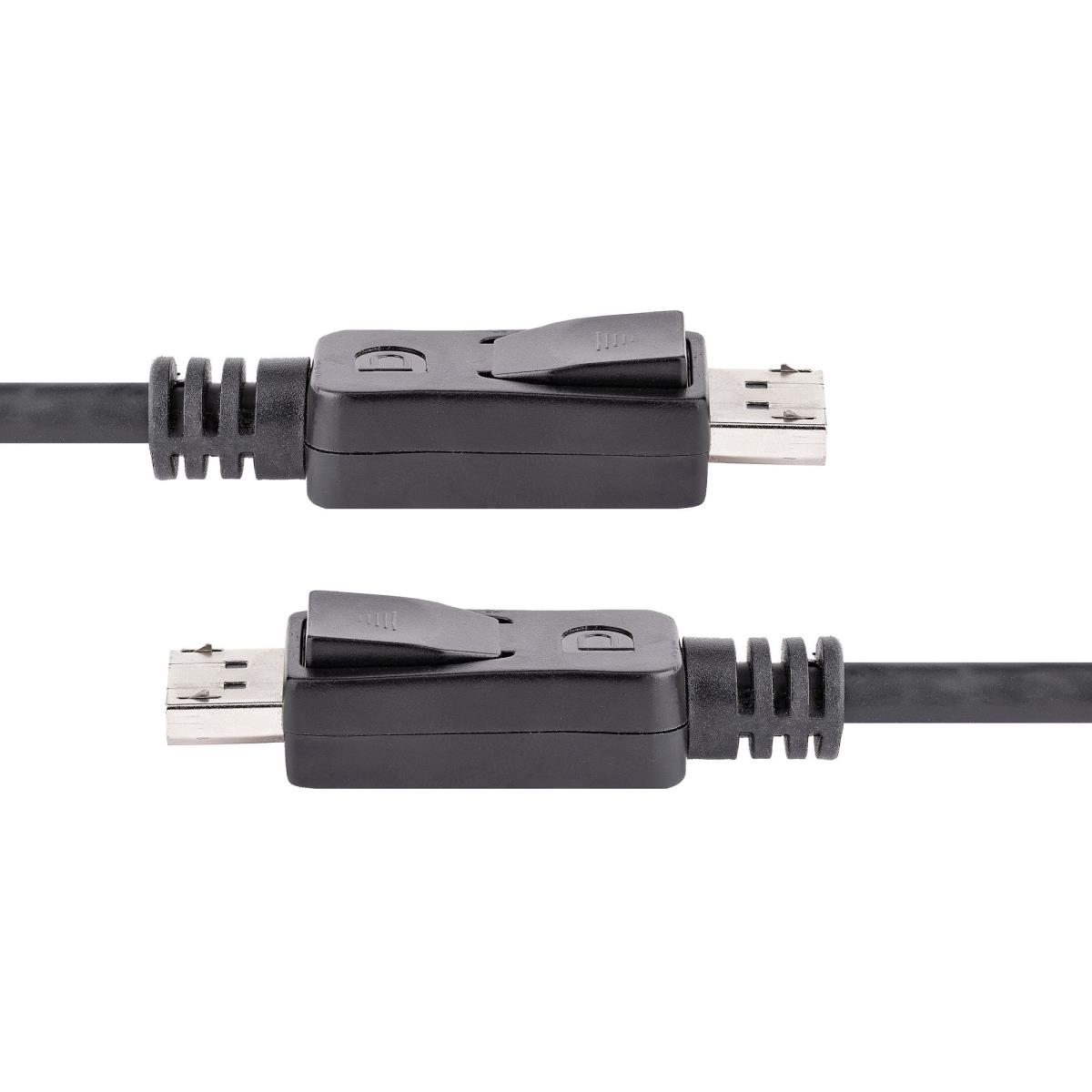

| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Weight | 40 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 21 mm |
| Package weight | 59 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 150 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
