Product Information
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

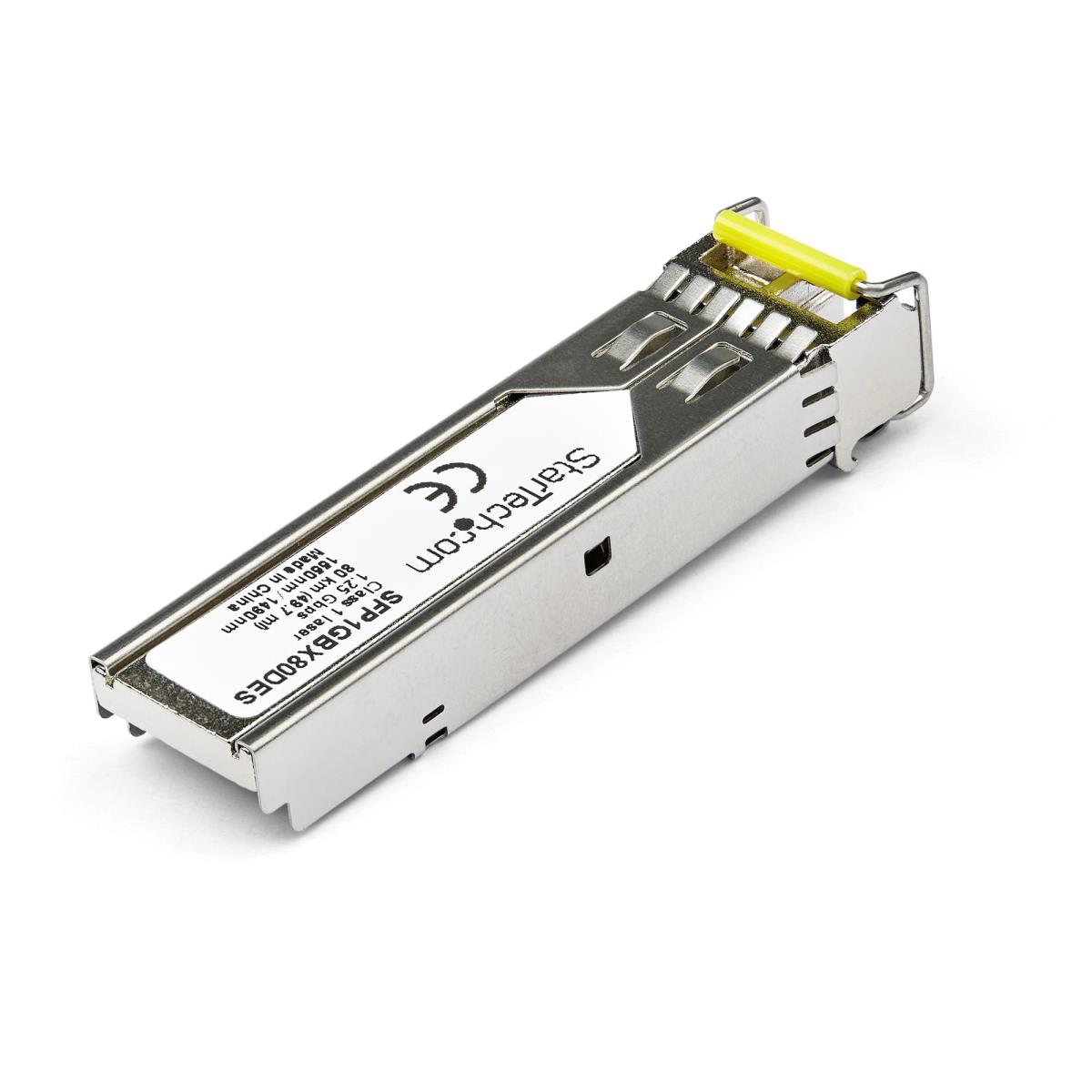

The SFP1GBX80DES is a Dell EMC SFP-1G-BX80-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80UES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1550nmTX/1490nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Maximum transfer distance | 80000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1490 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3713222 h |
| Brand compatibility | Dell |
| Compatible products | SFP-1G-BX80-D |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 30 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
