Dell Emc Qsfp-40g-sr4 Compatible Qsfp+ Module - 40gbase-sr4 Fiber Optical Transceiver
ITCurry #: 75648089 | Article #: QSFP40GSR4ES-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

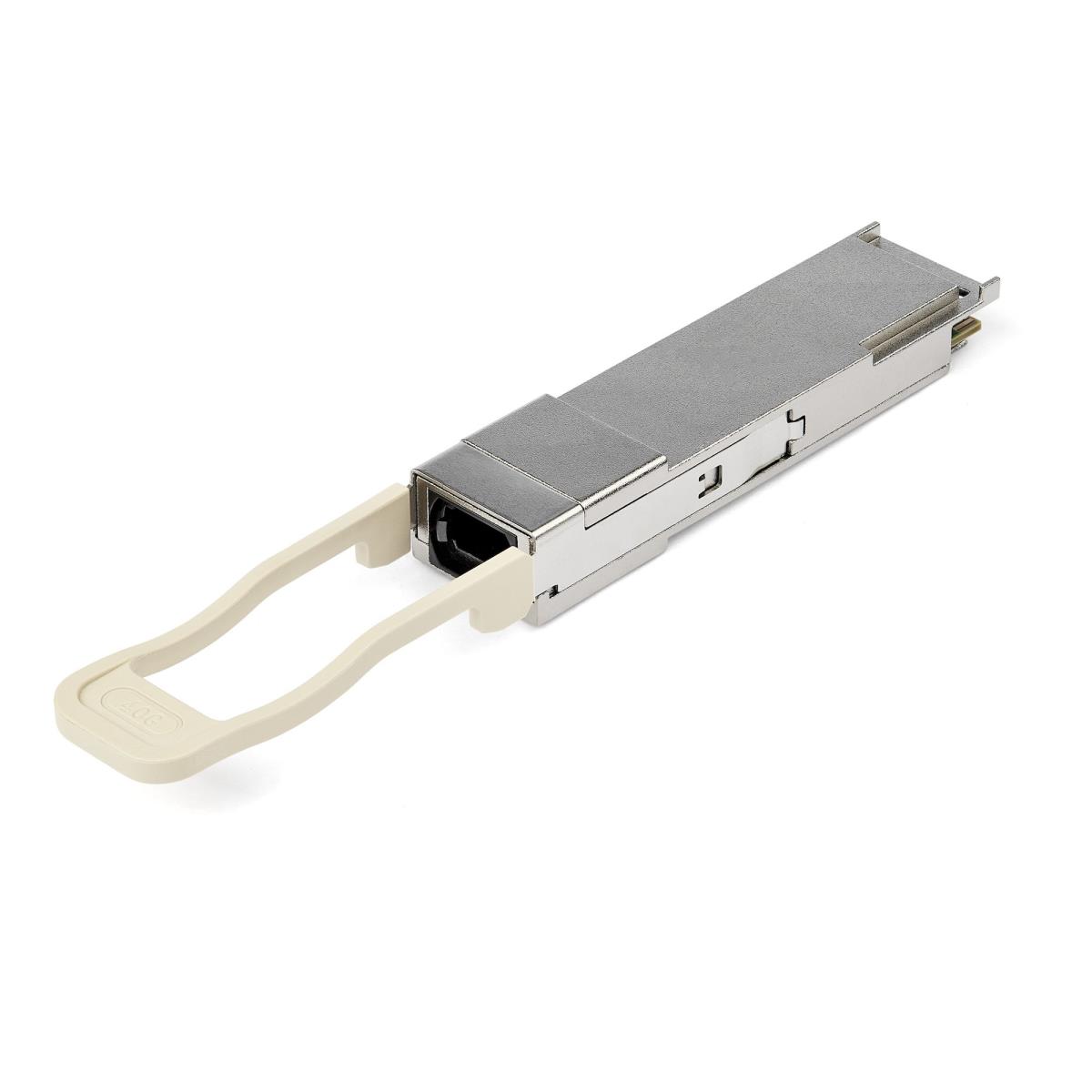

The QSFP40GSR4ES is a Dell EMC QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 45,017,120 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 45017120 h |
| Brand compatibility | Dell |
| Compatible products | QSFP-40G-SR4 |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UL, REACH |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 40 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 350 mm |
| Package height | 120 mm |
| Package weight | 60 g |
| Logistics data | |
| Master (outer) case width | 205 mm |
| Master (outer) case length | 350 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 120 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
