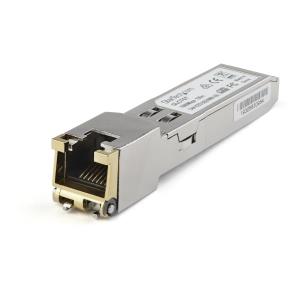

Cisco Glc-te Compatible Sfp Transceiver Module - 1000base-t - Extended Temperature
ITCurry #: 75648244 | Article #: GLCTEST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Networking standards | IEEE 802.3 |
| Copper ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | No |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Brand compatibility | Cisco |
| Compatible products | C1000, C2960S, C3560, C3750, C9400, C9500, N3500, N2000, N5000, N7000, N7700, UCSB, IE2000, Firepower, ISR4000 |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 30 - 75% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 295 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
