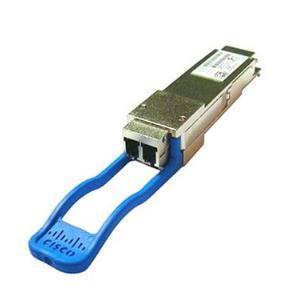

Brocade 40g-qsfp-lr4 Compatible Qsfp+ Module - 40gbase-lr4 Fiber Optical Transceiver
ITCurry #: 75648148 | Article #: 40G-QSFP-LR4-ST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 40G-QSFP-LR4-ST is a Brocade 40G-QSFP-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: MPO Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,027 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | MPO |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1330 nm |
| Fiber ethernet cabling technology | 40GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 95832027 h |
| Brand compatibility | Brocade |
| Compatible products | 40G-QSFP-LR4 |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Certification | CE, FCC, UR |
| Weight & dimensions | |
| Width | 122 mm |
| Depth | 18.3 mm |
| Height | 8.5 mm |
| Weight | 49 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
