Adapter Dual Sff-8643 To Dual Sff-8644 Mini SAS 12gbps
ITCurry #: 75647136 | Article #: SFF86448PLT2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

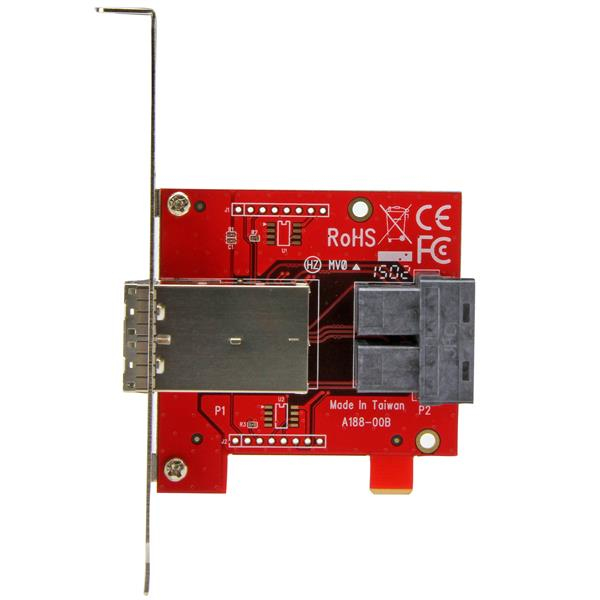

This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.
The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.
The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| Host interface | Mini SAS |
| Output interface | Mini-SAS HD |
| External mini-SAS HD ports | 2 |
| Internal mini-SAS HD ports | 2 |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Certification | CE, FCC, TAA, REACH |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 74 mm |
| Height | 22 mm |
| Weight | 54 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 173 mm |
| Package depth | 145 mm |
| Package height | 33 mm |
| Package weight | 112 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
