Active High Speed Hdmi Cable Active Hdmi Cord/4k 60hz/hdr 10m
ITCurry #: 7564C193 | Article #: HDMI2-CABLE-4K60-10M
Related products
Product Information

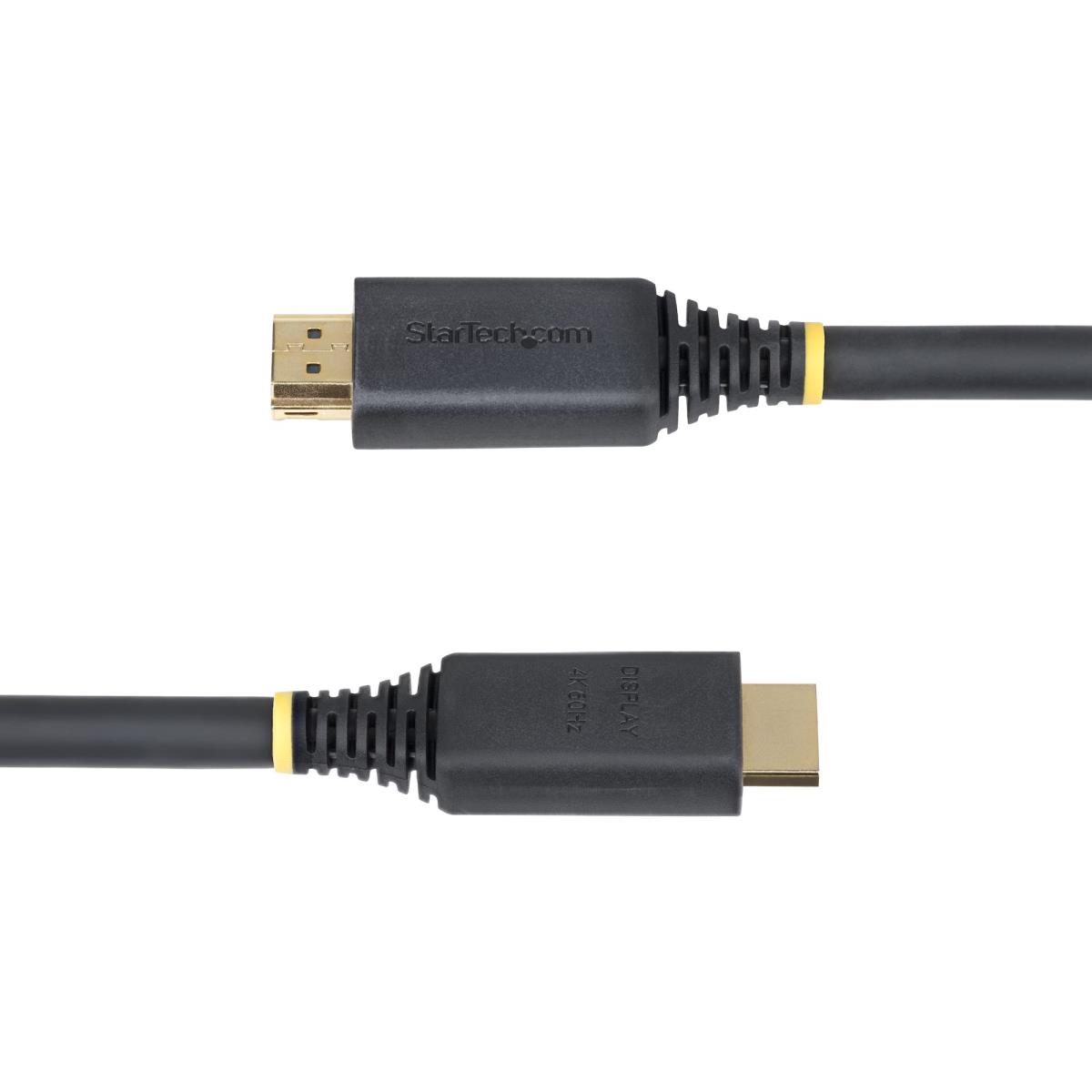

Connect reliably between HDMI UHD devices using this Active High Speed HDMI Cable

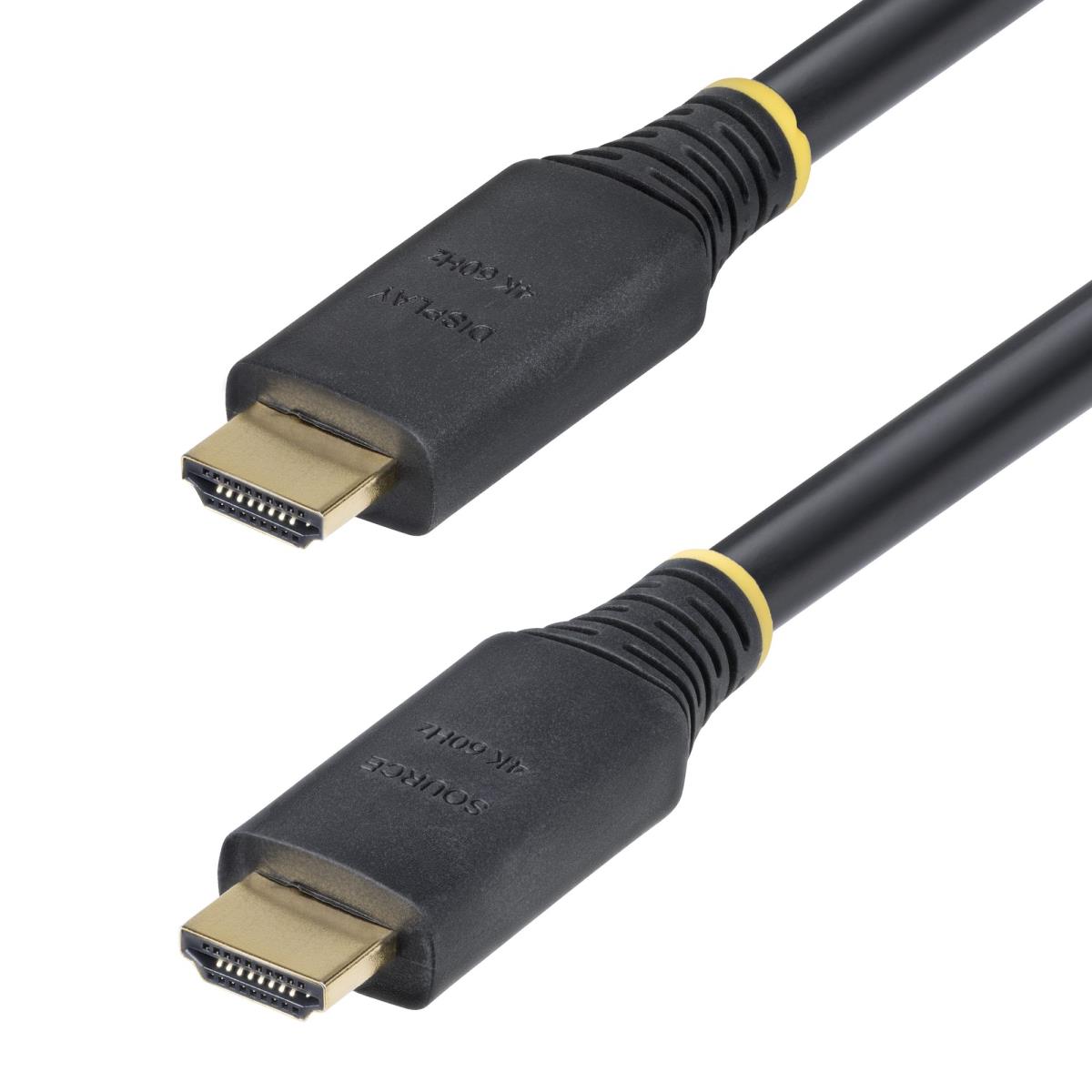

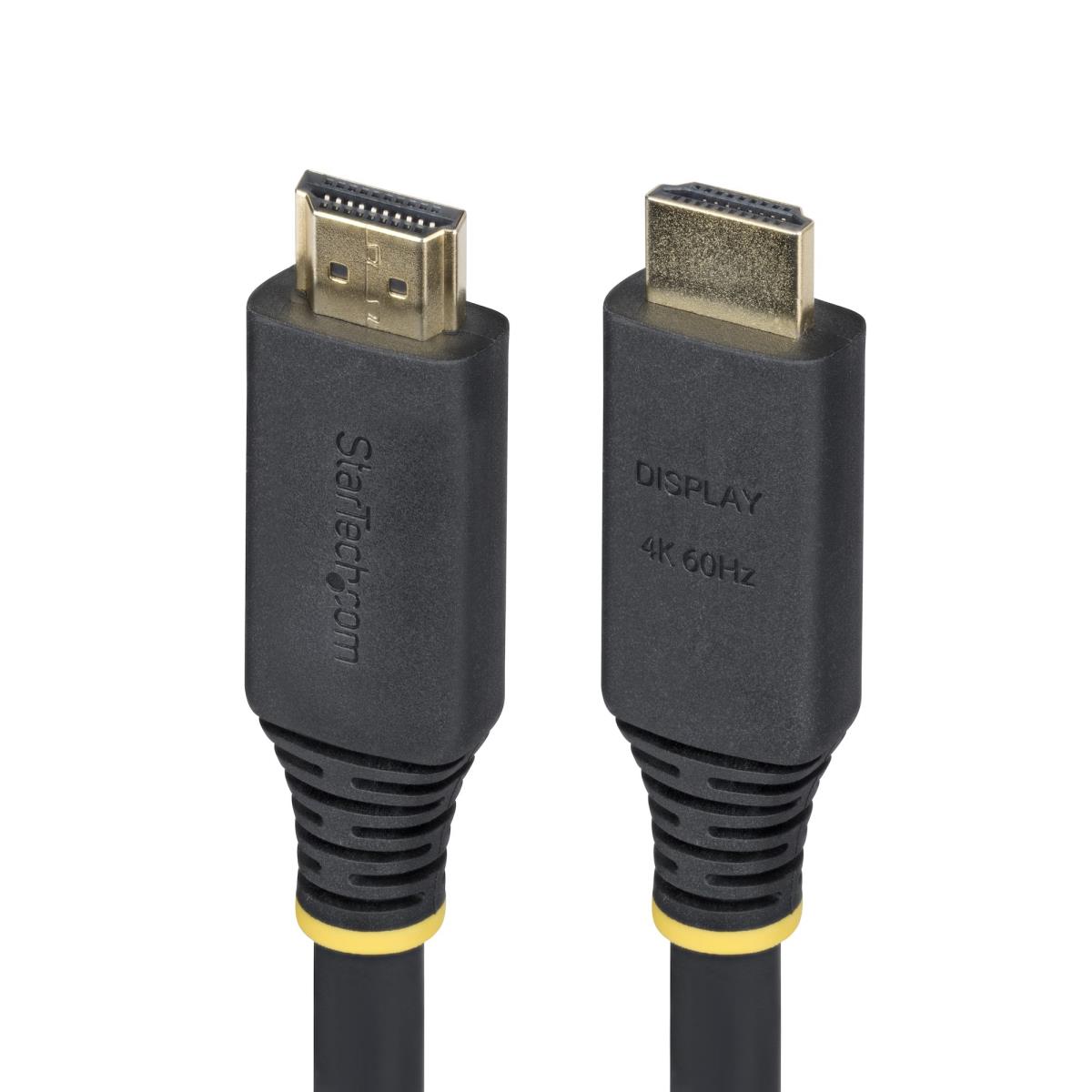

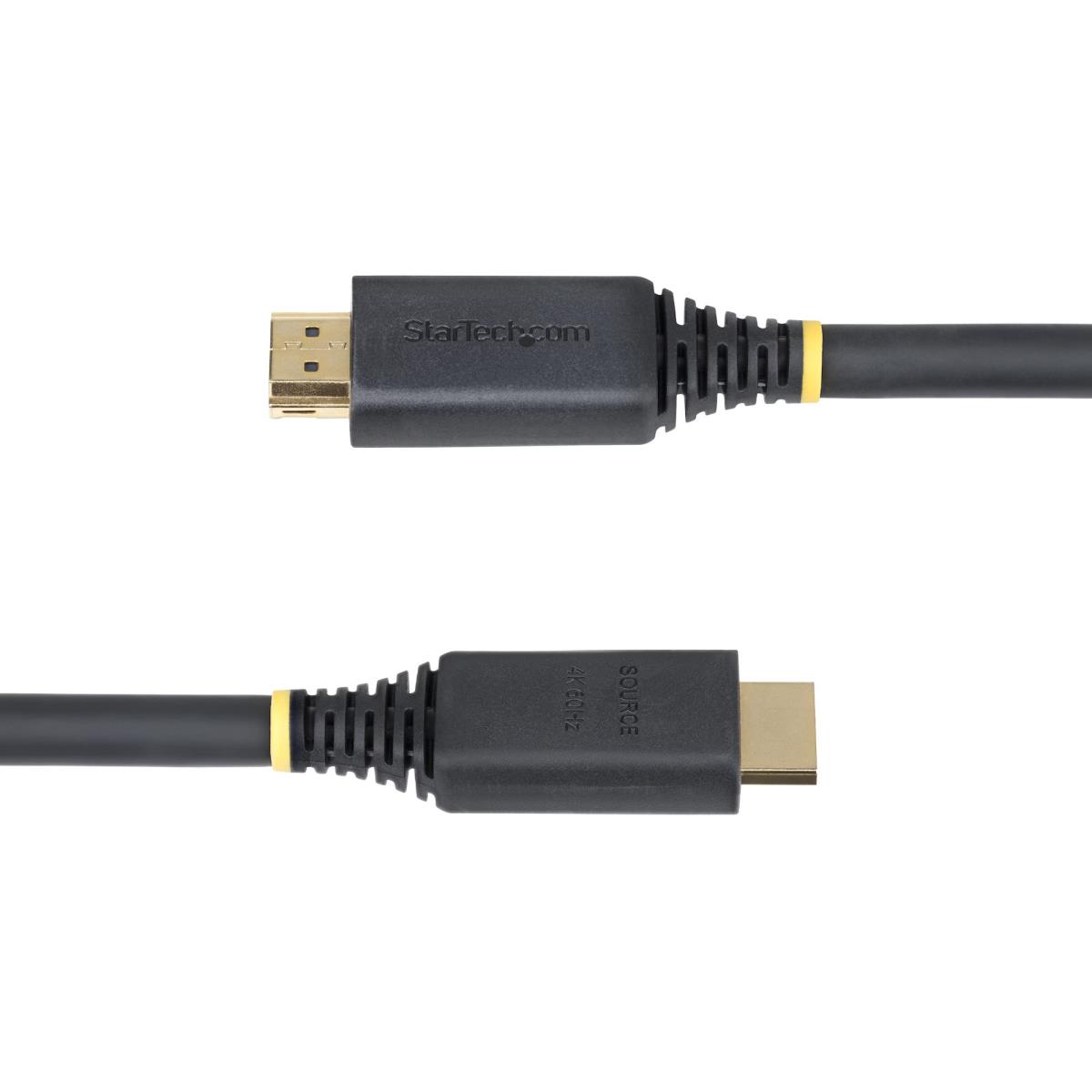

Connect to a 4K UHD TV or monitor, using this HDMI 2.0 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.
HDMI UHD Over Long Distances

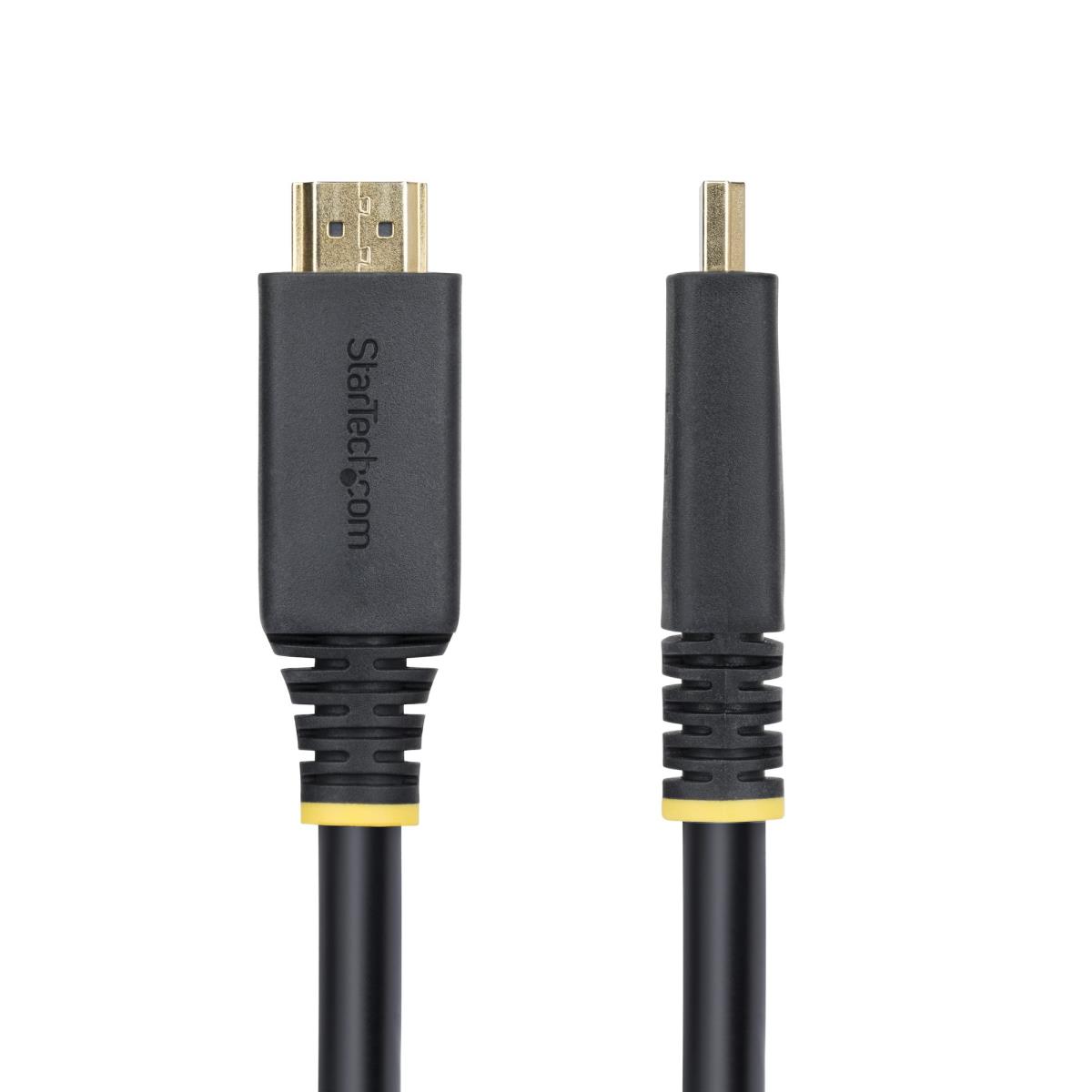

The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.

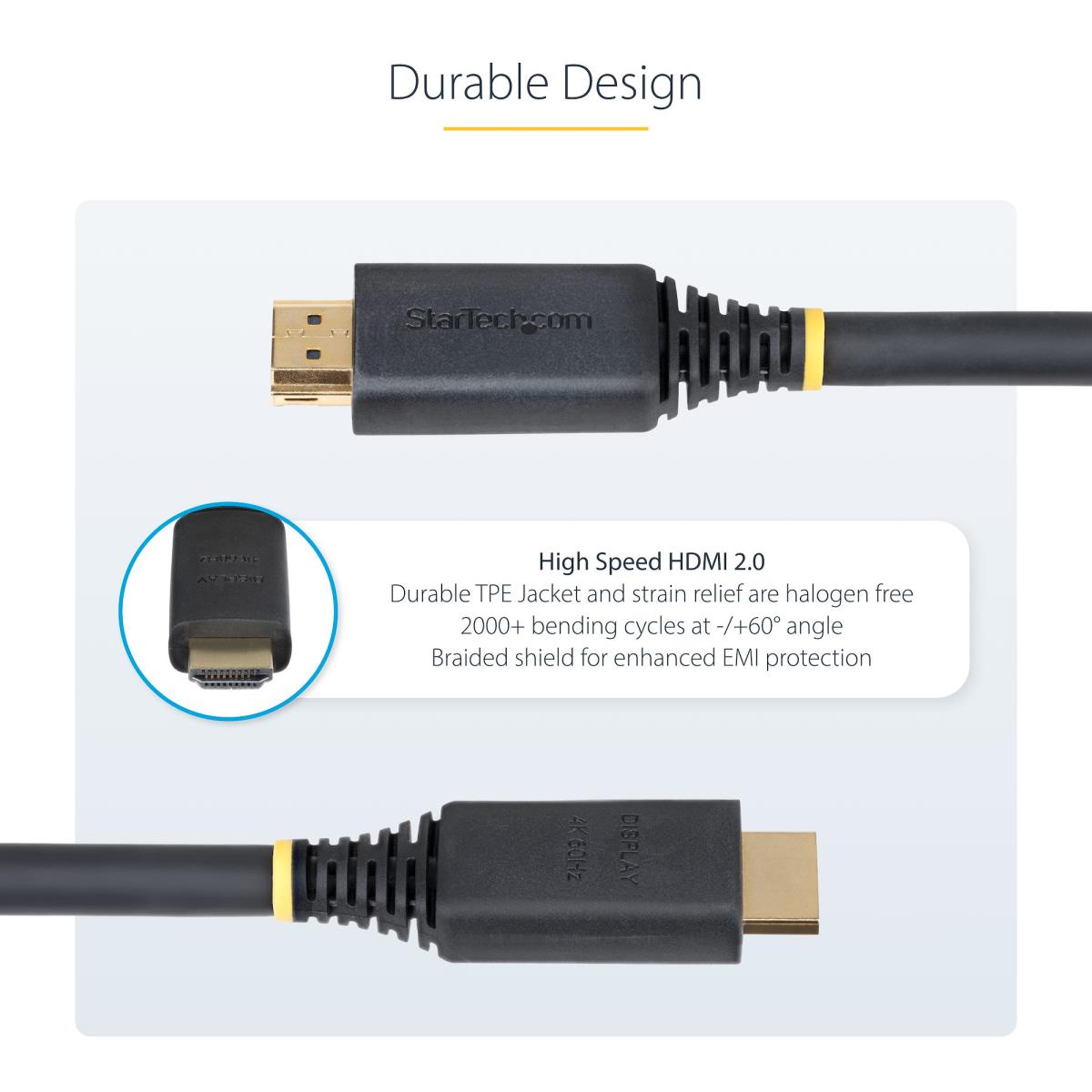

Durable Design
This High Speed HDMI Cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Gold-plated connectors are rated to operate beyond 10,000 insertions.
Supported HDMI 2.0 Features:
This HDMI Cable supports full HDMI 2.0 features:
• Resolutions up to 4K 60Hz using a compatible HDMI source and display
• Supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• 21:9 Aspect Ratio support for cinematic viewing experiences
• High Dynamic Range (HDR10) for higher contrast ratio and vibrant picture quality
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• Audio Return Channel (ARC) for sending audio from the TV back to an AV receiver or soundbar
• Up to 32 Uncompressed Digital Audio Channels
• HDMI Ethernet Channel (HEC) for network connectivity over HDMI
• Backward compatible with previous HDMI versions
This HDMI 2.0 Cord is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
| Features | |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.0 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1400, 3840 x 2160 |
| Supported video modes | 1080p, 1440p, 2160p |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Supported digital audio channels (uncompressed) | 32 |
| Maximum refresh rate | 240 Hz |
| AWG wire size | 24 |
| Connector contacts plating | Gold |
| Cable type | Round cable |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Colour depth | 12 bit |
| Cable shielding | Aluminum mylar foil |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | RoHS |

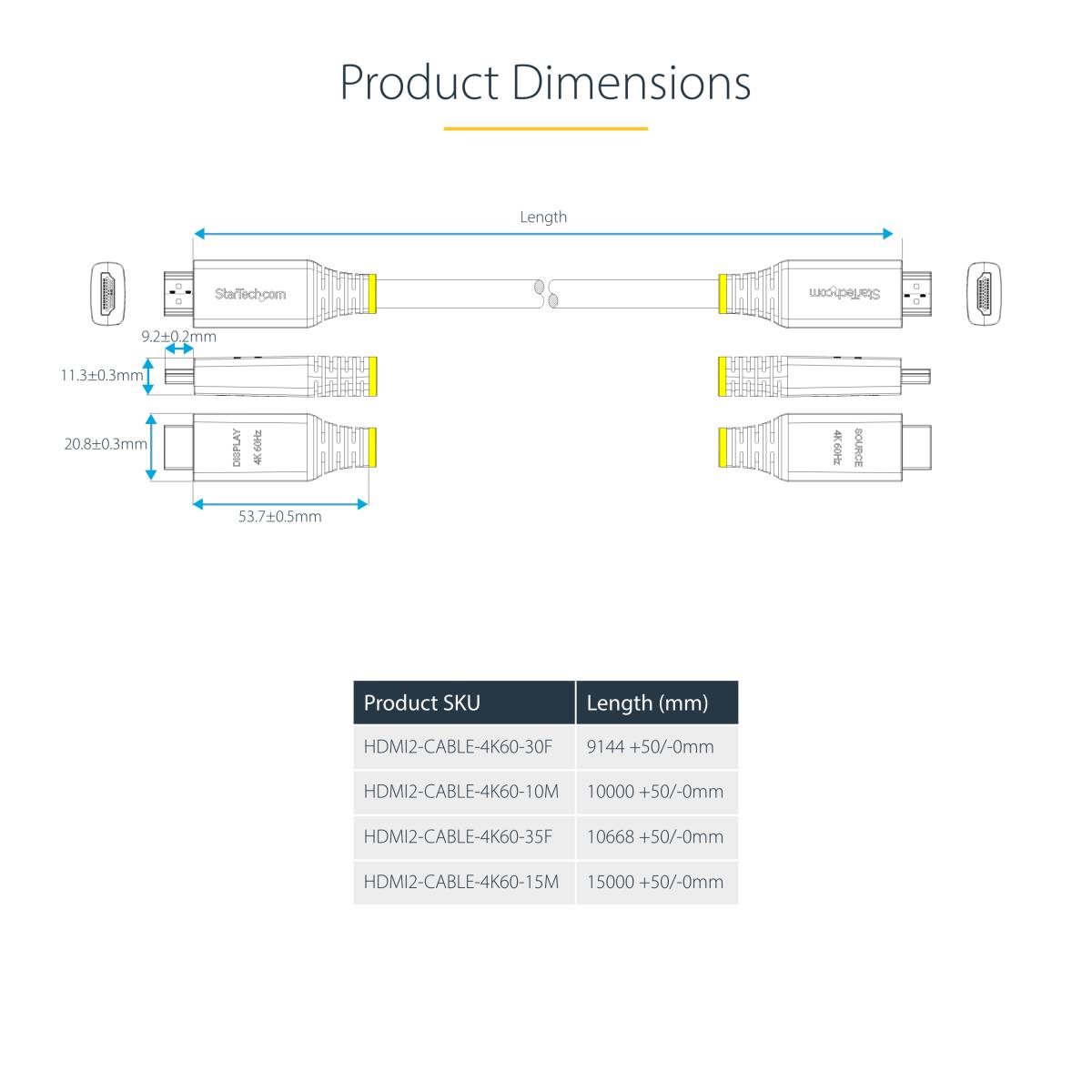

| Weight & dimensions | |
| Cable diameter | 9 mm |
| Weight | 700 g |
| Packaging data | |
| Package width | 330 mm |
| Package depth | 252 mm |
| Package height | 20 mm |
| Package weight | 700 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
