Anti Static Desk Mat | 11.8x18.1 in | Small Anti ESD Mat

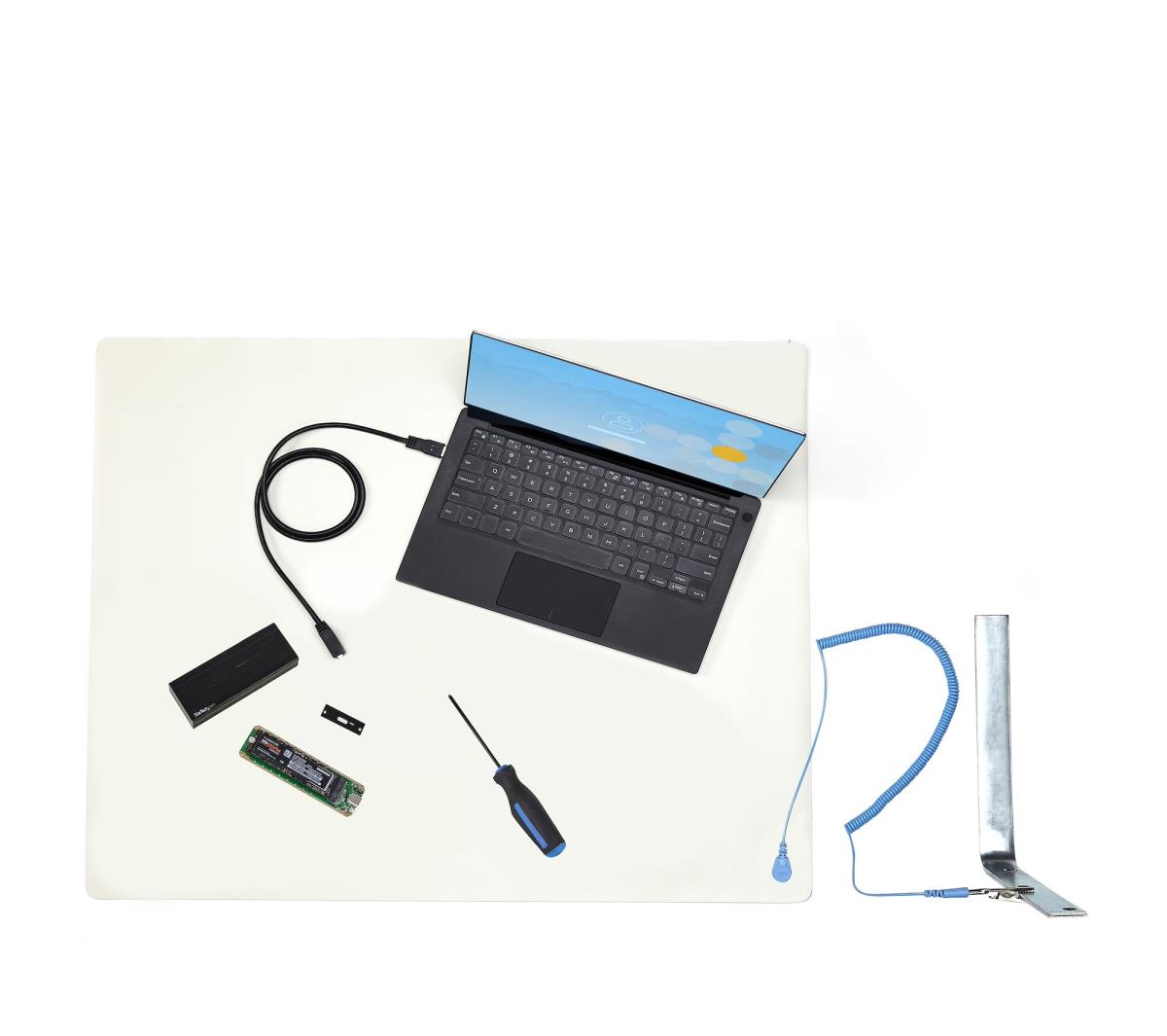

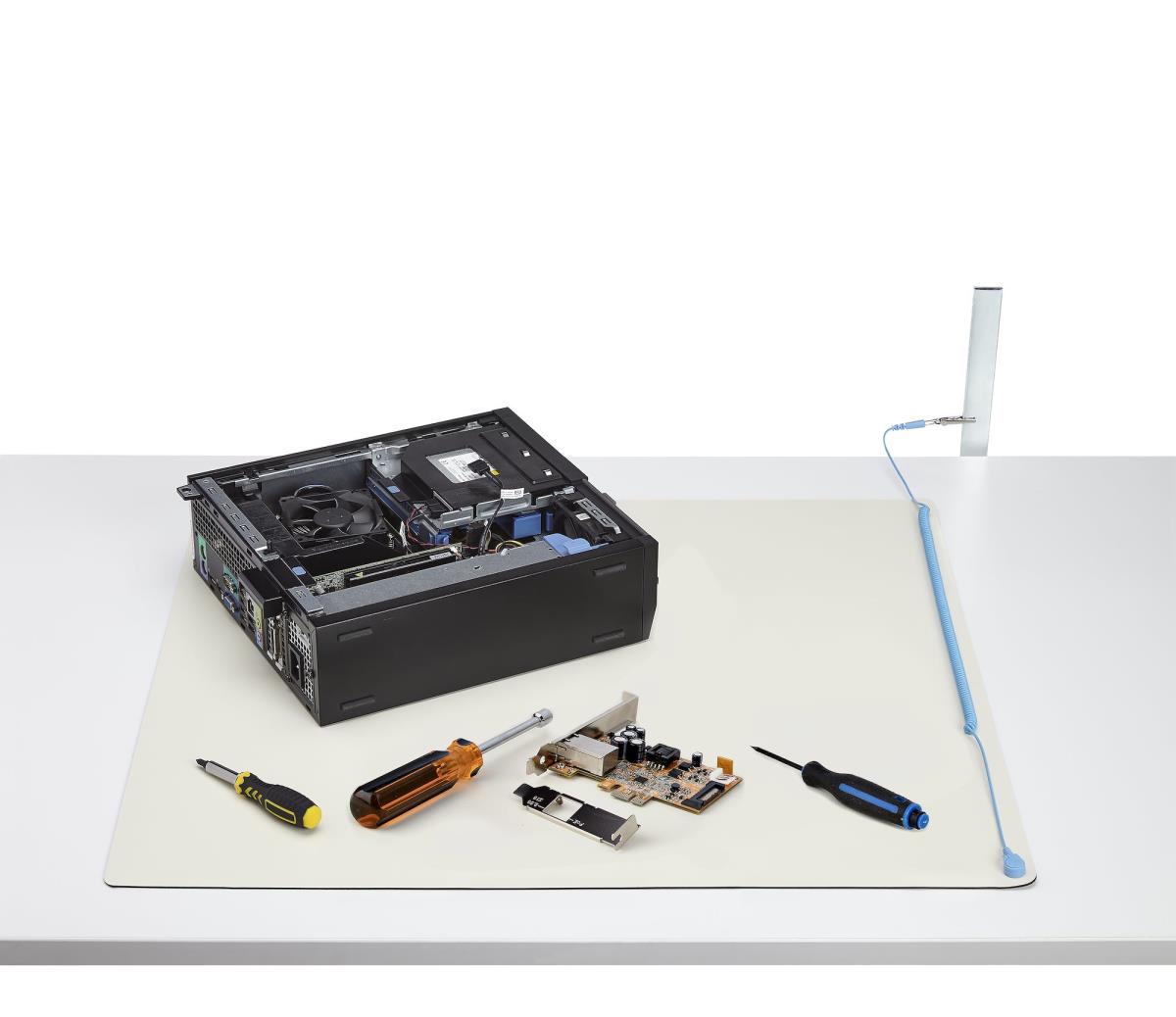

The desktop anti-static mat helps you protect your valuable equipment from the dangers of static electricity which can permanently damage components and render them unusable. This mat covers an area of 12 x 18 in (30 x 46 cm), ideal for manufacturing or repair facilities where electronic parts are in use. It can also be utilized in data centers, or in other any locations that requires ESD protection.
Excellent Construction Quality

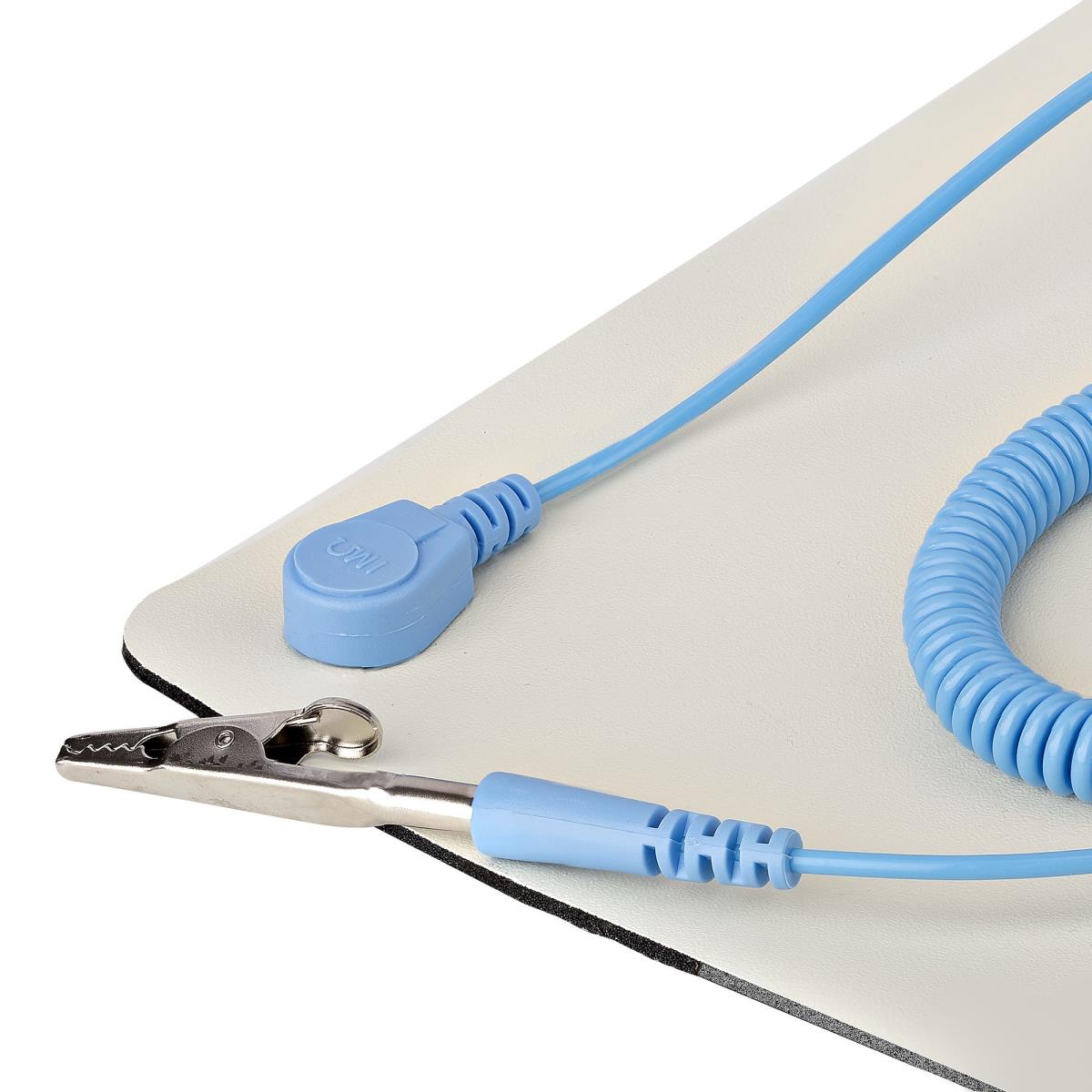

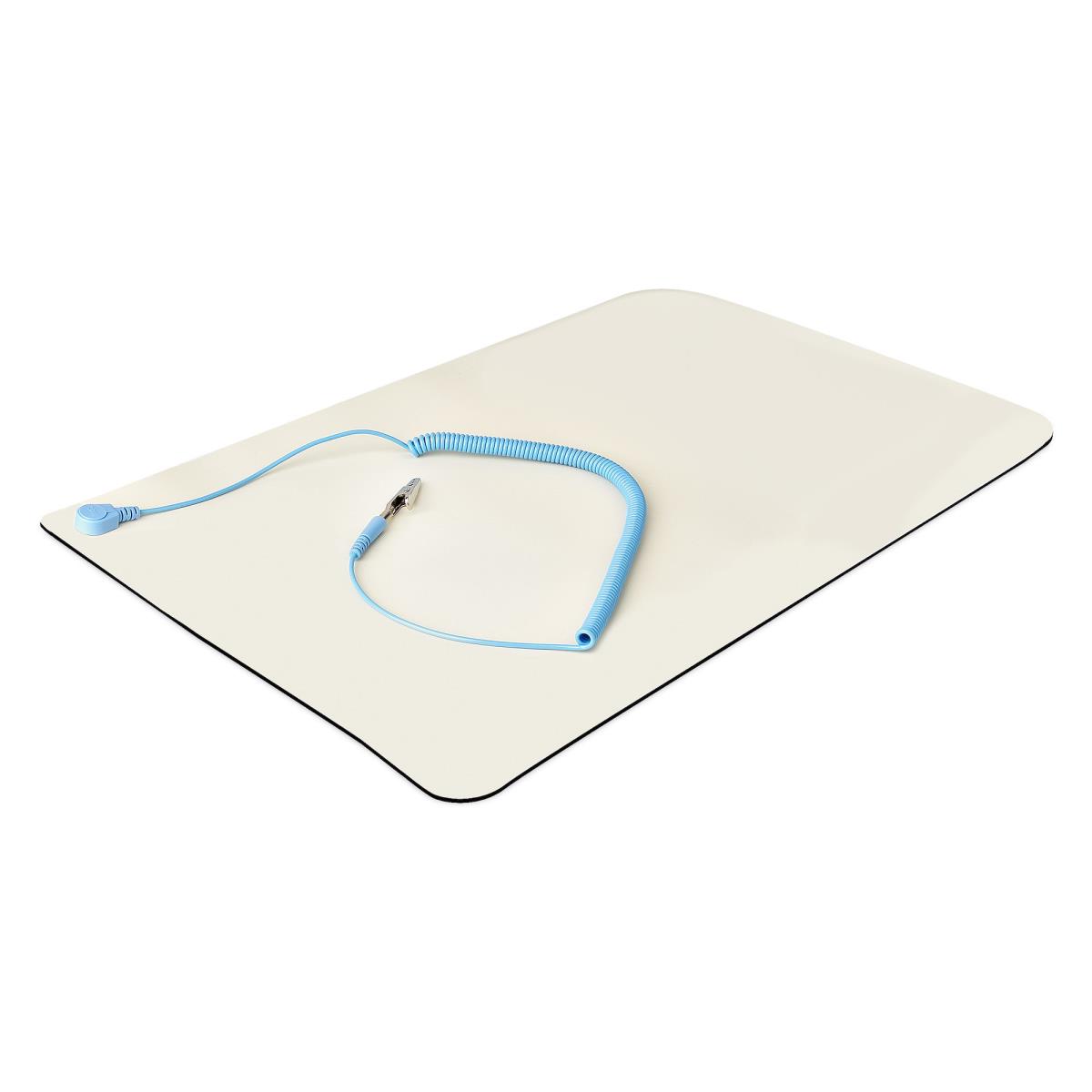

The anti-static mat complies with the ANSI / ESD S 4.1 surface resistance standard. The mat is composed of two PVC layers with a total thickness of 0.08 in (2 mm). The bottom black layer is textured for surface adhesion. The mat includes a coiled grounding cable which is long enough (6.6 ft / 2 m) to reach the most common grounding points.
Easy to Deploy and Store

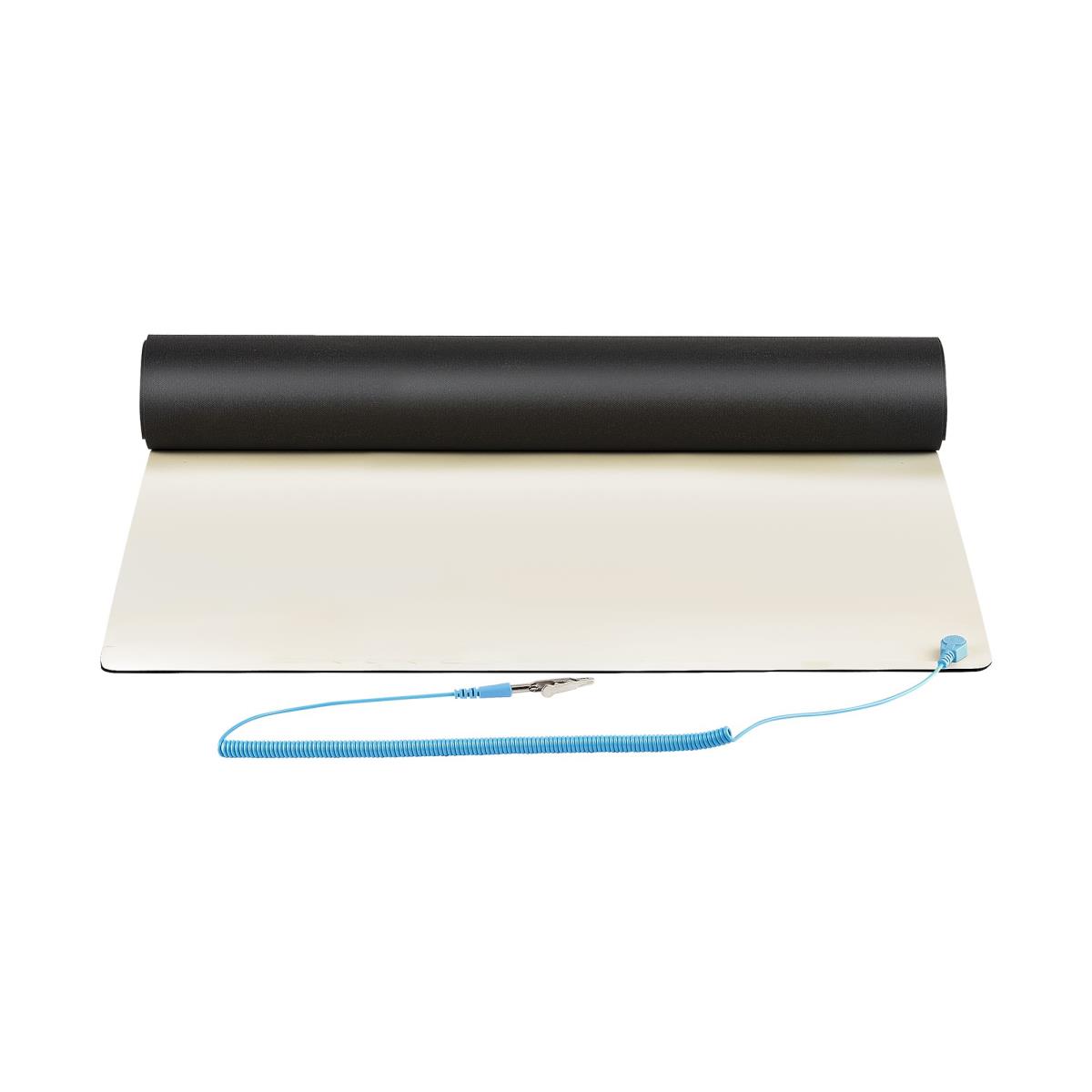

The mat is made with a flexible PVC material that allows it to be easily rolled into a tube and used as a portable work surface or for minimalist storage. A convenient snap-on clip enables the grounding wire to be attached or removed with ease. You can easily clean the mat's with an anti-static mat cleaner to keep the ESD performance and protect the work surface.
The SM-ANTI-STATIC-MAT is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Features | |
| Product colour | Beige, Black |
| Top material | Polyvinyl chloride (PVC) |
| Bottom material | Polyvinyl chloride (PVC) |
| Purpose | Table |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case length | 295 mm |
| Master (outer) case width | 495 mm |
| Master (outer) case height | 655 mm |
| Packaging content | |
| Grounding wire | Yes |
| Ground wire length | 2 mm |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 20 - 45 øC |
| Storage temperature (T-T) | -6 - 65 øC |
| Operating relative humidity (H-H) | 55 - 70% |
| Weight & dimensions | |
| Thickness | 2 mm |
| Width | 300 mm |
| Depth | 460 mm |
| Weight | 163 g |
| Package weight | 238 g |
| Package depth | 90 mm |
| Package width | 315 mm |
| Package height | 90 mm |
