1000base-lx Sfpmsa Compliant 1g Sfp Sm Lc 10 Km (6.2 Mi)
ITCurry #: 75647456 | Article #: SFP1000LXST
Related products
Product Information
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

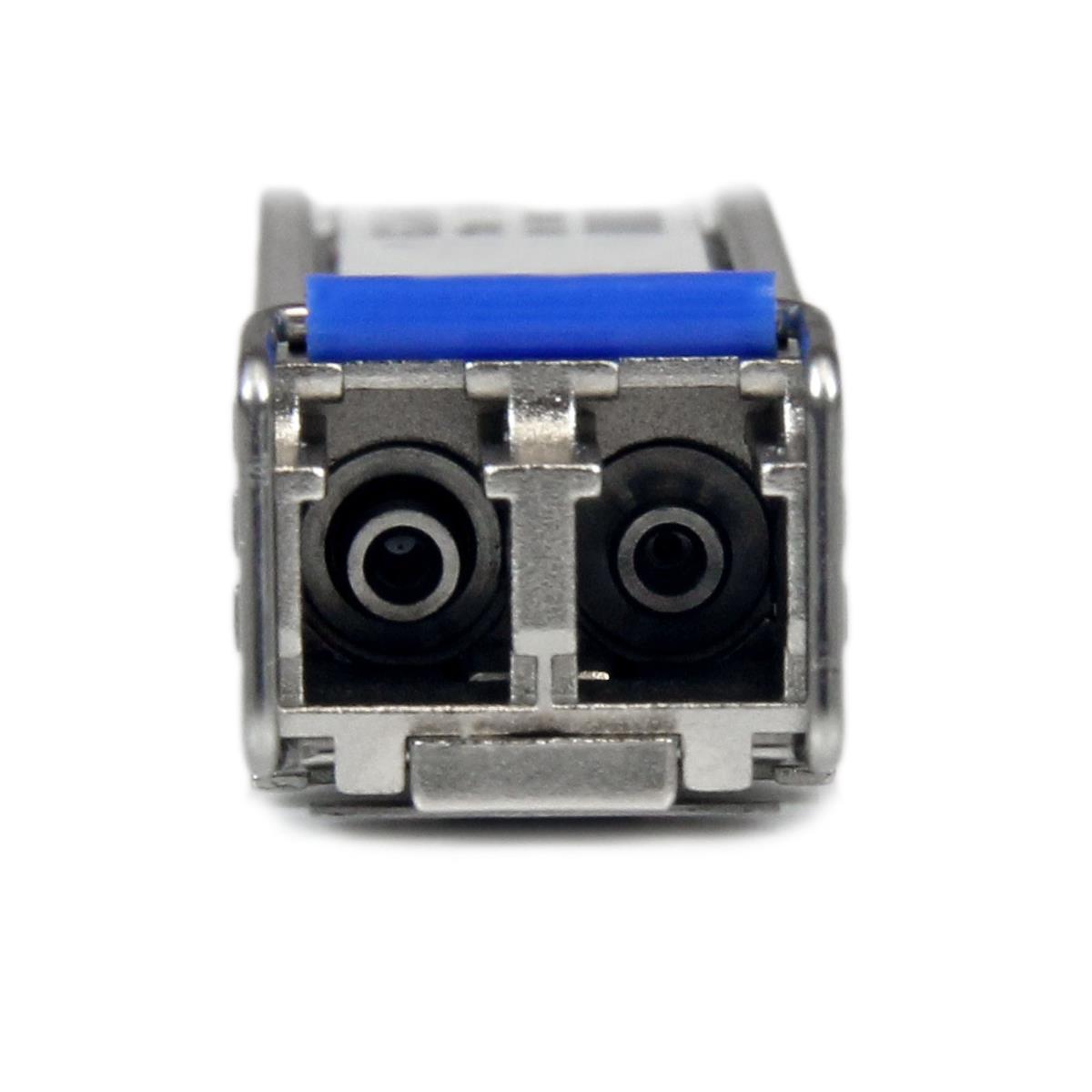

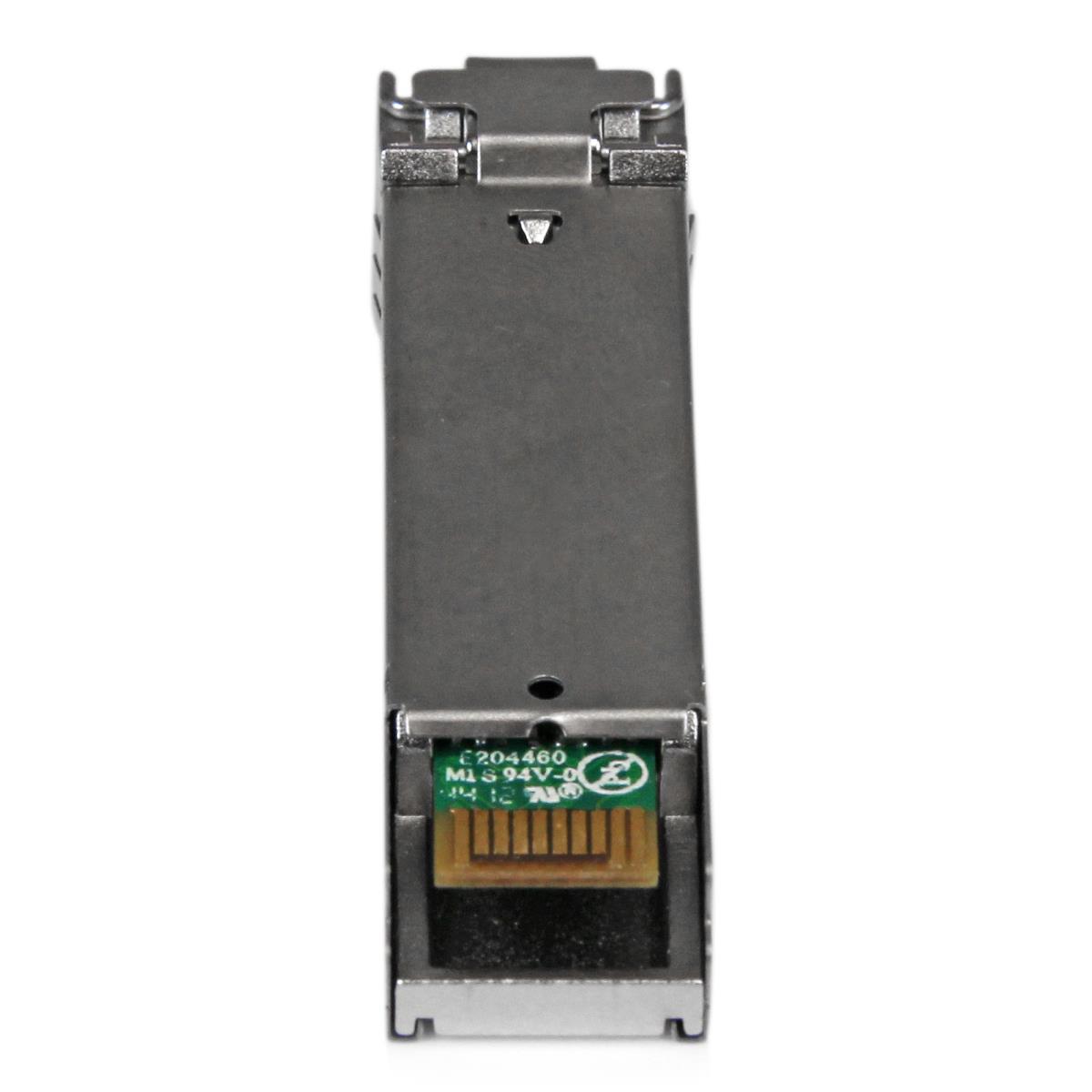

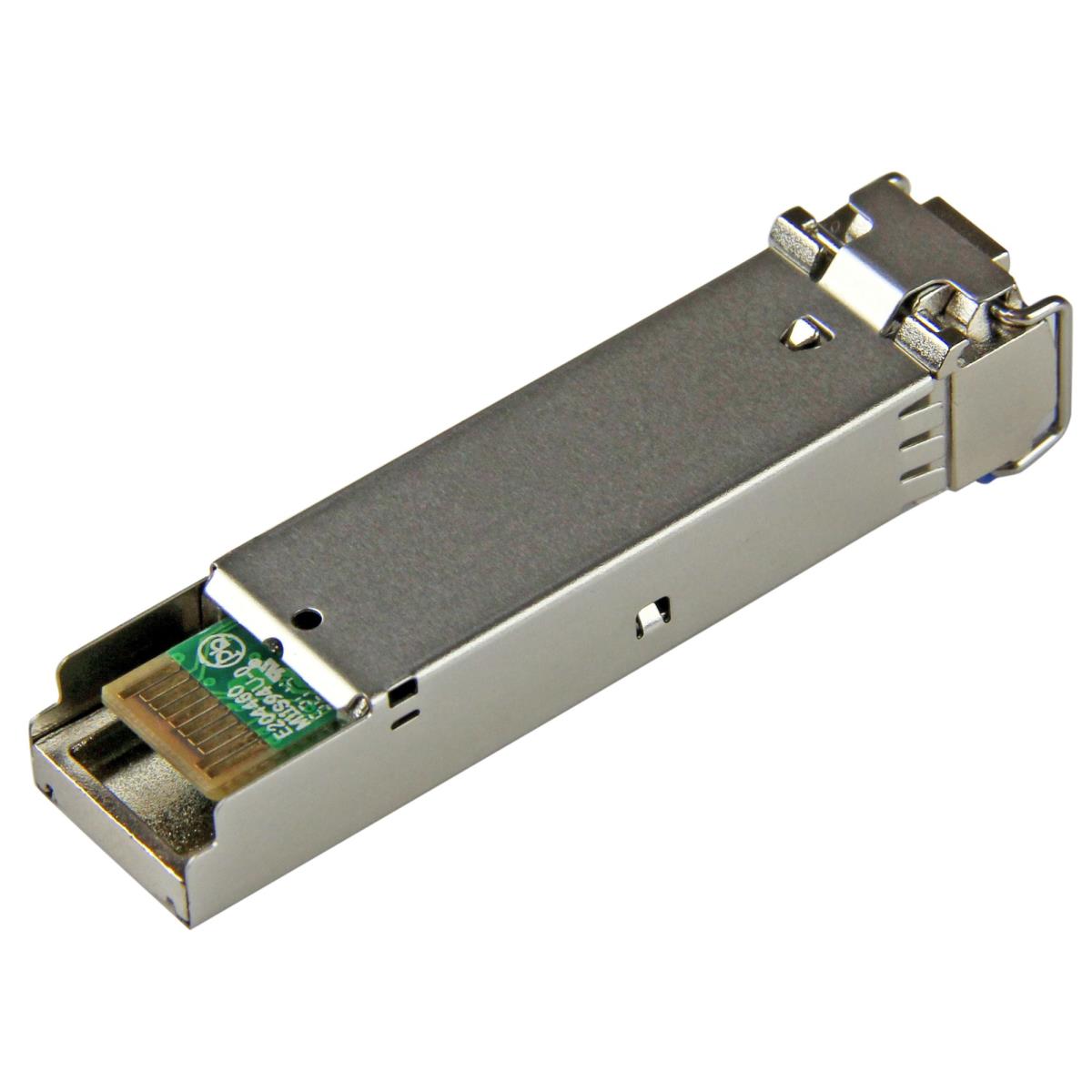

The SFP1000LXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 59 mm |
| Height | 12 mm |
| Weight | 18 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 92 mm |
| Package depth | 117 mm |
| Package height | 33 mm |
| Package weight | 47 g |
| Logistics data | |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 302 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 256 mm |
| Products per master (outer) case | 35 pc(s) |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
