Compact Camera Srg-xb25 60mpix 12x Optical Zoom Box-style Remote White
ITCurry #: 5320Y205 | Article #: SRG-XB25W-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Stream crisp, detail-packed 4K 60p video with this high quality remote camera that features a powerful 25x optical zoom lens for frame-filling close-ups in larger venues.
The SRG-XB25 high-zoom BOX camera draws on decades of Sony’s professional imaging know-how to suit a wide range of content creation applications. It’s ideal for capturing and streaming impressive 4K pictures in environments including seminar rooms, lecture theatres, virtual production studios, government/parliament buildings and houses of worship. The cost-effective SRG-XB25 is particularly appealing for multi-camera shooting set-ups, where high quality images are required without the need for a team of dedicated camera operators. The integrated lens with powerful 25x optical zoom captures frame-filling close-ups of speakers and presenters, even when the camera’s installed at the back or larger auditoriums and public venues. The SRG-XB25 fits seamlessly into all-IP production environments, with a single Ethernet cable carrying power, streaming video and camera control signals. Ideal for lecture capture applications, the SRG-XB25 partners seamlessly with the REA-C1000 Edge Analytics Appliance. For example, the camera’s powerful 25x zoom captures the speaker’s gestures and handwriting in large classrooms or teaching spaces, allowing REA-C1000 to deliver what the customer requires.
Robust, stylish and compact
Measuring just 70.9 x 80.1 x 178.3 mm and weighing 872 g, the SRG-XB25 can be readily integrated into any environment. Upper and lower tripod mounts increase installation flexibility. Rear panel guards assure extra robustness, and the large, easy-to-read tally lamp is useful in multiple camera set-ups.
Powerful 25x optical zoom
The integrated autofocus lens with 25x optical zoom plus additional digital zoom assures ultra-clear, powerful close-ups of presenters or audience members.
Easy IP connectivity, single-cable installation

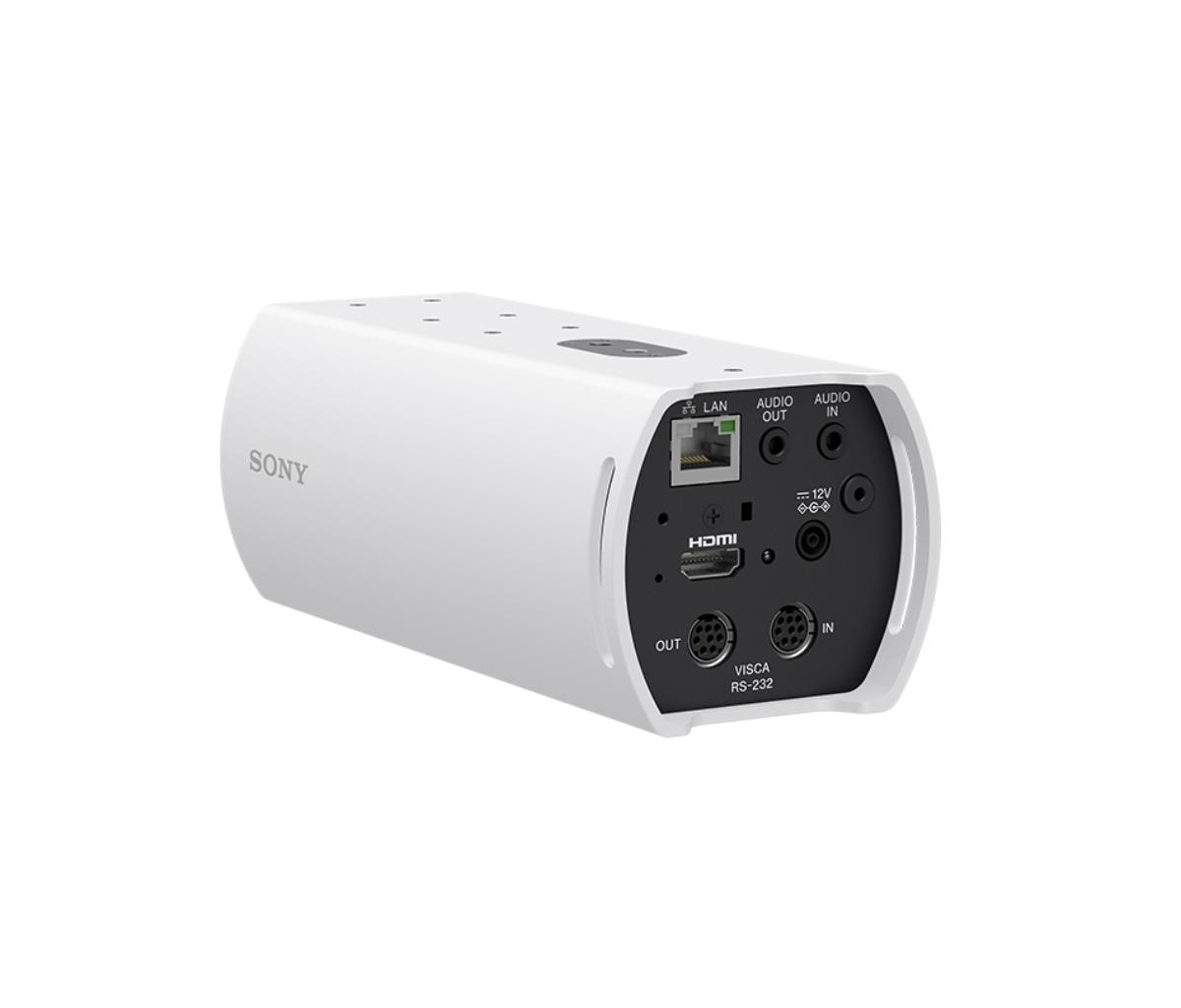

Camera control, PoE and streaming video output are carried over a single Ethernet cable, reducing installation costs and simplifying integration in space-restricted or hard-to-reach locations. Full IP integration includes support for Real Time Streaming Protocol (RTSP) and Real Time Messaging Protocol (RTMP). Support for NDI |HX is also available via an optional licence.
High quality 4K 60p images
The camera’s 1/2.5-type Exmor R CMOS sensor captures smooth, crisply detailed 4K 60p video with excellent low-light sensitivity.
Broadcast-style tally light
The camera-mounted tally light gives visual confirmation to the lecturer or presenter when the camera is active. The horizontal bar-style light is easily visible to both performer/presenter and director.
Audio input
Connect an external microphone or line-level source to capture clear pictures plus sound in lecture theatres and meeting rooms or on reality TV shows.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Design | |
| Form factor | Box |
| Product colour | White |
| Camera | |
| Minimum illumination | 1 lx |
| Lens viewing angle, horizontal | 68ø |
| Camera shutter speed | 1 - 1/10000 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.25 mm (1 / 1.25") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 4x |
| Number of lenses | 1 |
| Focal length range | 4.8 - 120.5 mm |
| Closest focusing distance | 1.5 m |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8.5 MP |
| Video formats supported | H.264, H.265 |
| Supported video modes | 480p, 720p, 1080p, 3840p |
| Frame rate | 59.94 fps |
| Video streaming | Yes |
| Audio | |
| Audio formats supported | AAC |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Streaming method | Multicast |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Power | |
| Power source type | DC, PoE |
| DC output voltage | 12 |
| Weight & dimensions | |
| Width | 70.9 mm |
| Depth | 178.3 mm |
| Height | 80.1 mm |
| Weight | 872 g |
| Packaging content | |
| Number of cameras | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
