Secure Upgrade Plus Essential Edition - Subscription License - 1 User - For Nsa 5700 2 Years
ITCurry #: 11519399 | Article #: 02-SSC-3932-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

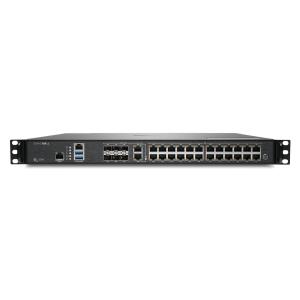

Defeating advanced threats requires an advanced firewall solution built for the needs of your business. The SonicWall Network Security appliance (NSa) Mid-Range Firewall is next-generation security designed specifically for businesses of 250 users and up. Work with the confidence of knowing you’re protected against the day-to-day incursions as well as against advanced threats like ransomware, attacks against non-standard ports, and breaches in firewalls, all at the speed of business.
With cloud-based and on-box capabilities like TLS/SSL decryption and inspection, application intelligence and control, secure SD-WAN, real-time visualization, and WLAN management, SonicWall provides flexible, fast and cost-effective security to keep the threats out and your business thriving.
Blocks More Attacks With RTDMI™
Real-Time Deep Memory Inspection (RTDMI™) proactively detects and blocks unknown malware via deep memory inspection in real time, a revolutionary approach to defend against zero-day and side-channel attacks and other unrecognized threats.
Secure Remote Workers
SonicWall NetExtender provides an intuitive SSL-VPN connection client that’s easy to deploy and configure. Easily provide your remote workers with secure access to your corporate network from Linux, Mac and Windows devices.
Secure SD-WAN Technology
Leave MPLS behind for a more agile, more secure and more cost-effective network optimized for today’s broadband-driven, cloud-infused landscape. Secure SD-WAN technology is built in to NSa firewalls, so there’s no need to purchase additional SD-WAN appliances and licenses.
Built-in Wireless Controller
Implement high-speed wireless security by combining a NSa series next-generation firewall with a SonicWall SonicWave wireless access point. NSa series firewalls and SonicWave access points both feature 2.5 GbE ports that enable multi-gigabit wireless throughput offered in Wave 2 wireless technology.
Low Total Cost of Ownership
Make a SonicWall NSa firewall the start of enterprise savings. From reduced costs through zero-touch deployment to enabling SD-WAN and delivering NetSecOPEN-verified threat block rates on par or better than competitors at a fraction of the cost, SonicWall NSa firewalls are security you can’t afford to be without.
Cloud-based & On-Premises Centralized Management
Gain greater visibility into your enterprise even as it becomes more complex on- and off-prem. Tightly integrated into the SonicWall ecosystem, bring your firewalls into a single-pane-of-glass management, licensing, reporting and analytics
High Performance and Port Density
Deploy next generation firewalls that are designed for mid-size and distributed enterprises to deliver much needed multi-gigabit threat prevention performance while providing high port density including 10 GbE ports for flexible network connectivity
| Data transmission | |
| Firewall throughput | 28 Gbit/s |
| VPN throughput | 15 Gbit/s |
| IPS/IDS throughput | 17000 Mbit/s |
| SSL inspection throughput | 7000 Mbit/s |
| Maximum connections (DPI) | 3500000 |
| Maximum connections (SPI) | 5000000 |
| Maximum firewall connections per second | 228000 |
| VoIP | Yes |
| Performance | |
| Heat dissipation | 436.82 BTU/h |
| Certification | FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, NATEL, BSMI |
| Network | |
| Concurrent SSL/VPN connections (default) | 350000 |
| VPN tunnels quantity | 6000 |
| Local user database | 2500 |
| Number of VLANs | 512 |
| Quality of Service (QoS) support | Yes |
| Number of LAN Access Points (max) | 512 |
| Security | |
| Security algorithms | 3DES, 64-bit AES, 128-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| Advanced persistent threat (APT) detection | Yes |
| Content filtering | HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Protocols | |
| Supported network protocols | BGP4, OSPF, RIPv1/ v2, static routes, policy-based routing |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 24 |
| Number of console ports | 1 |
| SFP+ module slots quantity | 6 |
| Storage | |
| Total storage capacity | 128 GB |
| Warranty | |
| Base Warranty | Non Non |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Built-in fan | Yes |
| Number of fans | 2 fan(s) |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 128.1 W |
| Power supply | 350 W |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 465 mm |
| Height | 45 mm |
| Weight | 7.8 kg |
| Packaging data | |
| Package weight | 13.5 kg |
| Other features | |
| Firewall throughput | 28000 Mbit/s |
| VPN throughput | 15000 Mbit/s |
