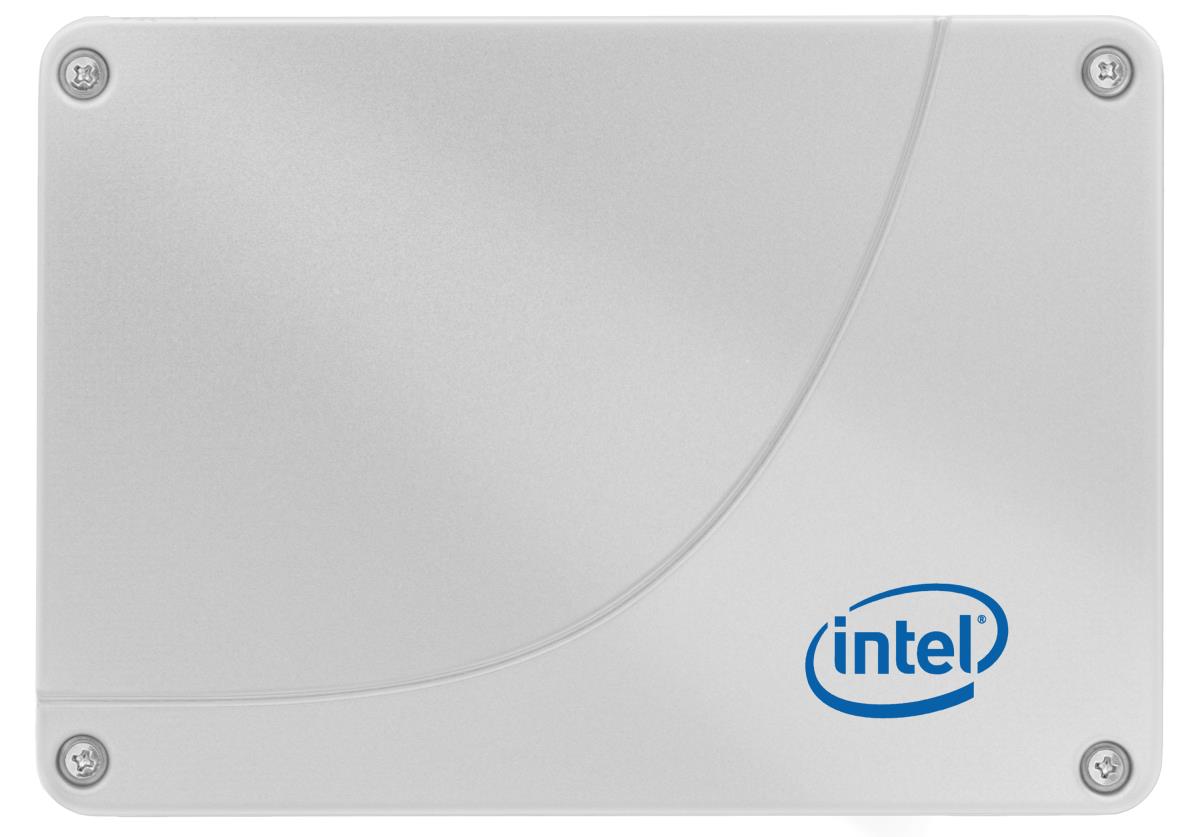

SSD - D3-S4520 Series - 240GB - 2.5in - SATA 3.0 6Gb/s - 7mm TLC 3D NAND
ITCurry #: Y8732055 | Article #: SSDSC2KB240GZ1Z
Related products
Product Information
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
| Security algorithms | 256-bit AES |
| SSD form factor | 2.5" |
| SSD capacity | 240 GB |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | TLC 3D NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 44000 IOPS |
| Random write (4KB) | 15500 IOPS |
| Random read (100% span) | 44000 IOPS |
| Random write (100% span) | 15500 IOPS |
| Random latency - read (up to) | 102 æs |
| Random latency - write (up to) | 61 æs |
| Sequential latency - read (up to) | 36 æs |
| Sequential latency - write (up to) | 37 æs |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Use conditions | Server/Enterprise |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Power | |
| Power consumption (idle) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Maximum operating temperature | 70 øC |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Internal memory type | SATA 3.0 6Gb/S |
| Power consumption (active) | 2.3 W |
| Launch date | Q3'21 |
| SSD endurance rating | 1.0 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 470 MB/s |
| Sequential writing speed | 233 MB/s |
| Status | Launched |
| Processor family | Intel SSD D3 |
| Warranty | |
| Base Warranty | Non Non |
