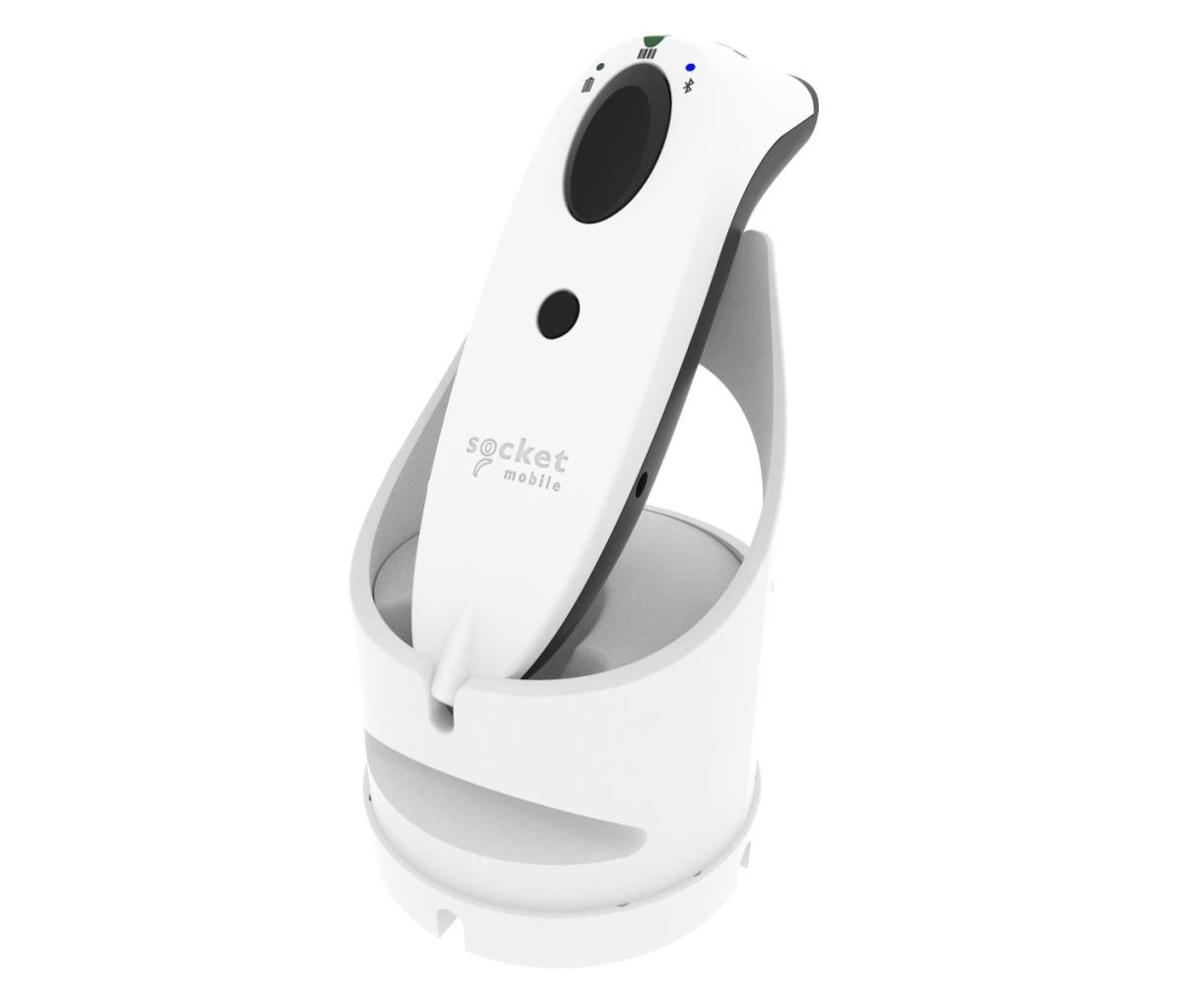

Socketscan S720 - Linear Barcode Qr Code Reader White White Dock
ITCurry #: 51603078 | Article #: CX3990-3047-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It’s lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.
The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.
| Scanning | |
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Linear |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Working distance | 38 cm |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Wireless range | 10 m |
| Bluetooth version | 2.1+EDR |
| Performance | |
| LED indicators | Battery level, Bluetooth, Status |
| Ambient lighting | Yes |
| Print contrast | 25% |
| Product colour | White |
| Country of origin | China |
| Power | |
| Power source type | Battery |
| Battery technology | Nickel-Metal Hydride (NiMH) |
| Number of batteries supported | 2 |
| Battery capacity | 2000 mAh |
| Battery voltage | 2.4 V |
| Battery life | 20 h |
| Charging time | 6 h |
| Weight & dimensions | |
| Width | 37.1 mm |
| Depth | 40.1 mm |
| Height | 132.2 mm |
| Weight | 117 g |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
