XPC all-in-one POS X509 Black - 15.6in - Celeron 7305 - 8GB Ram
ITCurry #: 88702877 | Article #: POS X509 BLACKFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
468.87
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

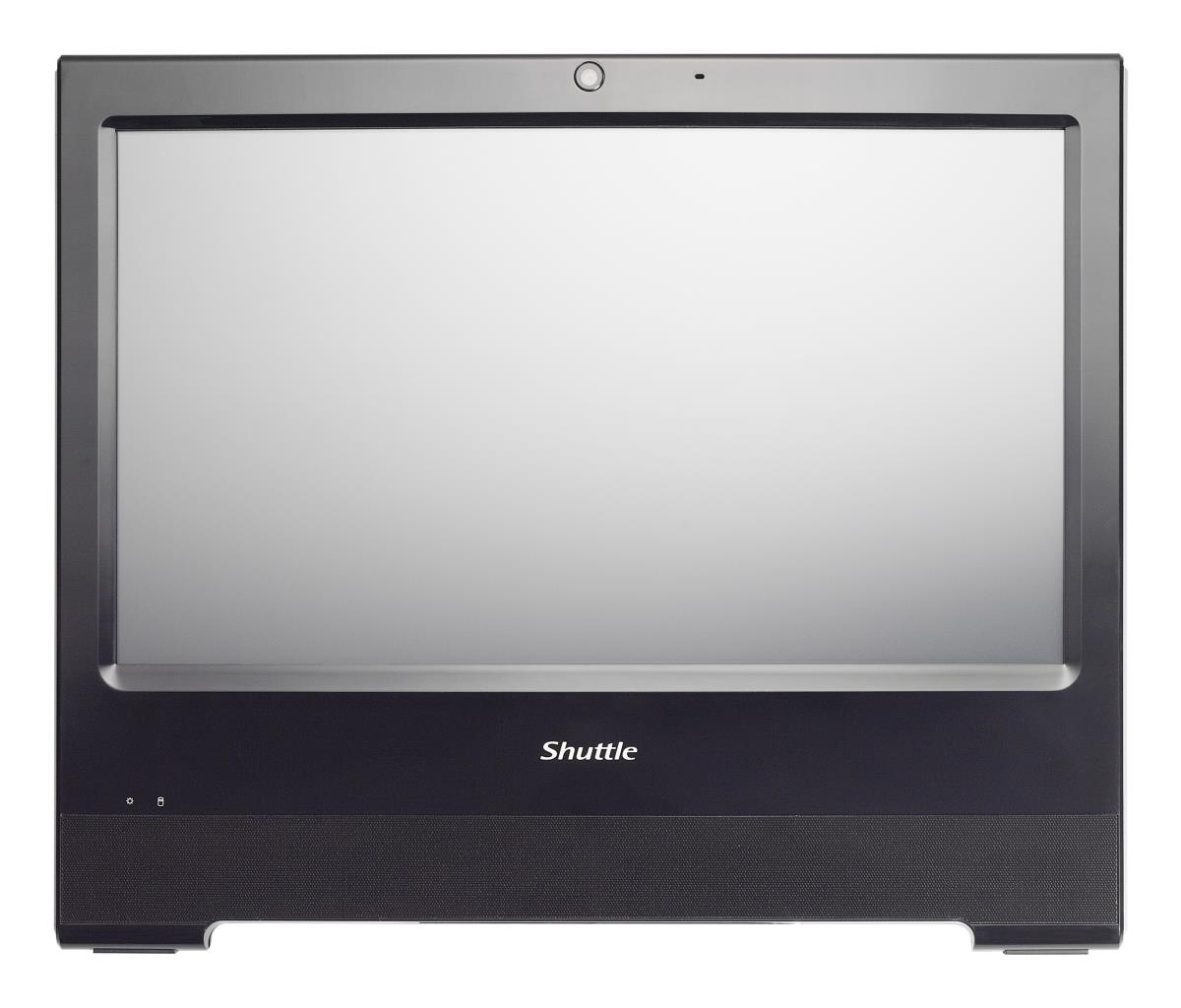

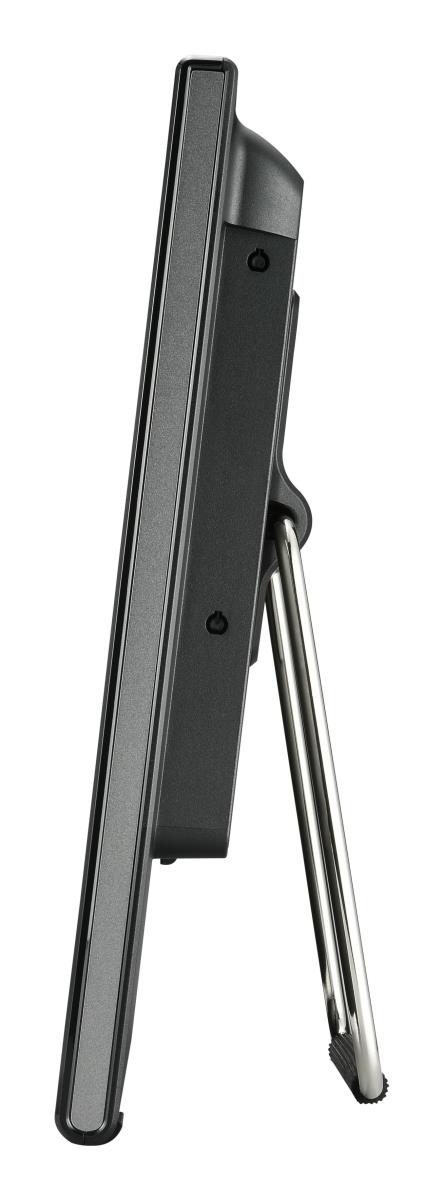

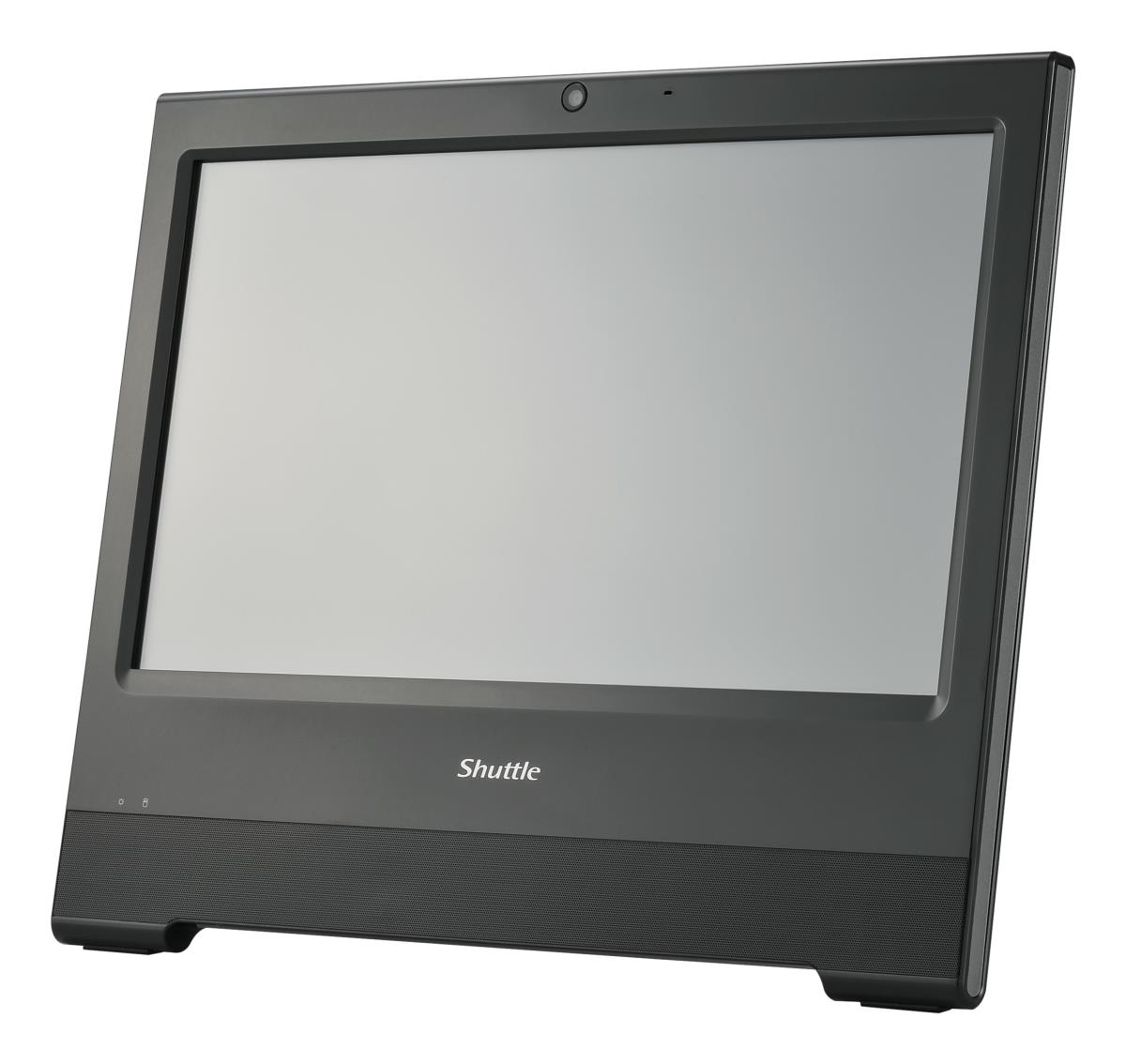

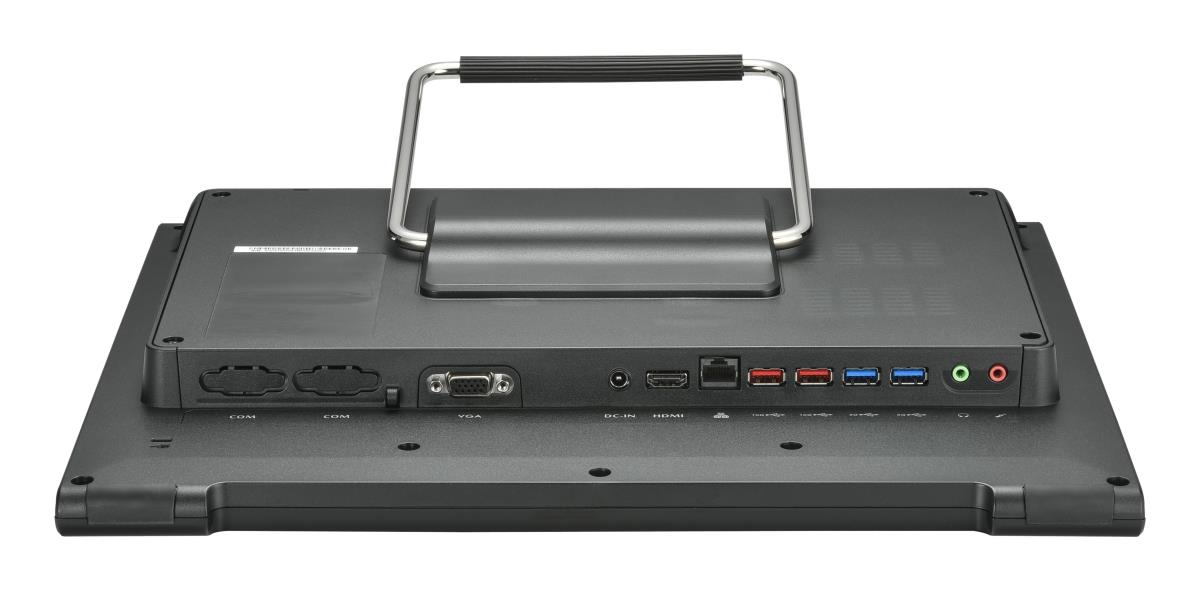

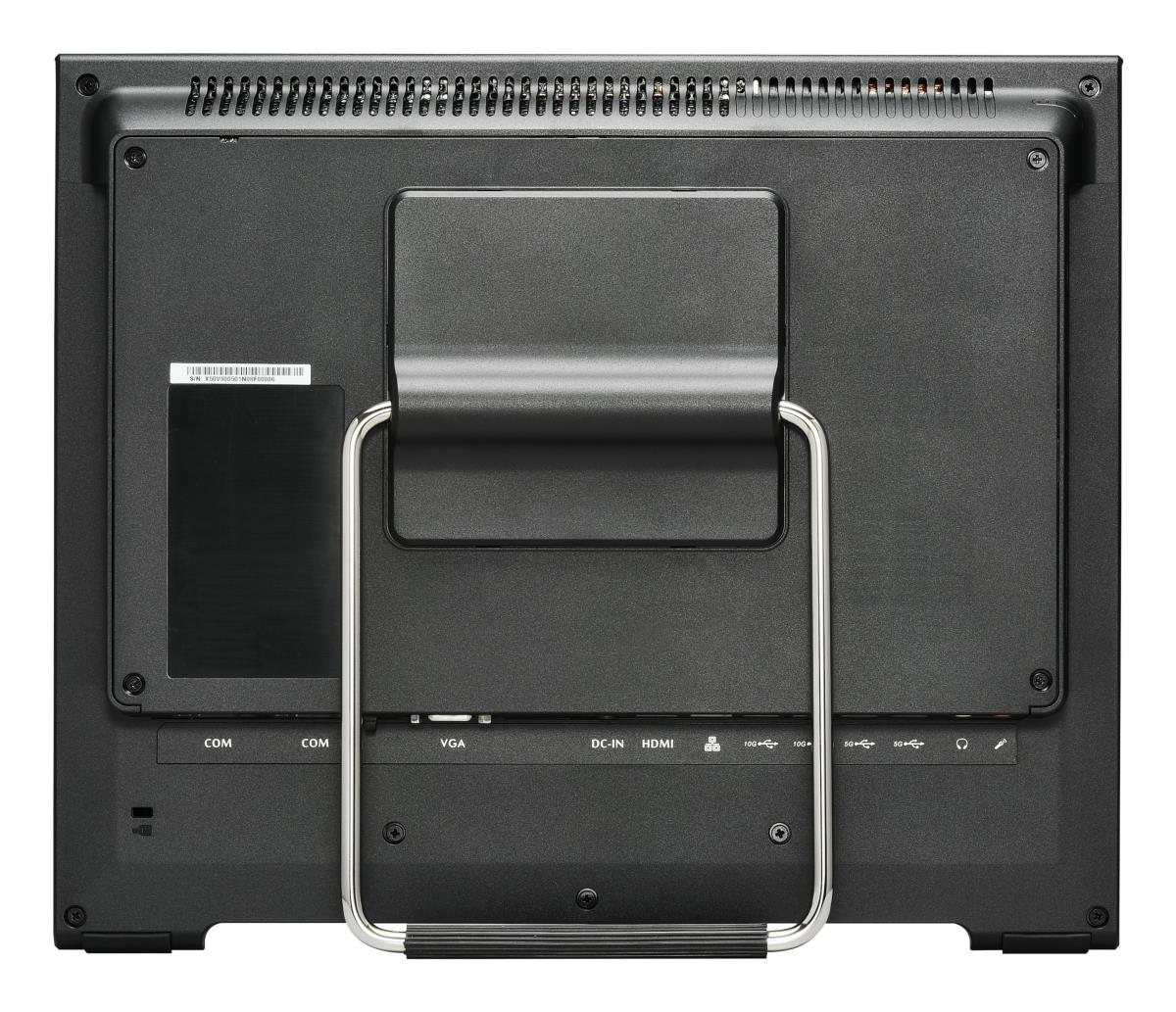

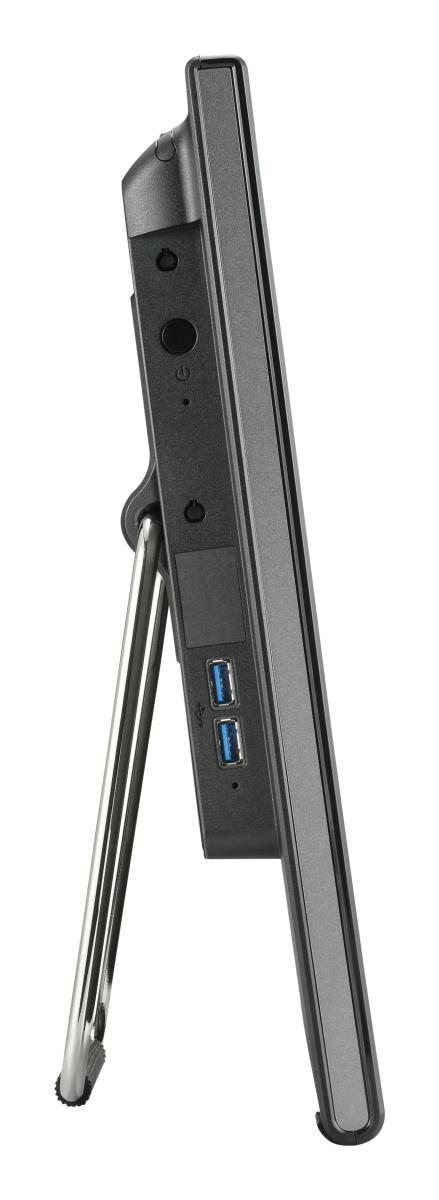

The Shuttle POS X509 is a fully-configured 15.6-inch AIO system with RAM and M.2 SSD, but without operating system. It is powered by a Gen12 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenancefree and approved for 24/7 nonstop operation. This AIO-PC offers plenty of connections: HDMI, VGA, 6x USB, Gigabit LAN, 2x COM and 2x Audio. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| HD type | HD |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/mý |
| Panel type | LCD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Celeron© |
| Processor model | 7305 |
| Processor threads | 5 |
| Performance cores | 1 |
| Efficient cores | 4 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 120 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 3 |
| Total SSDs capacity | 120 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel© UHD Graphics |
| On-board graphics card model | Intel© UHD Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in microphone | Yes |
| Audio chip | Realtek ALC888S |
| Audio system | HD |
| Camera | |
| Built-in camera | Yes |
| Camera resolution | 1920 x 1080 pixels |
| Camera HD type | Full HD |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Realtek |
| WLAN controller model | Realtek RTL8821CE |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Audio output | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 2 |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Performance | |
| Product type | All-in-One PC |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Weight & dimensions | |
| Width (with stand) | 391 mm |
| Depth (with stand) | 42 mm |
| Height (with stand) | 327 mm |
| Weight (with stand) | 3.5 kg |
| Width (without stand) | 391 mm |
| Height (without stand) | 327 mm |
| Package weight | 4.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
| Cables included | AC |
| Power cable length | 1.7 m |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
