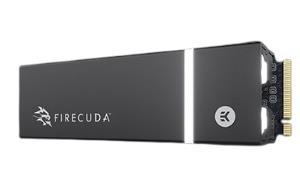

Hard Drive Firecuda 540 SSD 2TB Pci-e G5 X4 Nvme
ITCurry #: 50608764 | Article #: ZP2000GM3A004-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
With speeds up to 10,000 MB/s, this PCIe Gen5 takes no-prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn’t for the faint of heart.
FireCuda 540 is also compatible with PS5™ systems when combined with effective heat dissipation and an added cooling structure — such as a heatsink or a heat transfer sheet.
Waste No Time
Performance has a new name — featuring speeds up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.
Full Tilt Speeds
Up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.
Built to Last
Up to 2,000 TB TBW (total bytes written) means you can write and delete 90% of the drive capacity, every day, for five years.
Faster. Faster. Faster.
Transfer speeds up to 50% faster than PCIe Gen4 NVMe SSDs and up to 17× faster than SATA SSDs.
Storage Expansion for PS5
The FireCuda 540 is compatible with PS5™ consoles and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.
Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.
Rescue Data Recovery Services
We’ve Got Your Back
When the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.
DiscWizard and SeaTools — Making Drive Management Easier
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
| Features | |
| NVMe version | 2.0 |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | Server/workstation |
| Random read (4KB) | 1490000 IOPS |
| Random write (4KB) | 1500000 IOPS |
| Sequential read speed (ATTO) | 10000 MB/s |
| Sequential write speed (ATTO) | 10000 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (average) | 11 W |
| Average power consumption (read) | 10.5 W |
| Average power consumption (write) | 11.5 W |
| Power consumption (idle) | 0.144 W |
| Weight & dimensions | |
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 3.58 mm |
| Weight | 7.4 g |
| Warranty | |
| Base Warranty | Non Non |
| Packaging data | |
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 155 mm |
| Package weight | 70 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 93% |
| Non-operating vibration | 1.52 G |
| Non-operating shock | 1500 G |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Warranty period | 5 year(s) |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) cases per pallet | 168 pc(s) |
| Layers per pallet | 7 pc(s) |
| Master (outer) case width | 153 mm |
| Master (outer) case length | 292 mm |
| Master (outer) case height | 140 mm |
| Master (outer) case gross weight | 970 g |
| Products per master (outer) case | 10 pc(s) |
