Smart Signage - Km24c-w - 24in - Kiosk With Windows Os
ITCurry #: 1122AC52 | Article #: LH24KMC5BGCXEN-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Self-service out of the box with Windows OS

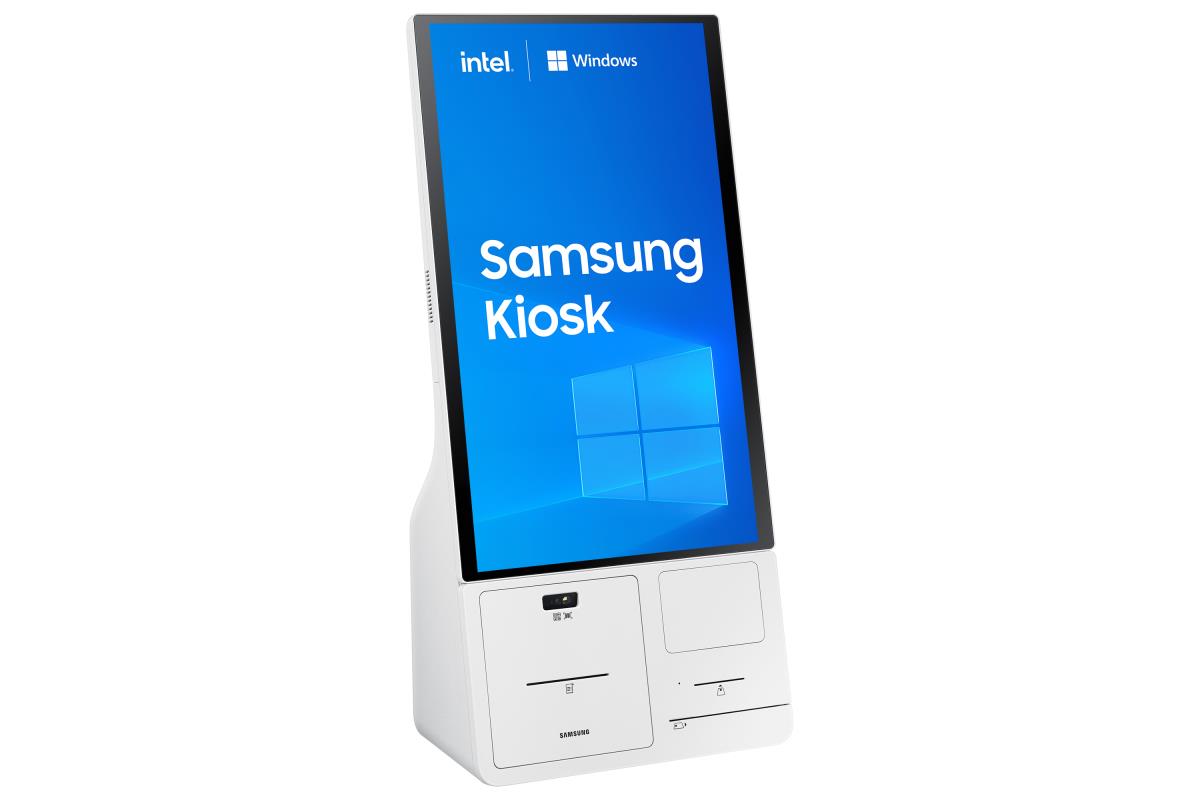

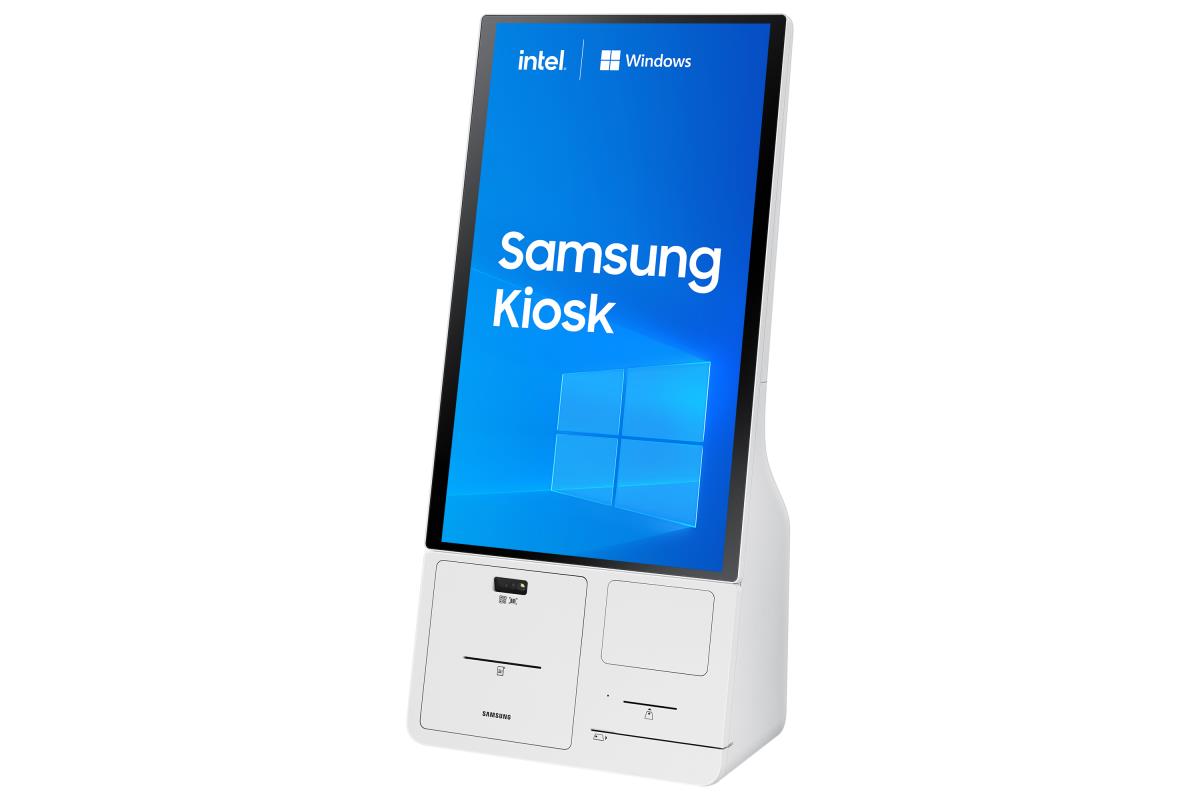

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

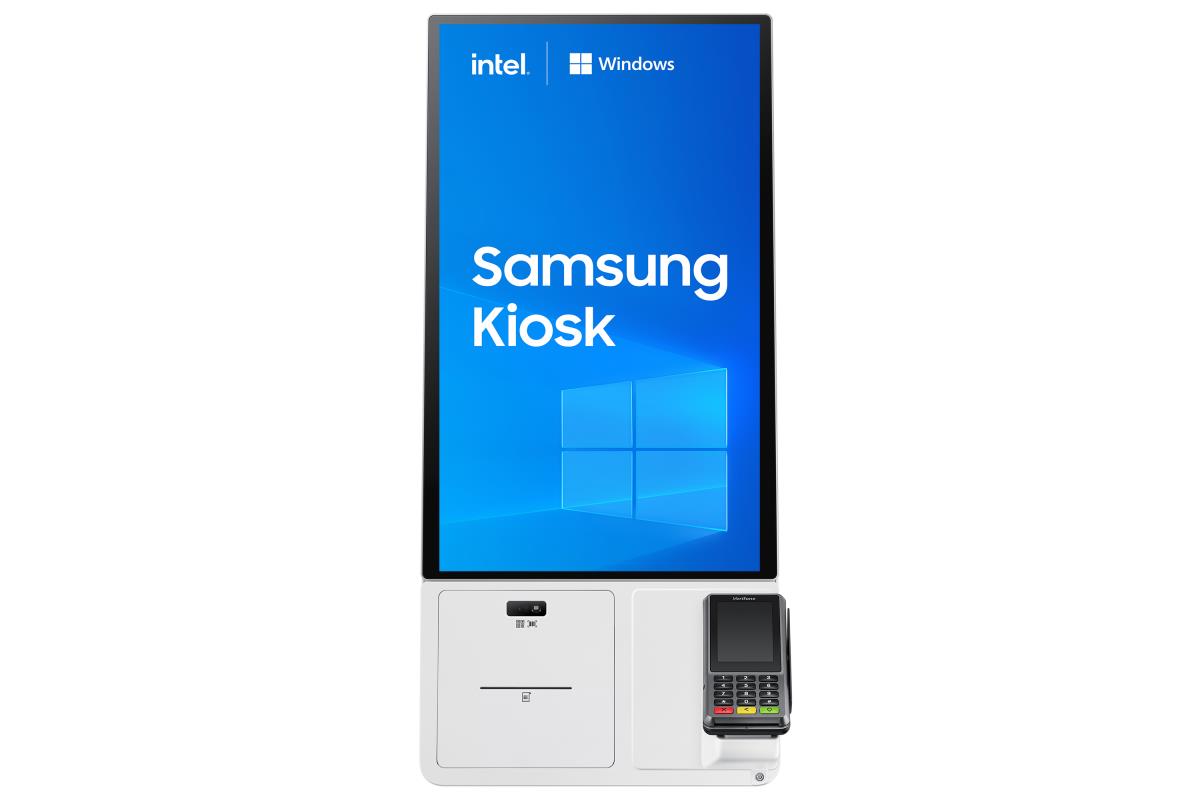

Modular functionality to support any payment type

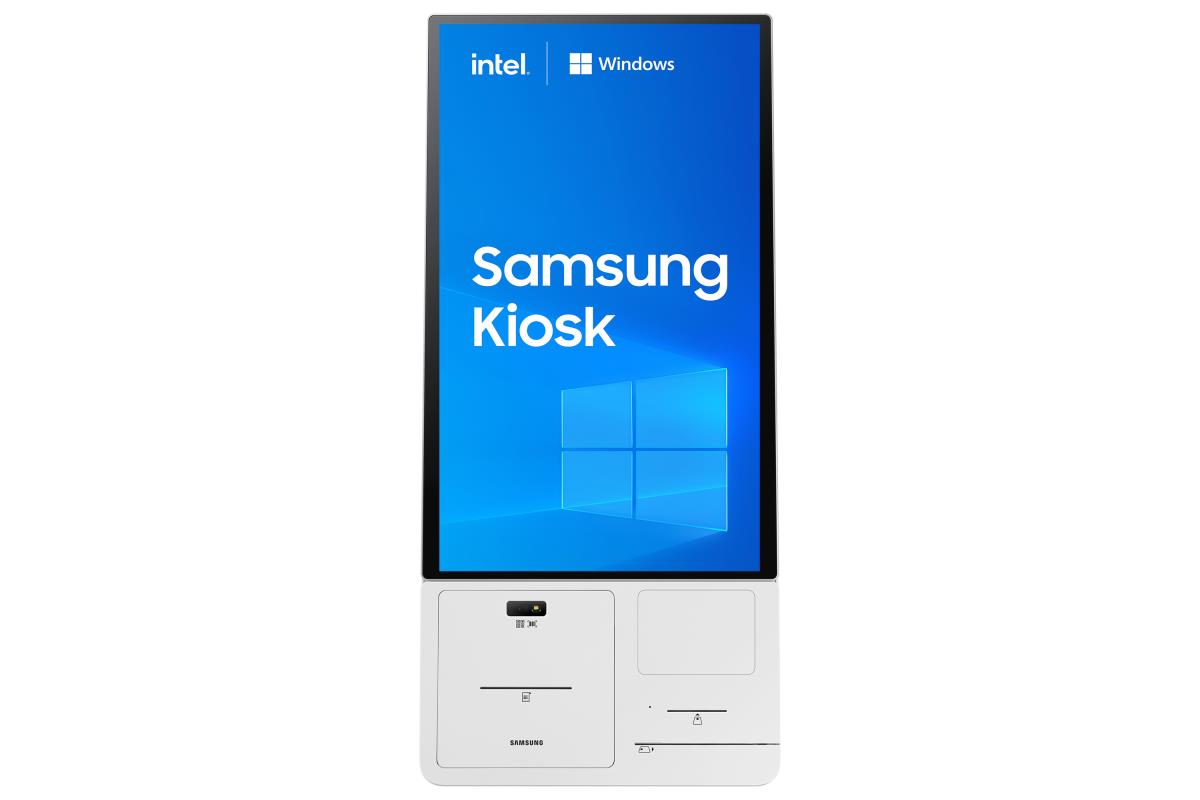

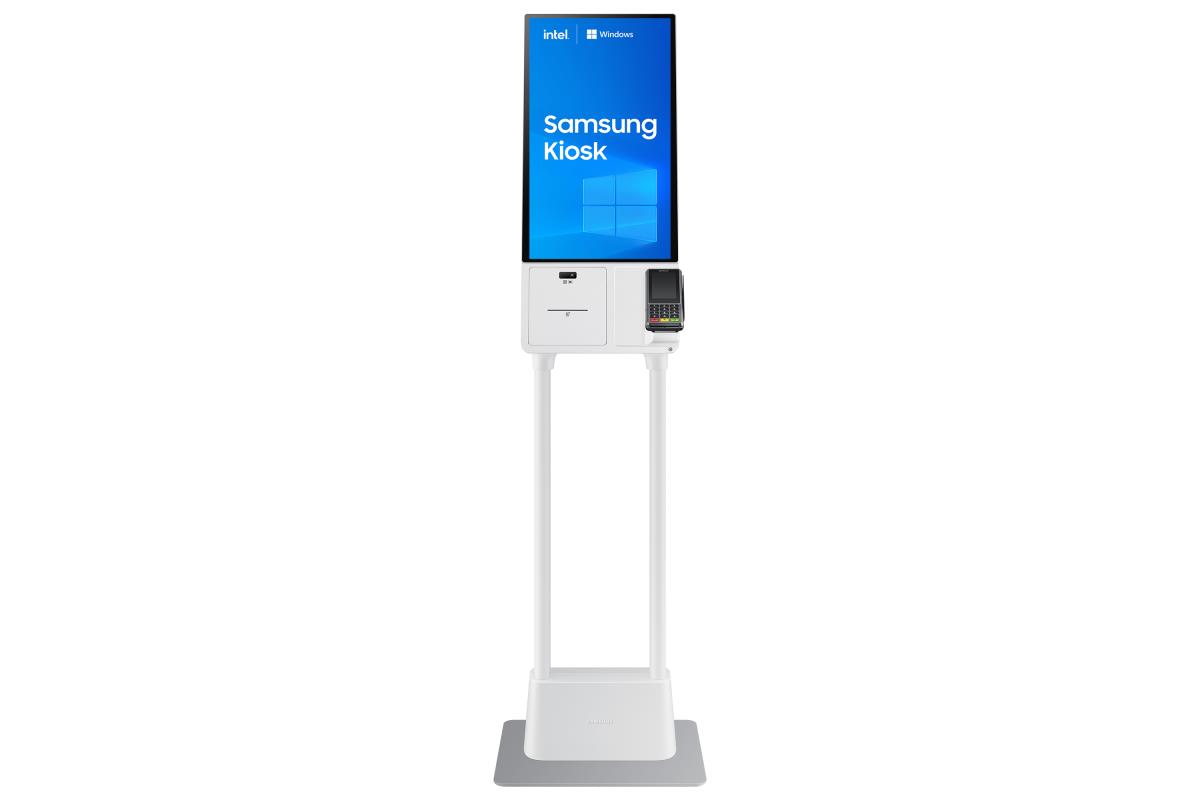

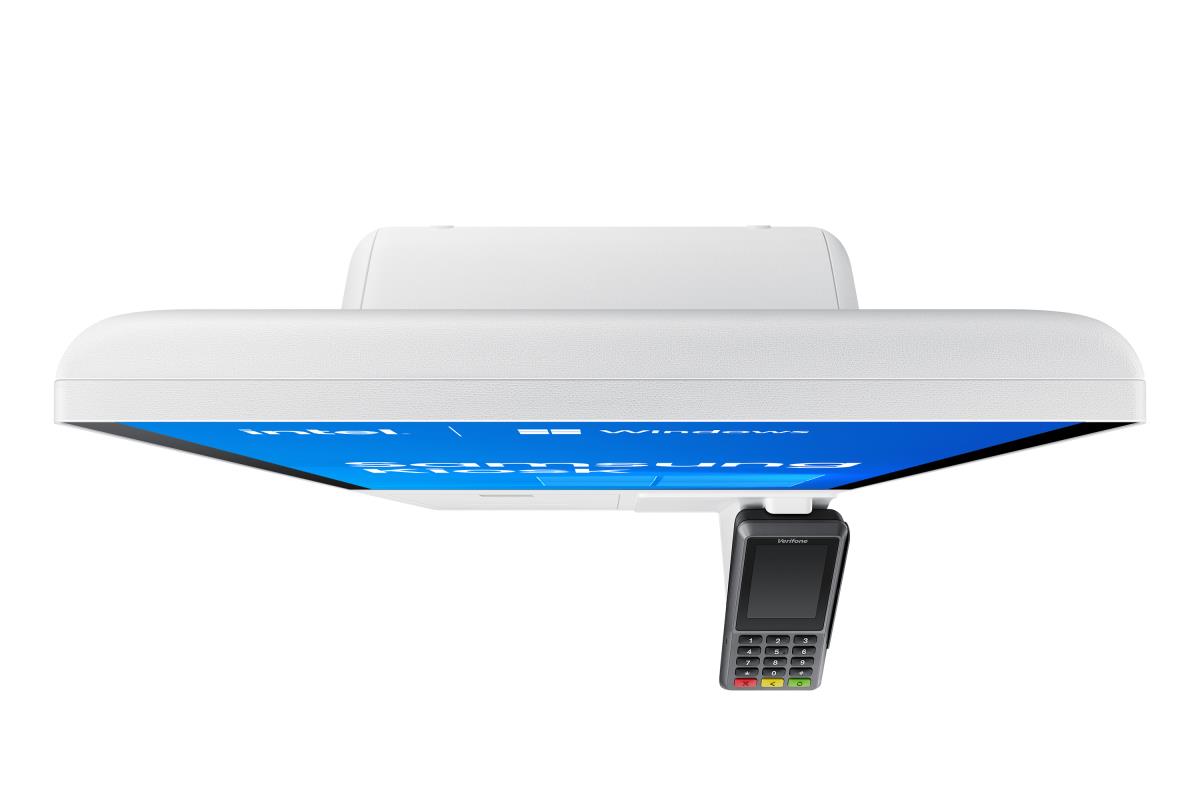

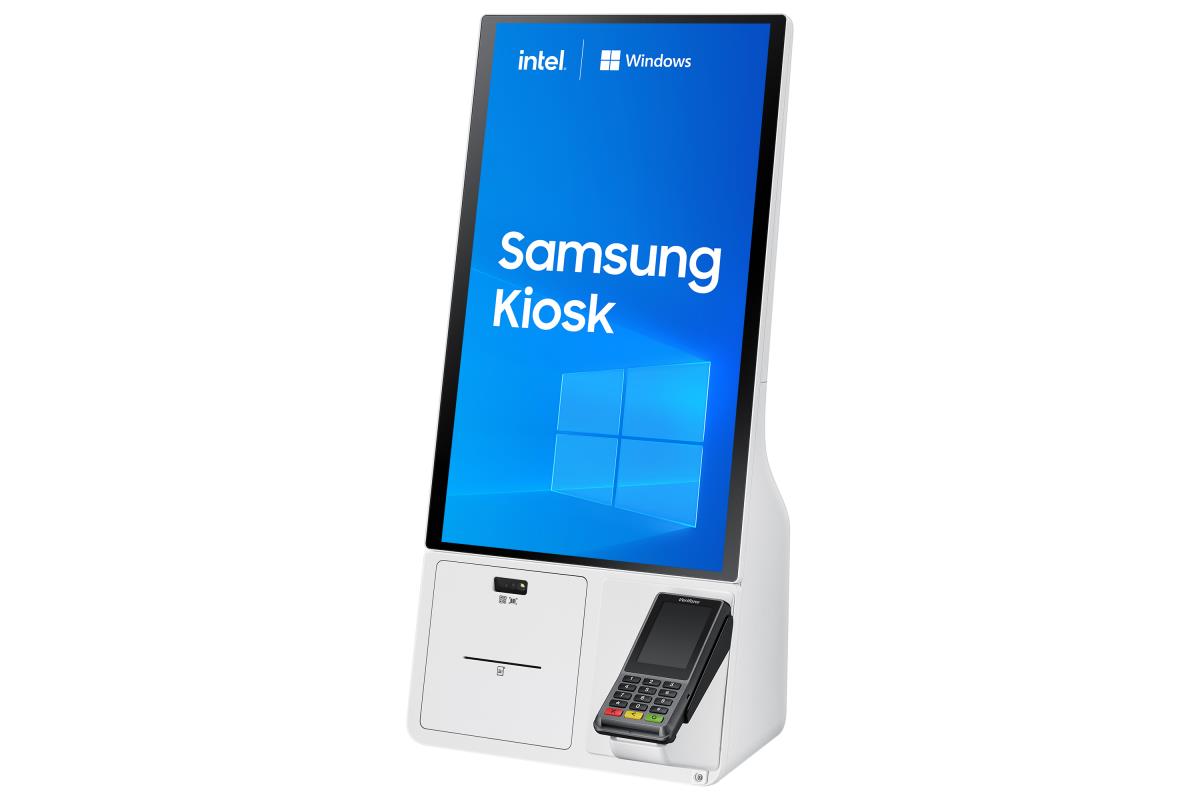

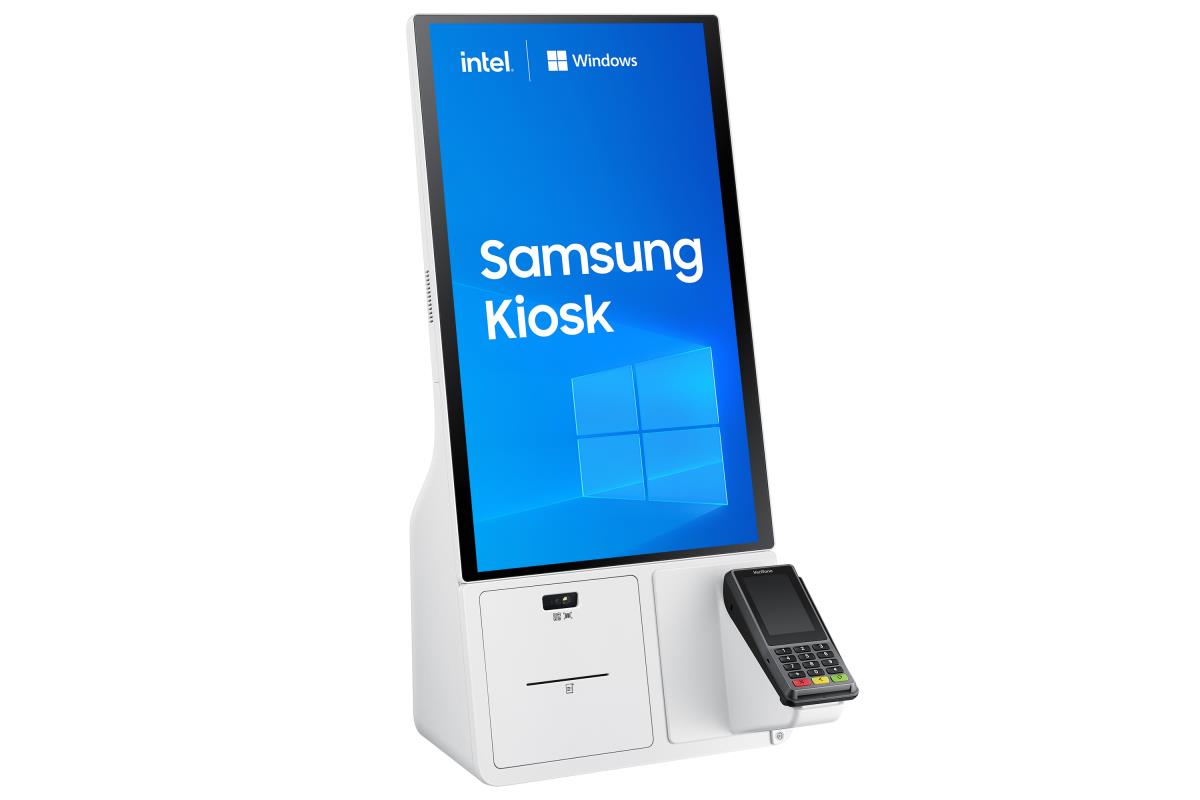

Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.
All-in-one solution with upgraded compatibility
Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.
Robust yet stable performance
Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

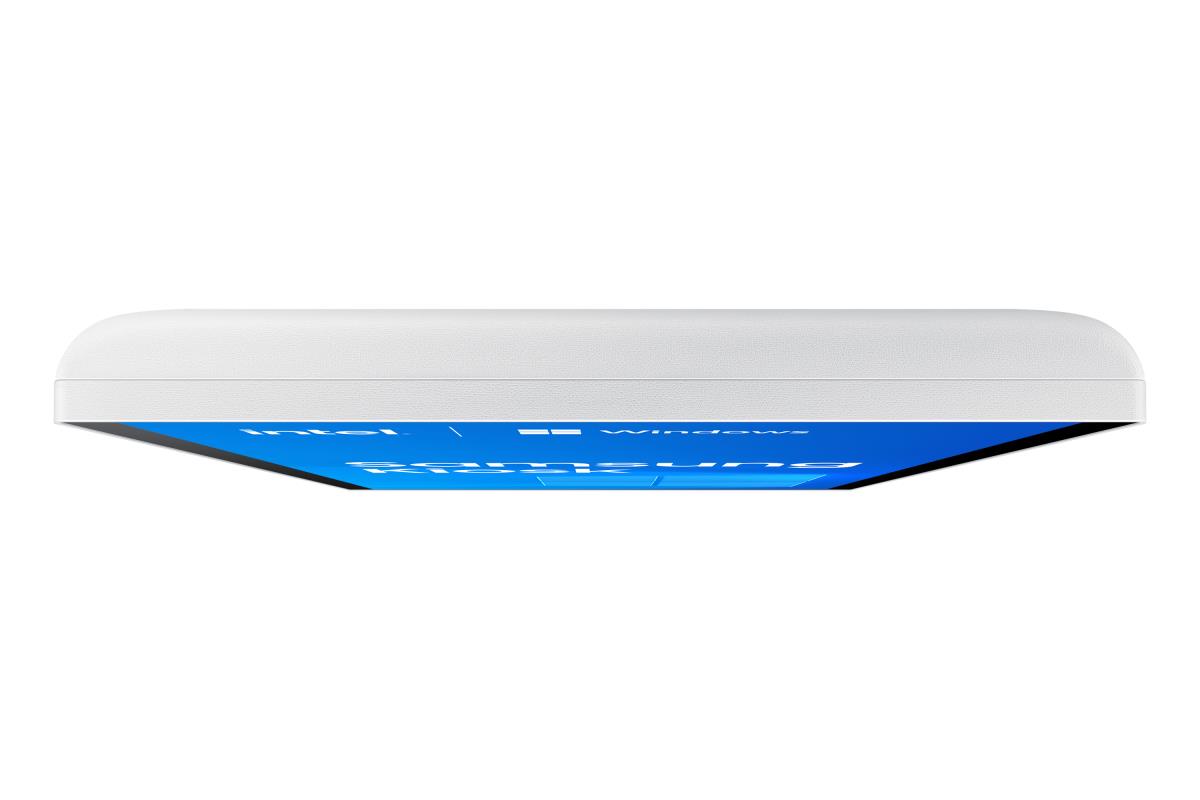

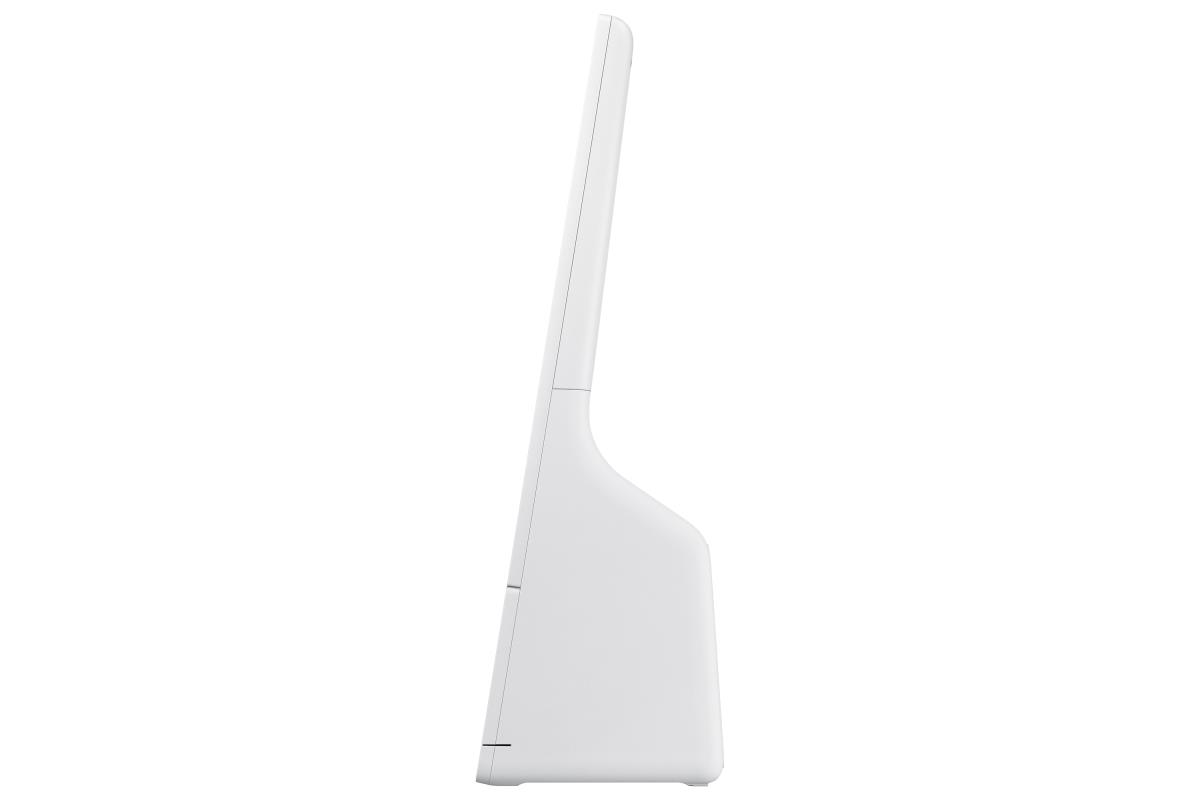

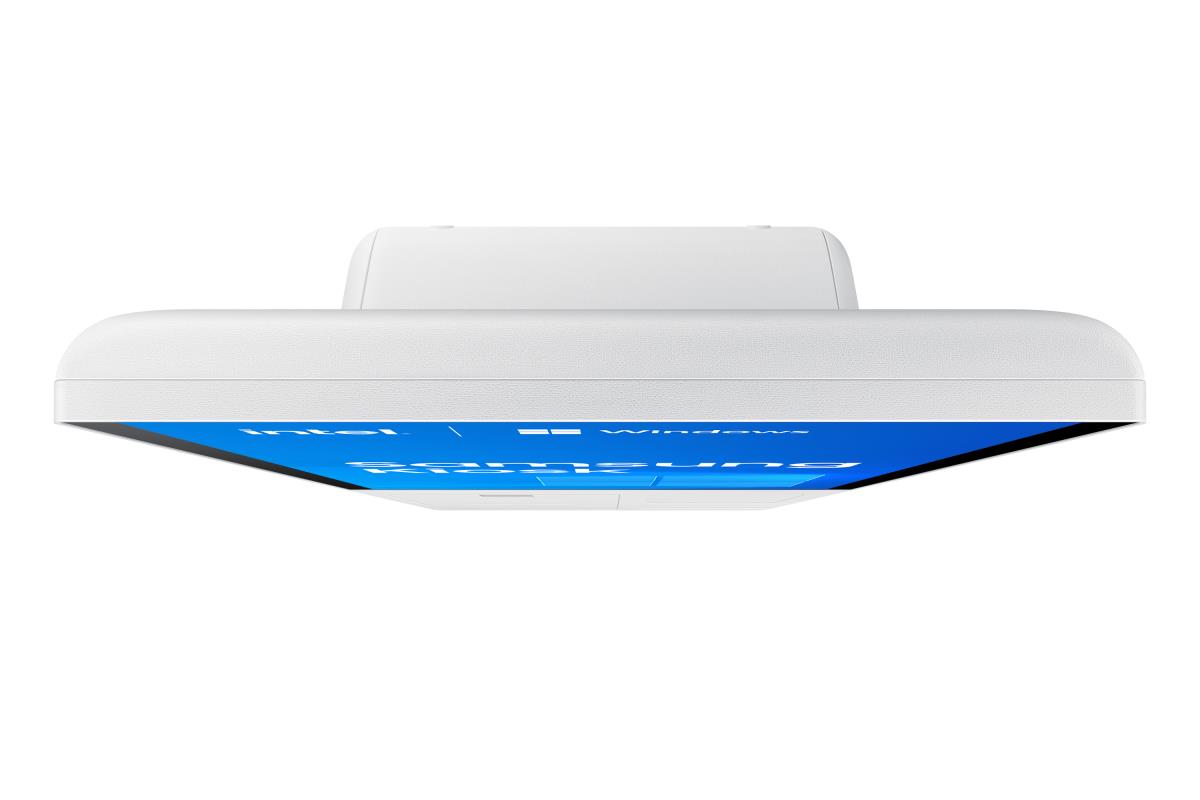

Compact and modern design

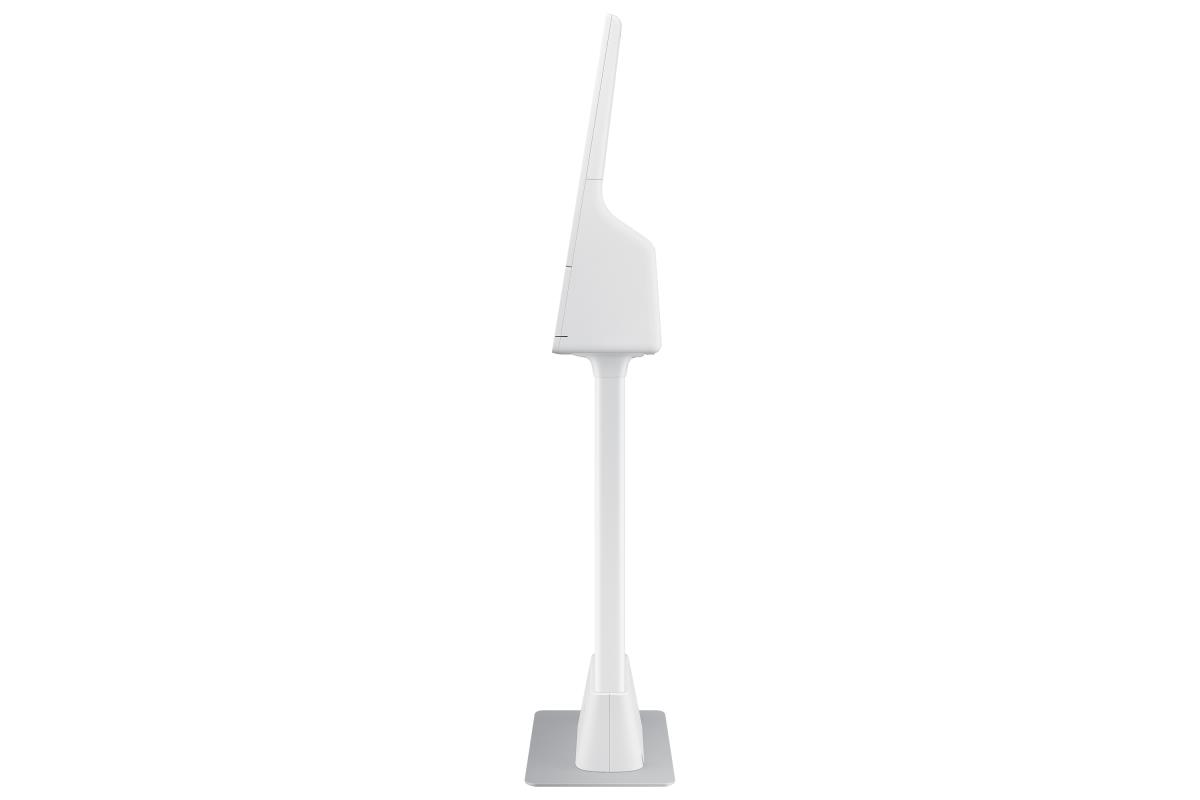

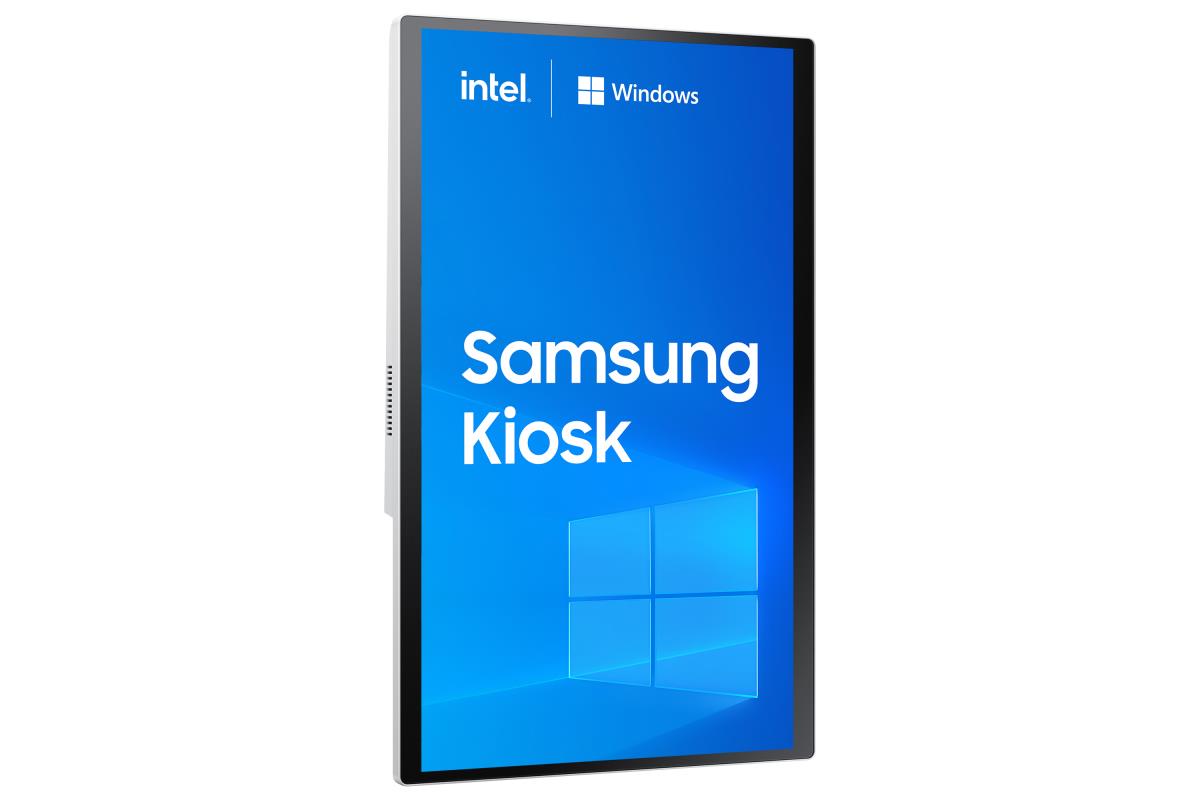

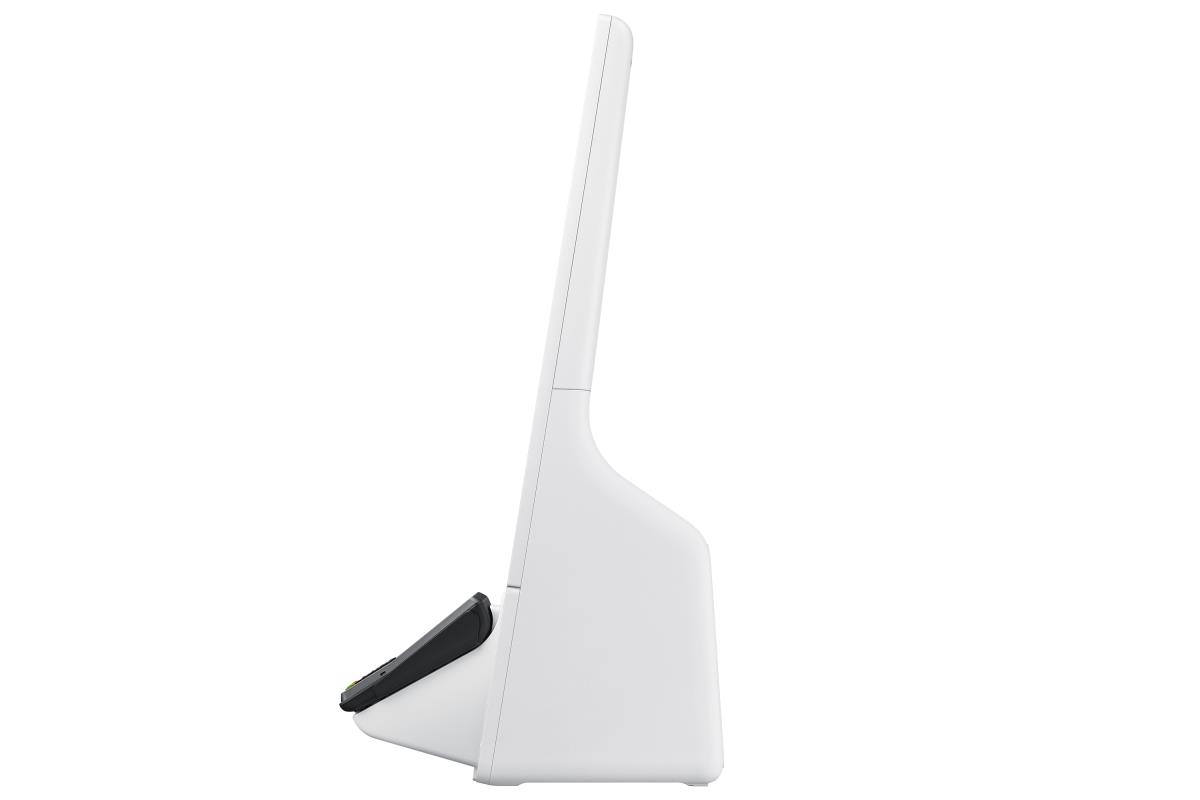

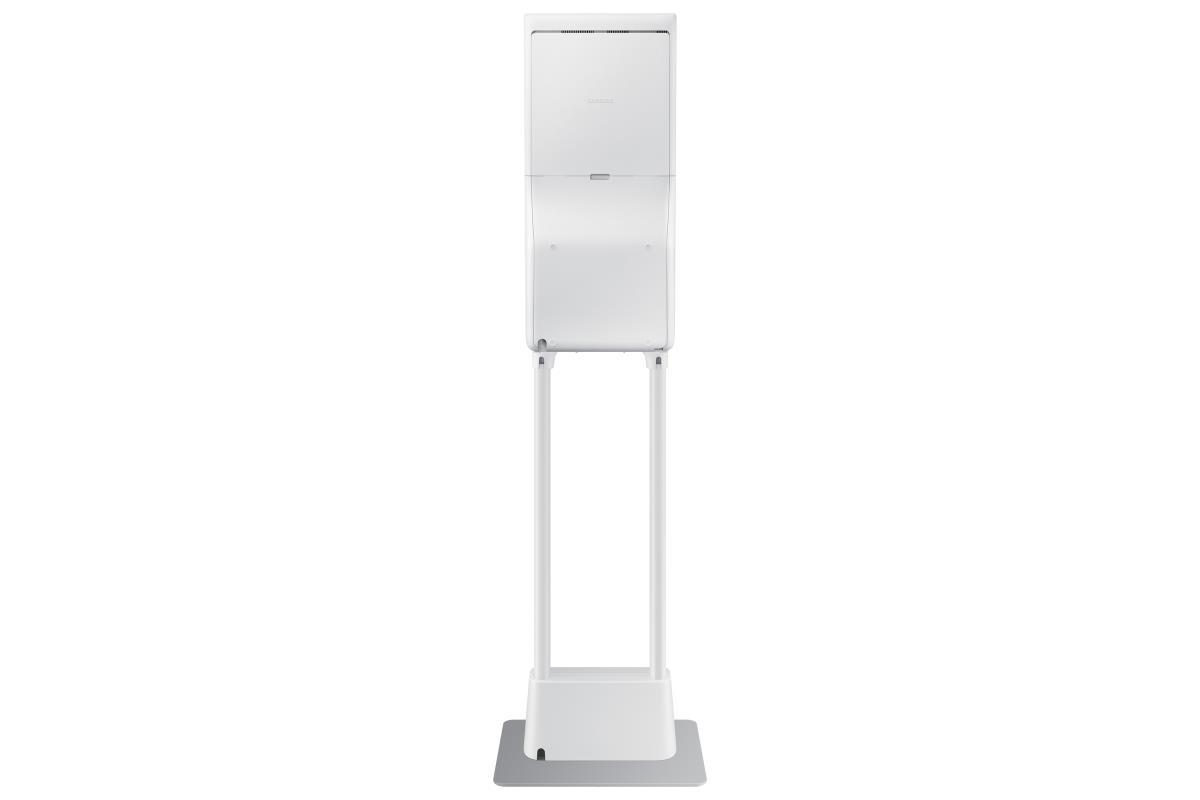

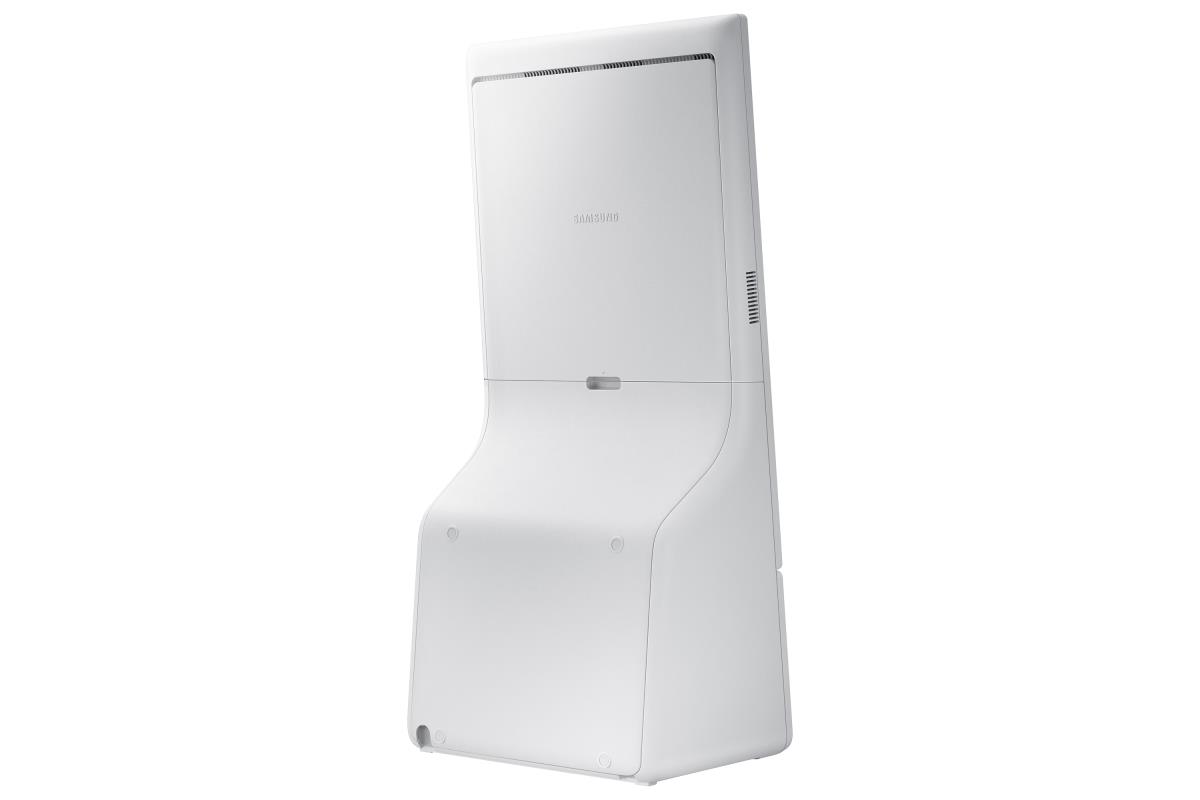

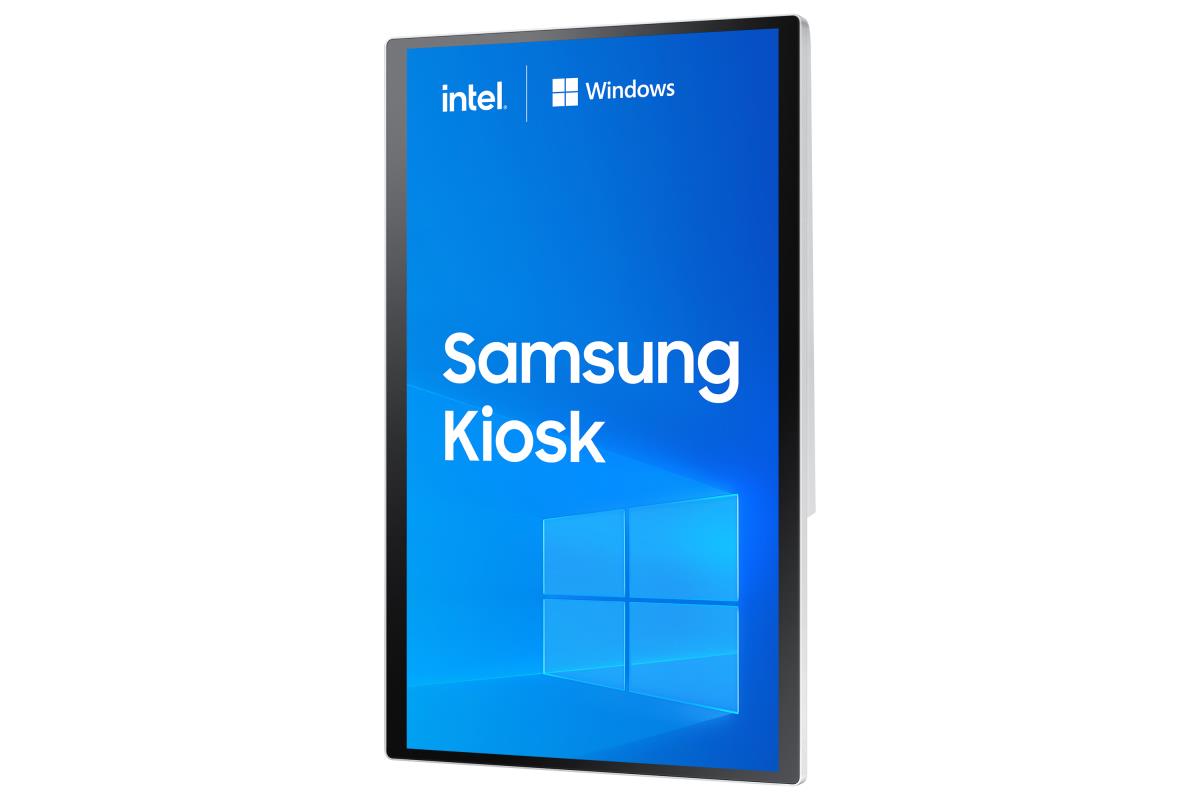

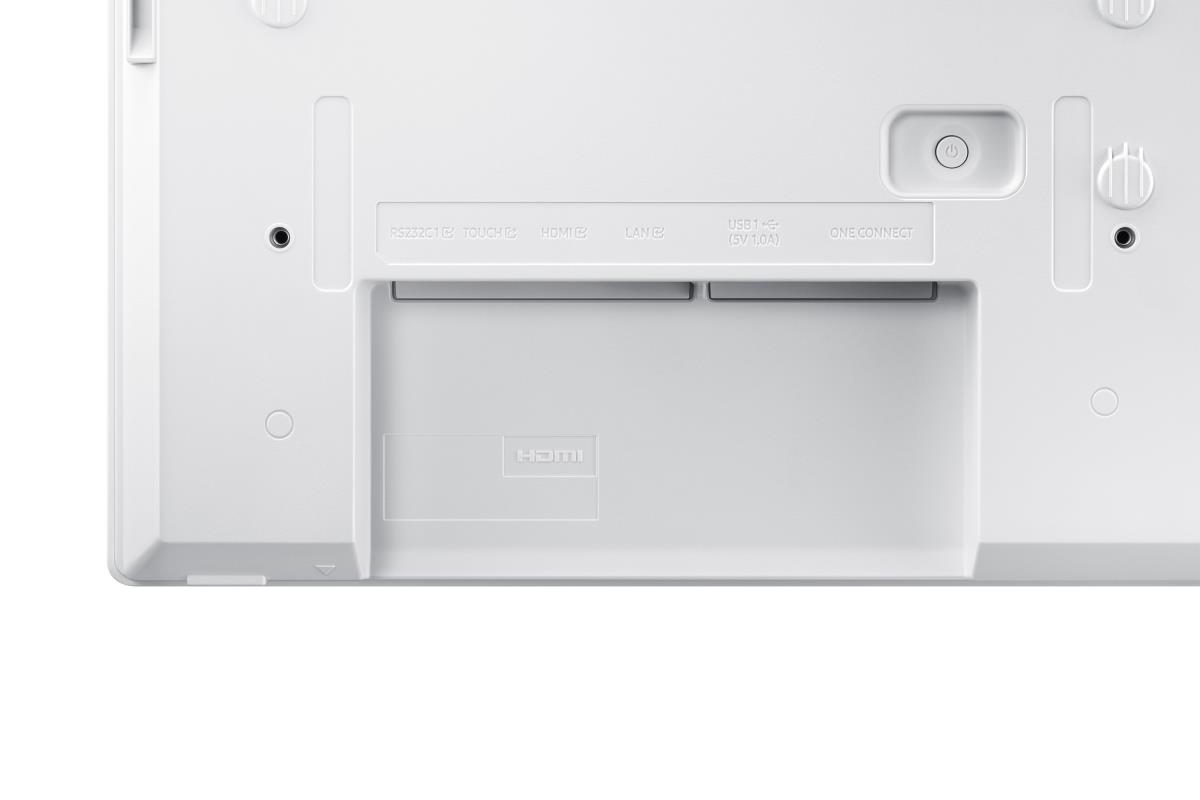

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

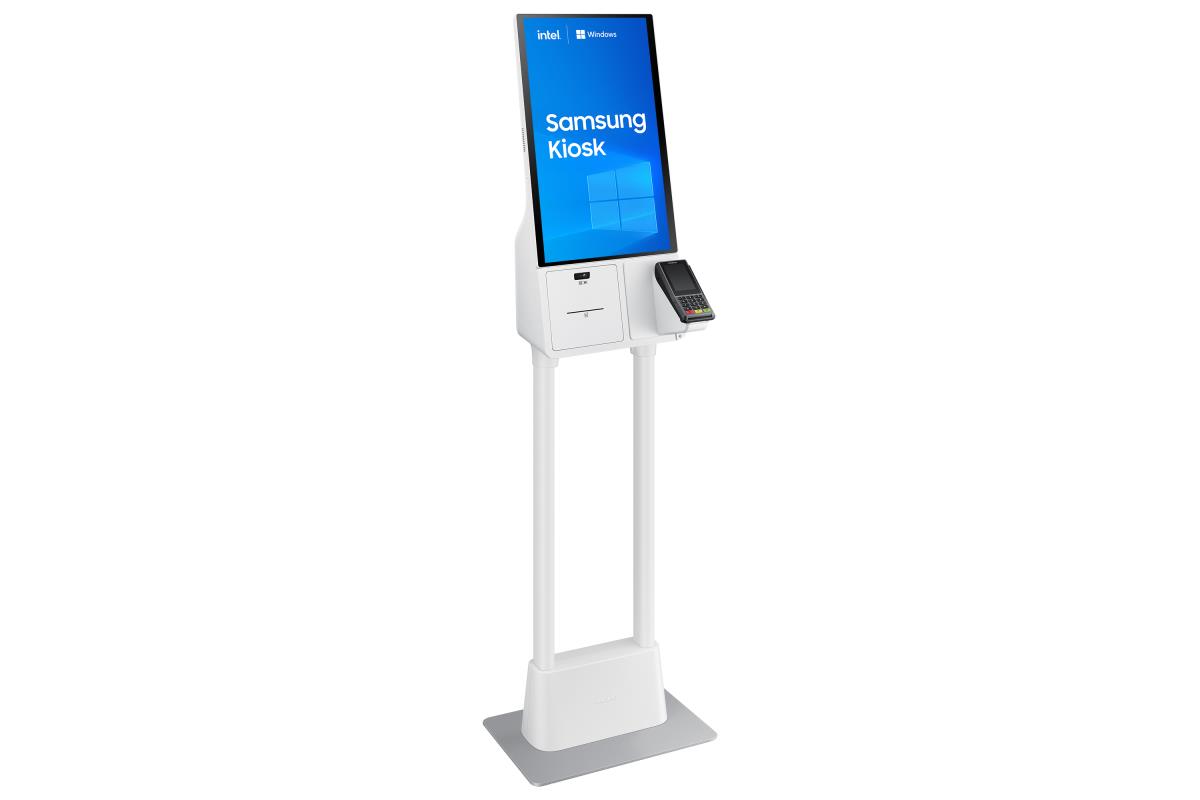

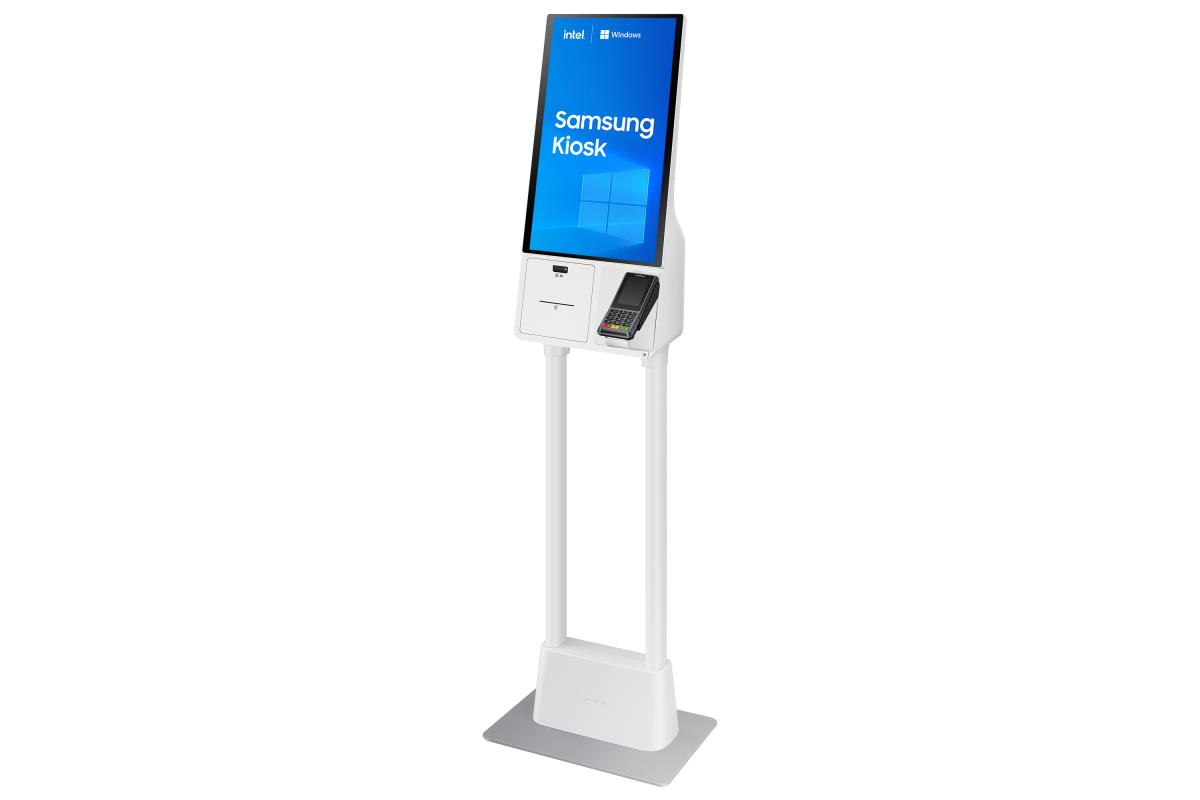

Versatile solution for any scenario

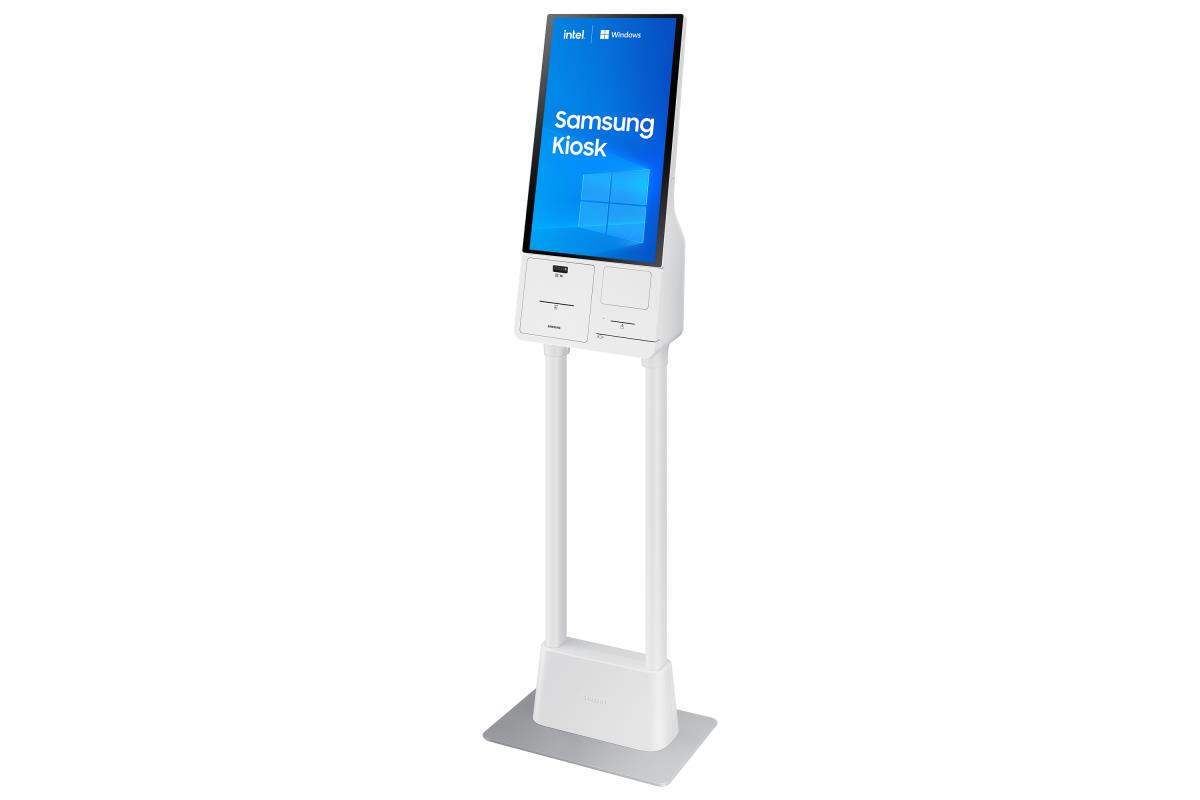

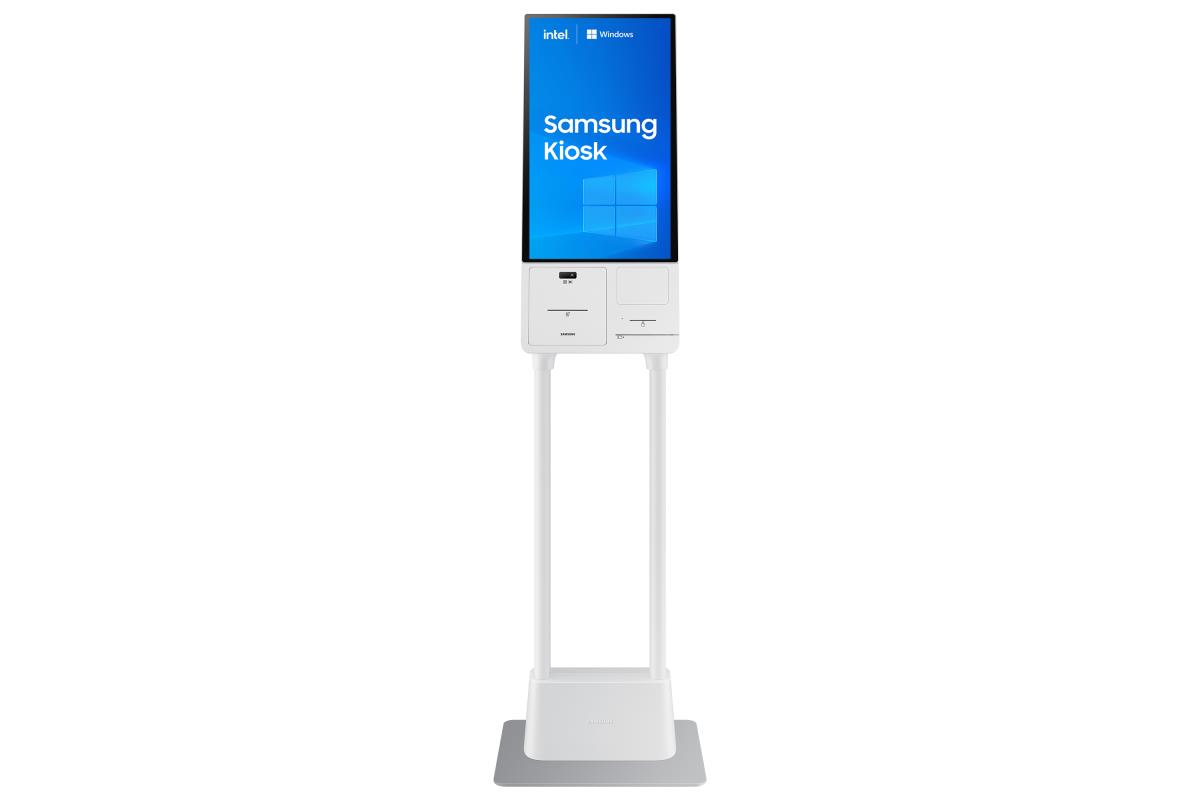

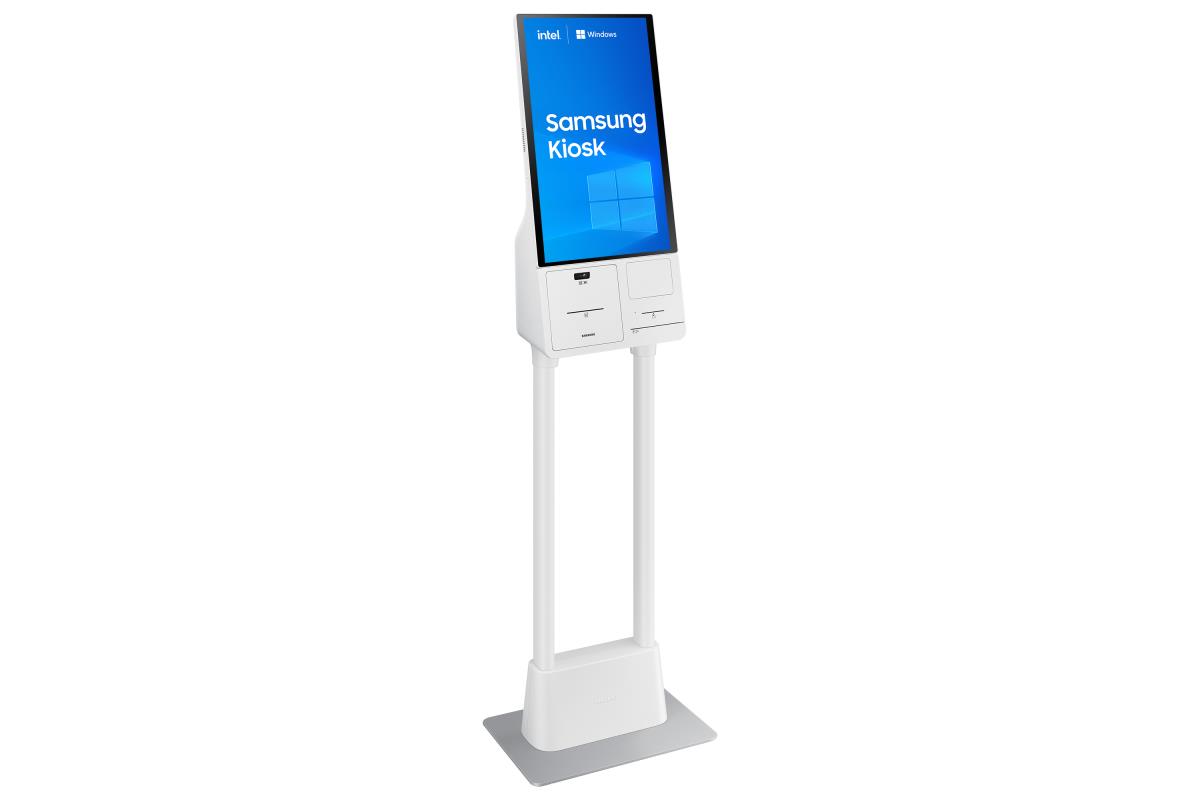

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.
Keep the screen clean
Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.
* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione.** Antibacterial property does not protect users against bacteria and provides no protection against viruses including Covid-19.*** Antimicrobial Coating is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.**** Antibacterial certification: UL2282 which is granted when the antibacterial effectiveness is more than 99%.(Test method(JIS Z 2801): after inoculation of 0.4cc of liquid with bacteria(Escherichia coli and Staphylococcus aureus) on specimen(5cm x 5cm), a sterilized film(4cm x 4cm) is adhered and left in a thermo-hygrostat with a relative humidity of 90% or more at 35°C for 24 hours, and then the efficiency of killing of the bacteria is measured / Test agency: FITI Test Research Institute)***** For further detai
Minimize accidents and risks
Shatterproof protection
Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
| Display | |
| Panel type | ADS |
| Display diagonal | 61 cm (24") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/mý |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 56 - 84.5 kHz |
| Vertical scan range | 48 - 75 Hz |
| Haze rate | 25% |
| Colour gamut | 72% |
| Ports & interfaces | |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN | No |
| Wi-Fi | No |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Vertical |
| Product colour | White |
| Screen shape | Flat |
| VESA mounting | No |
| Bezel width (bottom) | 1.79 cm |
| Bezel width (side) | 9.4 mm |
| Bezel width (top) | 1.79 cm |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 16/7 |
| Power | |
| Power consumption (typical) | 88 W |
| Power consumption (sleep) | 0.5 W |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Internal memory | 256 GB |
| Operating system installed | Windows 10 IoT Enterprise |
| Weight & dimensions | |
| Width (with stand) | 547.9 mm |
| Depth (with stand) | 48.8 mm |
| Height (with stand) | 334.4 mm |
| Weight (with stand) | 4.3 kg |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 122 mm |
| Package height | 419 mm |
| Package weight | 5.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005 |
| Features | |
| Suitable for indoor use | Yes |
| Other features | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950 |
| Warranty | |
| Base Warranty | Non Non |
