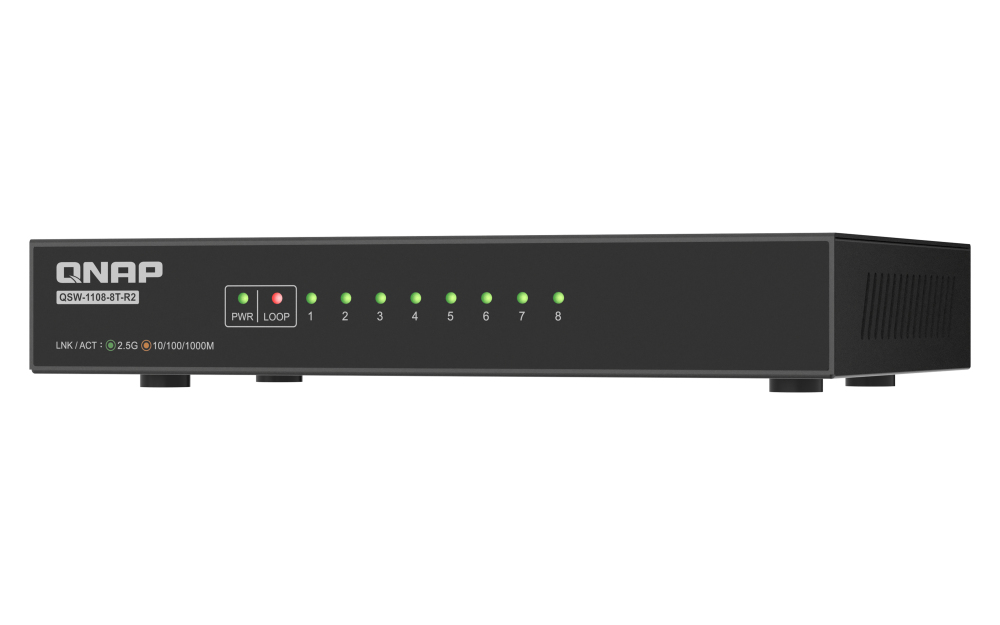

Switch - QSW-1108-8T-R2 - 8-Port Full 2.5GbE Multi-Gig
ITCurry #: N222F105 | Article #: QSW-1108-8T-R2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Affordable and compact, the QSW-1108-8T-R2 is your ideal entry-level 8-port 2.5GbE switch. As part of the QSW 1000 Series, this unmanaged switch offers high-speed and stable performance at an economical price. Optimized for Wi-Fi 6/6E, it’s perfect for home and office environments seeking to enhance workflows, multimedia streaming, and file transfers. Designed and manufactured in Taiwan, the QSW-1108-8T-R2 delivers reliable and secure networking quality.
High-Value 2.5GbE Switch in a Compact Case
Compared to upgrading directly to 10GbE, 2.5GbE is a more cost-effective and practical upgrade. QSW-1108-8T-R2 is an easy-to-own, entry-level 2.5GbE switch featuring BASE-T ports that work with existing cabling. With a compact desktop footprint and optimal number of ports, it makes upgrading to 2.5GbE easier than ever.
2.5GbE Performance – 2.5x Faster than Gigabit
The QSW-1108-8T-R2 features eight 2.5GBASE-T Ethernet ports and supports NBASE-T™ and Multi-Gigabit standards for 2.5G/1G/100M speeds, with a total switching capacity of 40Gbps. Connect devices like desktops, laptops, NAS, Wi-Fi 6/6E access points, set-top boxes, and game consoles for ultra-smooth backups, virtualization, media editing, and immersive entertainment.
Slim Body, Big Advantage
The QSW-1108-8T-R2 is 30% smaller than previous models and more compact than other multi-gigabit switches. With a clean LED display on the front and concentrated cabling on the back, it fits neatly in homes or small offices for efficient multi-device connectivity.
Auto-negotiation and Flow Control for optimized network performance
? Auto negotiation automatically detects optimal transmission speeds (2.5G/1G/100Mb) based on connected devices, eliminating the need to replace old equipment.
? A 4K MAC Address Table and Jumbo Frame 12KB improves network transmission efficiency.
? IEEE 802.3x Flow Control prevents packet loss during congestion.
Loop Detection & Prevention
The QSW-1108-8T-R2 features network loop detection. If a network loop is detected, the QSW-1108-8T-R2 automatically locks the looped ports to ensure the network environment quickly resumes normal operation. Network loops may also occur within a region, and the system can detect and handle such situations as well.
Silent Fanless Operation
The QSW-1108-8T-R2 features a fanless design with internal heat sinks, metal heat dissipation plates, and vent holes to keep performance high and noise low—ideal for quiet work or living spaces.
Fully embrace high-speed networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
QNAP high-speed switch solutions for Home and SOHO network environments
QNAP provides multiple unmanaged switches with 1GbE, 2.5GbE, 10GbE via RJ45 or fiber ports to deploy hybrid high-speed network infrastructure. Simply plug and play to achieve faster networking for storage and multimedia applications in homes and offices.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Throughput | 20 Gbit/s |
| MAC address table | 4000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Design | |
| Rack mounting | No |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 12 W |
| Other features | |
| Warranty period | 2 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 110 mm |
| Height | 26 mm |
| Weight | 500 g |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 128 mm |
| Package height | 47 mm |
| Package weight | 900 g |
| Certificates | |
| Certification | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Warranty | |
| Base Warranty | Non Non |
