Product Information

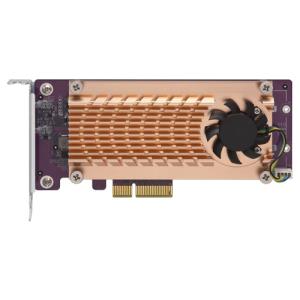

Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card.
PCIe 3.0
PCIe Gen 3 x4 provides up to 32 Gbps transfer speeds to your NAS.
Ready-to-use
No drivers or extra software are required.
SSD cache & volume
Configure SSD caching, an SSD volume, or Qtier (QNAP’s auto-tiering technology) to improve overall NAS performance.
Efficient cooling module
Keeps your SSDs cool and maintains high performance.
Tool-less design
Easily install M.2 SSDs in your NAS with a screw-less, easy-to-use locking method.
LED indicators & thermal sensors
Monitor the real-time status and temperatures of the M.2 SSDs.
Fast, efficient, and easy-to-use
The efficient architecture of the QM2-2P-344A allows you to easily install NVMe SSDs and maximize their performance with a quiet cooling module.
SSD caching
Enable SSD caching to optimize system performance and reduce I/O latency. Caching is especially ideal for IOPS-demanding applications such as virtual machines and systems with a large number of small files.
Qtier
Alternatively, you can set up Qtier auto-tiering to your NAS to improve overall system performance and maximize storage utilization.
Keep SSD cool
A quiet cooling module (heatsink and smart fan) keeps your SSDs running with dependable high performance.
Super-fast NVMe SSD storage volume
Photographers and videographers can tackle high-resolution RAW multimedia editing directly on NVMe SSD volumes. RAID configurations can help prevent data loss from drive failure.
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card standard | PCIe 3.0 |
| NVMe | Yes |
| Design | |
| Internal | Yes |
| Product colour | Brown, Grey |
| Purpose | NAS / Storage server |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Number of expansion slots | 2 |
| LED indicators | Yes |
| Features | |
| Data transfer rate (max) | 32 Gbit/s |
| Weight & dimensions | |
| Width | 68.9 mm |
| Depth | 170.5 mm |
| Height | 19.3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Interface | PCIe Gen3 x 8 |
