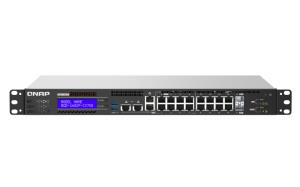

2.5GbE ports 8 1GbE ports 2 SFP+ 10GbE. 96W total power consumption (QGD-1602-C3758-16G)
ITCurry #: N222A495 | Article #: QGD-1602-C3758-16G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Upgraded performance for smoother virtualization
The QGD-1602 provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.
Sturdy hardware with Intel QAT for optimized performance
The QGD-1602 uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602 also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.
The First Switch Series with VM Support
The Guardian supports QNAP’s QTS operating system and is the world’s first switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
Deploy a multi-site VPN with SD-WAN solution
The QGD-1602 and other QNAP solutions now support QuWAN – QNAP’s SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Port trunking | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 1000Base-X |
| Data transmission | |
| Switching capacity | 96 Gbit/s |
| Throughput | 48 Gbit/s |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Loop protection | Yes |
| Multicast features | |
| Multicast MAC address table | 8000 entries |
| Design | |
| Rack mounting | Yes |
| Product colour | Black, Grey |
| Reset button | Yes |
| LED indicators | Activity, Alarm, Link, PoE, Speed |
| Certification | FCC, VCCI, BSMI RCM, CCC |
| Performance | |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor model | Atom C3758 |
| Processor frequency | 2200 MHz |
| Internal memory | 16000 MB |
| Flash memory | 4000 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 100 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 435.2 mm |
| Depth | 327.7 mm |
| Height | 44.2 mm |
| Weight | 4.37 kg |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package weight | 5.52 kg |
| Other features | |
| Expansion slots | 2x PCIe Gen3 (x4 slot, x2 speed) |
| I/O ports | 2x USB 3.2 Gen 1, 2 x 5GbE, 2 x 1GbE |
