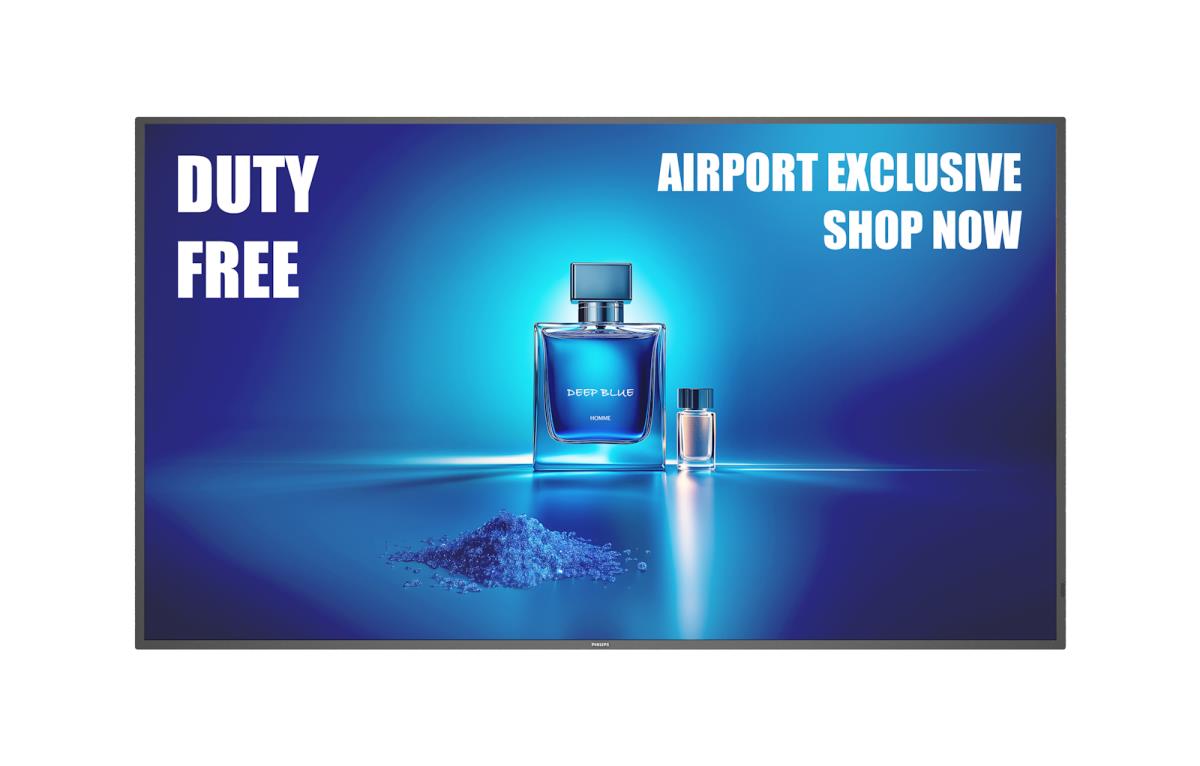

Philips Signage 6000 Series
Outperform in challenging environments with the robust 24/7 Philips Signage 6000 Series. With enhanced brightness up to 800 nits and an option to add Philips Wave remote management, ideal for kitchens through to transport hubs and beyond.
Powerful performance for more demanding settings
With the option to add Philips Wave remote device management
Install in portrait or landscape orientations, with size variants including 43”, 50”, 55” and 65” to suit a range of installation purposes.
With robust metal casing, conformal coating, IP5X protection
Standing up to the rigours of challenging environments, this ultimately professional display is made with metal casing and is protected with conformal coating and IP5X ingress protection. Designed to be robust for use in areas including busy food and beverage settings, bustling transport hubs and more.
Working your content around the clock
With 800 cd/m2 brightness for better visibility under bright ambient light conditions, the Philips Signage 6000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more.
800 cd/m2 – better visibility in brighter light conditions
Via our uniquely designed chipset, control elements of your display remotely with Philips Wave – designed to support time, energy and cost efficiencies. This special version of Wave allows you to securely access, manage and limit the settings of the display to control volume, brightness, standby and power without the need for an Android SoC.
Bringing a better connected display with Android 14
With the option to add the CRD52 Android OPS player, you will benefit from 8 GB RAM and 64 GB storage, Android 14, UHD output on Displayport, RJ45, USB3 and Micro USB, allowing you to add your chosen applications and solutions, Philips Wave remote display management and more.
| Display | |
| Panel type | ADS |
| Display diagonal | 163.8 cm (64.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/mý |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Display diagonal (metric) | 164 cm |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| OPS module slot | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Performance | |
| Purpose | Transportation |
| Number of OSD languages | 18 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Swedish, Turkish |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 128 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 210 W |
| Energy efficiency class (SDR) | G |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Operating system version | Android 14 |
| Video formats supported | H.264, H.265, MPEG1, MPEG2, WMV3 |
| Audio formats supported | AAC, HEAAC / MPEG, MPEG |
| Image formats supported | BMP, JPEG, PNG |
| Weight & dimensions | |
| Display width | 1462.3 mm |
| Display depth | 89.9 mm |
| Display height | 837.3 mm |
| Display weight | 27.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Warranty period | 3 year(s) |
| Compliance certificates | BSMI, CE, EMF, ETL, Federal Communications Commission (FCC), PSB, VCCI |
| Warranty | |
| Base Warranty | Non Non |
