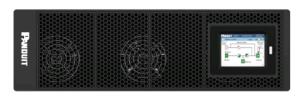

SMARTZONE UPS 20kVA 7U 3U UPS+4U EB Double-Conversion On-Line Power Protection with Intelligent Network Card & Rail Kit

ITCurry #: M0685488 | Article #: U20N32V
Notify
Flash Sale
Search More : UPS
Price:
10966.01 Inc VAT Ex VAT
Shipping:
Out of Stock. Contact Us!
Email us for assistance
Key Specifications
  • Screen
    Memory
    Weight
    Processor
    Hard Disk
    SSD
    Screen
    Resolution
    Connectivity
    Memory
    Case
    OS
    Screen
    Type
    Speed Black
    Speed Colour
    Model
    Processor Speed
    Form Factor
    Internal / External
    Port Count
    Uplink / media
    Mounting
  • View All Specs

Bundles

Inc VAT Ex VAT
Out of Stock. Contact Us!
Inc VAT Ex VAT
Out of Stock. Contact Us!

Inc VAT Ex VAT
Out of Stock. Contact Us!

Inc VAT Ex VAT
Out of Stock. Contact Us!

Related products

Product Information

Features
  • 95.5% efficiency in online mode and 98.5% in Eco mode for energy savings
  • Automatic Voltage Regulation (AVR) and comprehensive protection features
  • Multiple management interfaces including Ethernet, RS-232, and USB
  • 4 hour recharge time for minimal operational downtime
  • Up to 9 minutes of runtime at full load, extending to 18 minutes at half load
Specifications

General

Colour Black
Localisation EMEA
Height (Rack Units) 7U
Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external

Expansion / Connectivity

Expansion Slots 1 (total) / 0 (free) x Intelligent Slot
Interfaces 1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) 1 x management (Ethernet) - RJ-45 1 x sensor - RS-485

Manufacturer Warranty

Service & Support Limited warranty - 3 years Limited warranty - batteries - 2 years

Networking

Remote Management Protocol SNMP 3
Remote Management Interface Ethernet, RS-232, USB

Miscellaneous

Rack Mounting Kit Included
Features Emergency power off, LCD display, overheat protection, internal bypass, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, hot-swappable batteries, low voltage protection, overdischarge protection, double conversion
Compliant Standards UL, RoHS, REACH, EN 62040-1:2008+A1:2013, ISTA 2B, IEC 62040-1:2013, BS 62040-1-2013, IEC 62040-2-2016, EN 62040-2-2018, BS 62040-2-2018, Energy Star 2.0

Software / System Requirements

Software Included SmartZone Cloud, SmartZone mPower

Environmental Parameters

Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Sound Emission 58 dB
Humidity Range Operating 0 - 95% RH (non-condensing)

Battery

Quantity 40
Technology Lead Acid
Recharge Time 4 hour(s)
Transfer Time 0 ms
Run Time (Up To) 9 min at full load 18 min at half load
Features Maintenance free, valve-regulated
Voltage Provided DC 480 V

Power Device

Power Factor (PF) 1.0
Frequency Provided 50/60 Hz
Input Voltage AC 220/230/240 V
Output Waveform Sinewave
UPS Technology On-line
Dataline Surge Protection Network - RJ-45
Frequency Required 40 - 70 Hz
Input Wiring 3-phase
Output Voltage AC 220/230/240 V 50/60 Hz
Power Capacity 20000 Watt / 20000 VA
Input Connectors 1 x hardwire 5-wire (3PH + N + PE)
Input Voltage Range AC 138 - 485 V / 305 - 485 V
Efficiency 98.5% Eco mode, 95.5% online mode
Power Output Connectors Details 1 x hardwire 5-wire (3PH + N + PE) 1 x hardwire 3-wire (L + N + G)

Dimensions & Weight

Weight 180 kg

Dimensions & Weight (Shipping)

Shipping Weight 220 kg

Sustainability Information

ENERGY STAR Yes
Base Warranty Non Non
