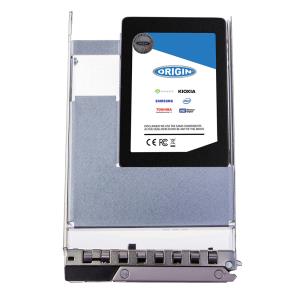

Hard Drive SATA 1.92TB Enterprise SSD Emlc 2.5in Mixed Work Load 6gbit/s
ITCurry #: 97769587 | Article #: IBM-1920EMLCMWL-S17-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for Lenovo ThinkServer, ThinkCentre and ThinkPad ranges, covering all their legacy systems right through to the latest modern day technology. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support from our in house engineers. We can supply replacements or upgrades in form factors 2.5" ,3.5", M.2, mSATA and AIC (PCIe) connectivity's including SATA & SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Features | |
Security algorithms | 256-bit AES |
SSD capacity | 1.92 TB |
SSD form factor | 3.5" |
Interface | Serial ATA III |
NVMe | No |
Memory type | eMLC |
Component for | Server/workstation |
Hardware encryption | No |
Data transfer rate | 6 Gbit/s |
Read speed | 550 MB/s |
Write speed | 520 MB/s |
Maximum read (4KB) | 97000 IOPS |
Maximum write (4KB) | 28000 IOPS |
Random read (4KB) | 95000 IOPS |
Random write (4KB) | 28000 IOPS |
Read latency | 110 æs |
Write latency | 110 æs |
S.M.A.R.T. support | Yes |
TRIM support | Yes |
ECC | No |
Hot-swap | Yes |
End-to-End Data Protection | Yes |
Enhanced Power Loss Data Protection technology | Yes |
Mean time between failures (MTBF) | 2000000 h |
Active garbage collection | Yes |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
TBW rating | 10512 |
Power | |
Power consumption (average) | 3 W |
Weight & dimensions | |
Width | 69.8 mm |
Depth | 100.5 mm |
Height | 7 mm |
Weight | 54.3 g |
Packaging data | |
Storage drive adapter included | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 øC |
Storage temperature (T-T) | -40 - 85 øC |
Operating vibration | 2.17 G |
Non-operating vibration | 2.17 G |
Operating shock | 1500 G |
Non-operating shock | 1500 G |
Other features | |
Compliance certificates | RoHS |
Compatible products | IBM Server |
Logistics data | |
Harmonized System (HS) code | 84717070 |
Warranty | |
Base Warranty | Non Non |
