Origin Storage offers a wide range of docking station solutions and that portfolio is still growing fast in order to continue to provide a solution for every situation. With the advancements in technology enabling more and more people to work from home or anywhere with internet connectivity its more important than ever they can achieve this seamlessly. With Origin's range of docking solutions we can cater for USB 3.0, USB-C and the latest Thunderbolt technology with single, dual and even triple display solutions available.

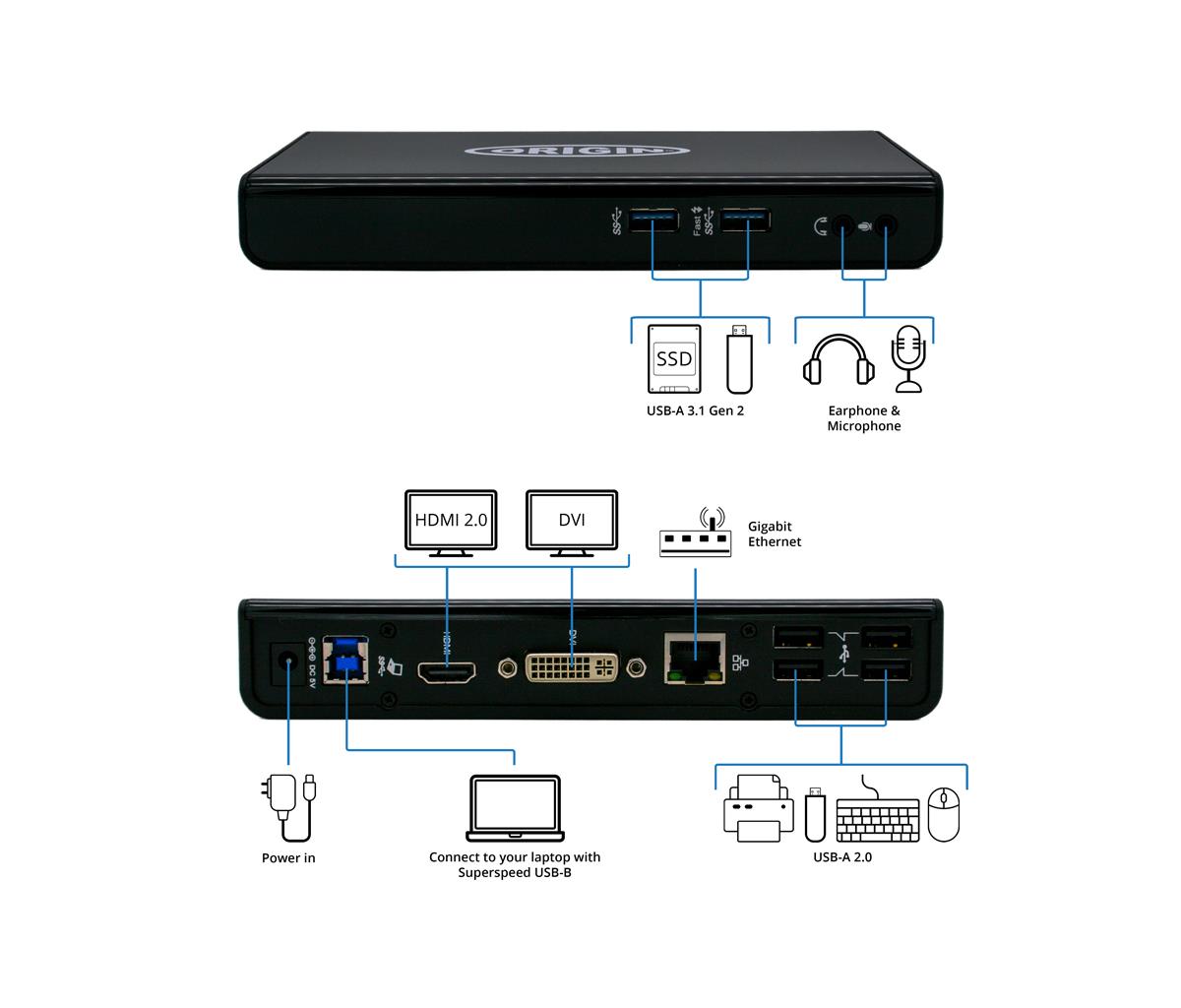

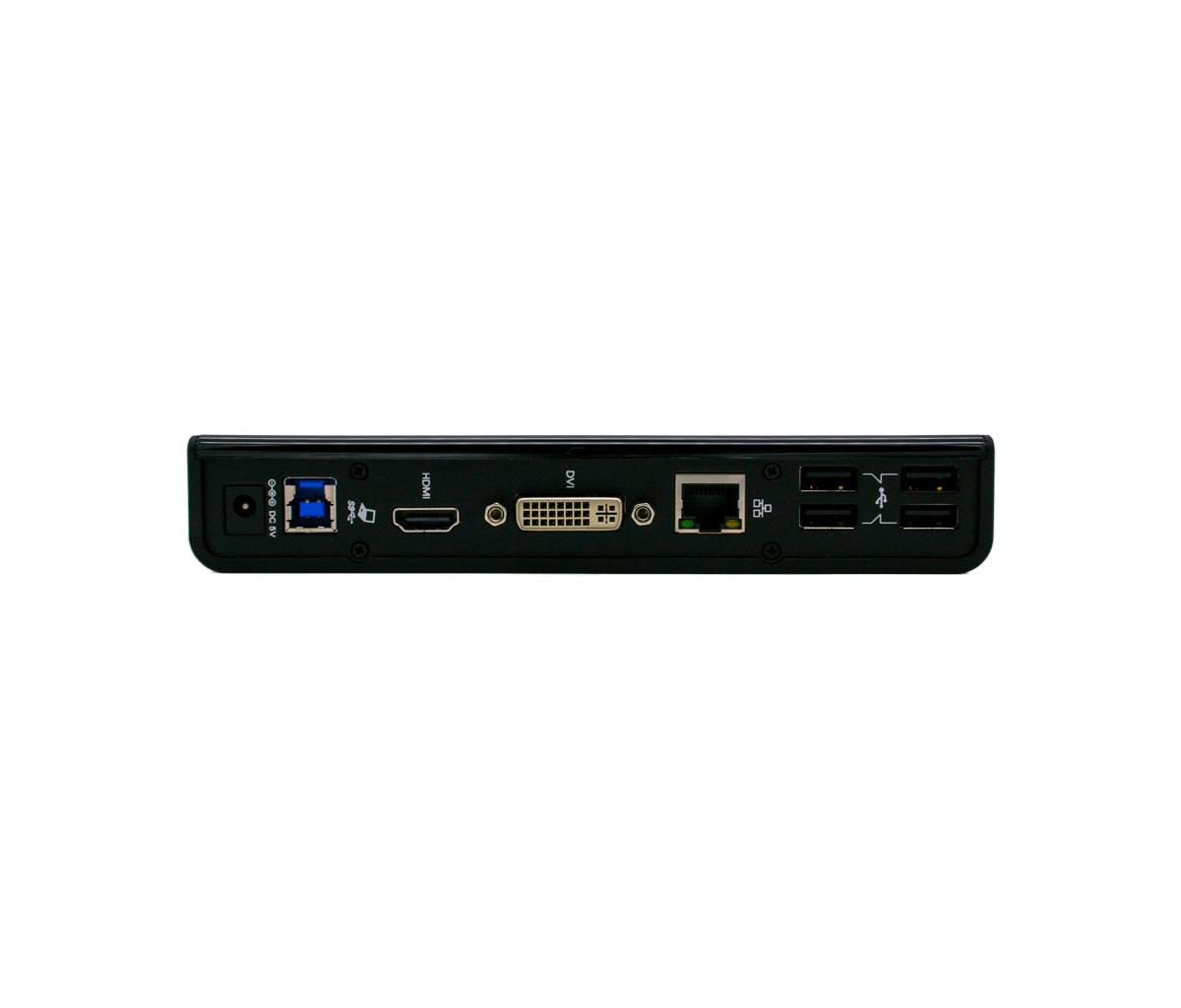

Ports & interfaces | |
Connectivity technology | Docking |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
USB 2.0 ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
USB Power Delivery | No |
HDMI ports quantity | 1 |
DVI-I ports quantity | 1 |
Microphone in | Yes |
Headphone outputs | 1 |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
10G support | No |
Performance | |
Card reader integrated | No |
Product colour | Black |
Housing material | Plastic |
Brand compatibility | Any brand |
Certification | CE, FCC |
Power | |
Power source type | DC |
AC input voltage | 100-240 V |
AC input frequency | 50 - 60 Hz |
Input current | 0.8 A |
Output voltage | 5 V |
Output current | 4 A |
Power consumption (max) | 14.43 W |
Warranty | |
Base Warranty | Non Non |
Weight & dimensions | |
Width | 180 mm |
Depth | 80 mm |
Height (front) | 2 cm |
Height (rear) | 3 cm |
Packaging data | |
Quantity per pack | 1 pc(s) |
Package width | 215 mm |
Package depth | 115 mm |
Package height | 127 mm |
Package weight | 770 g |
Packaging content | |
AC adapter included | Yes |
Quick start guide | Yes |
Drivers included | Yes |
Anti-slip pads | Yes |
Stand included | Yes |
Technical details | |
Compliance certificates | RoHS |
Logistics data | |
Harmonized System (HS) code | 84733020 |
